Acrel PZ72-DE/F Multiple Rate dc Energy Meter for Solar System Socket Installation Energy Consumption for Storage System
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Multiple Rate DC Energy Meter for Solar PV Multi Function Smart Meter Din Rail TARIFF 4 Time of Use Solar Panel or Charging PileNegotiableMOQ: 1 -
Energy Meter Rs485 Communication PZ72-DE/C dc Energy Meter for Solar System Wattmeter dcNegotiableMOQ: 1
-
Generation Meter for Solar pv Two-way Measurement PZ72L-DENegotiableMOQ: 1
-
PZ72-DE dc Energy Meter for Solar System Charging Pile DC Multi-function MeterNegotiableMOQ: 1
-
DC Energy Meter Multi Function Smart Meter Din Rail TARIFF 4 Time of Use Solar Panel or Charging PileNegotiableMOQ: 1
Product Description
Solutions & Applications
Power Consumption Monitoring System (Contact me for Clear View！)
IoT EMS Platform
IoT EMS APP
Products Description

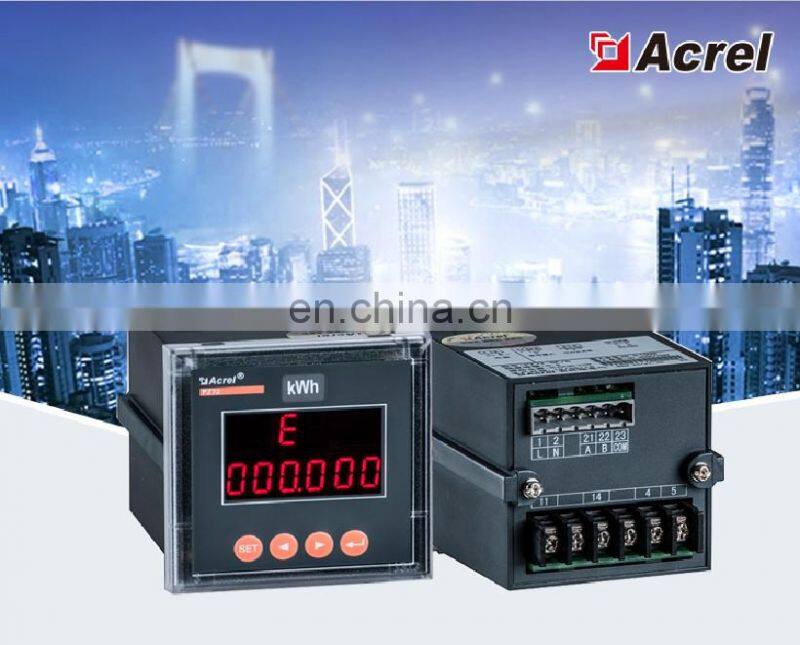

PZ72-DE DC Multifunction Power Meter LED Display
PZ series intelligent DC energy meter is designed for applications such as DC panels, solar power,
telecommunications base stations, and charging posts. This series of instruments can measure voltage, current, power,
forward and reverse power in DC system. It can be used for local display, and connected with industrial control
equipment, computers, form a measurement and control system. And it has a variety of external excuse functions for
the user to choose: RS485 communication interface, Modbus-RTU protocol, relay alarm output, digital input/output.
According to different requirements, through the instrument panel keys, you can set the ratio, communication
parameters.
The product meets the relevant technical requirements of the standard Q/GDW1825-2013 DC power meter
specification，GB/T29318-2012 Non-vehicle charging electric energy metering for electric vehicles，
Q/GDW364-2009 Single-phase energy meter specification.
telecommunications base stations, and charging posts. This series of instruments can measure voltage, current, power,
forward and reverse power in DC system. It can be used for local display, and connected with industrial control
equipment, computers, form a measurement and control system. And it has a variety of external excuse functions for
the user to choose: RS485 communication interface, Modbus-RTU protocol, relay alarm output, digital input/output.
According to different requirements, through the instrument panel keys, you can set the ratio, communication
parameters.
The product meets the relevant technical requirements of the standard Q/GDW1825-2013 DC power meter
specification，GB/T29318-2012 Non-vehicle charging electric energy metering for electric vehicles，
Q/GDW364-2009 Single-phase energy meter specification.
Function & Parameter
Dimension & Installation
Company Profile
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
Exhibition
company introduction
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid..
Payment & Delivery
1.Payment: T/T 100% in advance, credit card, western union, in cash and etc. T/T 30% as deposit and the balance before shipment or against copy of B/L is acceptable with enough MOQ.
2.Delivery Arriving Time: in 3-7 working days after payment received.
3.Ways of Delivery: By sea, air, train or international courier like Fedex, TNT, DHL and UPS.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2017,sell to . There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Energy Meter,Power Transducer,Ammeter,Voltmeter,Temperature Humidity Controller,Ammeter and Voltmeter,Current Transformer,Temperature Monitoring Device,Power Sensor,Multifunction Meter
4. why should you buy from us not from other suppliers?
Acrel E-Business Co., Ltd is one of the few leading companies in China who provides various systemic solutions of power monitoring,power controland eletrical safety for smart grid users.we have been focused on the sales of intelligent electric meters.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Shanghai, China, start from 2017,sell to . There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Energy Meter,Power Transducer,Ammeter,Voltmeter,Temperature Humidity Controller,Ammeter and Voltmeter,Current Transformer,Temperature Monitoring Device,Power Sensor,Multifunction Meter
4. why should you buy from us not from other suppliers?
Acrel E-Business Co., Ltd is one of the few leading companies in China who provides various systemic solutions of power monitoring,power controland eletrical safety for smart grid users.we have been focused on the sales of intelligent electric meters.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
