Home > Products > DC current/voltage/power/energy meter > Multi Tariff Energies Optional Acrel PZ72L-DE LCD Display Energy Smart Meter for Solar Energy Metering System

Multi Tariff Energies Optional Acrel PZ72L-DE LCD Display Energy Smart Meter for Solar Energy Metering System

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

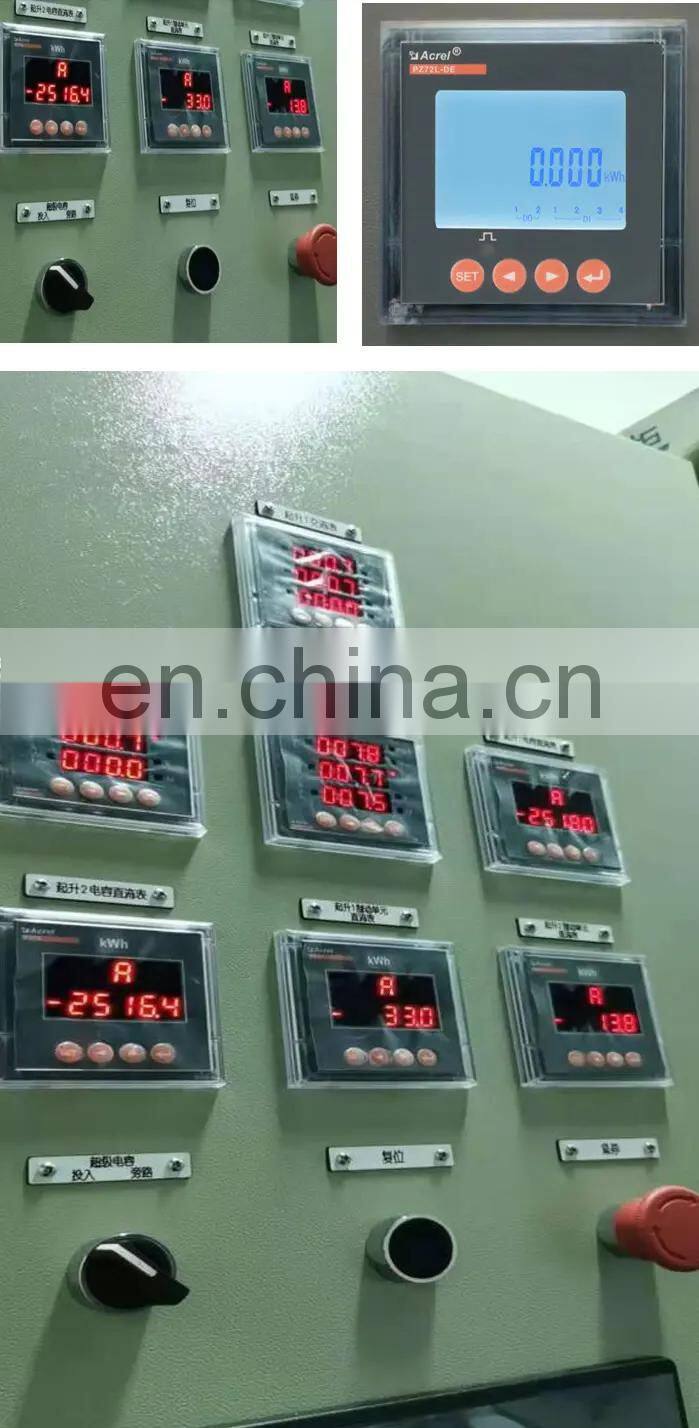

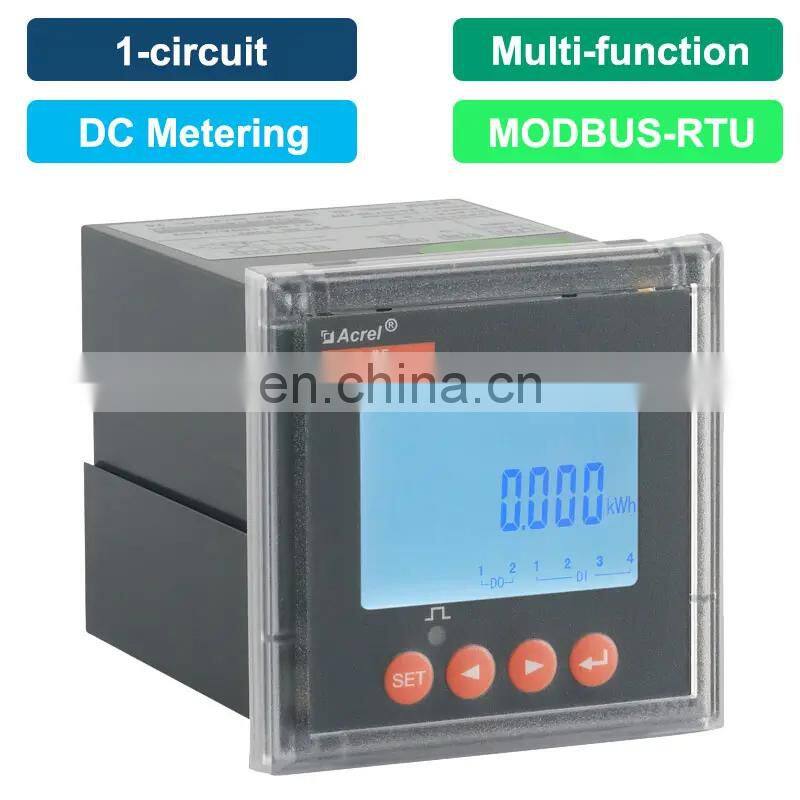

DC Multi-function Energy Meter PZ72L-DE

PZ series intelligent DC energy meter is designed for applications such as DC panels, solar power,telecommunications base stations, and charging posts. This series of instruments can measure voltage, current, power,forward and reverse power in DC system. It can be used for local display, and connected with industrial control equipment, computers, form a measurement and control system. And it has a variety of external excuse functions for the user to choose: RS485 communication interface, Modbus-RTU protocol, relay alarm output, digital input/output.According to different requirements, through the instrument panel keys, you can set the ratio, communication parameters. The product meets the relevant technical requirements of the standard Q/GDW1825-2013 DC power meter specification，GB/T29318-2012 Non-vehicle charging electric energy metering for electric vehicles，Q/GDW364-2009 Single-phase energy meter specification.

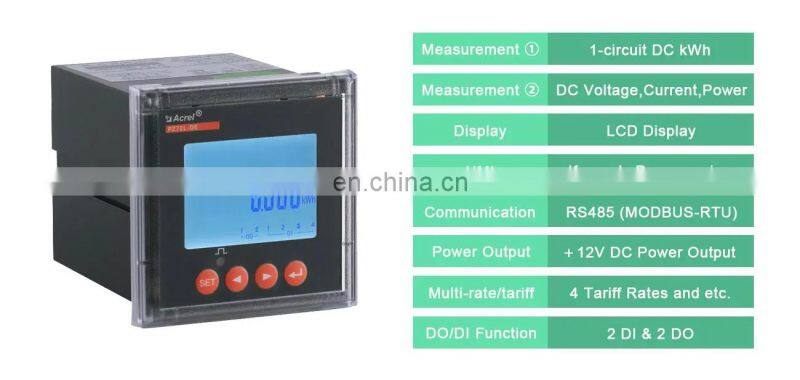

Products Description

Type	Function	Optional
PZ72L-DE	● Measurement: 1-circuit DC kWh, kVarh, U, I, P and etc ● Accuracy: 0.5% ● Rated Voltage: 1000V DC ● Rated Current: 10A DC (direct connect); 0/4~20mA DC (via Hall Sensor); 75mV (via Shunts) ● Power Supply: 85~265V AC/DC; 20~60V DC ● Standard&Certificate: CE Certificates ●Local display ●Measure voltage, current, power, forward and reverse power in DC system ●Set parameters ●Applications:DC panels, solar power, telecommunications base stations, and charging posts	● Communication: RS485 (MODBUS-RTU) ● DI/DO Function: 2/4-channel DI&2-channel DO ● ±12V Power Ouput: Paired with Hall Sensor ● Multi-rate/tariff:4 Tariff Rates and etc ●Relay alarm output

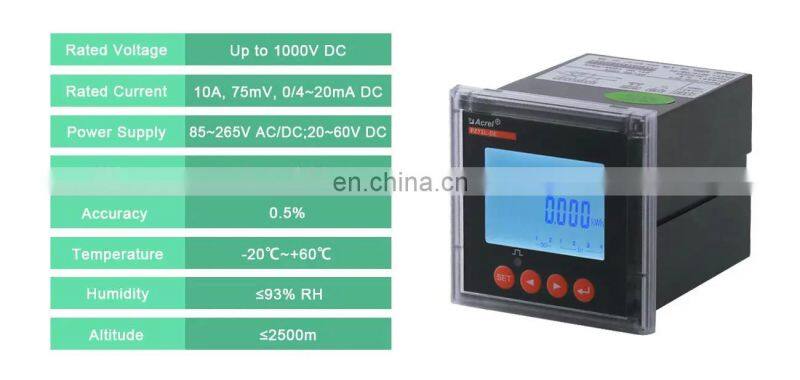

Main Parameters

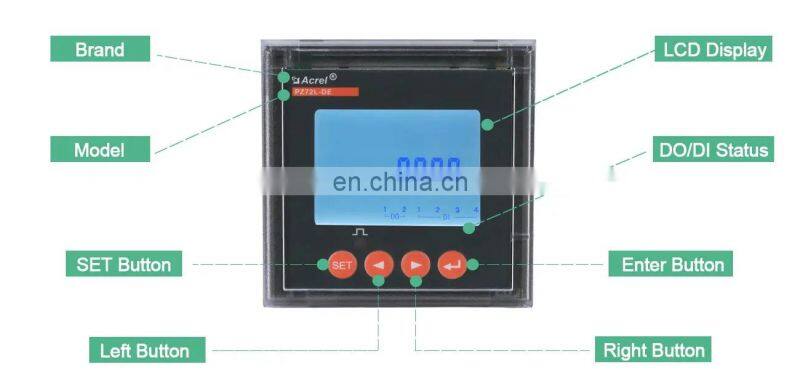

Main Functions

Technical Parameter

1. Function Overview

Function	Description&Value
Measurement	1-circuits DC Voltage, Current, Power, kWh
Display	LCD display
Communication (Optional)	RS485,Modbus-RTU protocol;(1 start bit,8 data bit,1 stop bit,no parity) Baud Rate 1200~38400 bps etc.
DI/DO Switching (Optional)	DI (Digital input): 2-channel digital input,dry contact, built-in power supply DO (Digital output): 2-channel digital output (relay output) with NO Contact, Capacity: 2A/30V DC or 2A/250V AC
±12V Power Output (Optional)	Serve as the power supply for 1 Hall Sensors with ±12V DC
Multi-rate/tariff (Optional)	2 Time Schedules; 4 Time Zone for a year; 12 time periods by days set for 1 time schedule; 4 Tariff Rates (Spike, Peak, Flat, Valley); Min. Time Interval=15 min.

2. Main Parameters

Parameter	Description&Value
Input	Rated Voltage	DC Voltage Input: 0~1000V DC (via direct connetion); Input Resistance: ≥ 6kΩ/V
		Rated Current	DC Current Input: 10A DC (via direct Connection); 0~20mA or 4~20mA (via Hall Sensors); 75mV (via Shunts)
		Overload	Current&Voltage input overload:1.2 times rated value(continuous); 10 times rated value /1 second
		Power Consumption	Power consumption of each current input circuit is less than 1mW
Measuring Accuracy	Class	0.5%
Power Supply	Voltage Range	85-265V AC/DC; 20~60V DC (±20%)
Power Supply		Power Consumption	≤ 2W
Pulse Constant			Voltage and current specifications：750V、300A，Default pulse constant：100imp/kWh
Pulse Constant				Voltage and current specifications：1000V、300A，Default pulse constant：100imp/kWh
Insulation resistance			≥ 100MΩ
Power frequency withstand voltage			Between Power supply//Switching Output// Current Input//voltage Input and Transmitting// Communication //Pulse Output//switching input AC 2 kV 1min; Between Power supply、switching output、Current Input、voltage Input AC 2 kV 1min; Between Transmitting、Communication、Pulse Output、switching input AC 1kV 1 min;

3. Environment

Condition	Description&Value
Temperature	Operation: -25℃～+65℃; Storage: -40°C ~+80°C
Humidity	≤95%RH,no condensation,without corrosive gas
Altitude	≤ 2500m

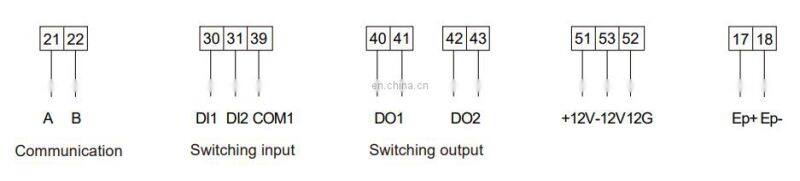

Wiring Illustration

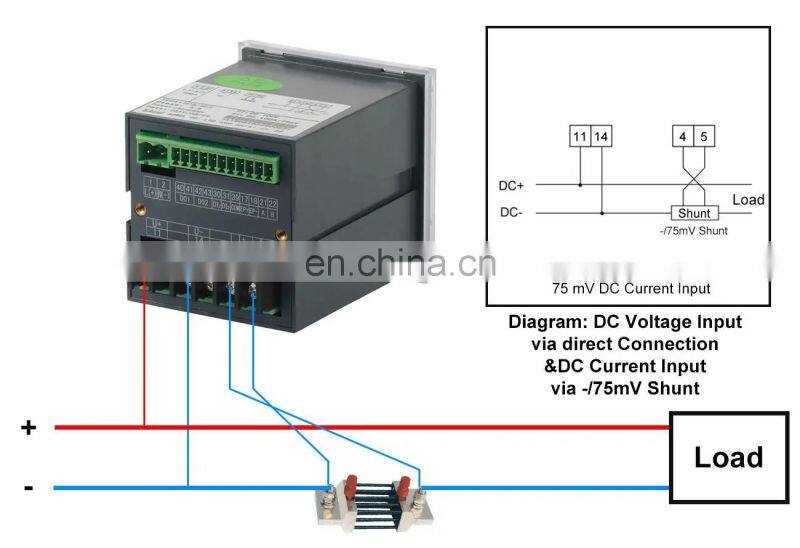

DC Voltage Signal (1000V DC) Input via direct Connection & DC Current Signal (75mV DC) input via -/75mV Shunts

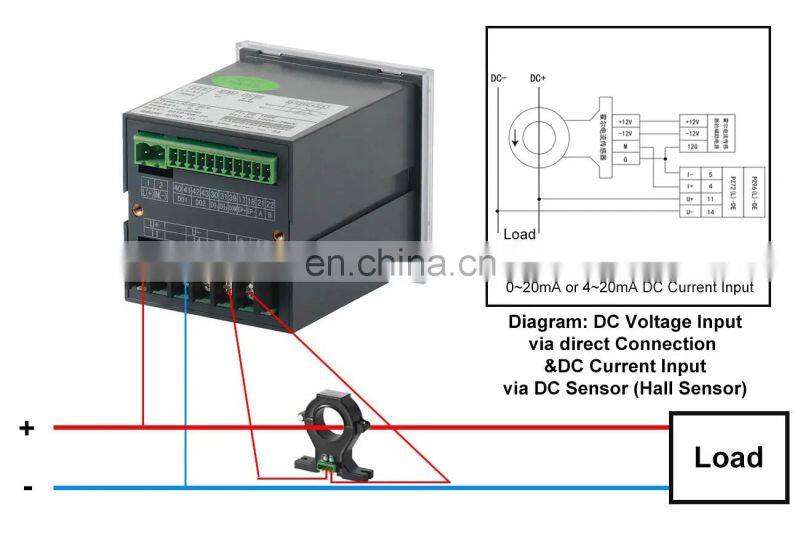

DC Voltage Signal (1000V DC) Input via direct Connection & DC Current Signal (0~20mA or 4~20mA DC) input via Hall Sensors

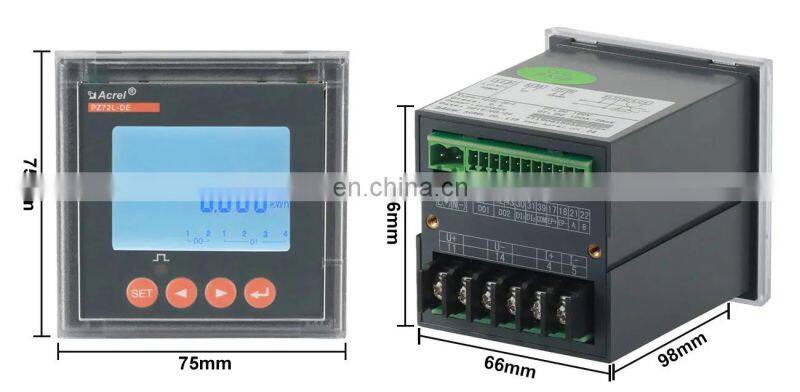

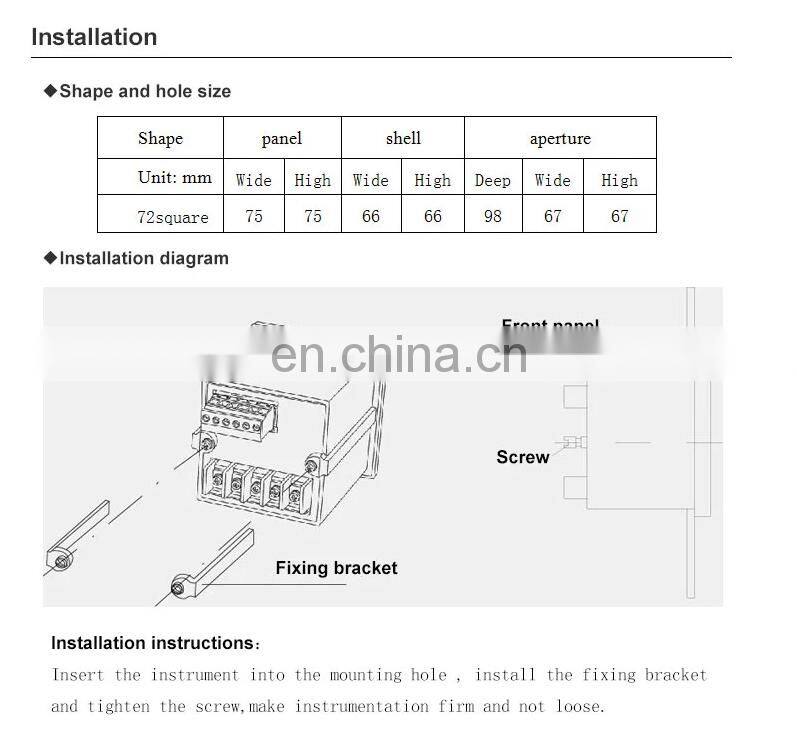

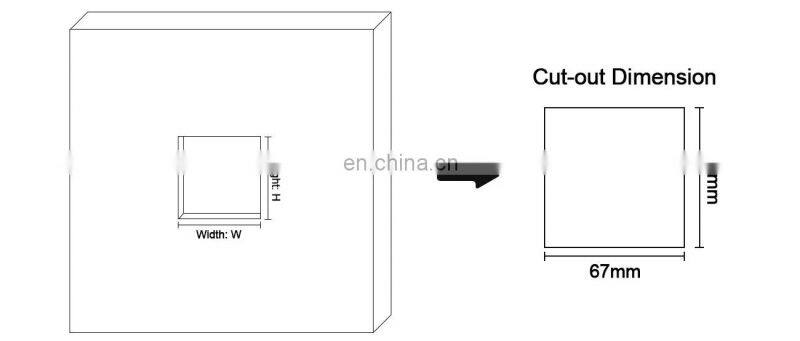

Dimension & Installation

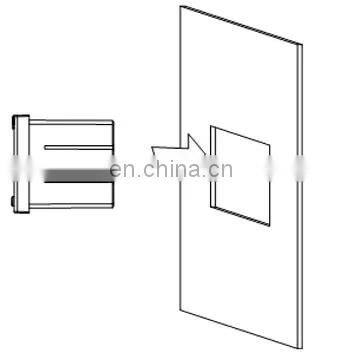

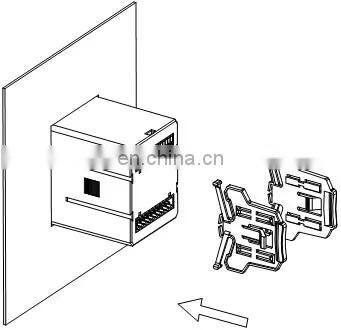

1. Cut out a hole on the object on where we will intall the meter according to dimension of meter referred above.
2. Remove the buckle on the meter off.

3. Install the meter into the cut-out hole.
4. Buckle up and fixed the meter.

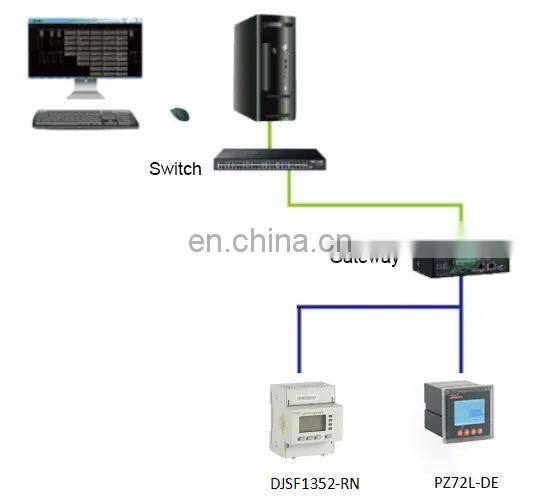

Solution Structure

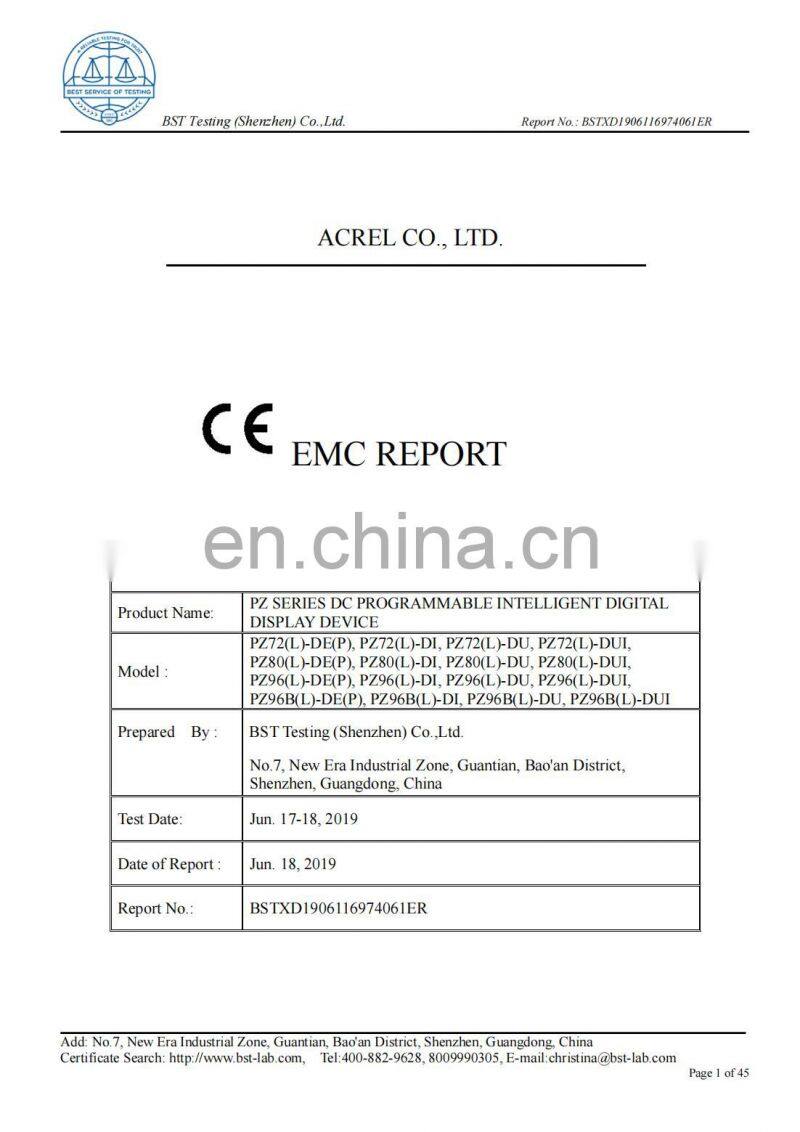

Certification
