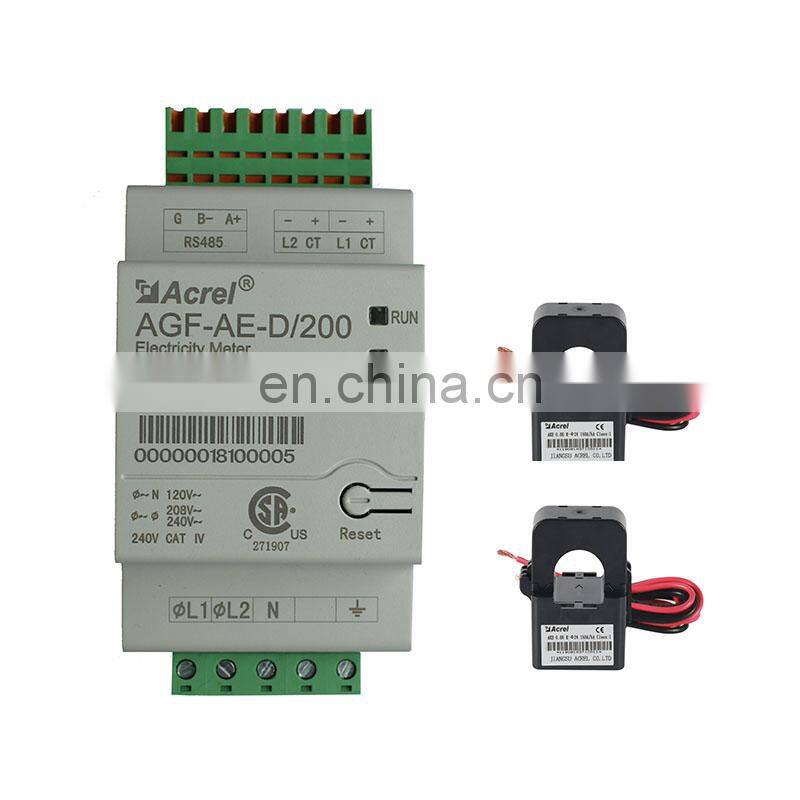

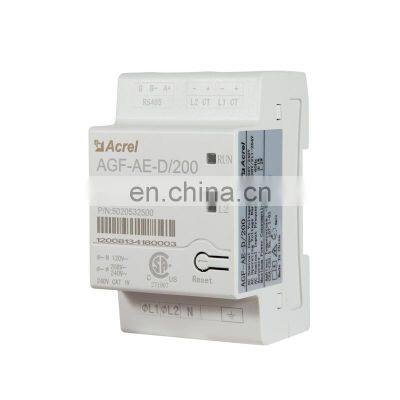

Photovoltaic Power Counter-current Protection PV/solar Inverter Energy Meter AGF-AE-D/200 200A ul Certificate
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Home Energy Storage AC Meter Rail Installation PV/solar Inverter Energy Meter Cost Reducing AGF-AE-D/200 120V 200A
-
Rail Installation PV/solar Inverter Energy Meter AGF-AE-D/200 120V 200A
-
Smart Meters to Monitor Three Phase Loads in a Commercial Building ADW300 Energy Meter Wireless IoT Energy Meter
-
IOT Wireless Power Meter ADW300/4GHW RS485 Modbus-RTU Din Rail Powered Metered Watt Watt Dural Tariff
-
LCD Display RS485 Interface Supports MODBUS Digital Energy Volt Meter Voltage Meter Price
-
0.5 Accuracy Volt Power Meter Digital Voltmeter RS485 Interface Supports MODBUS
Product Description
Specification
item | value |
Place of Origin | China |
Jiangsu | |
Brand Name | acrel |
Model Number | AGF-AE-D/200 |
Phase | Single Phase |
Measuring Energy Range | 0-999kwh |
Accuracy Class | 1.0 |
Output Voltage | 120V |
Operating Temperature | -30-70℃ |
Dimensions | 54.1*87.8*52 |
PV Dedicated Two Channels AC Power Meter
Product Description

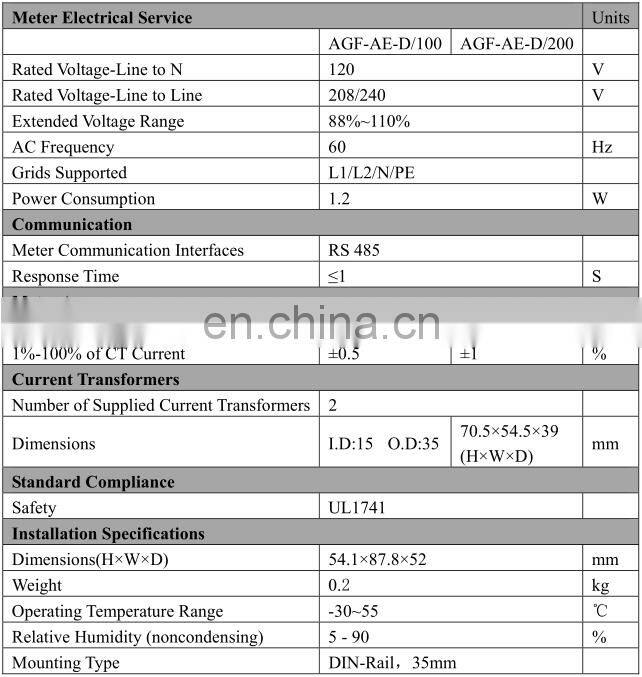

Specification
* Single phase 2 channel 3 wire
* Rated voltage AC 120V/208V,240V(88%~110%)*Rated current:AC 200A
* Rated frequency:60HZ
* Communication:RS485,SunSpec protocol
* UL1741 installed in the output of inverters,converters,controllers and interconnection system equipment for use with distributed energy resources.
* Rated voltage AC 120V/208V,240V(88%~110%)*Rated current:AC 200A
* Rated frequency:60HZ
* Communication:RS485,SunSpec protocol
* UL1741 installed in the output of inverters,converters,controllers and interconnection system equipment for use with distributed energy resources.

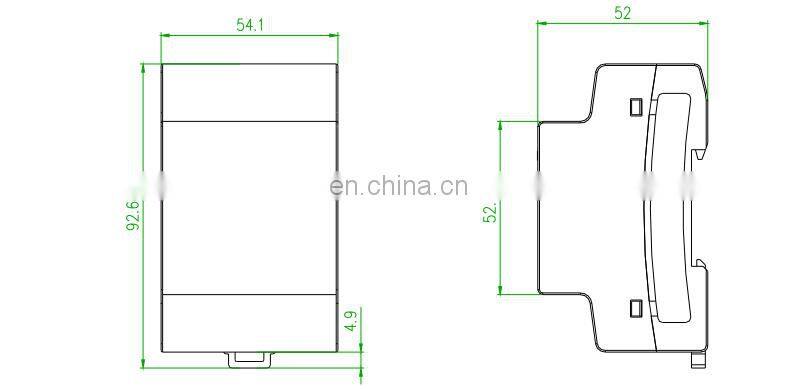

Meter Dimensions

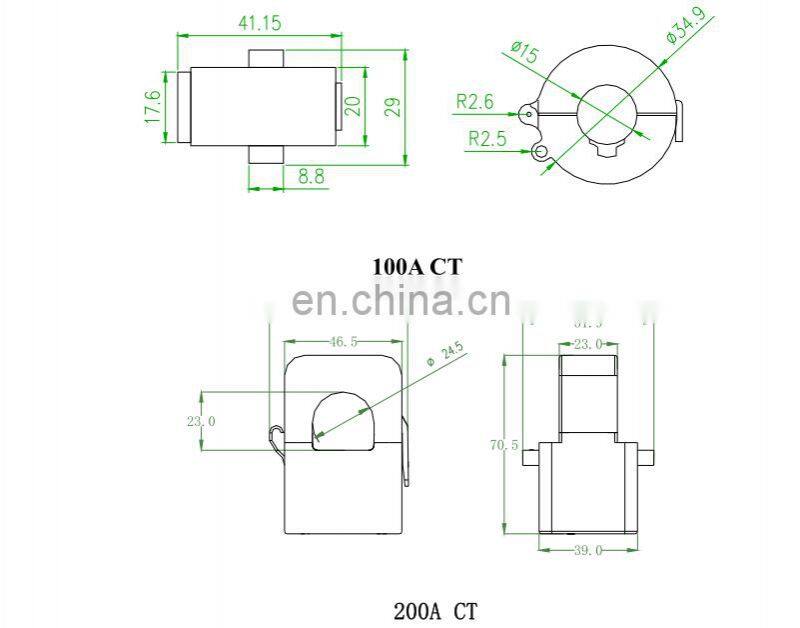

Current Transformers Dimensions

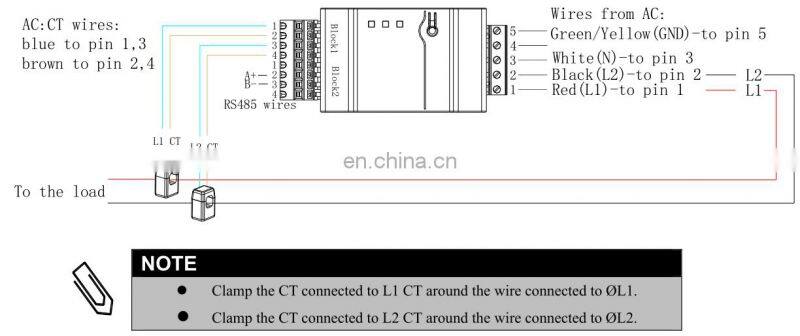

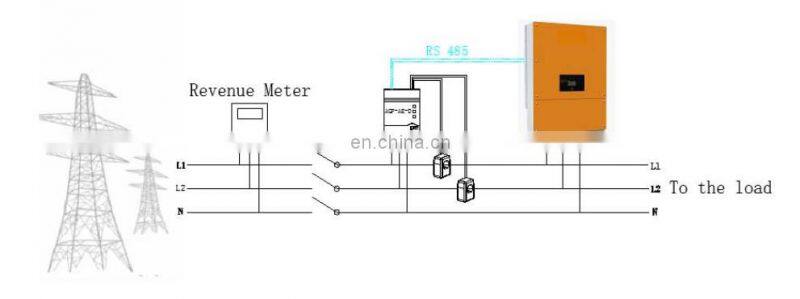

Wiring

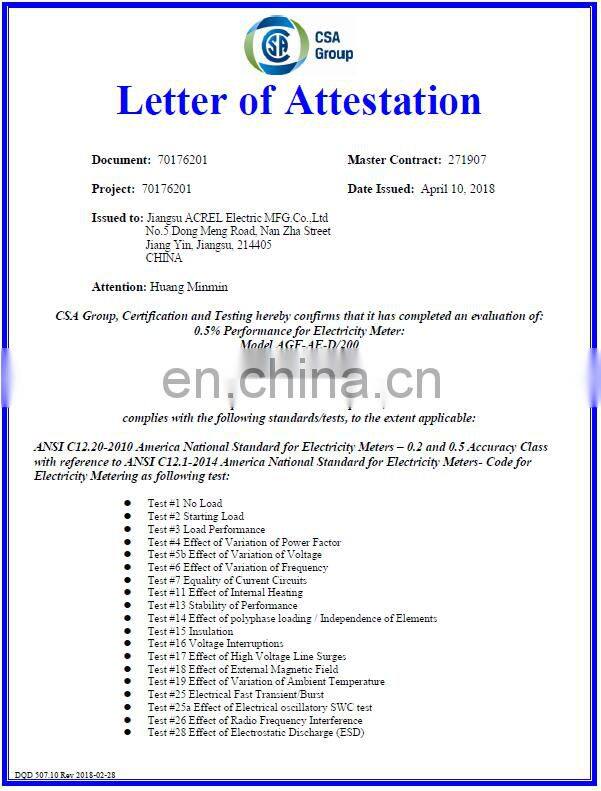

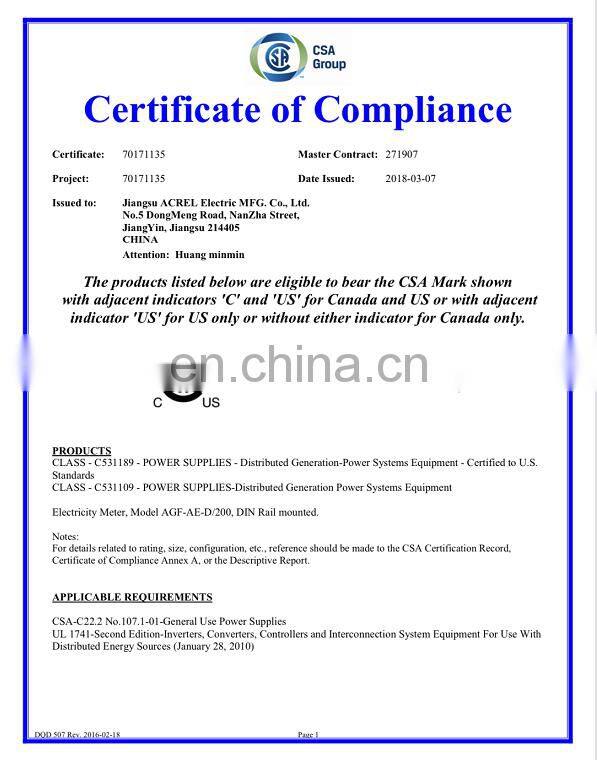

Certificate
