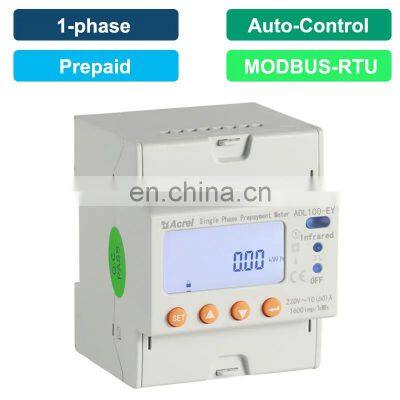

Single-phase Prepayment Energy Meter ADL100-EY
Product Description
ADL100-EY single phase pre-paid meters with intro-control, ADL300-EY three phase pre-paid meters with intro-control are used for calculating the single and three phase active energy respectively on the frequency of 50/60 Hz The meter has functions of pre-paid, load controlling and RS485 communication etc. meet the related technical requirements of electronic power meter in the IEC62053-21, IEC62053-22 standards.
● Application: Prepaid&Postpaid
● Measurement: 1-phase kWh (Class 1), kVarh, Active Power, Reactive Power, Current, Voltage ● Rated Voltage: 220~264V AC & 45~65Hz
● Rated Current: 10(60)A direct connection
● Communication: RS485 Modbus, Infrared
● Multi-rate&Multi-tariff: 4 Tariff Rates (Spike, Peak, Valley and Flat kWh Unit Price)
● Display: LCD (8 digits)
● Installtion: 35mm DIN Rail
● Standard&Certificate: CE
Specification
Parameter |
Description&Value |
||
Measurement |
kWh&kVarh |
Total active kWh (bidirectional --positive and negative in total) |
|
Electrical Paratmeters |
U (Voltage), I (Current), P (Active Power), Q (Reactive Power),S (Apparent Power), PF (Power Factor), F (Frequency) |
||
Function Mode |
Prepaid Mode |
Meter will shut down the power once the credit balance is below zero. (Data like credit balance is saved in the meter) |
|
Postpaid Mode |
Meter won't shut down the power once credit balance is below zero. (Can remotely control the meter to shut down the power by using Prepaid System) |
||
Mode Change |
Meter can change the mode between prepaid and postpaid by receiving the command from prepaid system |
||
Control |
Auto-tripping Control |
Auto-tripping control is processed by the built-in high-capacity holding relay of the meters to realized on-off control of circuits breaker, also, this type of control will only be triggerred when meter is in Prepaid Mode |
|
Remote Control |
Remote control will be command by prepaid system. When users give a command of switch on-off to a certain meter, this command will be send to meters through wireless communication and finally meter will shut down or recover the power after receiving the command. This type of control can be done when meter is in Postpaid Mode |
||
Multi-rate Multi-Tariff |
Optional Function |
4 tariff rates (spike, peak, valley, flat); 14 time intervals by day |
|
Input Voltage |
Rated Voltage |
220~264Vac L-N (Voltage signal input will be also served as power supply for meters) |
|
Frequency |
45~65Hz |
||
Input Current |
Rated Current |
10(60)A AC (via direct connect) |
|
Starting Current |
0.004 Ib |
||
Accuracy |
Measurement |
Class 1 |
|
Clock |
≤0.5s/d |
||
Pulse |
Pulse Width |
80ms±20ms |
|
Pulse Constant |
1600imp/kWh |
||
Communication |
RS485 Interface |
MODBUS-RTU Protocol |
|
Infrared |
Used for Meter Reading |
||
HMI |
LCD Display |
8 bits section LCD display |
|
Keypads Programming |
Setting of communication, current ratio and etc. |
||
Mechanical Feature |
Out-line Dimension (L*W*H) |
72mm*88mm*70mm |
|
Max Wiring Ability (with Flexible Cable) |
25mm2 |
||
Environment |
Operating Temperature |
-25℃~+55℃ |
|
Storage Temperature |
-40℃~+70℃ |
||
Humidity |
≤95% (No condensation) |
||
Altitude |
＜2000m |
||
Features
Local&Online Topping Up
● Topping up by RFID Card (Local)
● Topping up by Mobile APP (Online)
● Topping up by Prepaid System (Online)
● Low Balance Credit Alarm by sending SMS
● Topping up by Mobile APP (Online)
● Topping up by Prepaid System (Online)
● Low Balance Credit Alarm by sending SMS
Auto&Remote Switch Control
● Meter Supports Prepaid Mode & Postpaid Mode
● Auto Tripping when Balance Credit is below Zero (Prepaid Mode)
● Before Auto Tripping, Power Users can receive Low Balance Alarm by SMS
● Remote Swtich Control by using Prepaid System (Prepaid&Postpaid Mode)
● Prepaid&Postpaid Mode of Meters can be set using Prepaid System
Multi-rate&Multi-tariff
Dimension

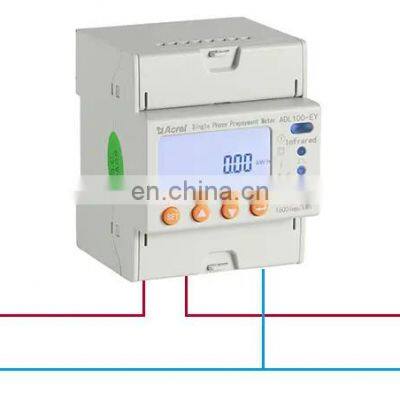

Wiring&Solution Structure
