4 Tariff Rates and Etc Prepaid Energy Smart Meter Class 1 Accuracy
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
8 Digits LCD Display China Prepaid Energy Consumption Meters
-
Din Rail Installed Single Phase Online Smart Electric Prepaid Energy Meter Plastic Enclosure
-
Prepaid Single Phase Online Smart Electric Energy Consumption Meter Price
-
China Prepaid Energy Smart Consumption Meters Rs485 With Free Trial Platform
-
Acrel ADL100-EY Single Phase 230v Energy Consumption Meter Rs485
-
Acrel ADL100-EY Single Phase Online Smart Electric Energy Meter Price
Product Description
Products Description

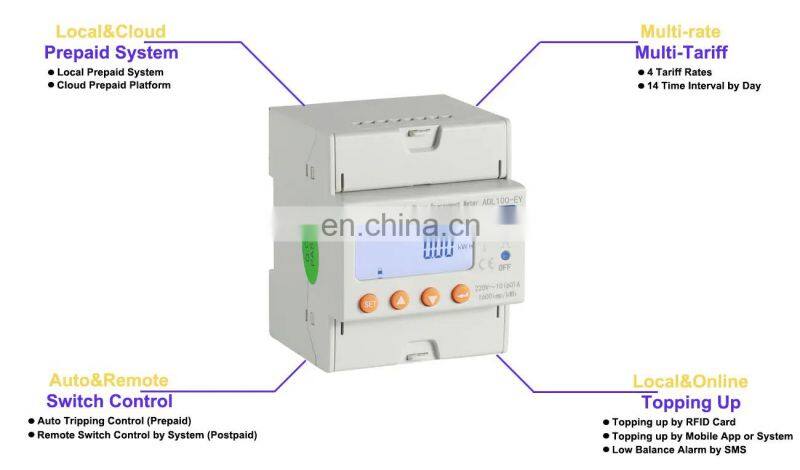

ADL100-EY Single Phase Multi-function Energy Meter
ADL100-EY single phase pre-paid meters with intro-control, ADL300-EY three phase pre-paid meters with intro-control are used for calculating the single and three phase active energy respectively on the frequency of 50/60 Hz.
The meter has functions of pre-paid, load controlling and RS485 communication etc. meet the related technical requirements of electronic power meter in the IEC62053-21 IEC62053-22 standards.
The meter has functions of pre-paid, load controlling and RS485 communication etc. meet the related technical requirements of electronic power meter in the IEC62053-21 IEC62053-22 standards.
Features

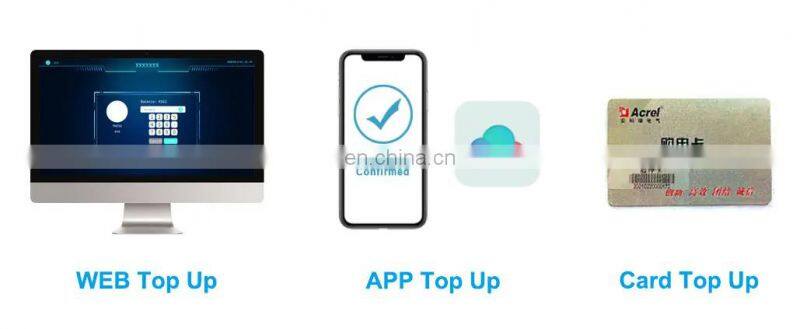

Local&Online Topping Up
● Topping up by RFID Card (Local)
● Topping up by Mobile APP (Online)
● Topping up by Prepaid System (Online)
● Low Balance Credit Alarm by sending SMS
● Topping up by RFID Card (Local)
● Topping up by Mobile APP (Online)
● Topping up by Prepaid System (Online)
● Low Balance Credit Alarm by sending SMS

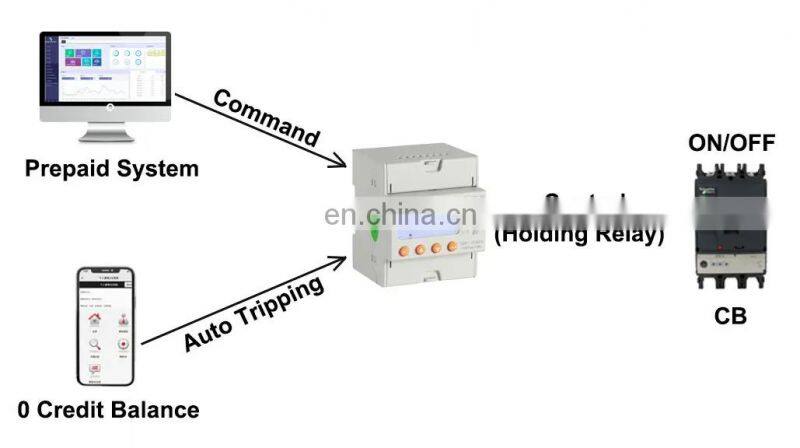

Auto&Remote Switch Control
● Meter Supports Prepaid Mode & Postpaid Mode
● Auto Tripping when Balance Credit is below Zero (Prepaid Mode)
● Before Auto Tripping, Power Users can receive Low Balance Alarm by SMS
● Remote Swtich Control by using Prepaid System (Prepaid&Postpaid Mode)
● Prepaid&Postpaid Mode of Meters can be set using Prepaid System
● Meter Supports Prepaid Mode & Postpaid Mode
● Auto Tripping when Balance Credit is below Zero (Prepaid Mode)
● Before Auto Tripping, Power Users can receive Low Balance Alarm by SMS
● Remote Swtich Control by using Prepaid System (Prepaid&Postpaid Mode)
● Prepaid&Postpaid Mode of Meters can be set using Prepaid System

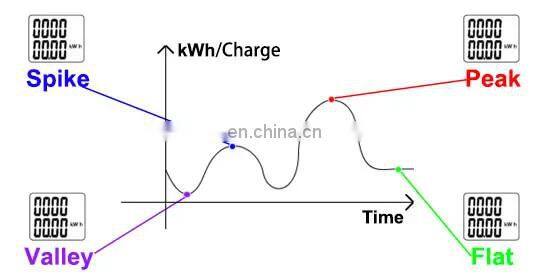

Multi-rate&Multi-tariff
● 4 Tariff Rates (Spike, Peak, Flat, Valley kWh Unit Price)
● 14 Time Intervals by Day
● Set Unit Price of Electricity Consumption for different Time Period of 1 Day
● 4 Tariff Rates (Spike, Peak, Flat, Valley kWh Unit Price)
● 14 Time Intervals by Day
● Set Unit Price of Electricity Consumption for different Time Period of 1 Day
Technical Parameter
Parameter | Description&Value | ||
Measurement | kWh&kVarh | Total active kWh (bidirectional --positive and negative in total) | |
Electrical Paratmeters | U (Voltage), I (Current), P (Active Power), Q (Reactive Power),S (Apparent Power), PF (Power Factor), F (Frequency) | ||
Function Mode | Prepaid Mode | Meter will shut down the power once the credit balance is below zero. (Data like credit balance is saved in the meter) | |
Postpaid Mode | Meter won't shut down the power once credit balance is below zero. (Can remotely control the meter to shut down the power by using Prepaid System) | ||
Mode Change | Meter can change the mode between prepaid and postpaid by receiving the command from prepaid system | ||
Control | Auto-tripping Control | Auto-tripping control is processed by the built-in high-capacity holding relay of the meters to realized on-off control of circuits breaker, also, this type of control will only be triggerred when meter is in Prepaid Mode | |
Remote Control | Remote control will be command by prepaid system. When users give a command of switch on-off to a certain meter, this command will be send to meters through wireless communication and finally meter will shut down or recover the power after receiving the command. This type of control can be done when meter is in Postpaid Mode | ||
Multi-rate Multi-Tariff | Optional Function | 4 tariff rates (spike, peak, valley, flat); 14 time intervals by day | |
Input Voltage | Rated Voltage | 220~264Vac L-N (Voltage signal input will be also served as power supply for meters) | |
Frequency | 45~65Hz | ||
Input Current | Rated Current | 10(60)A AC (via direct connect) | |
Starting Current | 0.004 Ib | ||
Accuracy | Measurement | Class 1 | |
Clock | ≤0.5s/d | ||
Pulse | Pulse Width | 80ms±20ms | |
Pulse Constant | 1600imp/kWh | ||
Communication | RS485 Interface | MODBUS-RTU Protocol | |
Infrared | Used for Meter Reading | ||

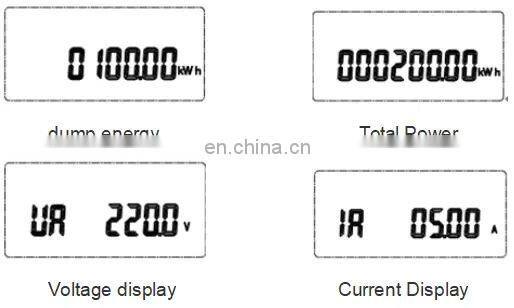

HMI | LCD Display | 8 bits section LCD display | |
Keypads Programming | Setting of communication, current ratio and etc. | ||
Mechanical Feature | Out-line Dimension (L*W*H) | 72mm*88mm*70mm | |
Max Wiring Ability (with Flexible Cable) | 25mm2 | ||
Environment | Operating Temperature | -25℃~+55℃ | |
Storage Temperature | -40℃~+70℃ | ||
Humidity | ≤95% (No condensation) | ||
Altitude | ＜2000m | ||
Wiring&Installation

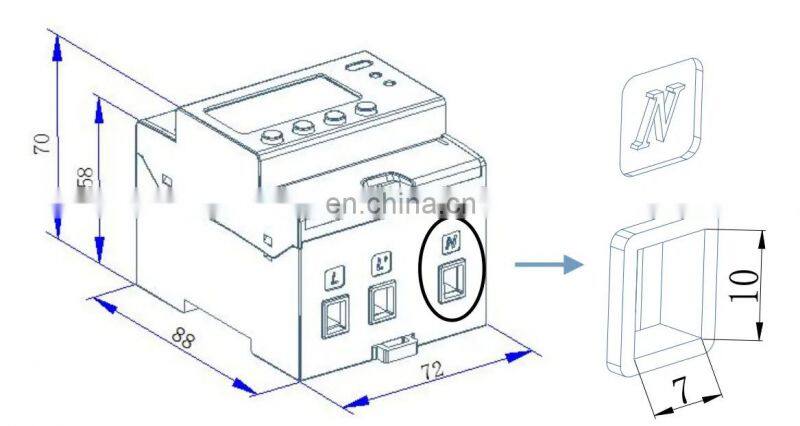

Outline Dimension

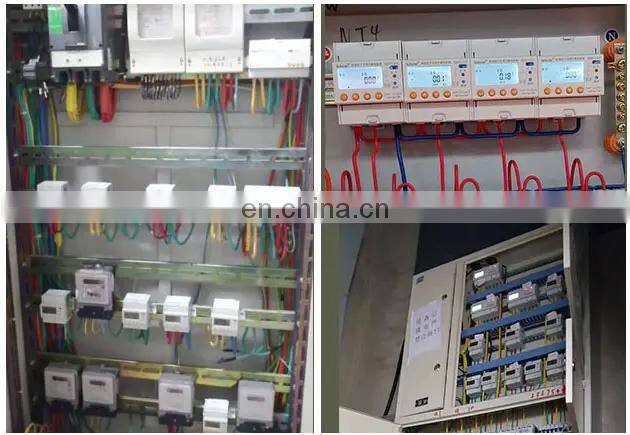

Work-site Installation
Certificate
Application in IoT Solution

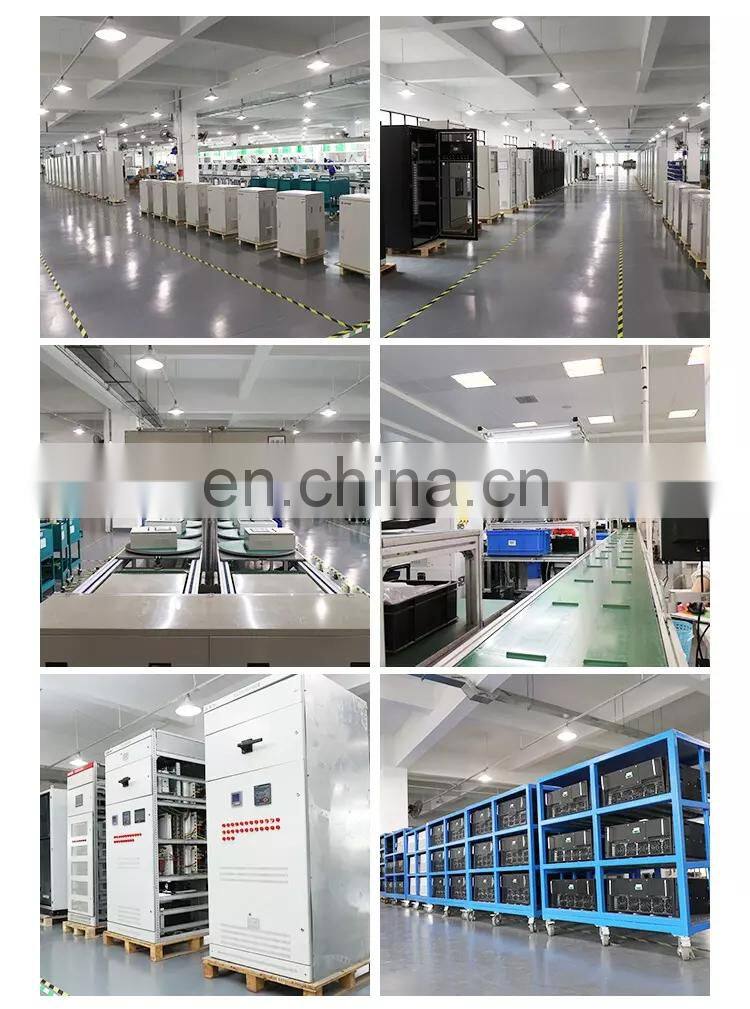

Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Warmly welcome you to visit and investigate our factory.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.
Q: What is your terms of payment ?
Q: What is your terms of payment ?
A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below:
