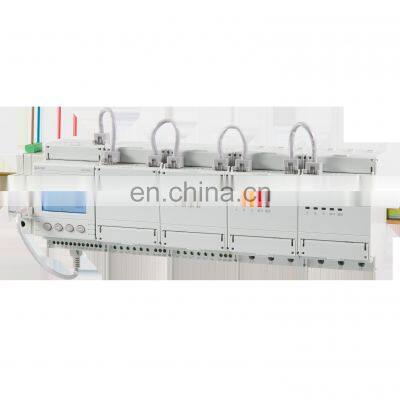

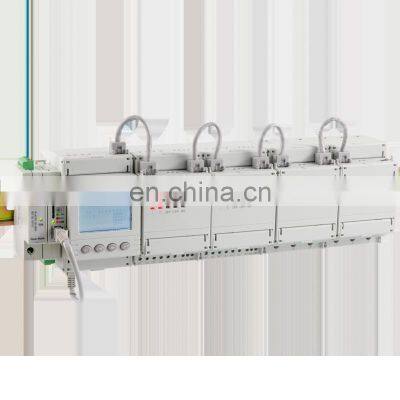

ADF400L-2H3S Multi Circuits Energy Meter access via CT and access directly
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- controlled remotely commercial building single phase prepayment meter inbuilt magnetic latching relay cut-reset
- ADF400L-2H Multi Circuits Energy Meter
- ADL100-EYZ Single Phase Prepaid Meter prepayment meter support cost control realize load power of with circuit breaker
- prepayment meter control remotely single phase prepayment meter support cost control load power of with circuit breaker
- ACREL AMB110 data center Smart Alternating-Current Bus Bar Monitor
- 0.5S total forward and reverse active energy meter AEM96 cut-out 88*88mm panel installation multi-function meter
Product Description

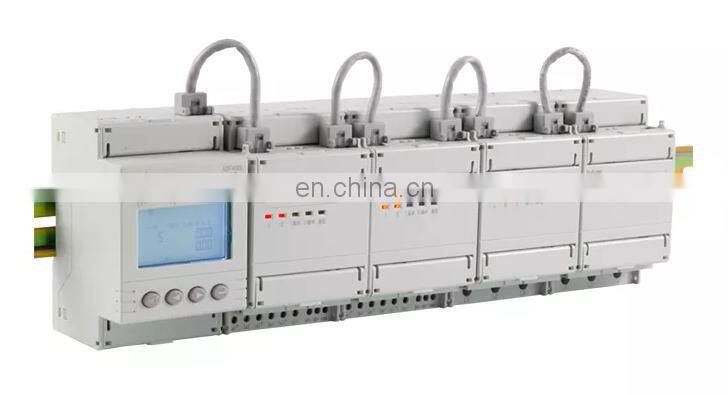

Product Overview
ADF400L series multi-channel energy meter, through the way of combination module can realize largest 36 circuits single-phase or 12 circuits three-phase, CT connect or direct connect. this series of energy meter with highaccuracy, high concentration, centralized management, installation flexibility, the advantages of each other non-interference by the community, schools, enterprises of all areas. The series of meters support prepaid power function.

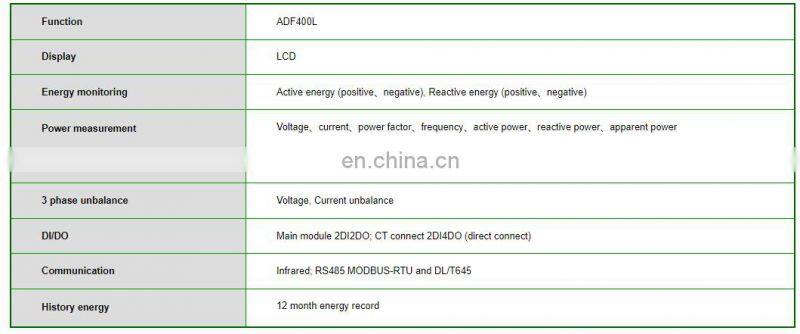

Technical Parameters
Function
Energy Metering
●Total active energy, forward and reverse active energy, multi-rate active energy measurement
Multiple Tariff Rate
●Support 4 time zones, 2 time slots, 14 daily time slots, 4 rates
Multi module extend
●12 three-phase or 36 single-phase direct access measurement
●12 three-phase mutual inductor access measurement
Communication
●Infrared communication, MODBUS-RTU, Modbus-TCP、TCP/IP
●Total active energy, forward and reverse active energy, multi-rate active energy measurement
Multiple Tariff Rate
●Support 4 time zones, 2 time slots, 14 daily time slots, 4 rates
Multi module extend
●12 three-phase or 36 single-phase direct access measurement
●12 three-phase mutual inductor access measurement
Communication
●Infrared communication, MODBUS-RTU, Modbus-TCP、TCP/IP
Installation: DIN 35mm
Dimension(L*W*H)
72*79.5*115 mm
Prepaid Protocol
Cost Control
Switch Relay
Build in Magnetic latching relay
Clock: ≤0.5s/d
Starting Current: 1‰Ib
Dimension(L*W*H)
72*79.5*115 mm
Prepaid Protocol
Cost Control
Switch Relay
Build in Magnetic latching relay
Clock: ≤0.5s/d
Starting Current: 1‰Ib
Main Module |
1. Three-phase 3*220/380V power supply to provide working power for the back-end measurement module; |
2. Man-machine interface: LCD and button programming; |
3. Infrared communication; |
4. RF card swiping (IC function); |
5. 2 Channels RS485 network communication (*C function); |
6. RS485 communication for No. 3 extended wireless module (RJ45 connection mode ); |
7. Up to 2DI/2DO (K function); |
8. Up to 1 Ethernet communication (CE function); |
Transformer Access Measurement Module |
1. Two-way three-phase 3*1 (6) A measurement can be realized; |
2. 2 active energy pulse output; |
3. 2 three-phase working status, pulse and communicationindication; |
4. Up to 4DI/4DO function (K function); |
Direct Access to The Measurement Module |
1. It can realize one-way three-phase 3*10 (80) measurement or three-way single-phase 10 (80) A measurement; |
2.1 active energy pulse output; |
3. Three-phase working status, pulse and communication status LED indication; |

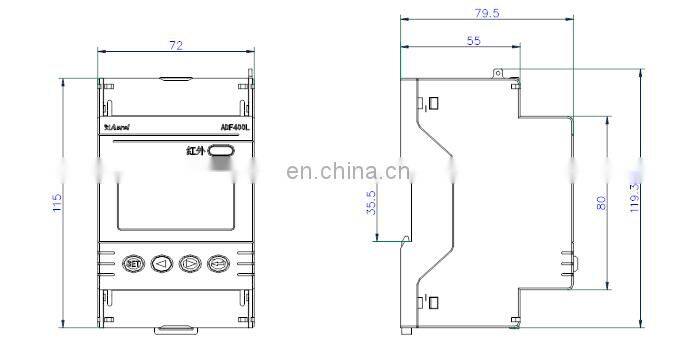

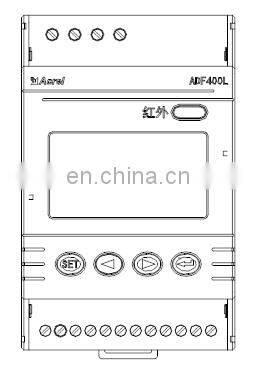

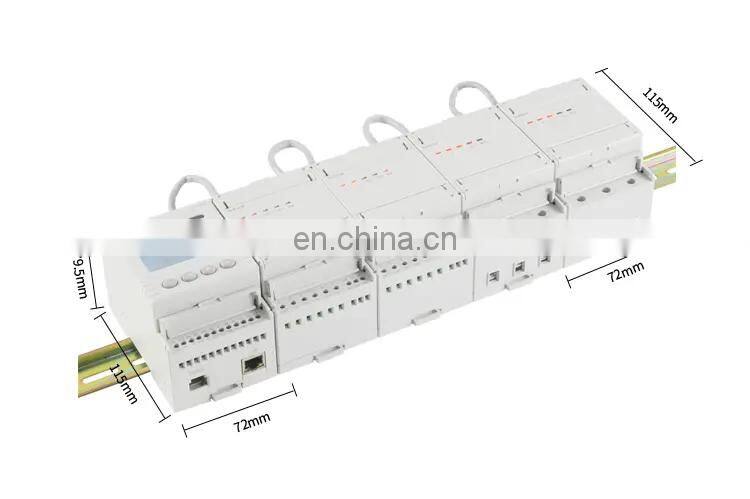

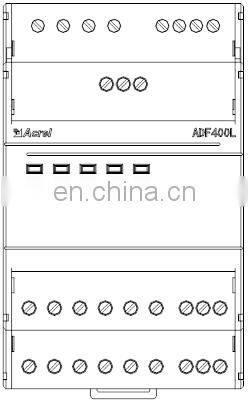

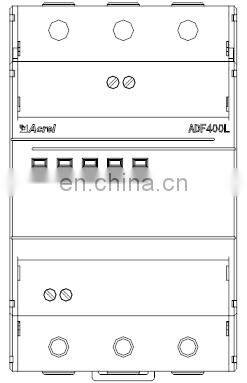

Dimension

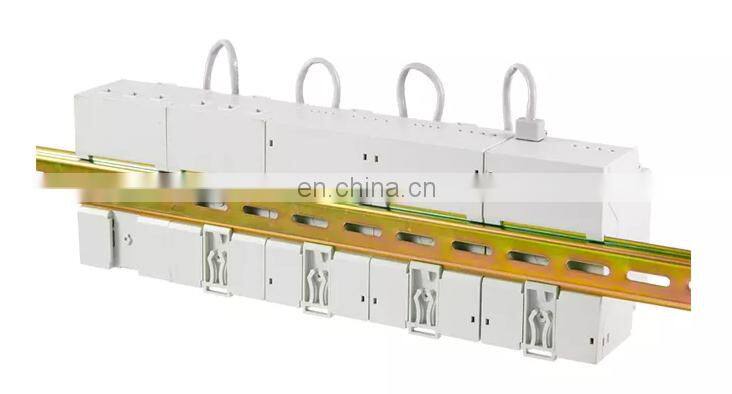

Installation Instructions

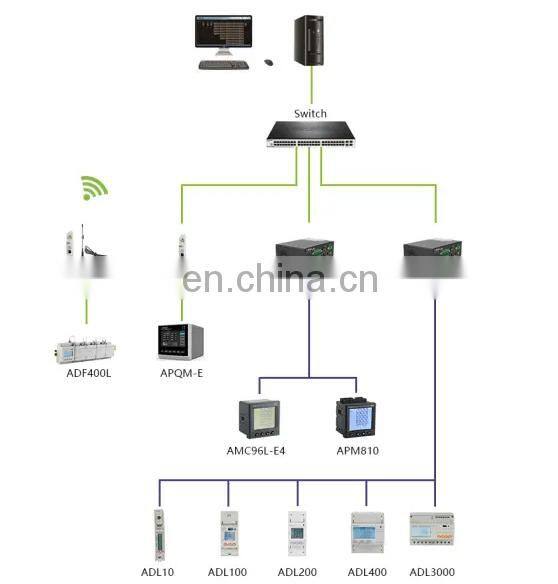

Wiring&Solution Structure

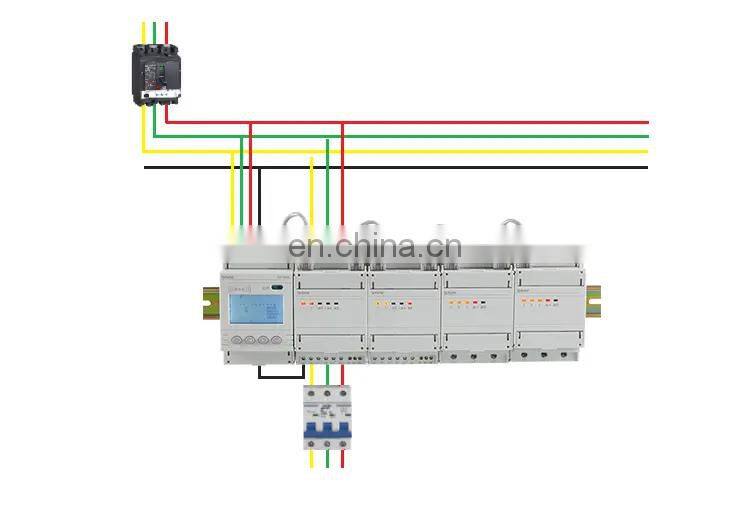

Access Directly

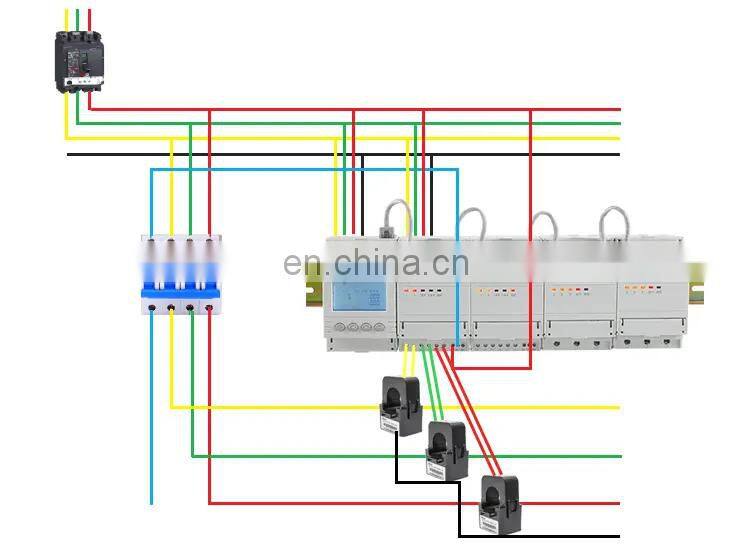

Access Via CTs
.

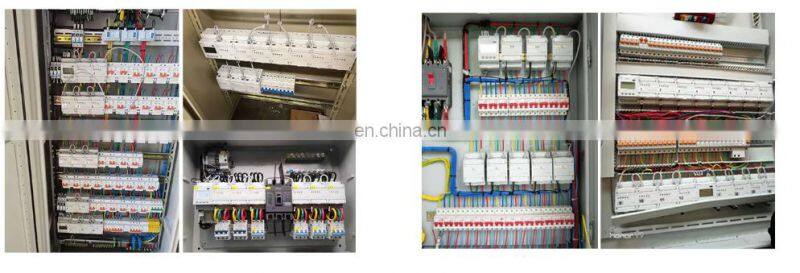

Exhibition
