ADW210 Multi Channel AC Energy Meter
ADW210 series multi-loop power meter is mainly used for the measurement of all electric parameters of three-phase circuit.Colleagues can select the current input of the maximum four circuits.
ADW2XX series products are connected by split core current transformer, easy to install on site, and realize remote wireless communication through wireless communication module.
Products Description

● Measurement: Up to 4-channel 3-phase kWh, kVarh, Current, Power, 2~31st Harmonic and etc ● Voltage Rating: 3x220V/380V AC (3P4W) ● Current Rating: 5A, 100A, 400A or 600A AC (with external CTs) ● Frequency: 45~65Hz ● Communication: RS485 (MODBUS-RTU) ● Display: LCD ● Dimension: 87.8*72*97.7mm（L*W*H) --- Main Body ● Wiring: 3-phase 4-wire Connection ● Installation: 35mm DIN Rail ● Standard&Certificate: CE; LVD
Note:
1.Optional external suction cup antenna,standard wiring length:2m 2.The extended function Module can be selected at most simultaneously MK+MTL+AWT Wireless Communication Module 3.It is recommend that the distance between AKH-0.66/K-∅10N installation postion and the primary side transformer should be more than 1 meter ; 4.Leakage current transformer is recommended model;

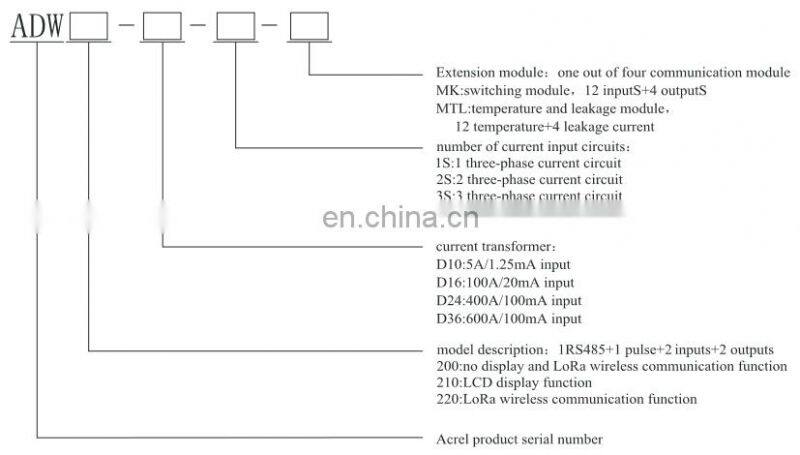

Optional function
Module
Function
Note
/MTL
12 external NTC temperature measurement + 4 residual current measurement

Contact us for more product information and price information.
/MK
12DI+4DO

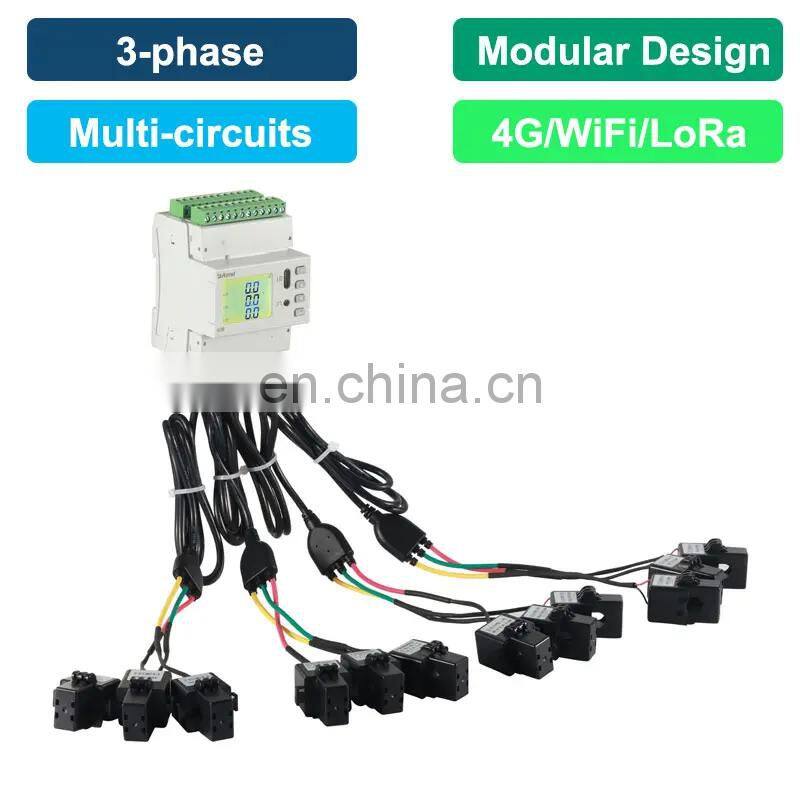

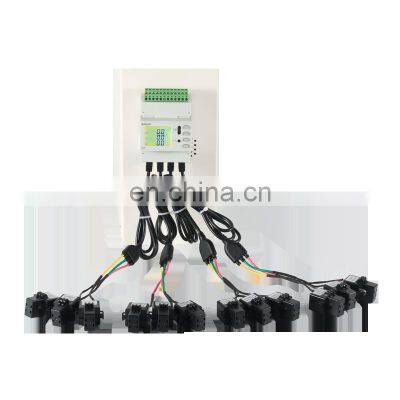

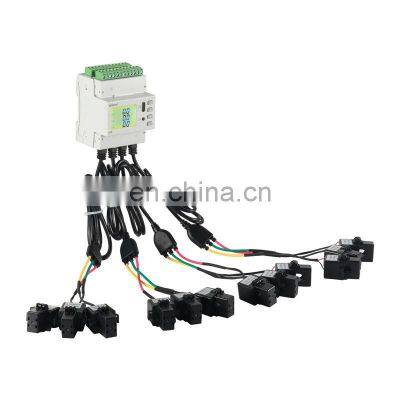

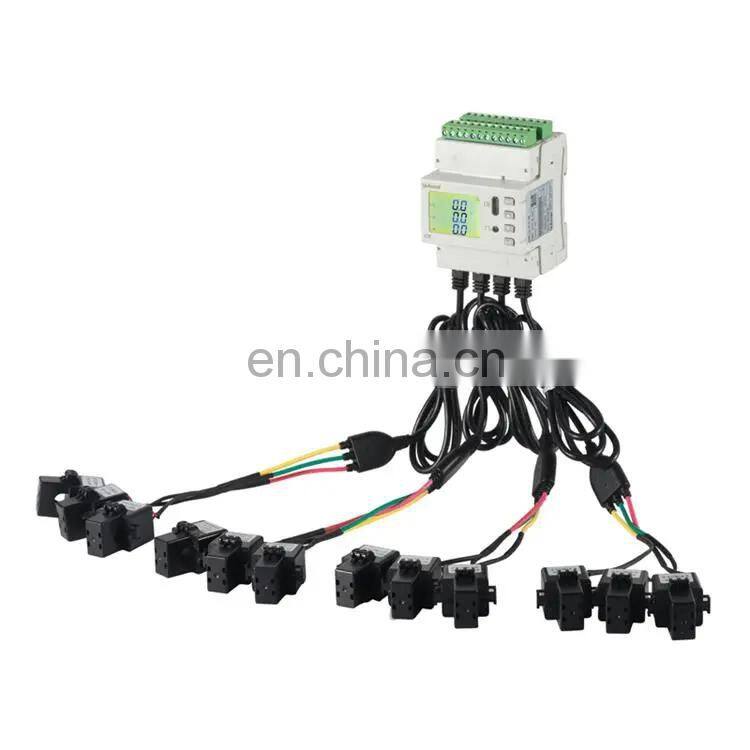

Multi-circuits Monitoring
● Monitor up to 4×3-phase circuits in total
● Paired CTs with specs of 5A/1.25mA; 100A/20mA; 400A/100mA or
600A/100mA
● External CTs Connectwith ADW210 Main Body thrrough RJ12 Interface

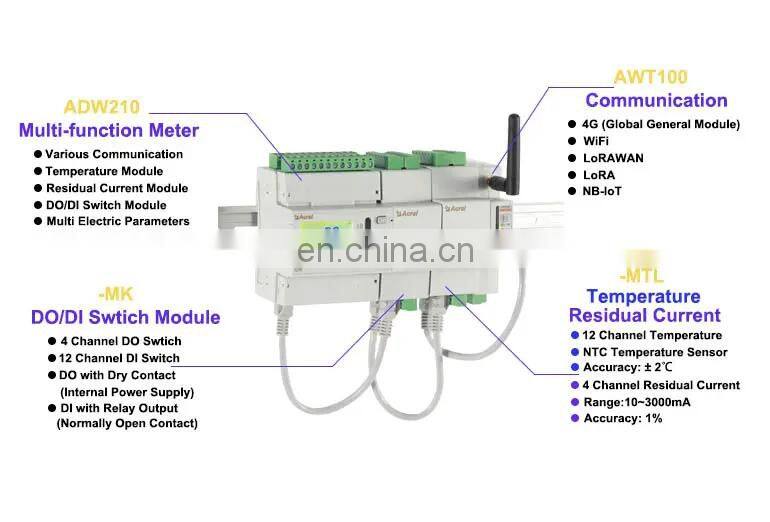

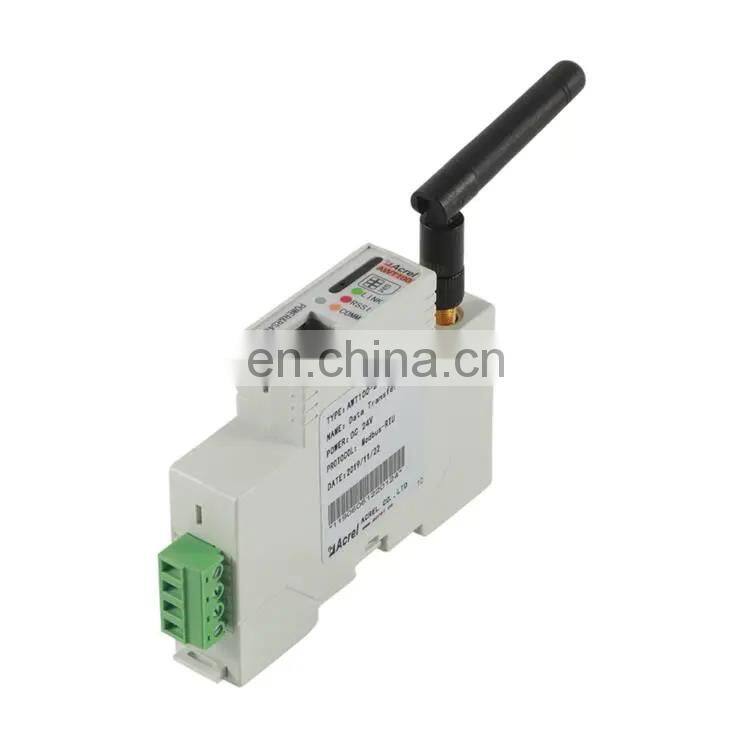

Expanded Communication Module --- AWT100
● 4G (Global general module)
● WiFi
● LoRaWAN
● LoRa
● NB-IoT

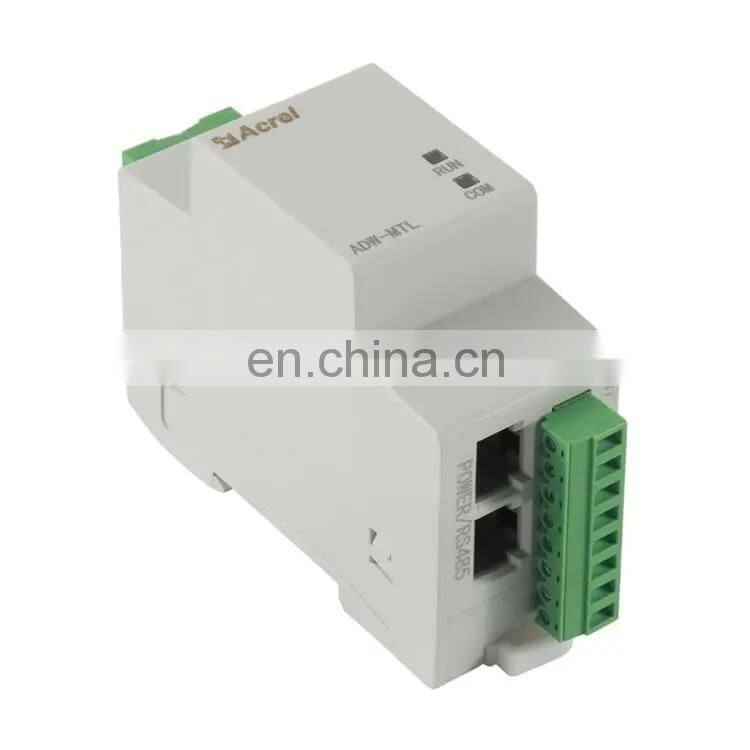

Cable Temperature&Residual Current Measurement Module --- MTL
● Temperature Measurement:-20℃~+100℃
● Residual Current Measurement:10~3000 mA
● Accuracy：Temperature：± 2℃; Residual Current：1% (Class 1)

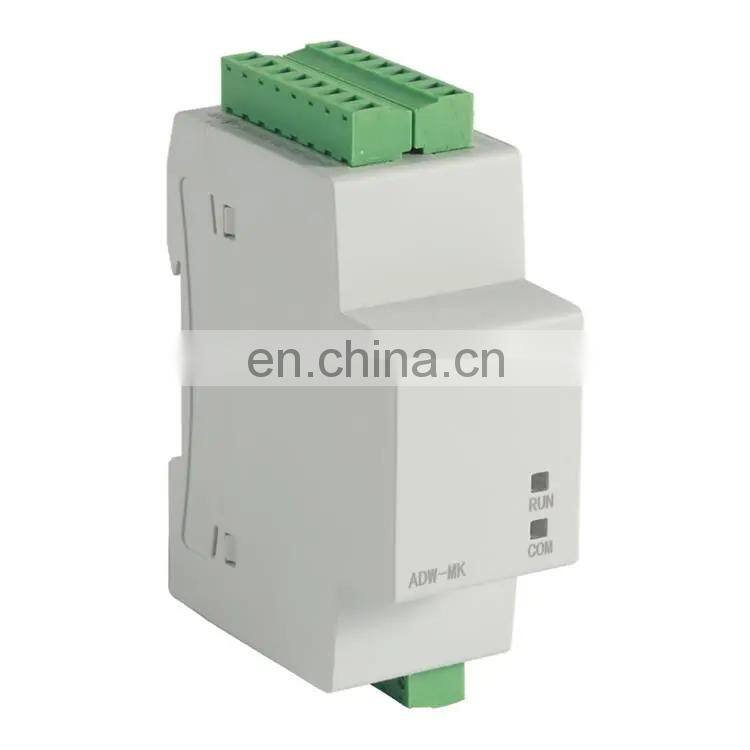

DO/DI Switch Extra Function Module --- MK
● 12 channel DI (Digital Input)
● 4 channel DO (Digital Output)
Technical Parameter
Function
Description

Energy
Measurement
kWh (positive and negative)
kvarh (positive and negative)
A,B,C three-phase positive kWh
Electric Parameter
U, I, P, Q, S, PF, Hz
Harmonic
2-31st voltage and current harmonic
Communication
RS485 (MODBUS-RTU); baud rate 1200~38400
Key Programming
4 keypads to set communication and parameters
Display
LCD display, 8 digits
LED Alarm
Over-voltage, over-current, interruption phase
Data Log
Maximum demanded kWh and the time it happened.
SOE
up to 200 pcs, record on-off status of DO/DI
Pulse Output
Active optocoupler pulse output with open collector
Multi-rate/Tariff
4 time zones & 12 time periods
Expanded Module
Description
AWT100
Communication
Module
4G (Global general module)
2G
LoRaWAN (868 MHz, 923MHz)
LoRa (460~510 MHz)
NB-IoT
-MK
Swtich
Module
12 × DI (input)
Dry contact input with built-in power supply
4 × DO (output)
Relay normally open contact output; rating AC 250V/3A ,DC 30V/3A
Power Supply
DC 12V；consumption:≤1W；RJ45 interface
Communication
RJ45 interface; MODBUS-RTU (communication with main body)
-MTC
Temperature
&
Residual Current
Measuring
Module
Temperature Measurement
-20℃~+100℃
Residual Current Measurement
10~3000 mA
Accuracy
Temperature：± 2℃； Residual Current：1% (Class 1)
Power Supply
DC 12V；consumption:≤1W；RJ45 interface
Communication
RJ45 interface; MODBUS-RTU (communication with main body)
Parameters
Description
Input


Voltage
AC 3×220V/380V
Overload: 1.2 times of rated value (continuous); 2 times of rated
value / 1s
Power consumption:≤ 0.5VA


Current
AC 5A、100A、400A、600A;(external open-type CT)
Overload: 1.2 times of rated value (continuous); 10 times
of rated value / 1s
Power consumption:≤ 0.5VA
Frequency
45～65Hz
Measuring
Accuracy
Voltage&Current
Class 0.5
Active Power
Class 1
Reactive Power
Class 2
Frequency
0.05Hz
2~31st harmonic
± 1%
Auxiliary Power
AC/DC 85～265V;consumption≤10VA;
EMC
Better than grade 3
Safety
Withstand Voltage
＞AC 2000V/1min
Insulation Resistance
＞100MΩ
Environment
Working Temperature
-20℃~+60℃
Storage Temperature
-40℃~+70℃
Humidity
≤95% (No condensation)
Altitude
≤2500m
Paired CT
Primary Current
Secondary Current
Aperture(Hole size)
Accuracy Class
AKH-0.66/K-φ10N
5A
1.25mA
10mm
Class 0.5
AKH-0.66/K-φ16N
100A
20mA
16mm
Class 0.5
AKH-0.66/K-φ24N
400A
100mA
24mm
Class 0.5
AKH-0.66/K-φ36N
600A
100mA
36mm
Class 0.5
AKH-0.66-L-45 (for residual current)
/
/
/
Class 1
Wiring Illustration

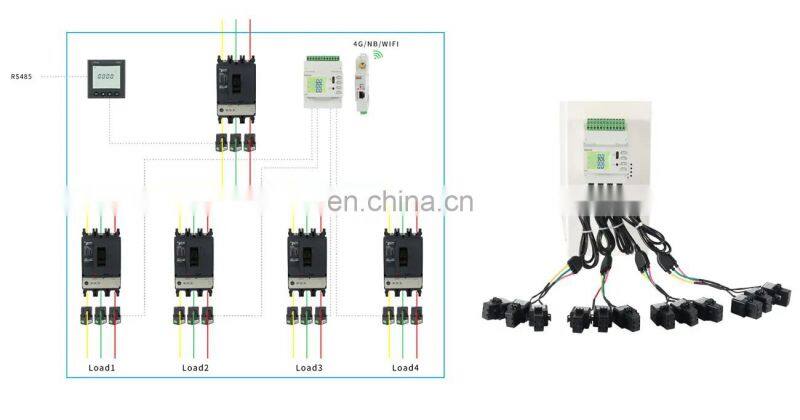

3-phase 4-wire Wiring of ADW210 monitoring 4 3-phase Circuits

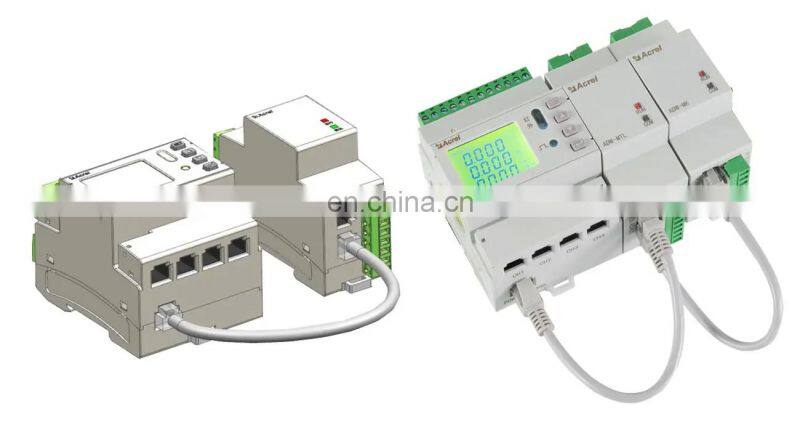

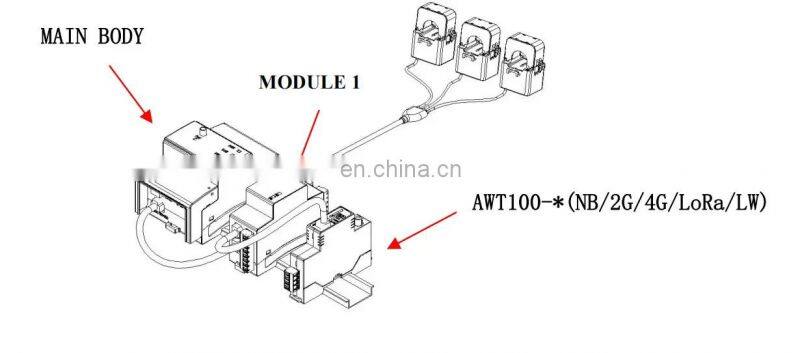

Wiring between ADW210 Main Body and MTL&MK Extra Function Module through RJ45 Interface

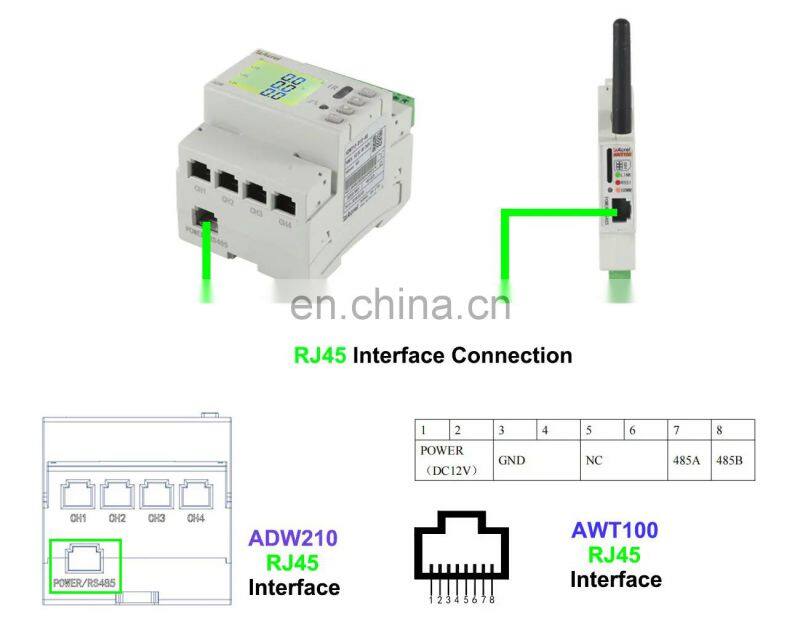

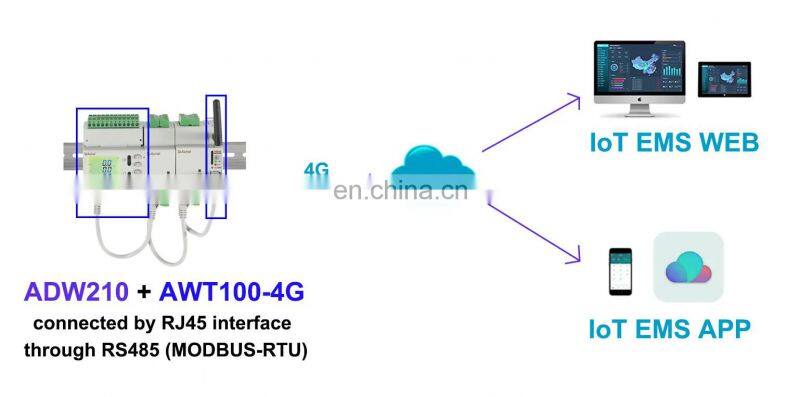

Wiring between 1 ADW210 Main Body and 1 AWT100 Communication Module
(Attention: In the connection between 1 ADW210 and 1 AWT100 through RJ45 interface, we don't need Auxiliary Power Supply for AWT100)

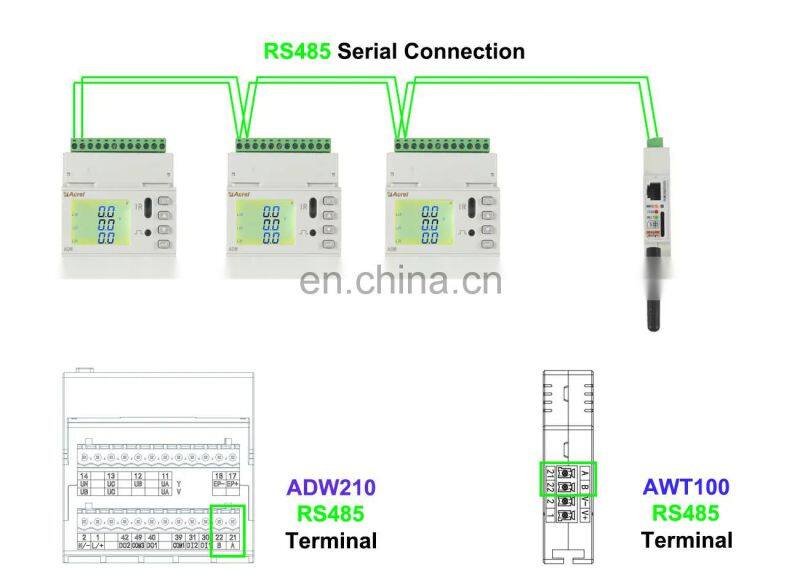

Wiring between more than 1 ADW210 Main Bodies and 1 AWT100 Communication Module
(Attention: In the connection between more than 1 ADW210 and 1 AWT100 through RS485 Serial Ports, we need DC24 or DC12V AuxiliaryPower Supply for AWT100)
Dimension & Installation

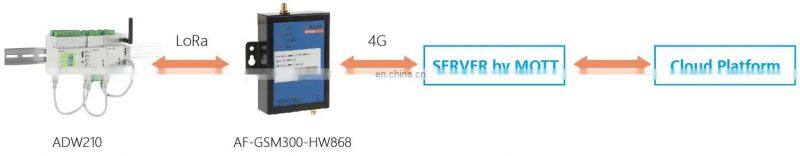

Solution Structure

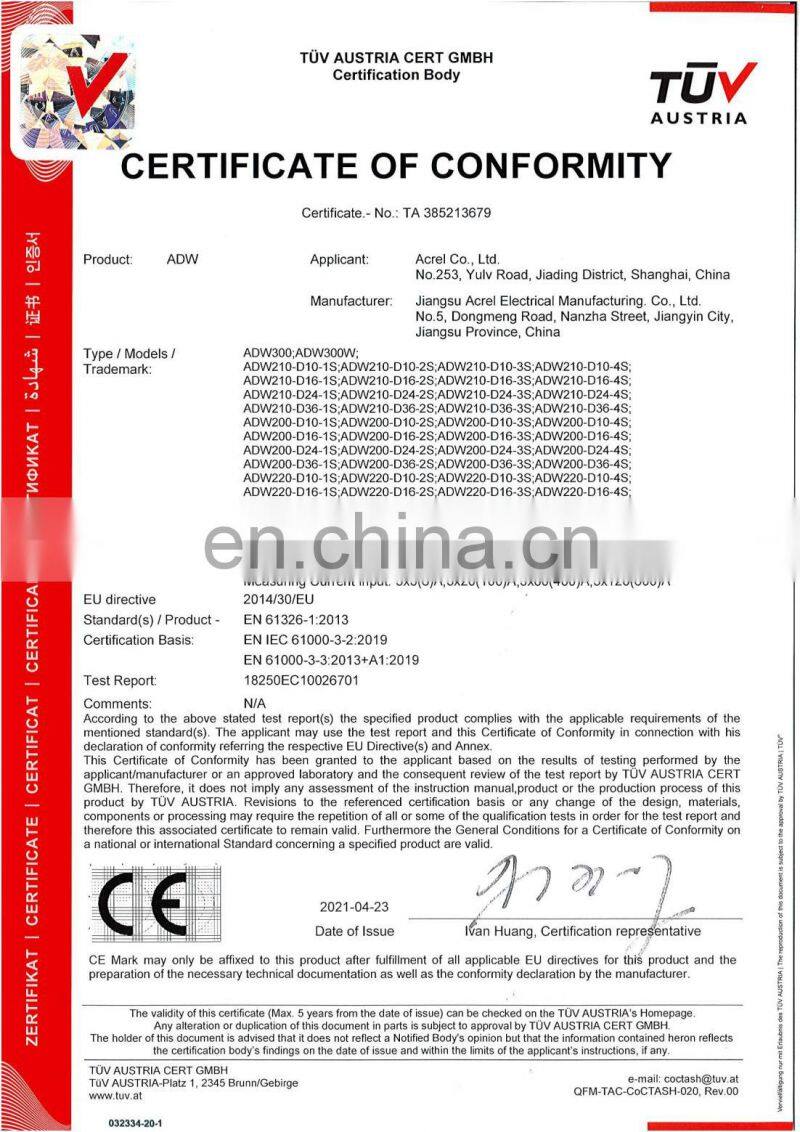

Certification
