ADL400 Three-phase DIN Rail Energy Meter
* Diverse Electric Parameters Measurement
* Multi-rate/Flexible Tariff
* High kWh Accuracy Class 0.5s
* Harmonic Measuring (Standard)
* HMI for Parameters Setting
* RS485 (MODBUS-RTU)
* IEC62053-22:2003; CE; EAC
* Multi-rate/Flexible Tariff
* High kWh Accuracy Class 0.5s
* Harmonic Measuring (Standard)
* HMI for Parameters Setting
* RS485 (MODBUS-RTU)
* IEC62053-22:2003; CE; EAC

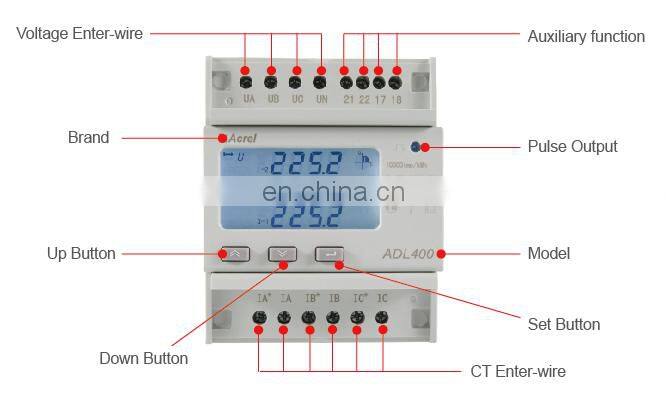

Features Introduction

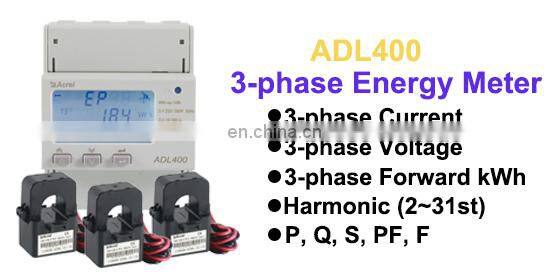

Diverse Electricity Parameters Measurement
* Harmonic (2~31stvoltage¤t)---Standard
* F (Frequency)
* U (3-phase Voltage)
* I (3-phase Current)
* kWh (3-phase positive Kilowatt-hours)
* kVarh (Kilovar-hours)
* P (Power)
* Q (Reactive power)
* S (Apparent power)
* PF (Power factor)
* F (Frequency)
* U (3-phase Voltage)
* I (3-phase Current)
* kWh (3-phase positive Kilowatt-hours)
* kVarh (Kilovar-hours)
* P (Power)
* Q (Reactive power)
* S (Apparent power)
* PF (Power factor)
* 4 Time zone
* 4 Tariff rate (Spike, Peak, Flat, Valley)* 2 Time period list
* 14 Time period by day
* Data Frozen (last 48 months or last 90 days)
* Max demand and occurrence time
* Max demand and occurrence time
Function & Parameter
Function
Function | Description | ||||||
Measurement of kWh | Active kWh (positive and negative) | ||||||
Reactive kWh (positive and negative) | |||||||
A. B, C split phase positive active energy | |||||||
Measurement of electrical parameters | |||||||
Measurement of harmonics | 2~31st Voltage and current harmonic | ||||||

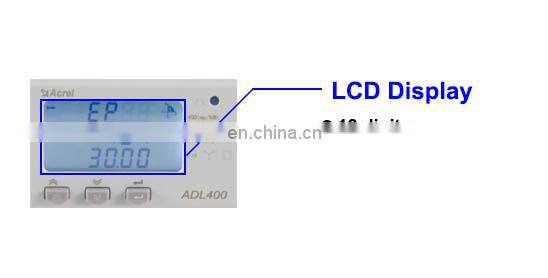

LCD display | 12 bits section LCD display, background light | ||||||
Key programming | 3 keys to communication and set parameters | ||||||
Pulse output | Active pulse output | ||||||
Multi-tariff and functions | Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates | ||||||
Max demand and occurrence time | |||||||
Frozen data on last 48 months, last 90days | |||||||
Date, time | |||||||
Communication | Communication interface: RS485, Communication protocol:MODBUS-RTU | ||||||
Technical Parameters
Parameter | Description | ||||||
Measuring Voltage | Reference voltage | 3×100V、 3×380V、 3×57.7/100V、3×220/380V | |||||
Consumption | <10VA(Single phase) | ||||||
Impedance | >2MΩ | ||||||
Accuracy class | Error±0.2% | ||||||
Measuring Current | Input current | 3×1(6)A， 3×10(80)A | |||||
Consumption | <1VA Single phase rated current | ||||||
Accuracy class | Error±0.2% | ||||||
Measuring Power | Active, reactive, apparent power, error±0.5℅ | ||||||
Measuring Frequency | 45～65Hz，Error±0.2% | ||||||
Metering | Energy | Active energy(Accuracy class: 0.5) reactive energy(Accuracy class 2) | |||||
Clock | ≤0.5s/d | ||||||
Digit signal | Energy pulse output | 1 active photocoupler output | |||||
Pulse | Width of pulse | 80±20ms | |||||
Pulse constant | 400imp/kWh,10000imp/kWh(Correspond with the basic current) | ||||||
Communication | Interface | RS485 | |||||
Protocol | MODBUS-RTU | ||||||
Baud rate | 1200bps~19200bps | ||||||
Working Environment
Item | Description | ||||||
Temperature range | Working Temperature | -25℃~55℃ | |||||
Storage Temperature | -40℃~70℃ | ||||||
Relative humidity | ≤95%(No condensation) | ||||||
Altitude | <2000m | ||||||
Wiring&Installation
Wiring Illustration

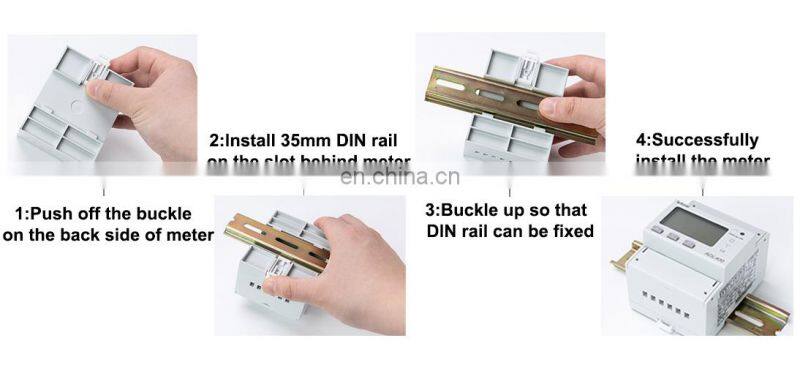

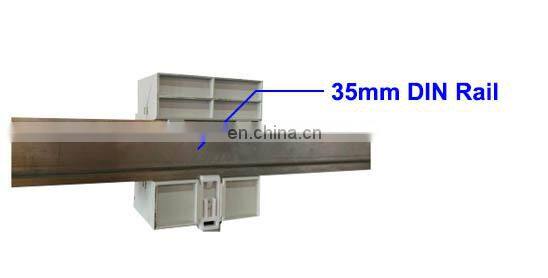

Installation Instruction

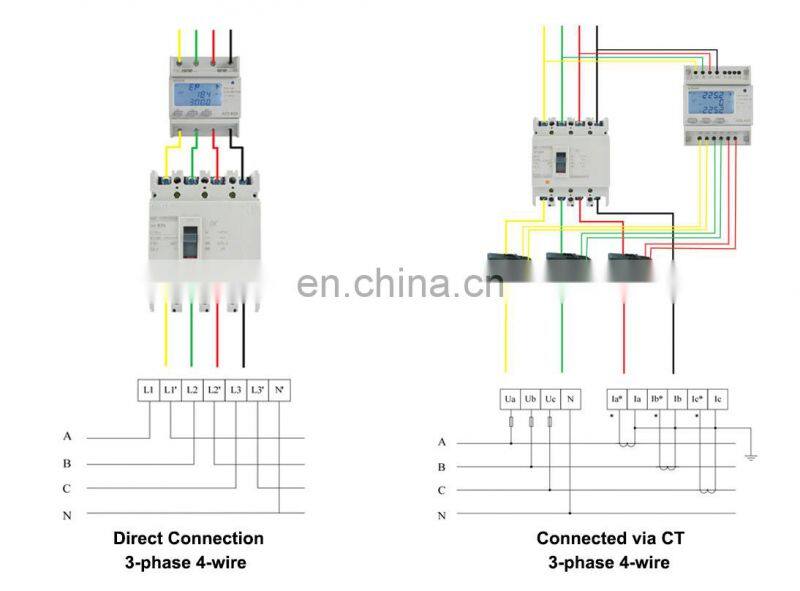

Typical Connection
Exhibition
