Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > DC Circuits Measurement ADW350WD Wireless Metering Meter Multi Function Electronic Electricity Energy Meter

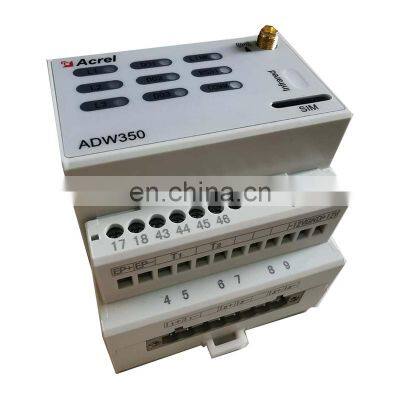

DC Circuits Measurement ADW350WD Wireless Metering Meter Multi Function Electronic Electricity Energy Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ADW350WA Wireless Metering Meter Three Phase or Three Single Phase Multi Function Energy MeterNegotiableMOQ: 1 -
Single Phase Remote Control Energy Meter Background Prepaid Meter Inbuilt Magnetic Latching Relay Cut-resetNegotiableMOQ: 1
-
Wifi Data Logger to Measure Kwh and Over15 Minute Intervals for a Period of 2 Weeks Electricity Meter Single Phase Energy MeterNegotiableMOQ: 1
-
Single Phase Energy Consumption Data Logger to Measure Kwh Smart Electricity Meter Single Phase Energy Meter MQTT Iot SystemNegotiableMOQ: 1
-
Single Phase Din Rail WIFI Smart Energy Meter Power Consumption KWh Meter Monitor Through IOT System With APPNegotiableMOQ: 1
Product Description
ADW350 Wireless Metering Meter is mainly used to metering three phase active energy on low voltage network. The product boasts of advantages including compact size, high precision, rich features. According to different requirements, there are many communications functions like RS485 communication, NB, 4G, adding the new current sampling mode using external transformer. It can be flexibly installed in the distribution box to achieve sub-item electric energy metering,
operation and maintenance supervision or power monitoring requirements for different regions and different loads.
operation and maintenance supervision or power monitoring requirements for different regions and different loads.
Specification
Function | Function description |
Display mode | LED |
Energy metering | Active kWh (positive and negative)，quadrant reactive power energy |
Electrical measurement | U、I、 P、Q、S、PF、F |
Harmonic function | THDv、Harmonic on 2nd-31st |
Pulse output | Active pulse output |
Three-phase unbalance degree | Voltage unbalance,current unbalance |
Temperature measurement | Twoway temperature (Alternate configuration:T) |
DI/DO | 3DO (Alternate configuration:K) |
External current transformer | External open type current transformer (Alternate configuration:W) |
Electrical parameter | Undervoltage, undercurrent, overcurrent, underload, etc |
Communication | Infrared communication |
RS485 (Alternate configuration:C) | |
NB-IOT (Alternate configuration:NB) | |
4G (Alternate configuration:4G) |
Voltage input | EnerRated voltage | AC:3×57.7/100V ，3×220/380V ，3×380/660V， 3×100V, 3×380V ，3×660V;DC: 48V | |
Reference frequency | AC:50Hz | ||
Consumption | <0.5VA(Each phase) | ||
Input current | AC:3×20(100)A;DC:50A ，100A | ||
Consumption | <1VA(Each phase) | ||
Power Supply | AC:85~265V；DC:48V±20% | ||
Power consumption | <5W | ||
Measurement performance | Electrical parameter | Class 0.5 | |
Active energy accuracy | Class 1 | ||
Temperature Range | -40C~100C | ||
Temperature accuracy | ±2C | ||
DO | Contact Rating | 5A，AC250V/DC30V | |
Width of pulse | 80±20ms | ||
Pulse constant | AC：400imp/kWh DC ：1600imp/kWh | ||
Communication | Wireless | 2G；NB；4G | |
Infrared communication | The constant baud rate is 1200 | ||
Interface | RS485(A、B) | ||
Connection mode | Shielded twisted pair conductors | ||
Protocol | MODBUS-RTU | ||
Operating temperature | -20C~55C | ||
Storage temperature | -40C~70C | ||
Humidity | ≤95% (No condensation) | ||
Altitude | <2000m | ||

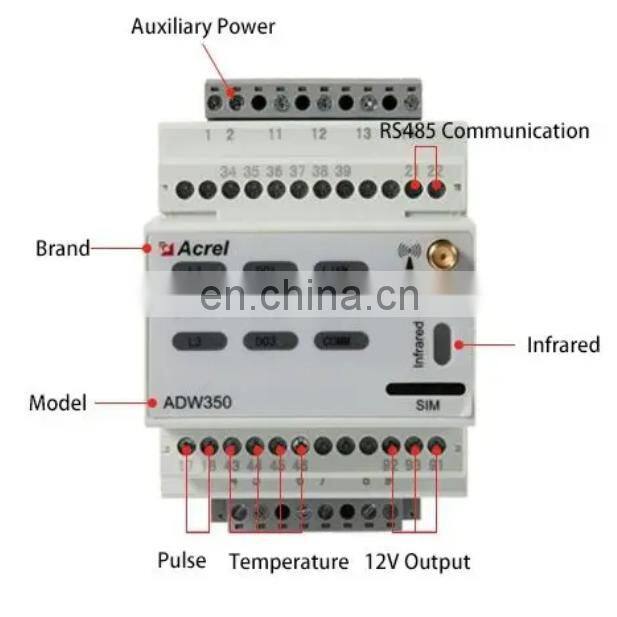

Product features

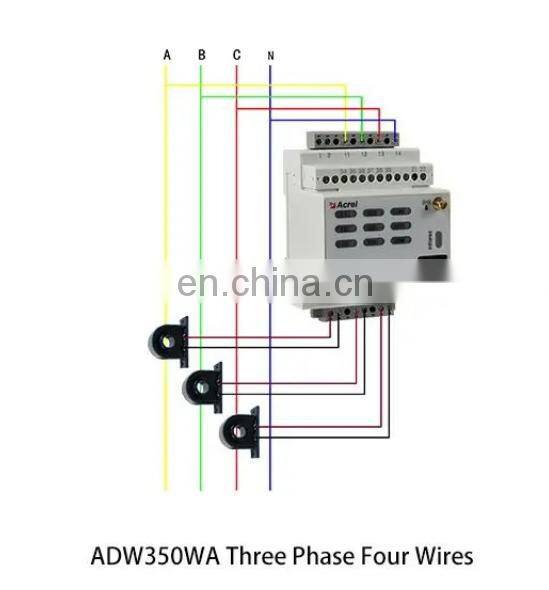

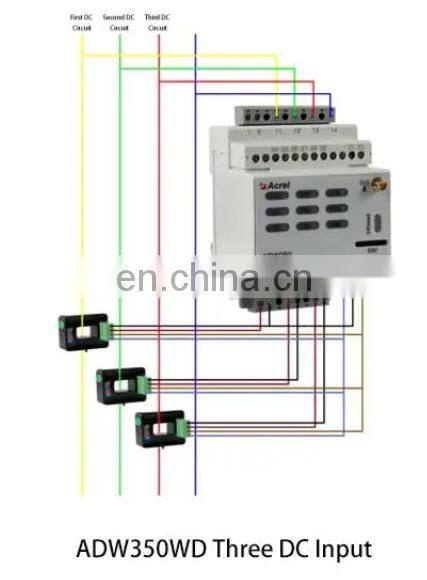

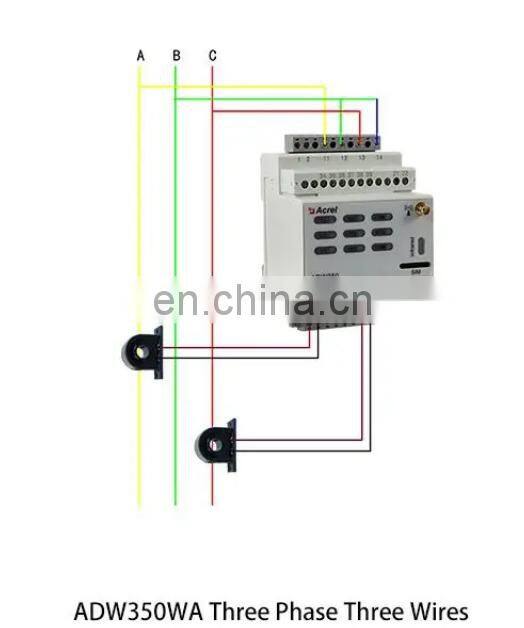

Wiring Illustration

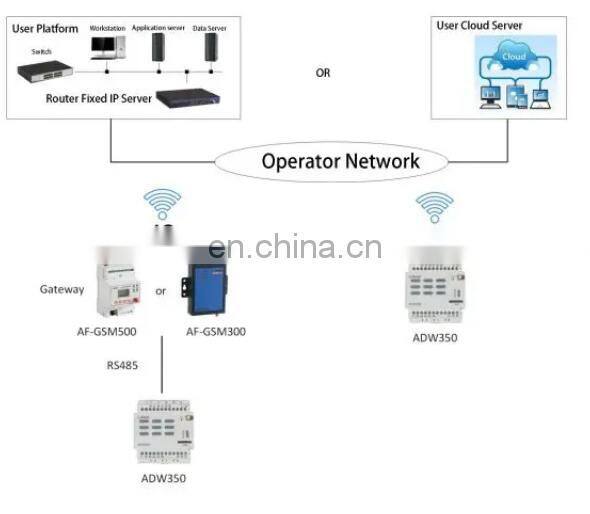

Typical Nework

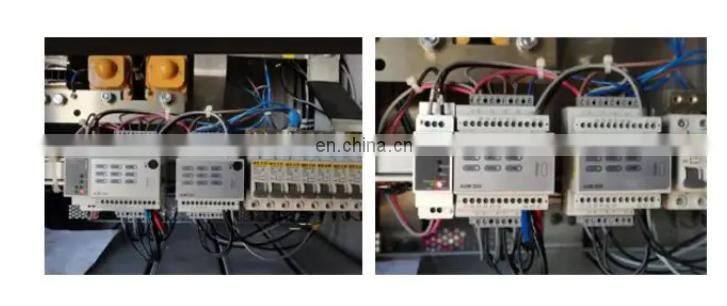

Common Application
Exhibition
company introduction
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid..
