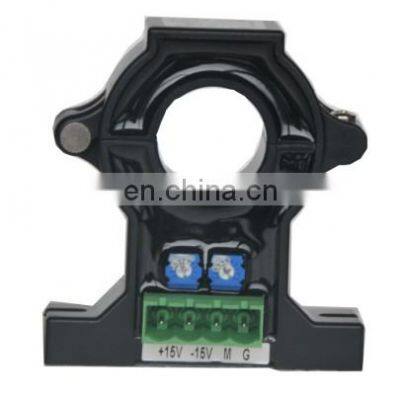

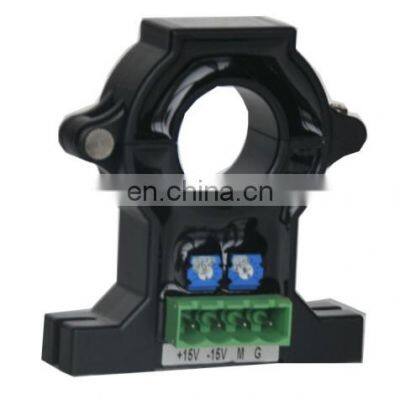

Bidirectional Hall Effect Current Sensor DC Transformer 0-500A/0-5V 0-100A/0-5V Power Supply 15v
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Household House Smart Prepaid Meter Single Phase Prepayment MeterNegotiableMOQ: 1 -
Industrial Park Block Controlled Remotely Commercial Building Single Phase Prepayment MeterNegotiableMOQ: 1
-
Multi-storey Dormitory House Prepaid Meter Control Remotely Single Phase Prepayment Meter Support Cost ControlNegotiableMOQ: 1
-
Factory Wholesale Acrel PZ96L-E4 Digital Panel Programmable Energy Meter 100% Compatible With Inverter of HuaweiNegotiableMOQ: 1
-
Acrel ACR10R-D36TE Single Phase Energy Meter External CT 200-300A and Own REACH CertificateNegotiableMOQ: 1
Product overview
Current Transformer (CT) is used to transform the high AC current to small easily manageable values. They are connected with the panel meter or relay and they can help to measure the current or protect the equipment.
Technical Parameter
Dimension

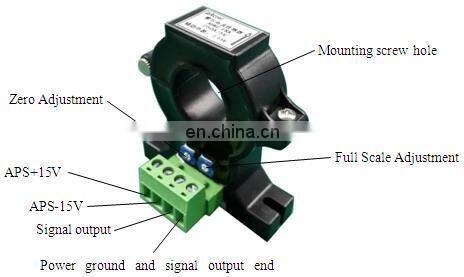

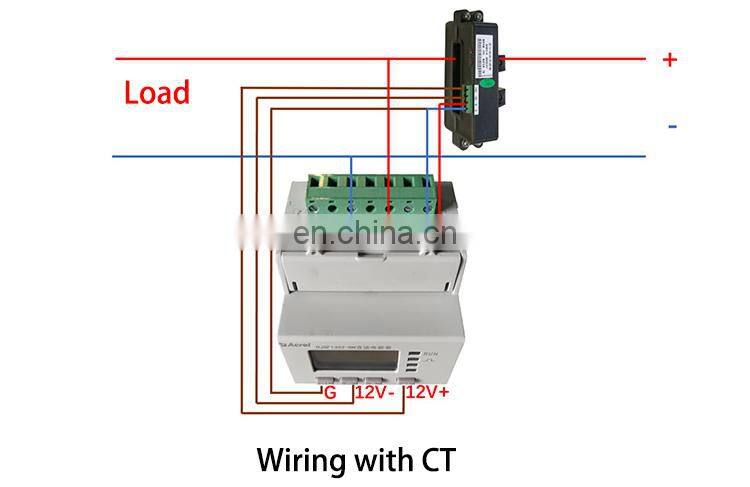

Wiring&Installation
1. When the Hall sensor is used, attention must be paid to the coupling between the primary side coil and assistant side coil in order to get better dynamic characteristics and sensitivity, single conductor that should cram the thread hole of Hall sensor module completely is proposed to use.
2. When the Hall sensor is used, the best measuring accuracy can be got under rated input current value. When the measured current is much less than the rated value, the primary side can use multi-turns if want to obtain the best accuracy, that is IpNp=rated ampere-turns. In addition, the temperature of the primary side feeder line cannot be more than 80℃.
3. When the Hall current sensor is working normally, the auxiliary power supply cannot be more than ±20% of calibration value.
4. The Hall Current sensor is strictly prohibited to be fallen from high place (≥1m) during installation and use.
5. Zero and full scale regulator potentiometer can not be adjusted.
6. Auxiliary power supply is required to be deployed voluntarily.
7. Power positive and negative poles cannot be inversely connected.
2. When the Hall sensor is used, the best measuring accuracy can be got under rated input current value. When the measured current is much less than the rated value, the primary side can use multi-turns if want to obtain the best accuracy, that is IpNp=rated ampere-turns. In addition, the temperature of the primary side feeder line cannot be more than 80℃.
3. When the Hall current sensor is working normally, the auxiliary power supply cannot be more than ±20% of calibration value.
4. The Hall Current sensor is strictly prohibited to be fallen from high place (≥1m) during installation and use.
5. Zero and full scale regulator potentiometer can not be adjusted.
6. Auxiliary power supply is required to be deployed voluntarily.
7. Power positive and negative poles cannot be inversely connected.
Exhibition
company introduction
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid..
Payment & Delivery
1.Payment: T/T 100% in advance, credit card, western union, in cash and etc. T/T 30% as deposit and the balance before shipment or against copy of B/L is acceptable with enough MOQ.
2.Delivery Arriving Time: in 3-7 working days after payment received.
3.Ways of Delivery: By sea, air, train or international courier like Fedex, TNT, DHL and UPS.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2017,sell to . There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Energy Meter,Power Transducer,Ammeter,Voltmeter,Temperature Humidity Controller,Ammeter and Voltmeter,Current Transformer,Temperature Monitoring Device,Power Sensor,Multifunction Meter
4. why should you buy from us not from other suppliers?
Acrel E-Business Co., Ltd is one of the few leading companies in China who provides various systemic solutions of power monitoring,power controland eletrical safety for smart grid users.we have been focused on the sales of intelligent electric meters.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Shanghai, China, start from 2017,sell to . There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Energy Meter,Power Transducer,Ammeter,Voltmeter,Temperature Humidity Controller,Ammeter and Voltmeter,Current Transformer,Temperature Monitoring Device,Power Sensor,Multifunction Meter
4. why should you buy from us not from other suppliers?
Acrel E-Business Co., Ltd is one of the few leading companies in China who provides various systemic solutions of power monitoring,power controland eletrical safety for smart grid users.we have been focused on the sales of intelligent electric meters.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
