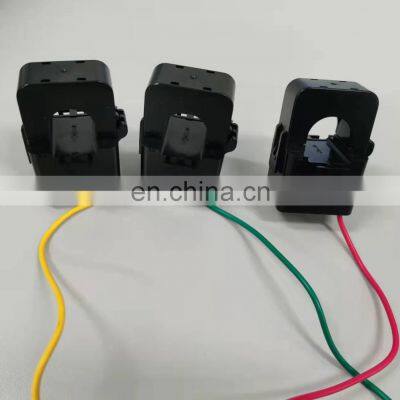

Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > Split Current Transformer 3 to 1 With RJ45 Port Output 200A/20ma
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Current Transformer 20mm Aperture Split Core Current Transformer 100A/20mANegotiableMOQ: 1 -
600-1000a Small Size Split Core ct AKH-0.66/K K-50 Current Transformer Output 5A or 1ANegotiableMOQ: 1
-
Acrel AKH-0.66/K-16 Split Current Transformer 80A/32mA 150A/50mA 120A/40mA 100A/33.33mA China SuppliersNegotiableMOQ: 1
-
Acrel 200A/40mA 24mm Split Core Low Voltage Current TransformerNegotiableMOQ: 1
-
Acrel AKH-0.66K-24 200A/5A Split Core Current Transformer 690V/current SensorNegotiableMOQ: 1

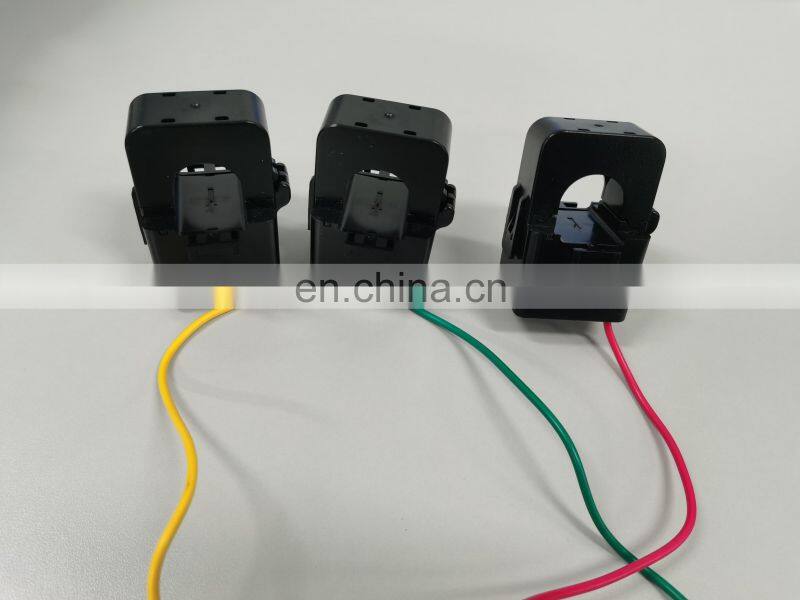

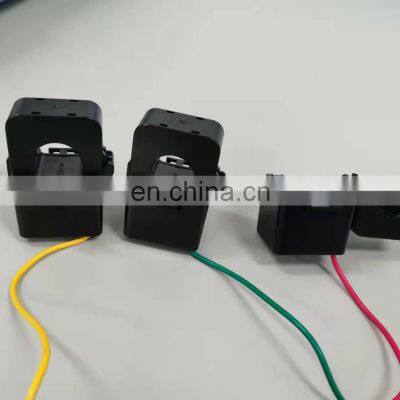

Product Description
The product is beautiful in appearance, convenient in installation and wiring, mainly used for power operation and maintenance and electricity transformation projects. The general output is milliAnn grade small current signal, which has the advantages of small volume, high accuracy, strong load capacity and convenient installation.
Specification
module | Rated current ratio | class of accuracy | Through the heart number of turns | The perforated size （mm） | withstand voltage |
Class: 0.5 | |||||
AKH-0.66KBXYT-Φ10N | 5A/1.25mA | 10 | 1 | Φ10 | 3kV |
5A/2.5mA | 10 | 1 | Φ10 | 3kV | |
AKH-0.66 KBXYT-Φ16N | 100A/20mA | 10 | 1 | Φ16 | 3kV |

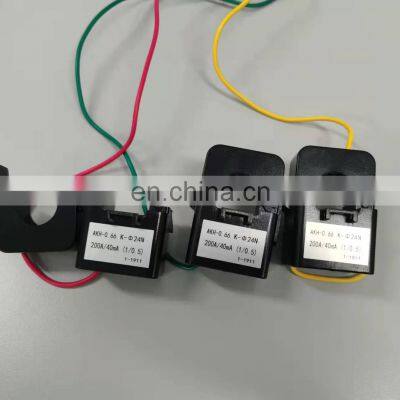

AKH-0.66- KBXYT-Φ24N | 200A/40mA | 10 | 1 | Φ24 | 3kV |
400A/100mA | 10 | 1 | Φ24 | 3kV | |
AKH-0.66 KBXYT-Φ36N | 600A/100mA | 10 | 1 | Φ36 | 3kV |

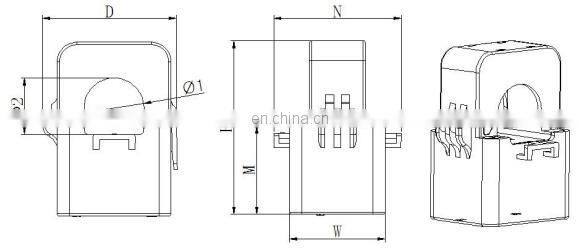

Dimension
module | dimension (mm) | Penetration Size (mm) | common difference (mm) | ||||||||||
W | H | D | M | N | Φ 1 | Φ 2 | |||||||
AKH-0.66KBXYT-Φ10N | 27 | 44 | 32 | 25 | 36 | 10 | 9 | ±1 | |||||
AKH-0.66KBXYT-Φ16N | 31 | 50 | 36 | 27 | 42 | 16 | 17 | ±1 | |||||
AKH-0.66KBXYT-Φ24N | 39 | 71 | 46 | 36 | 52 | 24 | 23.5 | ±1 | |||||
AKH-0.66KBXYT-Φ36N | 42.5 | 82 | 58 | 40 | 56 | 33.5 | 35 | ±1 | |||||

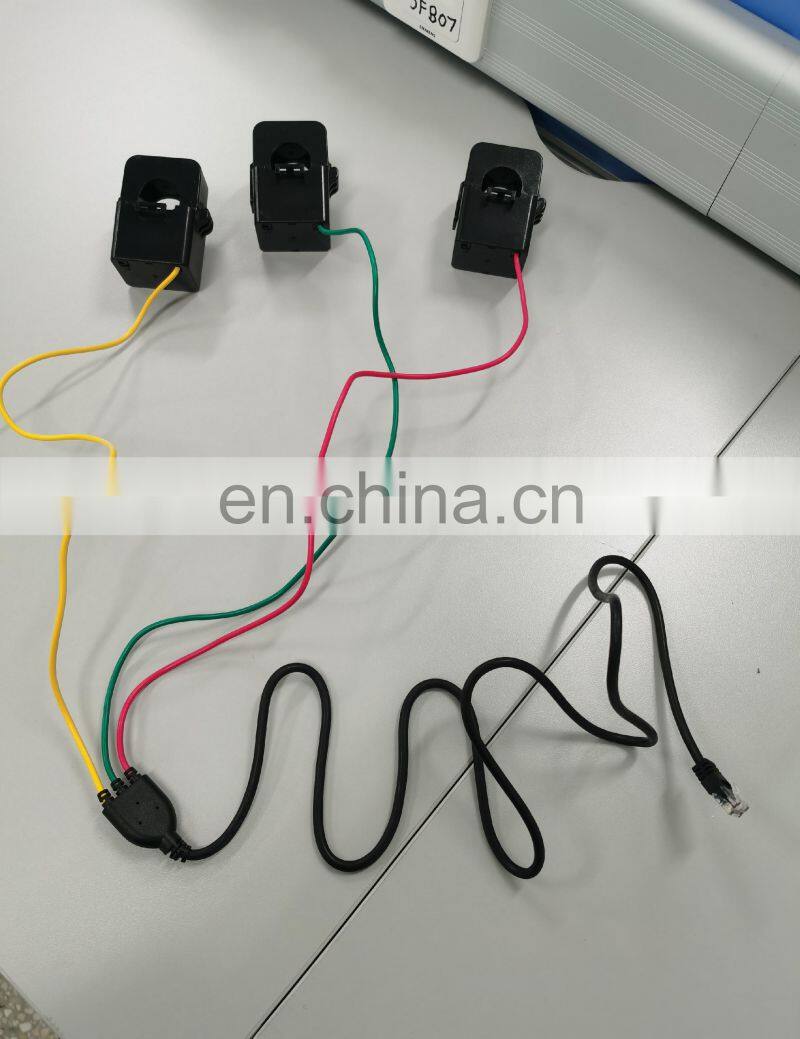

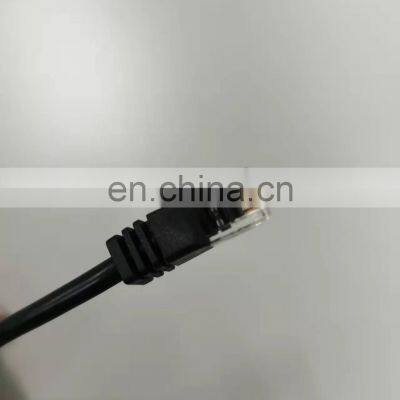

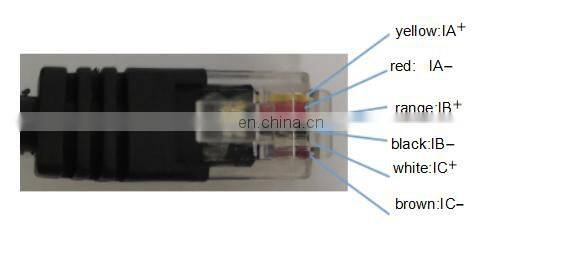

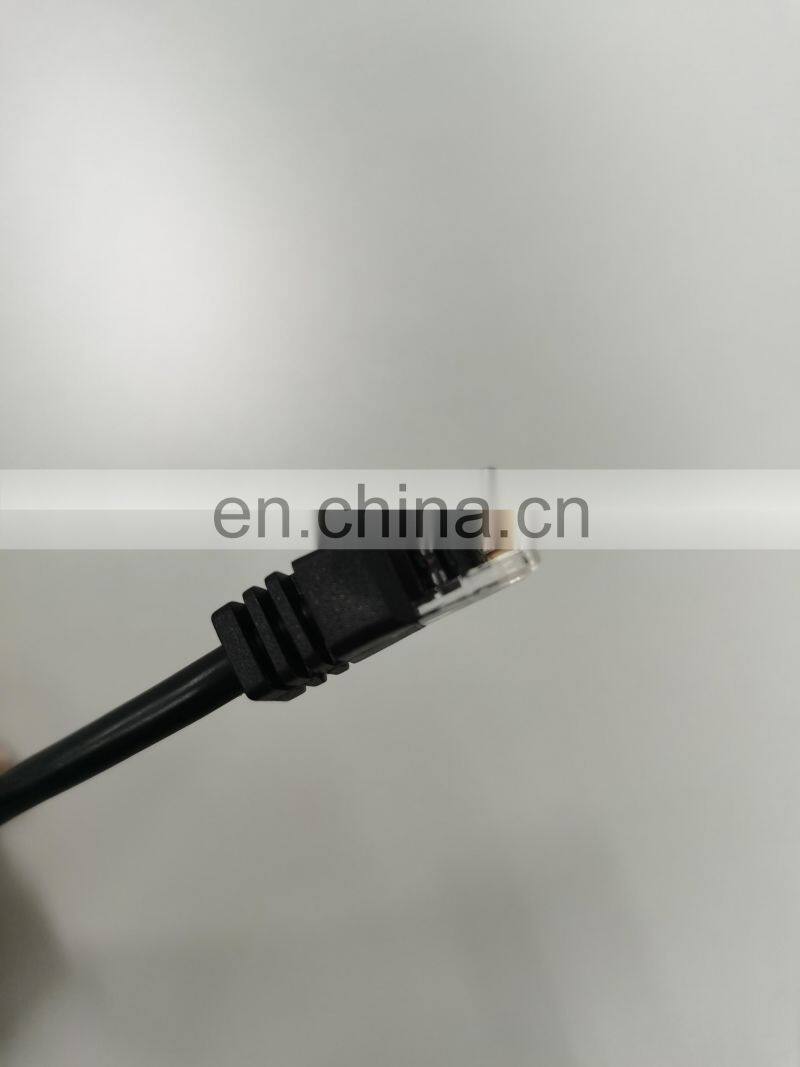

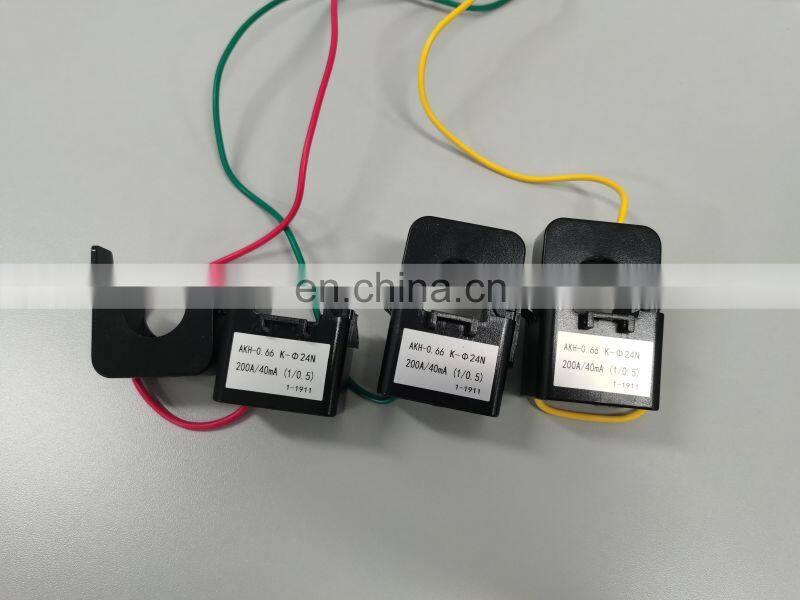

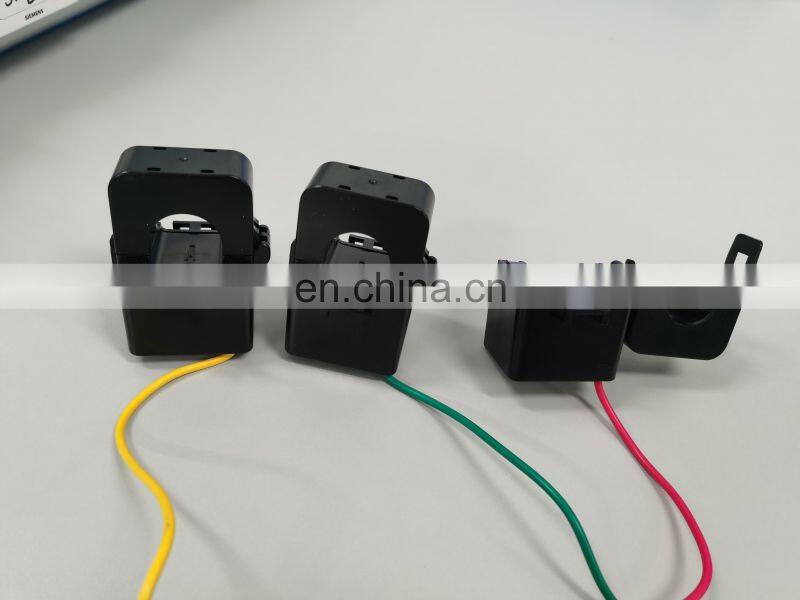

Note: The transformer lead line of this type is divided into the transformer lead end and the network line break.The lead section of the transformer is connected with phase A, green phase B and red phase C. Lead lines are drawn from hole S1; the connecting terminal with the instrument adopts RJ45 network cable port, which is defined as follows:
Packing & Delivery
paper carton
Company Profile

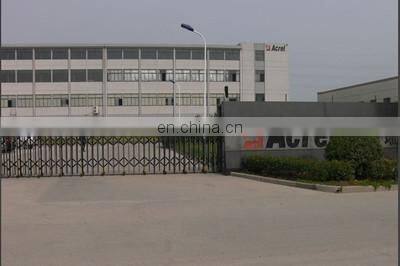

Acrel E-Business (Shanghai) Co., Ltd. is a wholly-owned subsidiary of Acrel Co., Ltd. Acrel E-Business (Shanghai) Co., Ltd. is responsible for the promotion and sale of all Ankairui products on the Internet.
