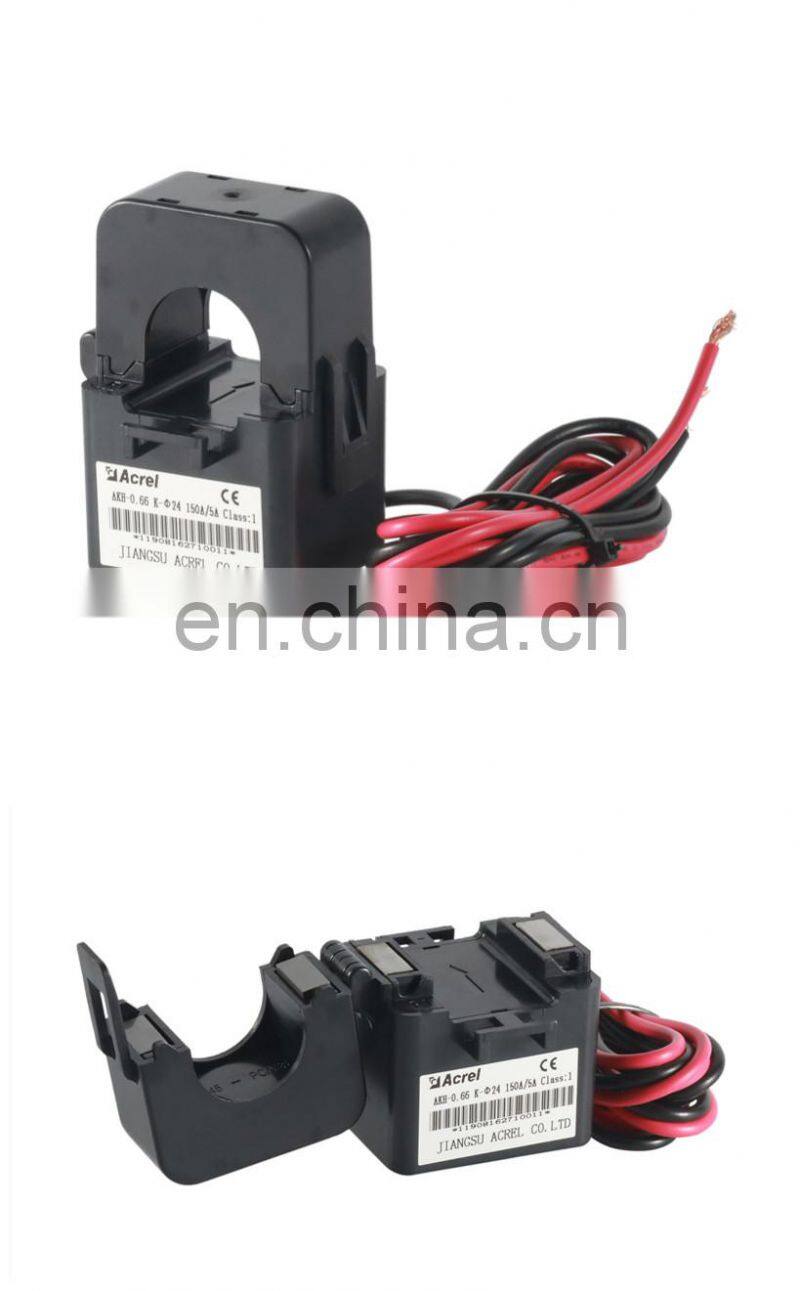

600-1000a Small Size Split Core ct AKH-0.66/K K-50 Current Transformer Output 5A or 1A

Acrel Electric Co., Ltd
600-1000a Small Size Split Core ct AKH-0.66/K K-50 Current Transformer Output 5A or 1A thumbnail-1
600-1000a Small Size Split Core ct AKH-0.66/K K-50 Current Transformer Output 5A or 1A thumbnail-2
600-1000a Small Size Split Core ct AKH-0.66/K K-50 Current Transformer Output 5A or 1A thumbnail-3
600-1000a Small Size Split Core ct AKH-0.66/K K-50 Current Transformer Output 5A or 1A thumbnail-4
600-1000a Small Size Split Core ct AKH-0.66/K K-50 Current Transformer Output 5A or 1A thumbnail-5
600-1000a Small Size Split Core ct AKH-0.66/K K-50 Current Transformer Output 5A or 1A photo-1
600-1000a Small Size Split Core ct AKH-0.66/K K-50 Current Transformer Output 5A or 1A photo-2

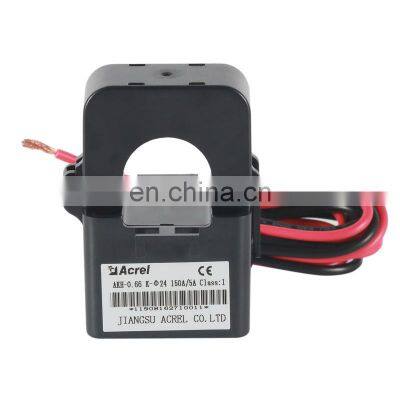

600-1000a Small Size Split Core ct AKH-0.66/K K-50 Current Transformer Output 5A or 1A photo-3
600-1000a Small Size Split Core ct AKH-0.66/K K-50 Current Transformer Output 5A or 1A photo-4
600-1000a Small Size Split Core ct AKH-0.66/K K-50 Current Transformer Output 5A or 1A photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description


General
Current Transformer (CT) is used to transform the high AC current to small easily manageable values.They are connected with the Panel Meter or Relay and they can help to measure the current or protect the equipments.
Standards
IEC/EN61869-1,IEC/EN61869-2


* Model: AKH-0.66/K K-&50 600-1000/5A
* Aperture : 50mm
* Rated secondary current: 5A
* Rated primary current: 600-1000A
* Security factor: FS<5
* Maximum system voltage: 720V AC
* Test voltage: 3kV AC(1min)
* Rated frequency: 50/60Hz


* Rated dynamic current: Idyn=2.5Ith
* Continuous overload: 120%In
* Protection level: IP30
* Casing: Non-flammable,polycarbonate self extinguishing ABS
* Environment: Operating temperature:-25℃-+50℃
Storage temperature:-40℃-+80℃
Relative humidity, no condensation:90%
Specification
Type
Ratio
Burden(VA/Ω)
Accuracy
Dia.(mm)
FOB Shanghai(USD)
K-10
5A/1.67mA
10
Class0.5
10
3.5
K-10
5A/2.5mA
10
Class0.5
10
3.5
K-10
10A/5mA
10
Class0.5
10
3.5
K-10
40-50A/20mA
10
Class0.5
10
3.5
K-10
80A/26.7mA
10
Class0.5
10
3.5
K-16
120A/40mA
10
Class0.5
16
4.9
K-16
40-100A/20mA
10
Class0.5
16
4.9
K-16
80A/32mA
10
Class0.5
16
4.9
K-24
60-200A/20mA
10
Class0.5
24
7.7
K-24
200A/40mA
10
Class0.5
24
7.7
K-36
400A/50mA
10
Class0.5
36
11.9
K-36
400A/40mA
10
Class0.5
36
11.9
K-36
600A/75mA
10
Class0.5
36
11.9
K-36
200-400A/20mA
10
Class0.5
36
11.9
K-24
150-200/5(1)
1
Class1.0
24
7.7
K-24
250-300/5(1)
1.5
Class1.0
24
7.7
K-36
300-400/5(1)
1.5
Class1.0
36
11.9
K-36
500-600/5(1)
1.5
Class0.5
36
11.9
K-50
600-700/5(1)
2.5
Class0.5
50
16.5
K-50
800-900/5(1)
5
Class0.5
50
16.5
K-50
1000/5(1)
10
Class0.5
50
16.5

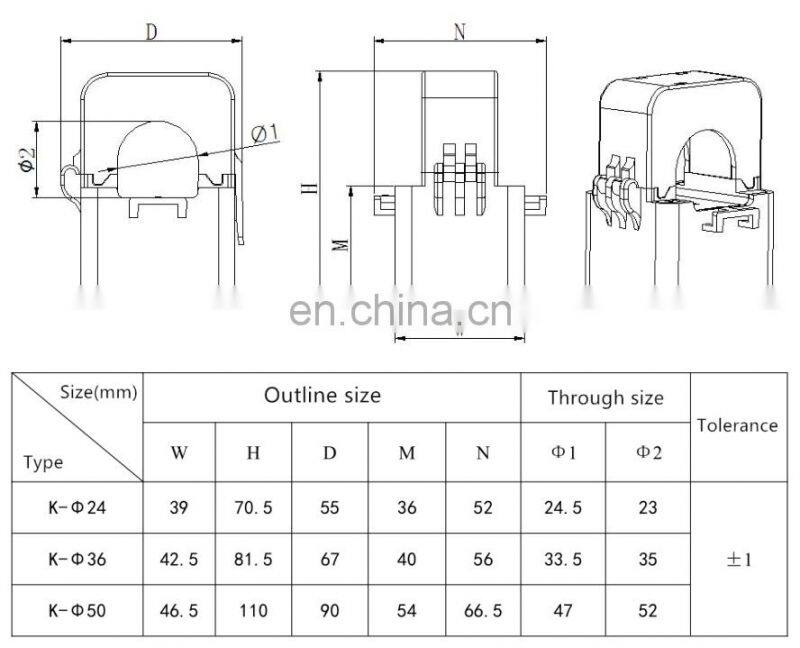

Dimension

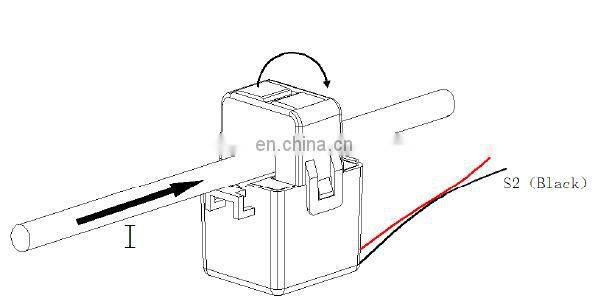

Installation
