Factory Wholesale 45A/0.02A(20mA) Current Transformer 0.66 kv Single Phase Voltage Grade Split Core CT
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Wholesale 40A/0.02A(20mA) Current Transformer 0.66 kv Single Phase Voltage Grade Split Core CTNegotiableMOQ: 1 -
Factory Wholesale 50A/0.02A(20mA) Current Transformer 0.66 kv Single Phase Voltage Grade Split Core CTNegotiableMOQ: 1
-
Factory Wholesale 50A/0.01A(10mA) Current Transformer 0.66 kv Single Phase Voltage Grade Split Core CTNegotiableMOQ: 1
-
Factory Wholesale 100A/0.05A(50mA) Current Transformer 0.66 kv Single Phase Voltage Grade Split Core CTNegotiableMOQ: 1
-
Factory Wholesale 100A/0.04A(40mA) Current Transformer 0.66 kv Single Phase Voltage Grade Split Core CTNegotiableMOQ: 1
Products Description

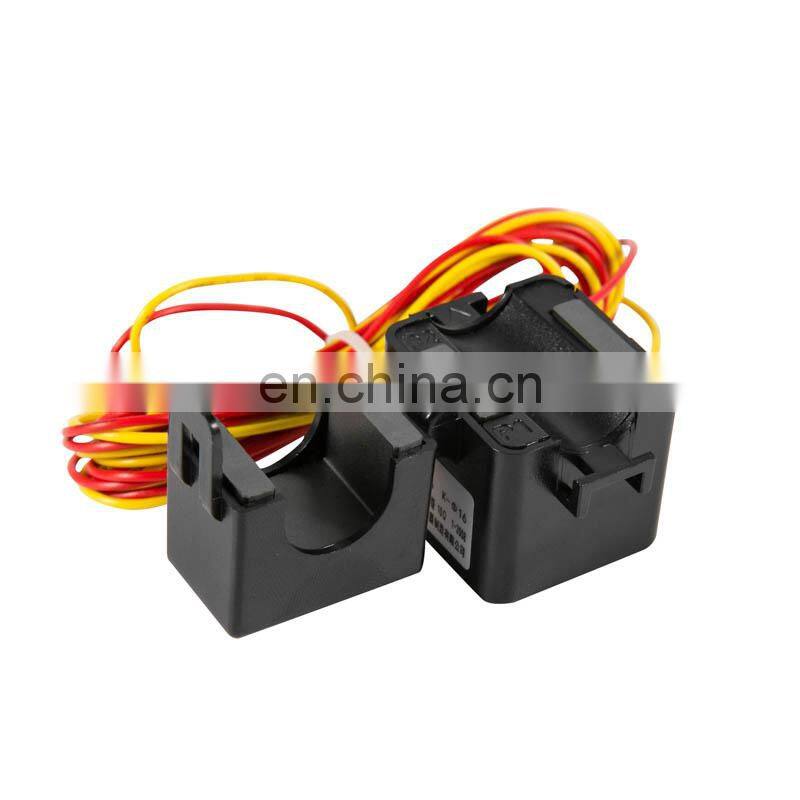

AKH-0.66 K-φ16 Splitcore Current Transformer
*model:AKH-0.66/K-16
*Primary Current: 45A
*Secondary Current: 0.02A(20mA)
*Accuracy: 0.5 Class
*Standard: IEC/EN61869-1, IEC/EN61869-2
Explanation of Model Name
Function & Parameter
Technical Parameters
Model Name | Current Ratio(A) Primary/Secondary | Accuracy Class | Rated Load (VA) | Aperture Hole Diameter(mm) |
AKH-0.66/K-Φ10 | 5A/1.67mA | 0.5 | 10 | φ10 |
5A/2.5mA | 0.5 | 10 | φ10 | |
10A/5mA | 0.5 | 10 | φ10 | |
45~50A/20mA | 0.5 | 10 | φ10 | |
80A/26.7mA | 0.5 | 10 | φ10 | |
AKH-0.66/K-Φ16 | 120A/40mA | 0.5 | 10 | φ16 |
120A/30mA | ||||
100A/33.33mA | 0.5 | 10 | φ16 | |
100A/0.025A(25mA) | ||||
100A/0.333V(333mV) | ||||
100A/0.04A(40mA) | ||||
100A/0.5A(50mA) | ||||
80A/32mA | 0.5 | 10 | φ16 | |
50A/10mA | ||||
50A/20mA | ||||
50A/25mA | ||||
50A/50mA | ||||
45A/20mA | ||||
40A/20mA | ||||
30A/10mA | ||||
150A/50mA | ||||
AKH-0.66/K-Φ24 | 60~200A/20mA | 0.5 | 10 | φ24 |
200A/40mA | 0.5 | 10 | φ24 | |
150~200A/5(1)A | 1 | 1 | φ24 | |
200~300A/5(1)A | 1 | 1.5 | φ24 | |
AKH-0.66/K-Φ36 | 400A/50mA | 0.5 | 10 | φ36 |
400A/40mA | 0.5 | 10 | ||
600A/75mA | 0.5 | 10 | ||
200~400A/20mA | 0.5 | 10 | ||
300~400A/5(1)A | 1 | 1.5 | ||
500~600A/5(1)A | 0.5 | 1.5 |
Dimension & Installation
Dimension Overview
Installation Instruction
Solutions & Applications
Application Scenario
Petrochemical
Siderurgy
Rail Transportation
