Acrel 5A Open Core Current Transformer Diameter 24mm

Acrel Electric Co., Ltd
Acrel 5A Open Core Current Transformer Diameter 24mm thumbnail-1
Acrel 5A Open Core Current Transformer Diameter 24mm thumbnail-2
Acrel 5A Open Core Current Transformer Diameter 24mm thumbnail-3
Acrel 5A Open Core Current Transformer Diameter 24mm thumbnail-4
Acrel 5A Open Core Current Transformer Diameter 24mm thumbnail-5
Acrel 5A Open Core Current Transformer Diameter 24mm photo-1
Acrel 5A Open Core Current Transformer Diameter 24mm photo-2
Acrel 5A Open Core Current Transformer Diameter 24mm photo-3
Acrel 5A Open Core Current Transformer Diameter 24mm photo-4

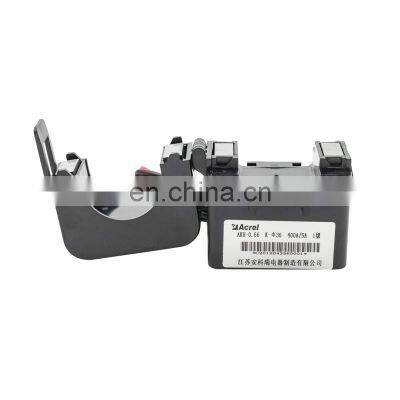

Acrel 5A Open Core Current Transformer Diameter 24mm photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Specification
item
value
Place of Origin
China
Jiangsu
Brand Name
Acrel
Model Number
AKH-0.66/K-24 300/5
Rated Secondary Voltage
400V
Power
none
Products Description




AKH-0.66 K-φ24 Splitcore Current Transformer

*Primary Current: 60A~200A
*Secondary Current: 20mA/40mA/1A/5A
*Accuracy: 0.5 Class
*Standard: IEC/EN61869-1, IEC/EN61869-2

Explanation of Model Name
Function & Parameter
Technical Parameters
Model
Name
Current Ratio(A)
Primary/Secondary
Accuracy
Class
Rated Load
(VA)
Aperture
Hole Diameter(mm)



AKH-0.66/K-Φ10
5A/1.67mA



0.5



10



φ10
5A/2.5mA
0.5
10
φ10
10A/5mA
0.5
10
φ10
45~50A/20mA
0.5
10
φ10
80A/26.7mA
0.5
10
φ10


AKH-0.66/K-Φ16
120A/40mA


0.5


10


φ16
40~100A/20mA
0.5
10
φ16
80A/32mA
0.5
10
φ16


AKH-0.66/K-Φ24
60~200A/20mA

0.5

10


φ24
200A/40mA
0.5
10
φ24
150~200A/5(1)A
1
1
φ24
200~300A/5(1)A
1
1.5
φ24




AKH-0.66/K-Φ36
400A/50mA


0.5


10




φ36
400A/40mA
0.5
10
600A/75mA
0.5
10
200~400A/20mA
0.5
10
300~400A/5(1)A
1

1.5
500~600A/5(1)A
0.5
1.5
Dimension & Installation
Dimension Overview

Installation Instruction
Exhibition
company introduction
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid..
Payment & Delivery
1.Payment: T/T 100% in advance, credit card, western union, in cash and etc. T/T 30% as deposit and the balance before shipment or against copy of B/L is acceptable with enough MOQ.

2.Delivery Arriving Time: in 3-7 working days after payment received.

3.Ways of Delivery: By sea, air, train or international courier like Fedex, TNT, DHL and UPS.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2017,sell to . There are total about 501-1000 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Energy Meter,Power Transducer,Ammeter,Voltmeter,Temperature Humidity Controller,Ammeter and Voltmeter,Current Transformer,Temperature Monitoring Device,Power Sensor,Multifunction Meter

4. why should you buy from us not from other suppliers?
Acrel E-Business Co., Ltd is one of the few leading companies in China who provides various systemic solutions of power monitoring,power controland eletrical safety for smart grid users.we have been focused on the sales of intelligent electric meters.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
