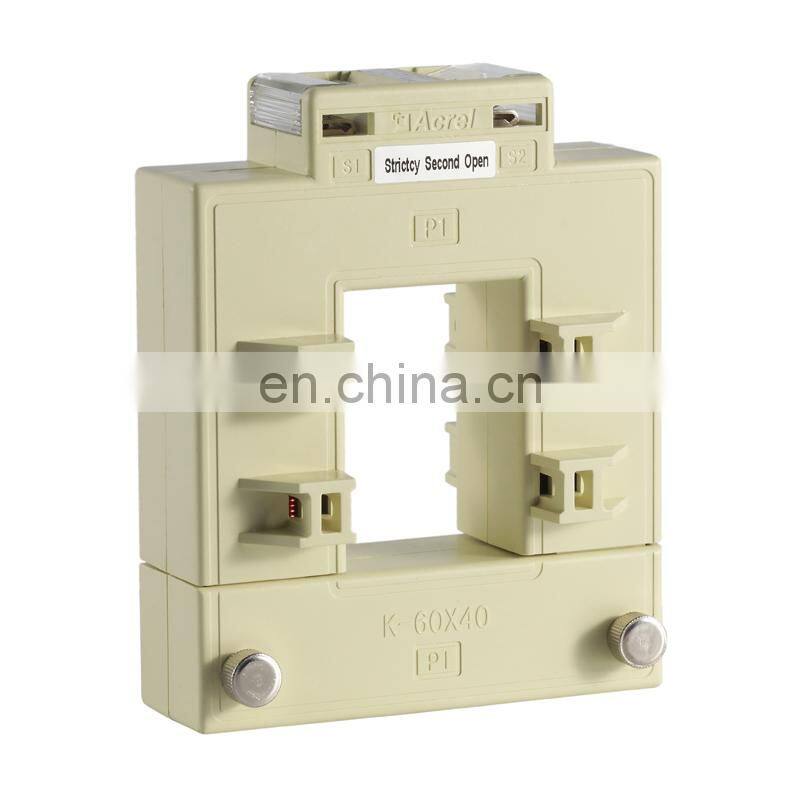

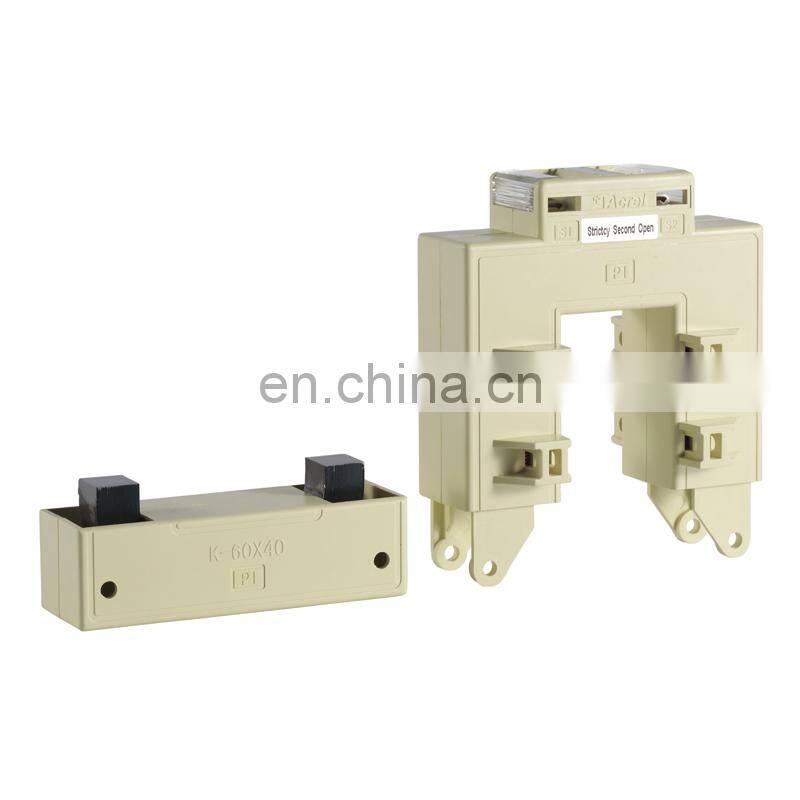

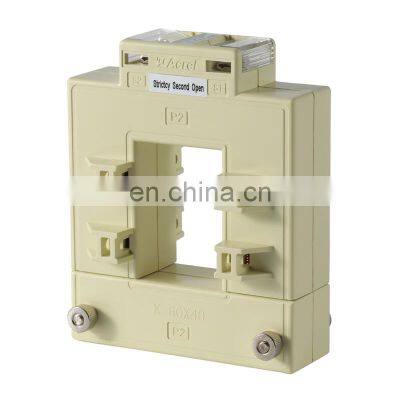

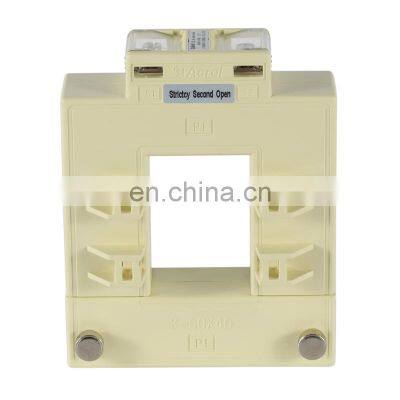

AKH-0.66/K-160*80 Split CT no Need to Remove Busbar Renovation Project Split Current Transformer Ratio 4000/5 Through Busbar
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Renovation Project CT Split Current Transformer AKH-0.66/K-60*40 Ratio 250-2000/5 Through BusbarNegotiableMOQ: 1 -
Split Current Transformer AKH-0.66/K-100*40 Ratio 4000/5 Through BusbarNegotiableMOQ: 1
-
Low Voltage 50mm Open Loop Current Transformer Sensor High Quality With CableNegotiableMOQ: 1
-
Low Voltage CE Rohs 1000/5A Small Open Split Core Current TransformerNegotiableMOQ: 1
-
AKH-0.66 Low Voltage 300/5A Split Core Current Transformer PriceNegotiableMOQ: 1
Product Description
Current Transformer (CT) is used to transform the high AC current to small easily manageable values. They are connected with the panel meter or relay and they can help to measure the current or protect the equipment.

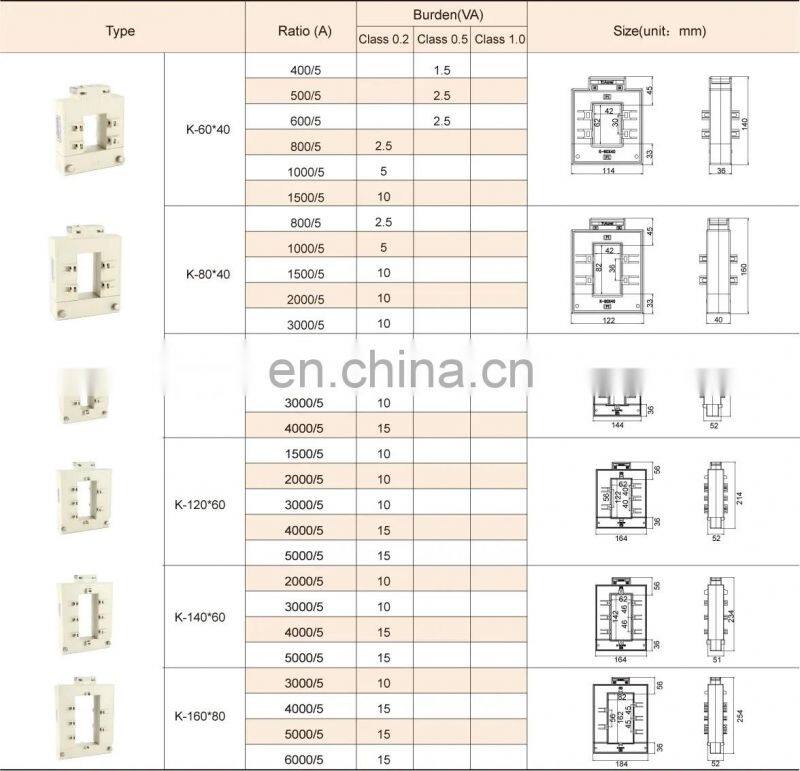

Specification
● Security factor: FS＜5
● Maximum system voltage: 720V AC
●Test voltage: 3kV AC(1min)
●Standards:IEC/EN61869-1, IEC/EN61869-2
● Maximum system voltage: 720V AC
●Test voltage: 3kV AC(1min)
●Standards:IEC/EN61869-1, IEC/EN61869-2
● Rated frequency: 50/60Hz● Rated short-time thermal current: Ith=40~60In
● Rated dynamic current: Idyn=2.5Ith
● Rated secondary current: X/5A (X/1A upon request)
● Rated dynamic current: Idyn=2.5Ith
● Rated secondary current: X/5A (X/1A upon request)
● Rated primary current: Ranging up to 6000A
● Continuous overload: 120%In● Protection level: IP30
● Casing: Non-flammable, polycarbonate self-extinguishing ABS
● Environment:
Operating temperature: -25℃-+50℃
Storage temperature: -40℃-+80℃
Humidity (no condensation) ≤90%RH
● Casing: Non-flammable, polycarbonate self-extinguishing ABS
● Environment:
Operating temperature: -25℃-+50℃
Storage temperature: -40℃-+80℃
Humidity (no condensation) ≤90%RH

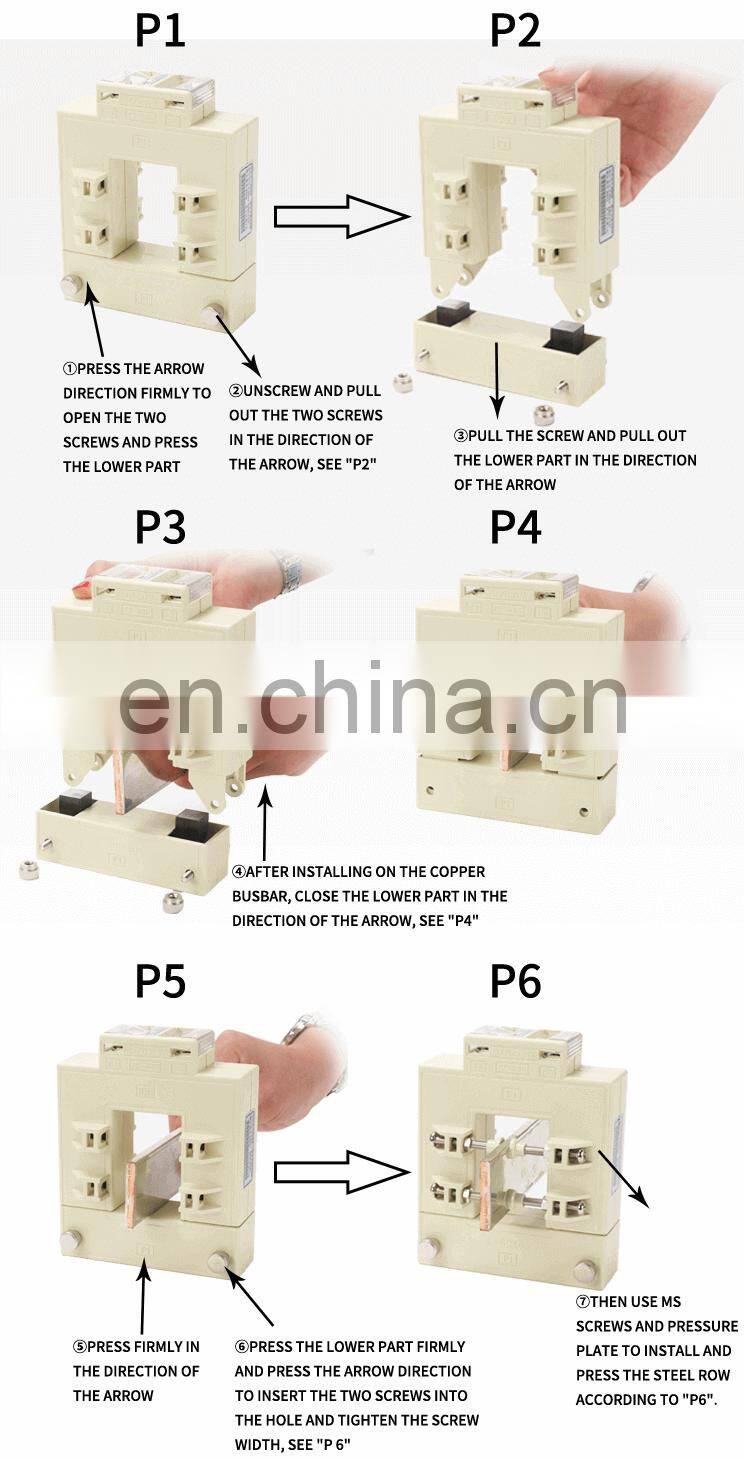

Installation

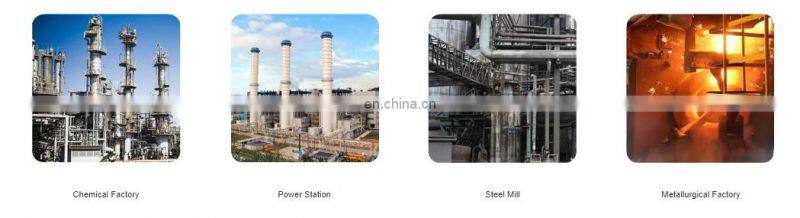

Application
Exhibition
company introduction
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid..
Payment & Delivery
1.Payment: T/T 100% in advance, credit card, western union, in cash and etc. T/T 30% as deposit and the balance before shipment or against copy of B/L is acceptable with enough MOQ.
2.Delivery Arriving Time: in 3-7 working days after payment received.
3.Ways of Delivery: By sea, air, train or international courier like Fedex, TNT, DHL and UPS.
