Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > Acrel High Accuracy 50mm Open-close Type Small 1A Current Transformer CE Rohs

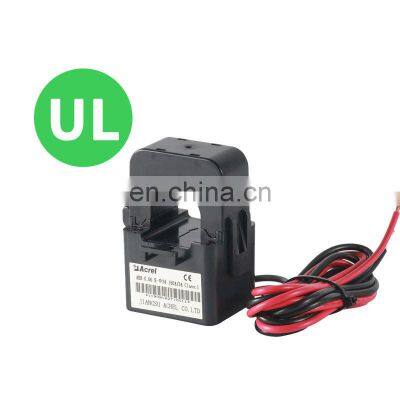

Acrel High Accuracy 50mm Open-close Type Small 1A Current Transformer CE Rohs
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel High Accuracy 16mm AC Split Core 100A/40mA Current Transformer CE Open-close TypeNegotiableMOQ: 1 -
AKH-0.66 Low Voltage 24mm Class 0.5 Split Core Current Transformer High QualityNegotiableMOQ: 1
-
CE Rohs AKH-0.66 High Accuracy 1 Loop 60A/20mA Split Core Transformers With CableNegotiableMOQ: 1
-
Acrel High Accuracy 24mm 300/5A Open-close Type CE Current Transformer Sensor With CableNegotiableMOQ: 1
-
36mm High Quality 720V AC Current Transformer 600/5A Accuracy Class 0.5 With CableNegotiableMOQ: 1
Products Description
Split Core Current Transformer AKH-0.66/K-φ
AKH-0.66/K-Φ series split current transformers are mainly used in reconstructing projects of urban and rural power grids.
Product has the advantages of small size, high accuracy, strong load capacity, easy installation, etc.They save the manpower, material resources and financial resources and improve the efficiency of users.
Current Transformer (CT) is used to transform the high AC current to small easily manageable values.They are connected with the Panel Meter or Relay and they can help to measure the current or protect the enquirements. The appearance is nice and the installation and wiring are convenient.
● Diameter range: φ10mm, φ16mm, φ24mm, φ36mm
● Standard&Certificate: IEC/EN61869-1;IEC/EN61869-2;CE
● Ambient air temperature -30℃-70℃
● Height above sea level≤3000m
● Power frequency withstand voltage 3000v/1min 50Hz
● Used in place without direct rain and snow,without severe pollution and acute shock
Technical Parameter
Model Name | Current Ratio (Primary/Secondary) | Accuracy Class | Rated Load (VA) | Perforation Hole Size (mm) |
AKH-0.66/K-φ10 | 5A/1.25mA | 0.5 | 10 | φ10 |
(10~20)A/5mA | ||||
(40~60)A/20mA | ||||
AKH-0.66/K-φ16 | (20~50)A/10mA | φ16 | ||
(40~100)A/20mA | ||||
100A/40mA | ||||
AKH-0.66/K-φ24 | (60~200)A/20mA | φ24 | ||
(100~250)A/40mA | ||||
400A/100mA | ||||
AKH-0.66/K-φ36 | (100~200)A/10mA | φ36 | ||
(200~400)A/20mA | ||||
(300~600)A/100mA | ||||
400A/40mA | ||||
600A/75mA | ||||
AKH-0.66/K-φ50 | (600~800)A/100mA | φ50 |
Wiring Illustration
Dimension & Installation
Model Name | Outline Size (mm) | Perforation Size (mm) | Tolerance (mm) | ||||||||||
W | H | D | M | N | φ1 | φ2 | |||||||
AKH-0.66/K-φ10 | 27 | 40 | 26 | 24 | 36 | 10 | 9 | ±1 | |||||
AKH-0.66/K-φ16 | 31 | 50 | 29 | 28 | 42 | 16 | 17 | ||||||
AKH-0.66/K-φ24 | 39 | 71 | 46 | 36 | 52 | 24 | 23.5 | ||||||
AKH-0.66/K-φ36 | 42.5 | 82 | 58 | 40 | 56 | 33.5 | 35 | ||||||
AKH-0.66/K-φ50 | 46.5 | 110 | 90 | 54 | 66.5 | 47 | 52 | ||||||
Solution Structure
