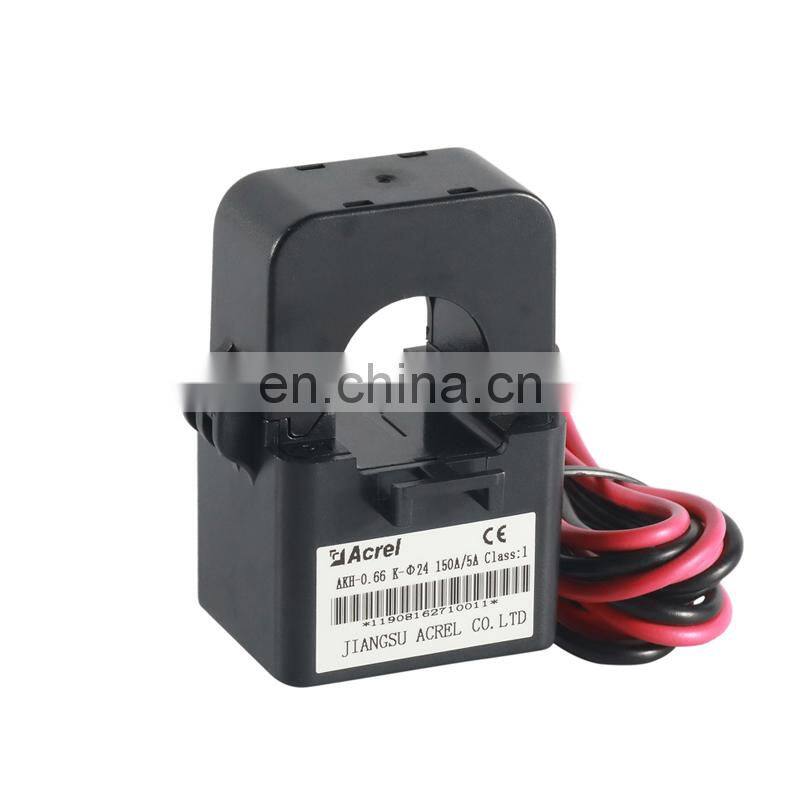

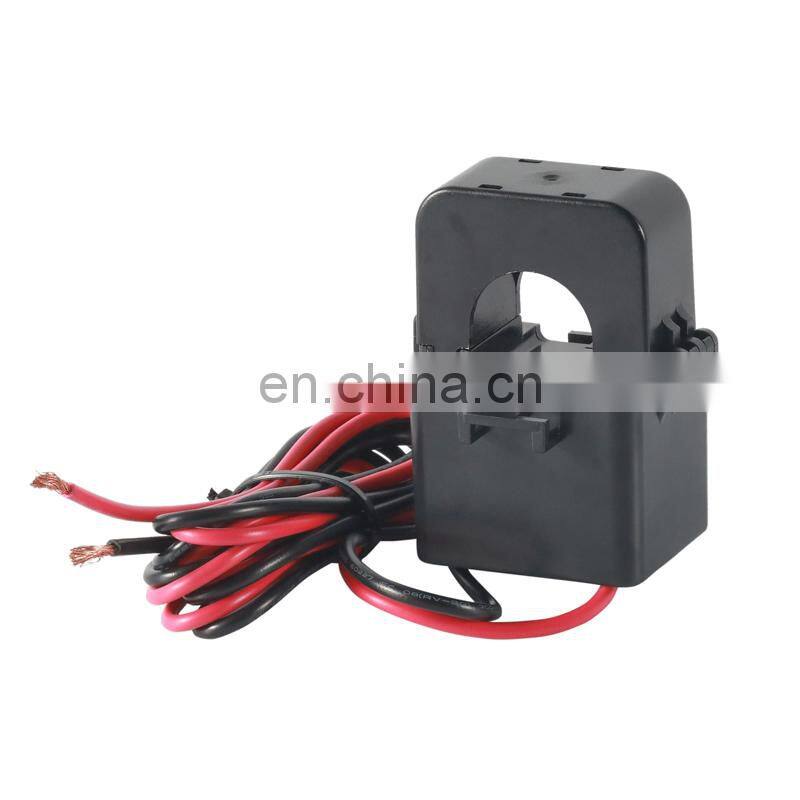

Acrel AKH-0.66/K-36 5A Open Core Current Transformer Inner Diameter 36mm AC Current Sensor
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Acrel AKH-0.66K-50 600/5A AC Split Core Current Transformer Clamp on CTs
-
Acrel AKH-0.66K-24 300/5A Electric CT Current Sensor AMP Meters Transformers CE Certificate
-
Acrel AKH-0.66K-24 150/5A ROHS CE Open Type Current Transformer for Measuring Class 1
-
Acrel AKH-0.66K-24 250/5A Split Core Current Transformer With Cable 2 Meters
-
BR AC Rogowski Coil Current Transducer Class 0.5S Real-time Measurement Split Coil Current Sensor 4-20mA Output
-
China Manufacturer Acrel High Accurancy Split Core Current Transformer Price
Product Description
Products Description
AKH-0.66 K-φ24 Splitcore Current Transformer
*Primary Current: 60A~200A
*Secondary Current: 20mA/40mA/1A/5A
*Accuracy: 0.5 Class
*Standard: IEC/EN61869-1, IEC/EN61869-2

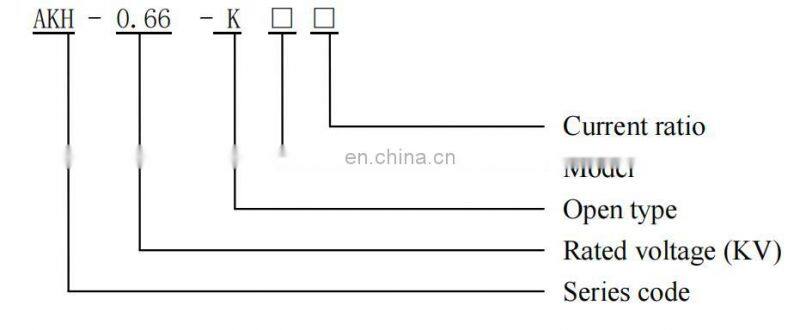

Explanation of Model Name
Function & Parameter
Technical Parameters
Model Name | Current Ratio(A) Primary/Secondary | Accuracy Class | Rated Load (VA) | Aperture Hole Diameter(mm) |
AKH-0.66/K-Φ10 | 5A/1.67mA | 0.5 | 10 | φ10 |
5A/2.5mA | 0.5 | 10 | φ10 | |
10A/5mA | 0.5 | 10 | φ10 | |
45~50A/20mA | 0.5 | 10 | φ10 | |
80A/26.7mA | 0.5 | 10 | φ10 | |
AKH-0.66/K-Φ16 | 120A/40mA | 0.5 | 10 | φ16 |
40~100A/20mA | 0.5 | 10 | φ16 | |
80A/32mA | 0.5 | 10 | φ16 | |
AKH-0.66/K-Φ24 | 60~200A/20mA | 0.5 | 10 | φ24 |
200A/40mA | 0.5 | 10 | φ24 | |
150~200A/5(1)A | 1 | 1 | φ24 | |
200~300A/5(1)A | 1 | 1.5 | φ24 | |
AKH-0.66/K-Φ36 | 400A/50mA | 0.5 | 10 | φ36 |
400A/40mA | 0.5 | 10 | ||
600A/75mA | 0.5 | 10 | ||
200~400A/20mA | 0.5 | 10 | ||
300~400A/5(1)A | 1 | 1.5 | ||
500~600A/5(1)A | 0.5 | 1.5 |
Dimension & Installation

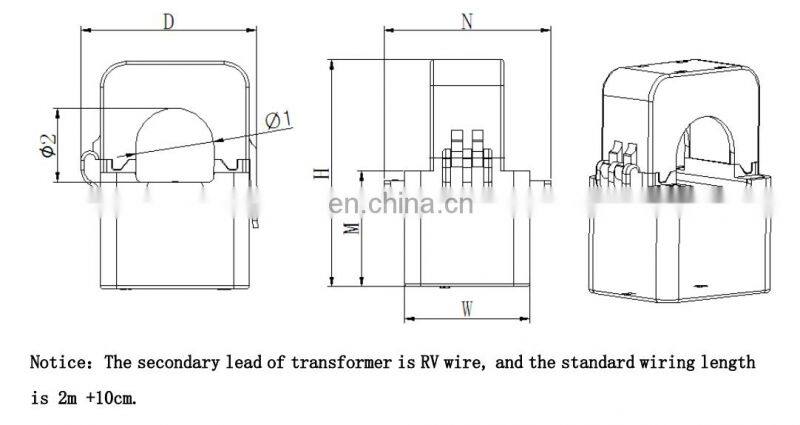

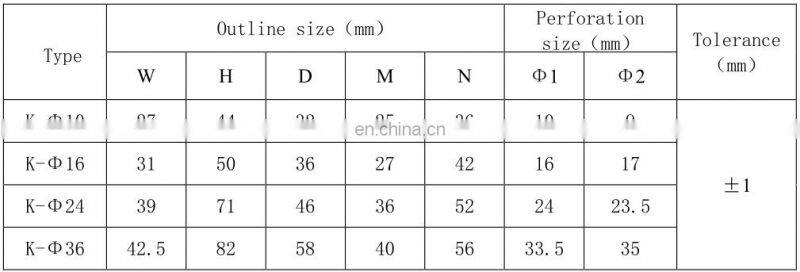

Dimension Overview

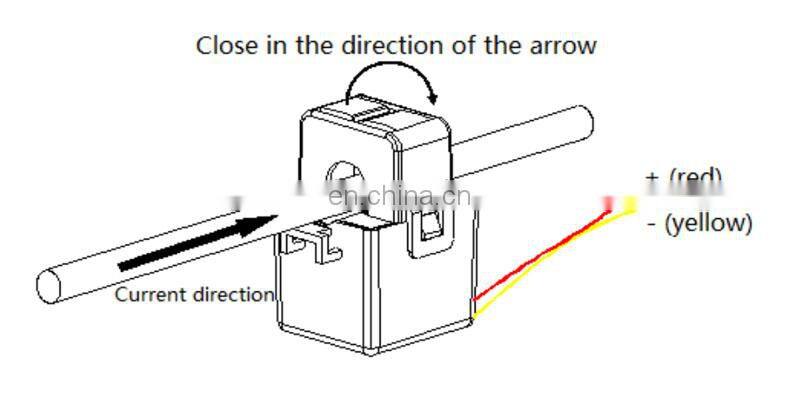

Installation Instruction
Exhibition
company introduction
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid..
Payment & Delivery
1.Payment: T/T 100% in advance, credit card, western union, in cash and etc. T/T 30% as deposit and the balance before shipment or against copy of B/L is acceptable with enough MOQ.
2.Delivery Arriving Time: in 3-7 working days after payment received.
3.Ways of Delivery: By sea, air, train or international courier like Fedex, TNT, DHL and UPS.
