Factory Wholesale Acrel AKH-0.66K-36 600/5A Split Core Toroidal Current Transformer Rated Voltage 660VAC 720VAC 1140VAC Optional
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Wholesale Acrel AKH-0.66K-36 500/5A Window Size Split CT Clamp on Current Transformer CE CertificateNegotiableMOQ: 1 -
Factory Wholesale Acrel AKH-0.66K-36 300/5A Clamp CT Transformer Class0.5 Split Core CTsNegotiableMOQ: 1
-
Factory Wholesale Acrel AKH-0.66K-36 300/5A Split Core Current Converter CE Certificate AC Clamp On Current Sensor CTNegotiableMOQ: 1
-
Ratio 40-100A/20mA 50A/20mA Acrel Current Transformer Split Core CT Reconstructing Projects of Urban and RuralNegotiableMOQ: 1
-
Acrel AKH-0.66/K-36 5A Open Core Current Transformer Inner Diameter 36mm AC Current SensorNegotiableMOQ: 1
Products Description

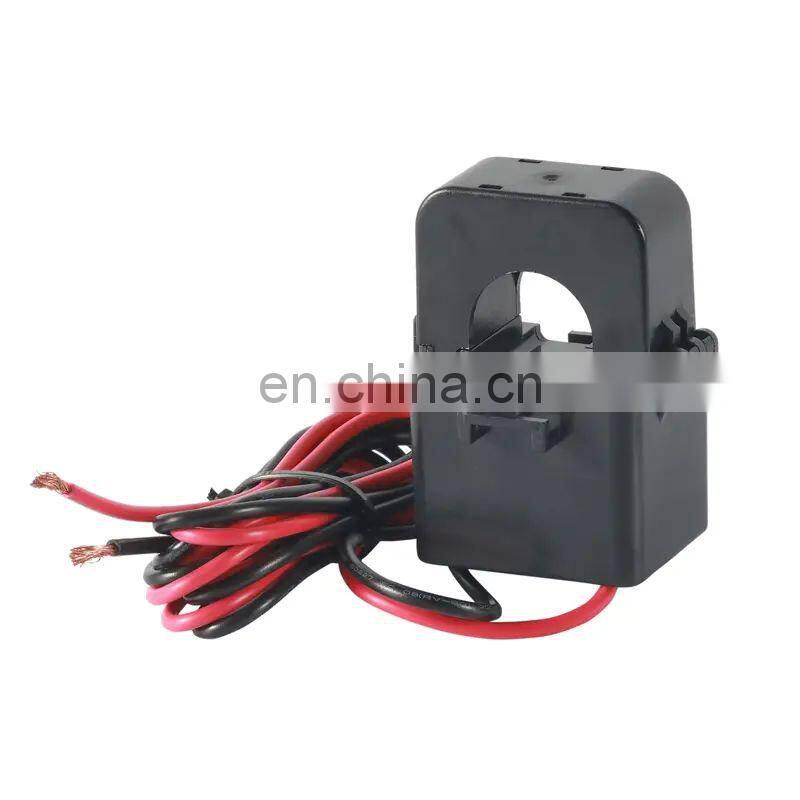

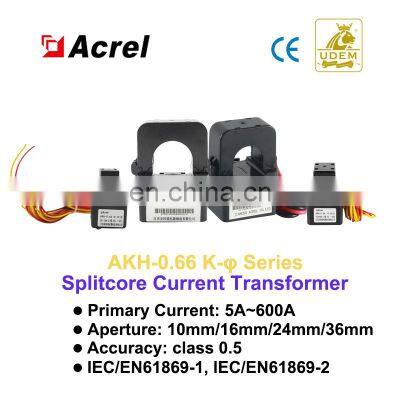

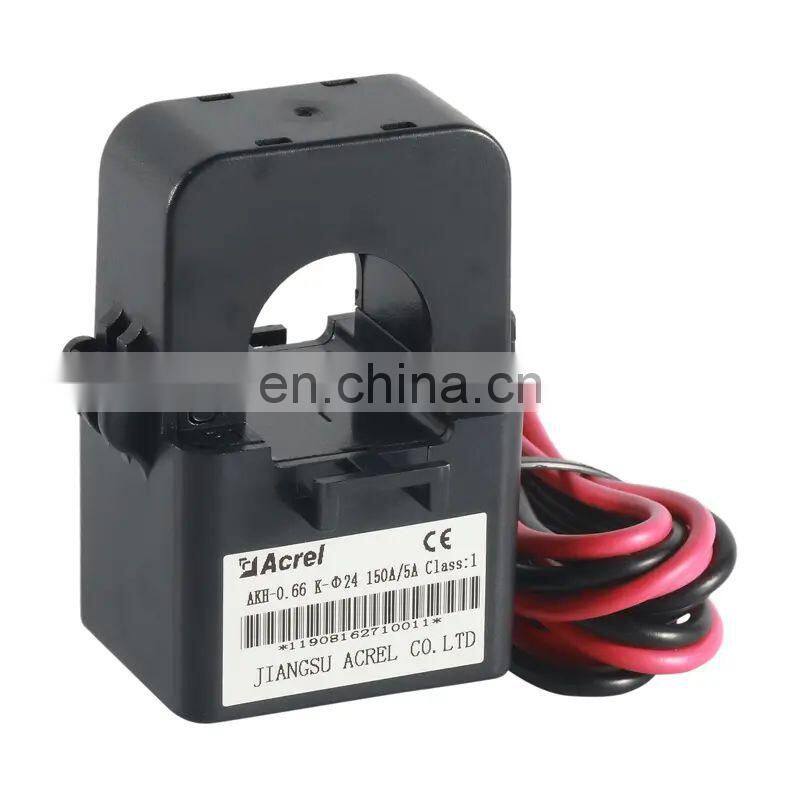

Split Core Current Transformer AKH-0.66K-Φ36
AKH-0.66/K-Φ series split current transformers are mainly used in reconstructing projects of urban and rural power grids.
Product has the advantages of small size, high accuracy, strong load capacity, easy installation, etc
.● Measurement: Alternating Current (AC)
● Accuracy: Class 0.5
● Primary Current Input: Max 600A AC
● Rated Voltage: 660VAC 720VAC 1140VAC
●Rated Frequency: 50~60Hz
● Installtion: Clamp-on (installed on Cable)
● Loop Count: 1 Loop
● Diameter range: φ36mm
● Standard&Certificate: IEC/EN61869-1;IEC/EN61869-2;CE
● Ambient air temperature -30℃-70℃
● Ambient air temperature -30℃-70℃
● Height above sea level≤3000m
● Power frequency withstand voltage 3000v/1min 50Hz
● Used inplace without direct rain and snow,without severe pollution and acute shock
Technical Parameter
Model Name | Current Ratio (Primary/Secondary) | Accuracy Class | Rated Load (VA) | Perforation Hole Size (mm) |
AKH-0.66K-φ36 | 300/5 | 0.5 | 10 | φ36 |
400/5 | ||||
500/5 | ||||
600/5 |

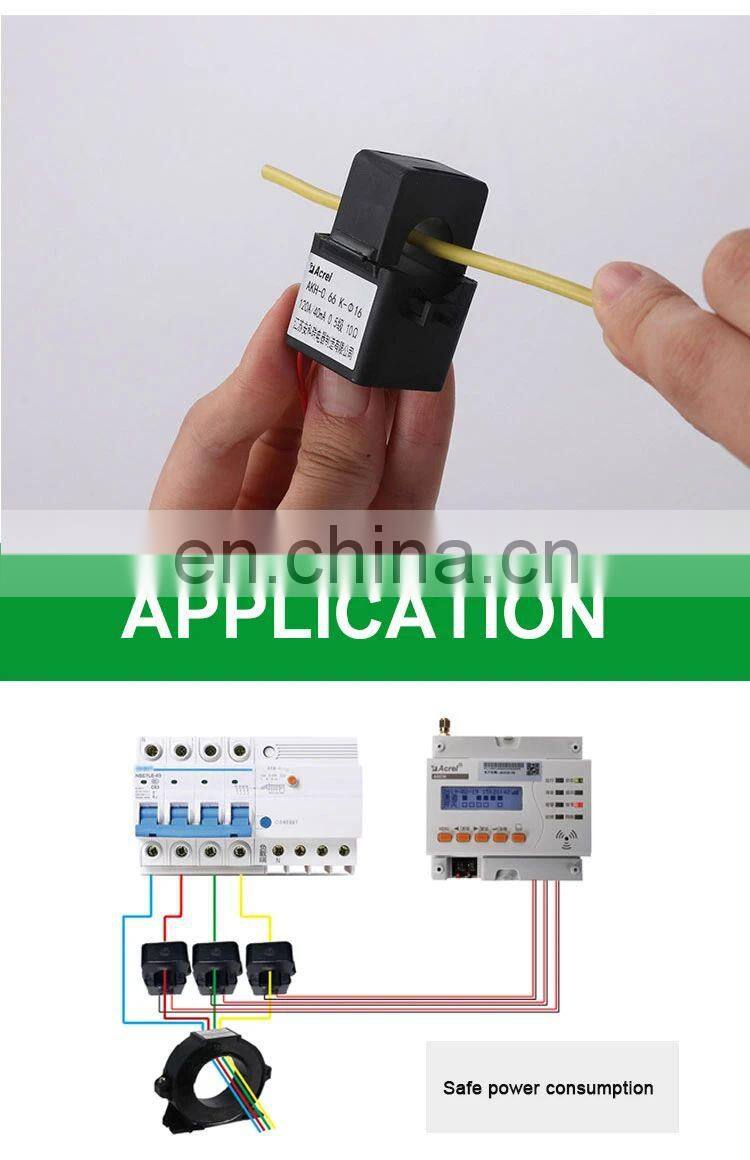

Wiring Illustration

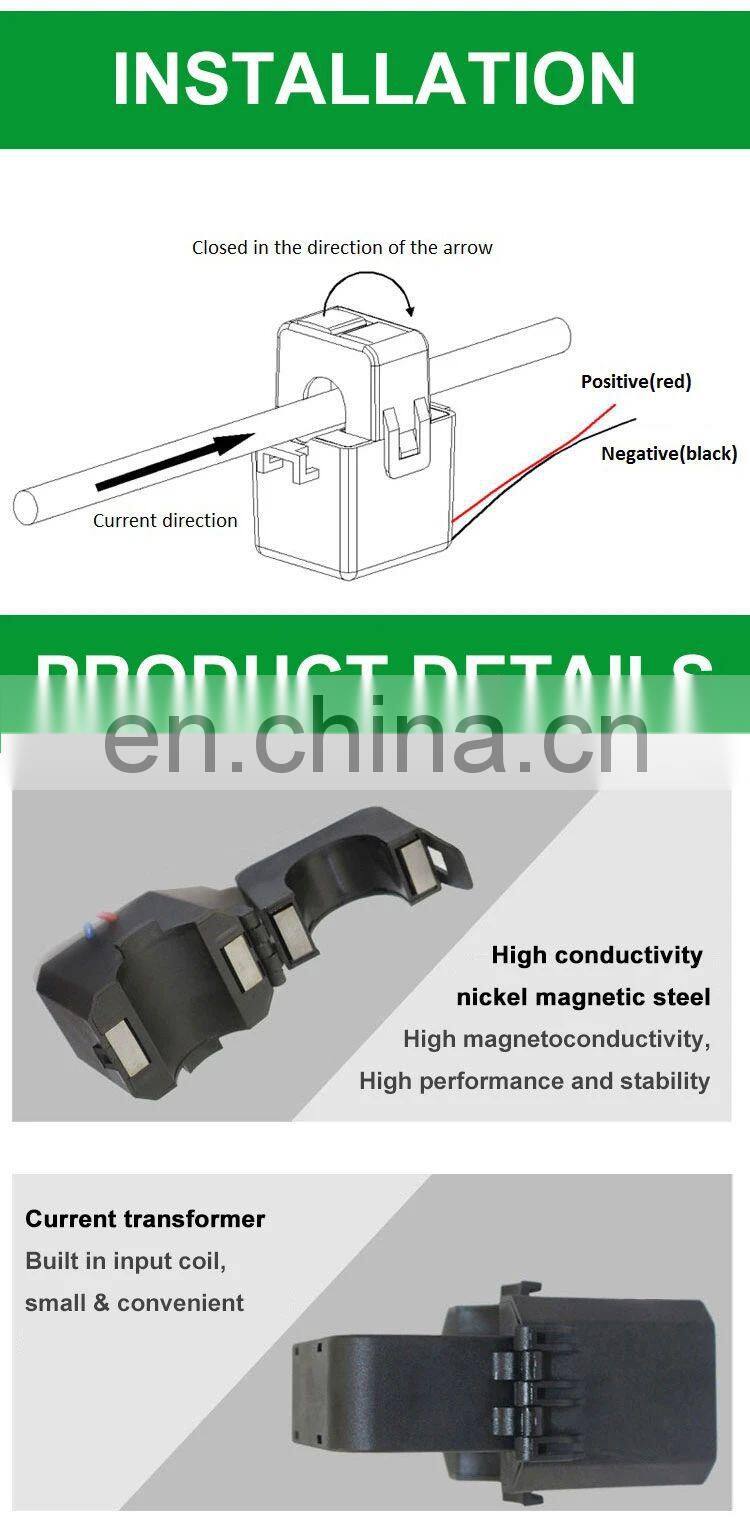

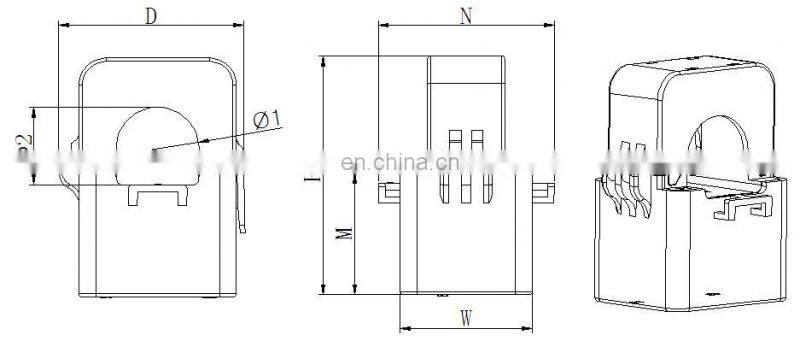

Dimension & Installation
Model Name | Outline Size (mm) | Perforation Size (mm) | Tolerance (mm) | ||||||||||
W | H | D | M | N | φ1 | φ2 | |||||||
AKH-0.66K-φ36 | 42.5 | 81.5 | 67 | 40 | 56 | 33.5 | 35 | ±1 | |||||

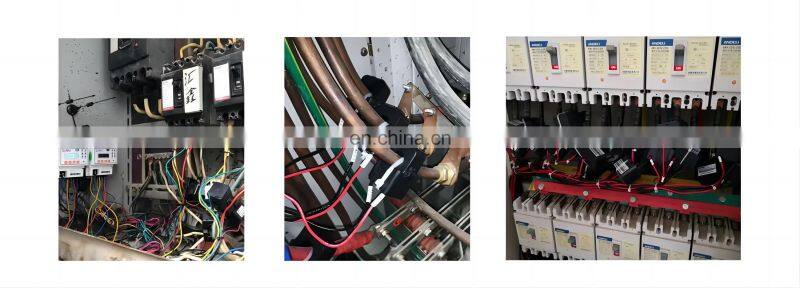

Solution Structure
Certification
Company Profile
