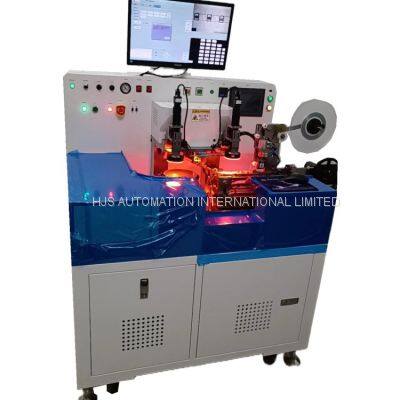

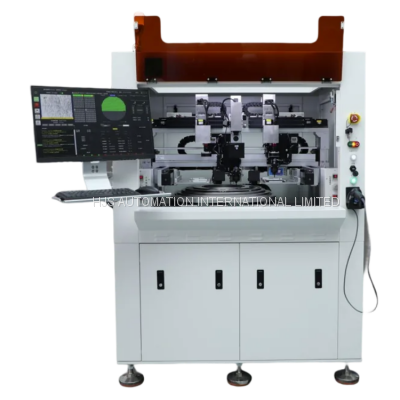

Bare Die Tape and Reel Machine HJC-560
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HJS
Place of Origin:
China
Model Number:
HJC-560
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Semi-auto Taping Machine HJC-1000 With CameraNegotiableMOQ: 1 Set -
Automatic Tape and Reel Machine for JEDEC Tray Feeding HJC-009TRNegotiableMOQ: 1 Set
-
Semi-auto Taping Machine HJC-1000NegotiableMOQ: 1 Set
-
Bare Die Tape and Reel Machine HJC-560NegotiableMOQ: 1 Set
-
Die Cutting MachineNegotiableMOQ: 2300 Sets
Brand Name
HJS
Place of Origin
China
Model Number
HJC-560
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Weight
500
Dimension(L*W*H)
L1400 x W800x H1700mm;
Voltage
AC220V
Power
1000W
Application
Machinery & Hardware
Condition
New
Automatic Grade
Automatic
Driven Type
Electric
Packaging Material
Wood
Packaging Type
Bags, Foil
1. Can be used with 6-inch/8-inch Wafer ring input and tape&reel output;
2. Pick with one nozzle from wafer ring to carrier tape;
3. Mapping function is optional;
4. For 1.0 × 1.0 (mm) to 12 × 12 (mm) size die;
5. Suitable for QFN, CSP etc;
6. Carrier tape rail width fixed. One machine is for one spec carrier tape only;
7. HMI software has English language
Wafer to dicing tape|wafer tape and reel|bare die tape and reel machine|die sorting machine|wafer to waffle tray|die bonding
