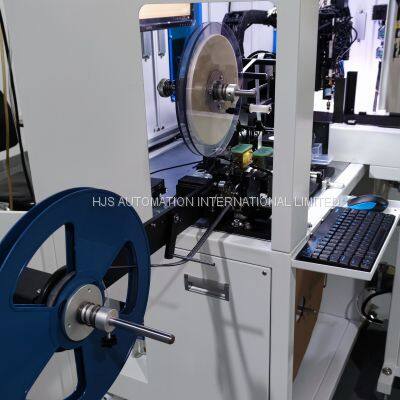

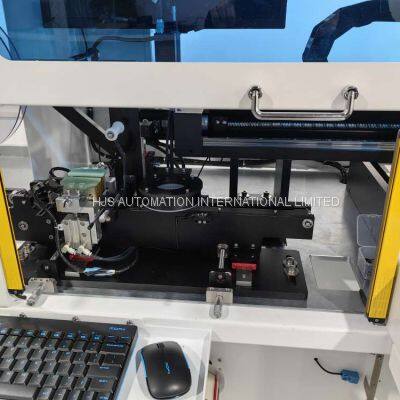

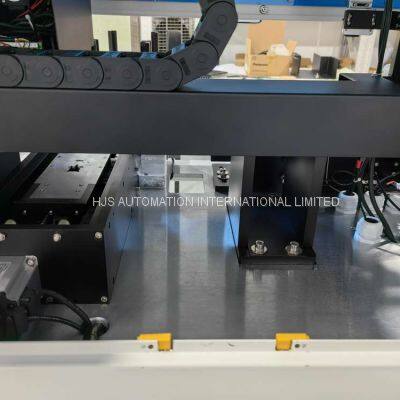

Automatic Tape And Reel Machine for JEDEC Tray Feeding HJC-009TR

Model: HJC-009TR

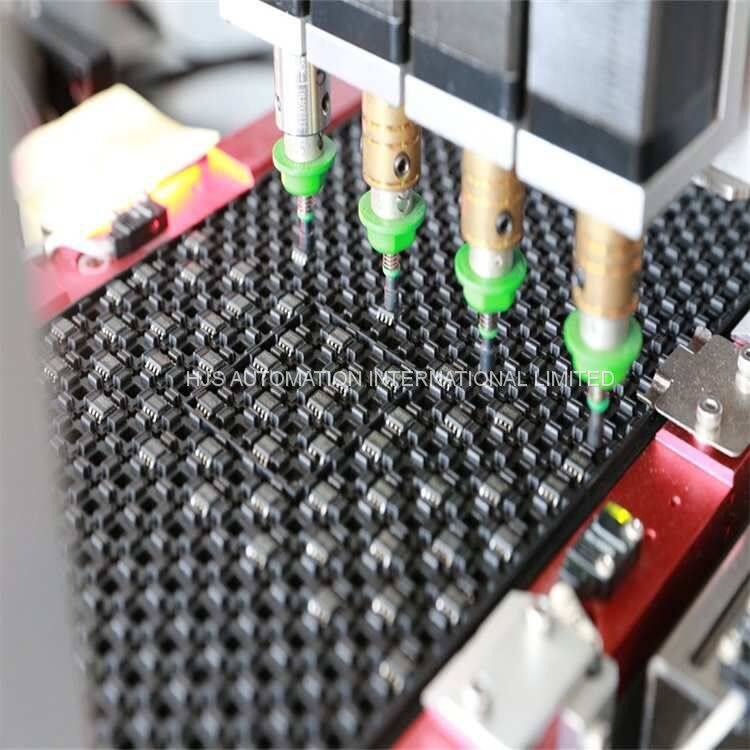

Application: The machine realizes automatic taping with component tray feeding(tray size: 323 * 136mm), including automatic tray sending, automatic tray receiving, automatic component picking, automatic component filling (100%), automatic carrier tape uploading, automatic cover tape loading, automatic sealing, material leakage detection, automatic counting, alarm and emergency stop, etc.

Standard JEDEC tray sample(Other tray size need sample for confirmation):

Performance and parameters

Feeding method: tray feeding

Sealing method: Cold seal / heat seal optional

Sealing peel force: 20~150g adjustable

Machine capacity: 4~5kpcs / h (depending on product size);

Applicable products: PCB、IC、inductor (integrated series, NR Series);

Operation control mode: PLC+HMI touch screen;

Working environment: 10 ℃ ~ 40 ℃

Heating temperature: 0 ℃ ~ 200 ℃

CCD image detection: Optional

Machine size: L1400 x W800x H1700mm;

Power supply: AC220V, 50Hz;

Air pressure: 5KG/CM³;

Power: 1000W;
