Network cable Power cable integrated line
Industrial grade network cable Power cord integrated line has good temperature resistance performance, temperature resistance range is wide, belongs to the field of industrial engineering used in the special wide temperature network cable. The commonly used low temperature environment is -30 degrees below zero, -40 degrees, -50 degrees, -60 degrees, and so on. The specific temperature range can also be customized according to the requirements. Cables are suitable for use in harsh environments such as low-temperature reservoirs, low-temperature transportation, and outdoor low temperature and cold in northern China, which require high low softness and long-term cold resistance of cables. The shield structure of cold-resistant towed cable is a double-layer shield of aluminum foil and tinned copper mesh braid, which has excellent anti-electromagnetic interference effect. CAT5E is a super five hundred gigabit network cable, and CAT6 is a gigabit high-speed network cable. With special materials and processes, the cable has good bending resistance. Such as tow chain, tank chain, robot arm, manipulator and only automatic equipment and so on.
Network cable Integrated power cable

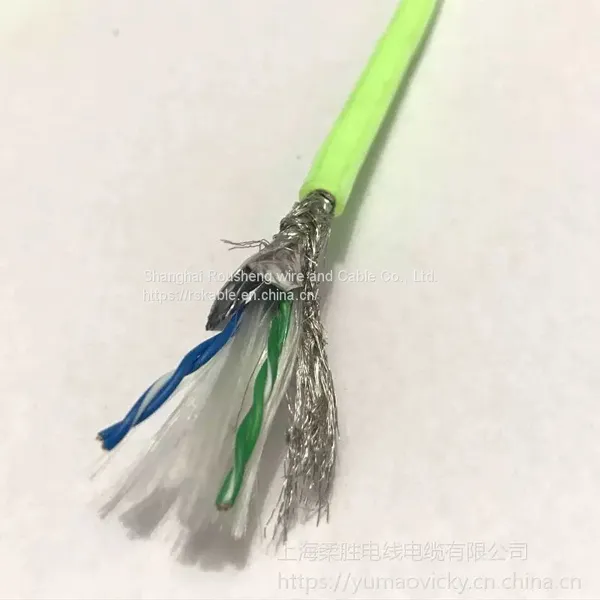

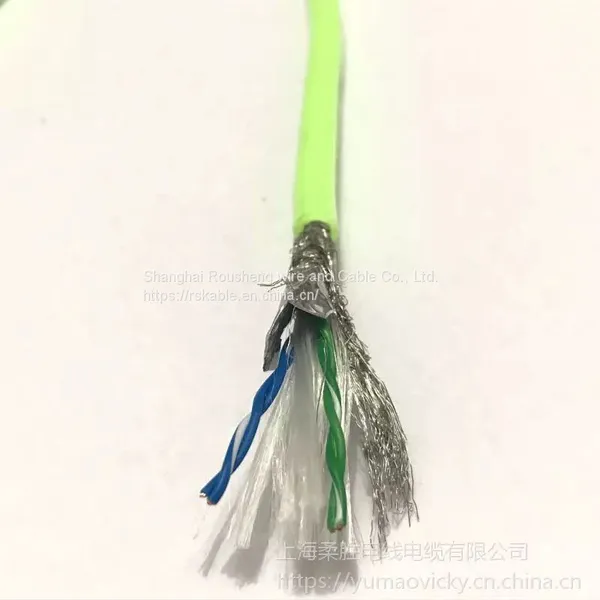

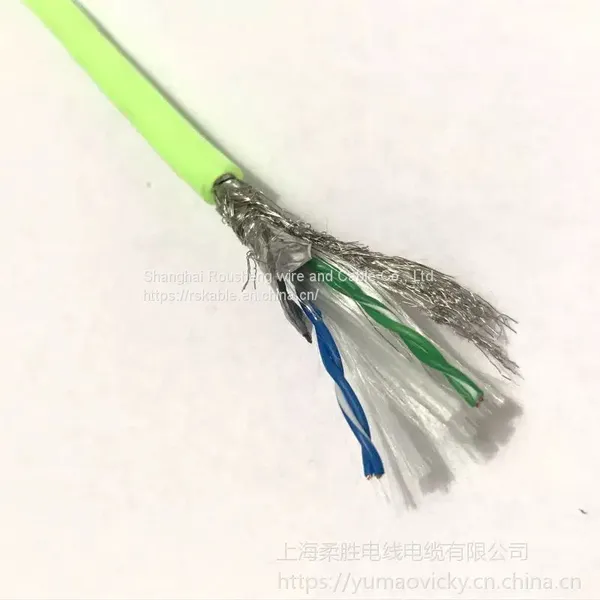

Conductor: multi - strand ultrafine stranded oxygen - free copper wire
Insulation: special PE material
Color: core color separation
Shielding: tinned copper wire textile shielding, density: more than 85%
Jacket: special cold resistant PTE/TPV/PUR material optional
Color: Jacket color dark green/black/gray/yellow/orange
Rated voltage: 300/300V
Test voltage: 2500V
Network Cable Bending radius of the integrated cable of the power cable
Fixed installation: 5 x cable diameter (D)
Mobile installation:
When the travel is less than 10 m, the bending radius is 7.5×D
When the stroke is more than 10 meters, the bending radius is 10×D
