High Pressure 3-way Valve Manifold Needle Valves Instrumental Manifolds Valve
US$ 42 - 68
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Jiemao
Place of Origin:
China
Material:
Stainless Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai(or to be advised)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Water System1/4" Thread High Pressure Stainless Steel Needle ValveUS$ 1.5 - 3MOQ: 1 Piece -
Stainless Steel Integral 2-Valve Manifolds 316 Female NptUS$ 18 - 60MOQ: 10 Pieces
-
Stainless Steel 316 1/2" T Type 5 Way Valve ManifoldUS$ 25 - 300MOQ: 1 Piece
-
SUS 304 Magnetic Level Gauge Flapper Roller Flapper Display Panel Scale Profile PVC Plastic Flag Level Sensor Parts StainlessUS$ 3.5MOQ: 10 Pieces
-
Magnetic Flapper Roller Flipper Display Panel Scale Profile Gauge Parts Ceramic High Temperature Flip Spare ComponentsUS$ 45MOQ: 10 Meters
Brand Name
Jiemao
Place of Origin
China
Material
Stainless Steel
Application
General
Structure
Needle
Pressure
High Pressure
Power
Manual
Port Size
1/2“
Media
Other
Temperature of Media
High Temperature
Products Description
Stainless Steel 3 Way Instrument Valve Manifolds
To compliment the range of differential pressure gauges and transmitters, providing a variety of 3 valve manifolds. These
manifolds offer the instrument engineer the ability to isolate the differential pressure instrument for removal without
interrupting the process. In higher static, but lower differential pressure applications, the equalization valve may be left open during install to balance pressure across ports, protecting the DP instrument diaphragm from sudden pressure surges on one side.
To compliment the range of differential pressure gauges and transmitters, providing a variety of 3 valve manifolds. These
manifolds offer the instrument engineer the ability to isolate the differential pressure instrument for removal without
interrupting the process. In higher static, but lower differential pressure applications, the equalization valve may be left open during install to balance pressure across ports, protecting the DP instrument diaphragm from sudden pressure surges on one side.

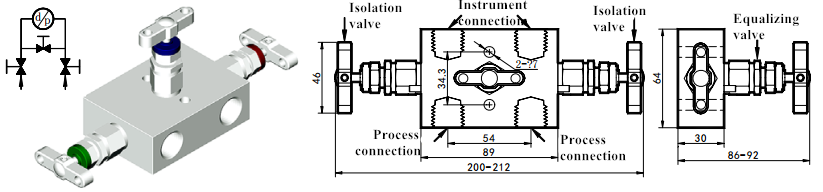

Manifolds may be supplied for direct mount to the differential pressure transmitter, with standard 33mm centers design. The angled bonnet design, evident on the Direct Mounted VALVES MANIFOLD designs, prevents fouling of the valve head with transmitter electrical enclosure (/display). Alternatively, a flat faced manifold is offered as part of a panel mount design.
TESTING :
OPERATING PARAMETERS
APPLICATIONS
1. Designed for mounting on differential pressure transmitters
2. Pressure Rating: up to 6000 psig (408 bar) at CWP
3. Temperature Rating: -54ºC to 232ºC with PTFE packing
4. Packing: PTFE packing standard, Graphite packing for high temperature on request
5. Available with Pipe to Pipe, Pipe to Flange, Flange to Flange, Direct instrument mount and remote mount
6. Options: Available with 2 way, 3 way and 5 way valve manifolds
7. MM Dimensions are for reference only and may change
TESTING :
•Standard Test : Each Valve is factory tested with nitrogen at 1000 psig (69 bar) for leakage at the seat and packing,
the maximum allowable leak rate of 0.1 sccm
the maximum allowable leak rate of 0.1 sccm
Note:
△ A packing adjustment may be required periodically to increase service life and to prevent leakage.
△ Valves that have not been cycled for a period of time may have a higher initial actuation torque.

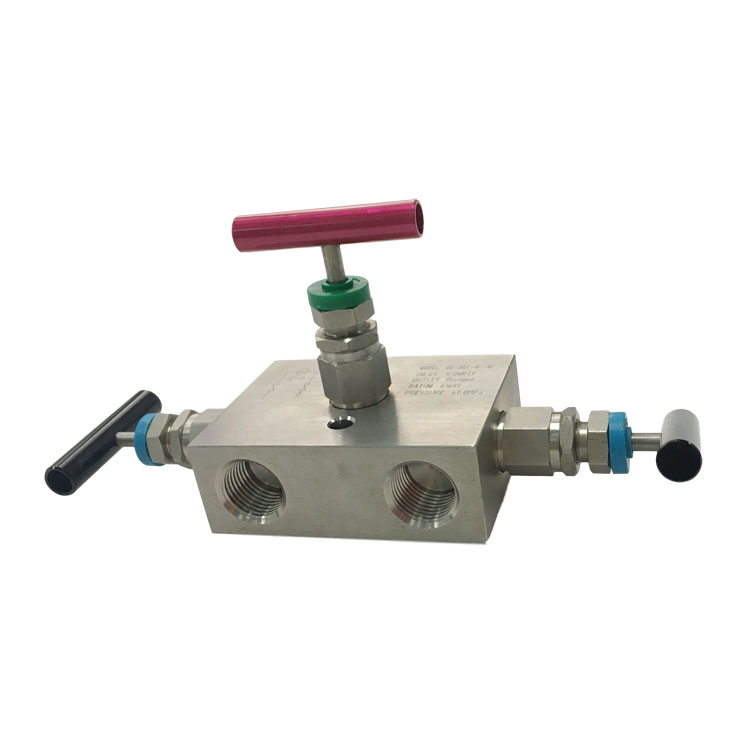

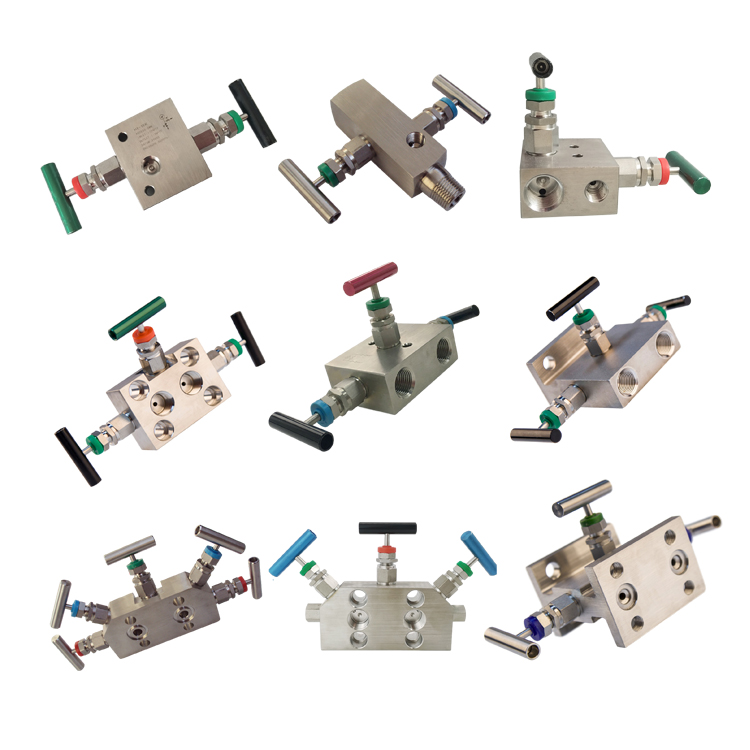

Detailed pictures
Packaging pictures
