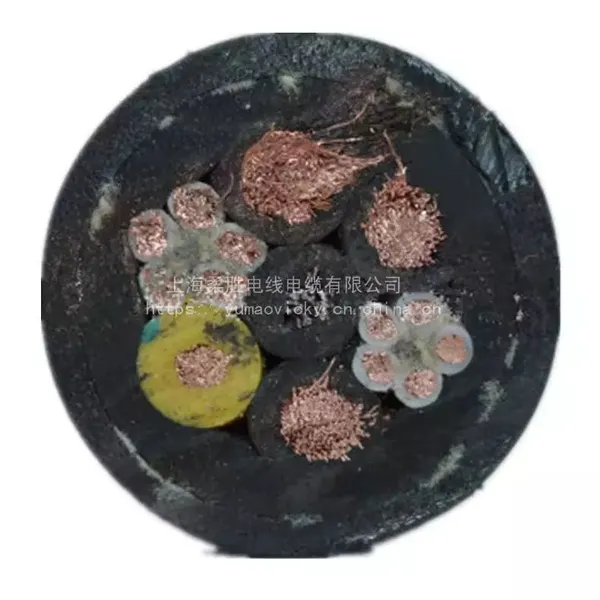

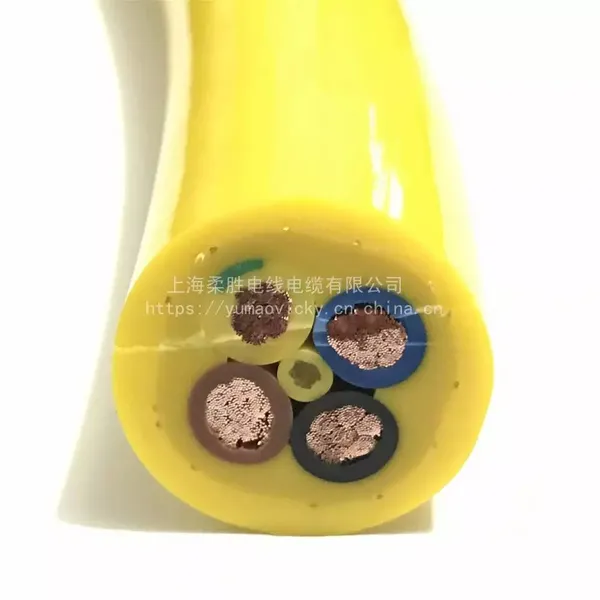

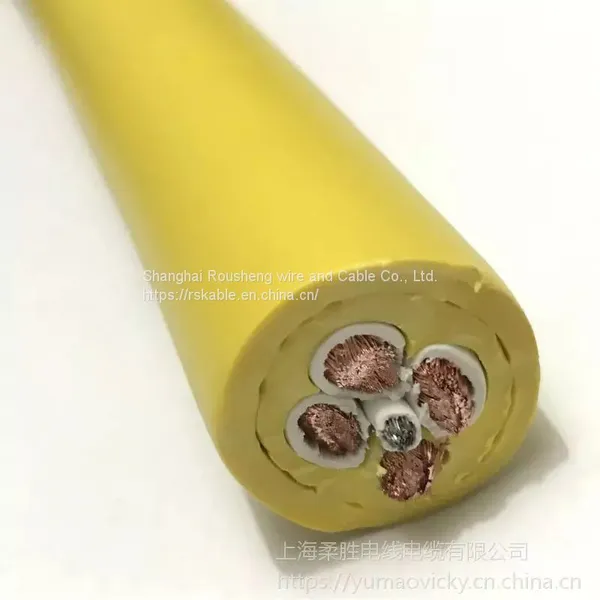

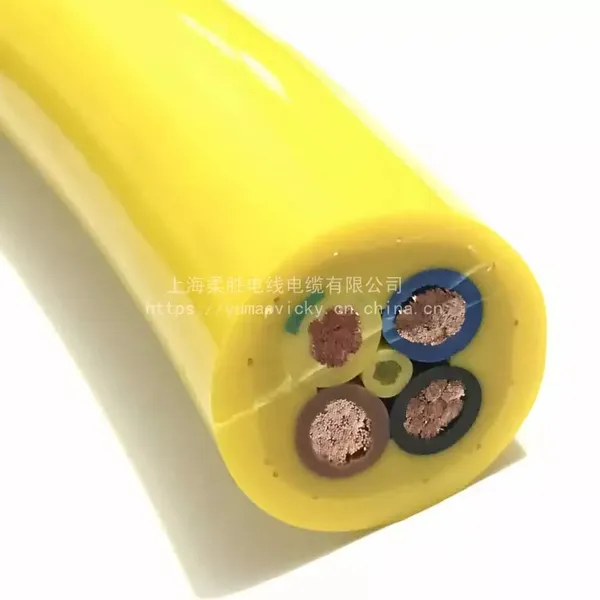

Help CenterGRAB ELECTRIC CABLE RSKEBLE77300 Reel Cable 3*22+3*8
Related Products
-
Kurao Power Cable YET/RLR4*10+4*4 Slag Crane Refuse Crane Grab Machine Drum Machine Cable 0.6/1KVNegotiableMOQ: 1 Meter -
Garbage Hoist Food Hoist Grab Crane Drum Cable RLR3*16/25+3*3/5/4*1.5 Custom CableNegotiableMOQ: 1 Meter
-
PUR Polyurethane Roll Cable 4 * 2.5 6 8 | | | 10 Waterproof and Resistant to Cold Oil Resistant Wire Resistance Drag StretchingNegotiableMOQ: 1 Meter
-
Bucket Grab Power Plant Turbine Impeller Coal Feeder With Reel Cable Towline 24 | 30 36 25 * 2.5 | 4NegotiableMOQ: 1 Meter
-
Garbage Crane Grab Special Cable Model 3*16+1*10+5*1.5mm2NegotiableMOQ: 1 Meter
Description of garbage crane grab cable:
The structure of this product is a combination of 4 core power line and 8 core control line of different thickness and fine specifications. The general structure of garbage hanging grab cable is 3+ 1,4 +4, 4+ 10,4 +12 and so on. It can also be customized according to user requirements for processing all kinds of special structure grab lifting power cable. Grab cable is composed of a single power line and a power line and control line, signal line combination of composite cable, curao power cable is a special lifting operation of the special application of high-end cable. The cable adopts the double-layer protective sleeve of the super structure, the middle of the cable is filled with steel wire high strength tensile, at the same time between the inside and outside of the sheath with imported bulletproof wire braided net super tensile. At the same time cable imported grab machine special high-end polyurethane PUR material, the introduction of advanced cable production, manufacturing, testing technology and sophisticated processing equipment, our company grab machine cable performance has reached and exceeded the performance of the same type of foreign products, at the same time because of local production and manufacturing, the cost is greatly reduced, The production cycle is fast (the delivery time of similar products abroad is generally one month for the spot, customized two months), is the ideal product to replace imported similar cables.
Garbage crane grab cable structure:
Conductor: multi strand fine stranded oxygen - free copper wire
Insulation: Special mixed PVC soft insulation
Color: Color-coded, refer to JISC3306.
(Please explain if yellow and green grounding wire is required)
Lining: Special non - woven wrapping buffer.
Reinforcement: multi-strand jute rope filling (optional).
Jacket: Special imported PUR polyurethane
The upper end of the cable is fixed during installation, and the lower end is fixed after the internal stress is fully removed
Garbage crane grab cable parameters:
Rated voltage: 0.6/1000 V
Test voltage: 3500 V
Temperature range of refuse crane grab cable:
Fixed installation: -35℃ - +90℃-
Mobile installation: -20℃ -+ 80℃
Bending radius: 10 times cable diameter
Customized instructions for garbage crane grab cable:
