Product Details
Brand Name: | WEDE | Model Number: | WD-ZT-JF120 | After-sales Service Provided: | Engineers available to service machinery overseas |
Voltage: | 380V | Application: | Other, rotor core | Condition: | New |
Automatic Grade: | Semi-Automatic | Driven Type: | Electric | Packaging Type: | Other, nake pack for container |
Product Description

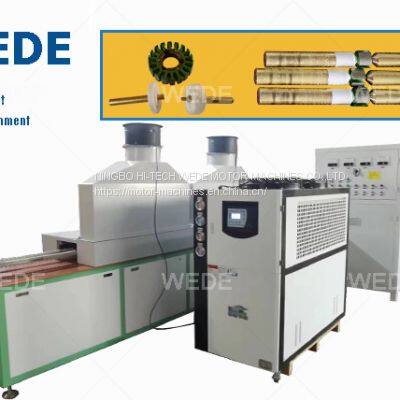

Electrostatic epoxy powder coating system
This powder coating machine is used to do rotor slot insulation treatment. Machine is consisted of pre-heating zone, cooling zone, resin coating zone and curing zone.
(1) Features
Wide application
Suitable for mass production
High quality level of the powder process
With powder recylcing function
Fully automatic working cycle after loading of the armature
High efficiency, automation and productivity
Provide customized service
Automatic operation as a single unit or as a part of an automatic line
(2) Working Process
High frequency deoil---fan cooling---powder coating---powder clearning---curing---air cooling
(3) Application
It is widely used in automotive industries, such as ABS, HVAC, window lift, seat adjuster, sun roof and fuel pump armatures etc; as well as Industrial motor applications like tools, home appliances and so on.
(4)Specifications
Model | 100 | 80GG | 80GD | 50H | Lab model | note | |
Part size | Max OD | 160 | 120 | 120 | 100 | 200 | Is able to be tailored produced |
Max core length | 50 | 50 | 50 | 50 | 80 | ||
Max shaft length | 180 | 180 | 180 | 180 | 180 | ||
transfer speed m/min | 0.1-1.5 | 0.1-1.5 | 0.1-1.5 | 0.1-1.5 | Electronic driving | Stepless adjustable | |
output(pc/h) | 2500 | 1500 | 1500 | 800 | 10-60 | фMax≤20mm | |
Curing method | High frequency | High frequency | High frequency | Curing oven | Curing oven | Oven is prepared by customer | |
Coating thickness(mm) | Adjustable within 0.15mm - 0.5mm |
