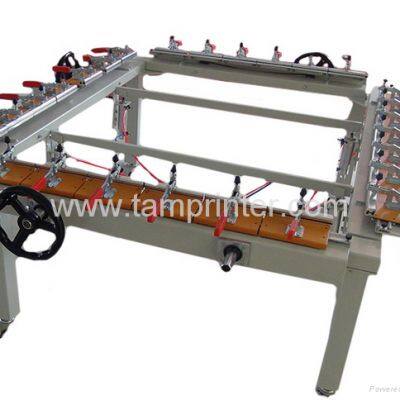

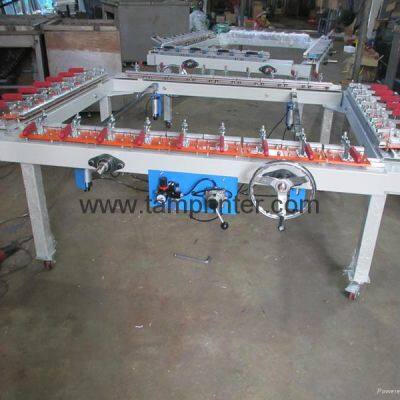

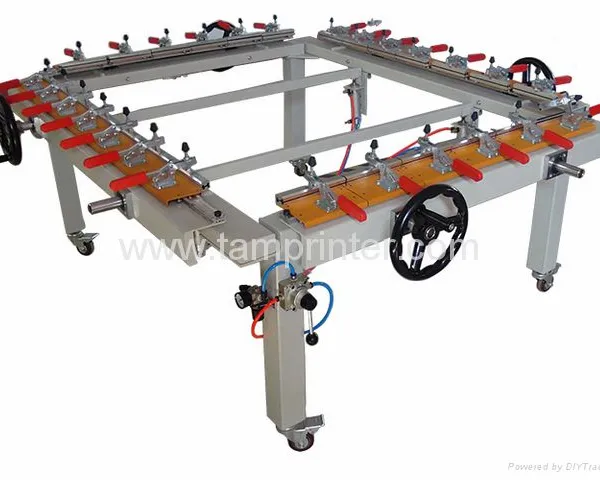

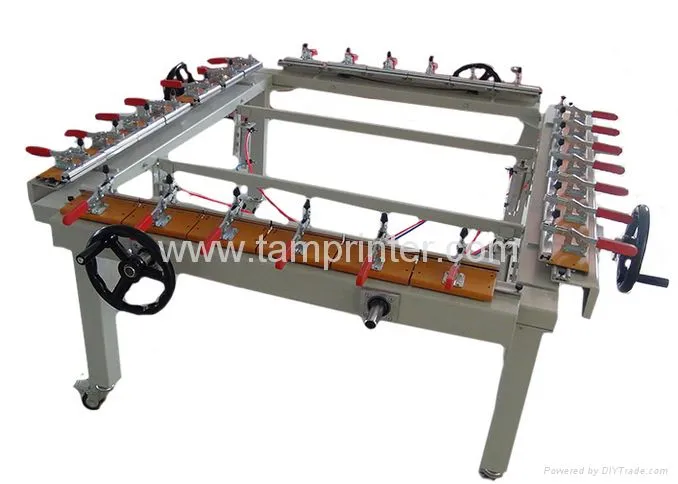

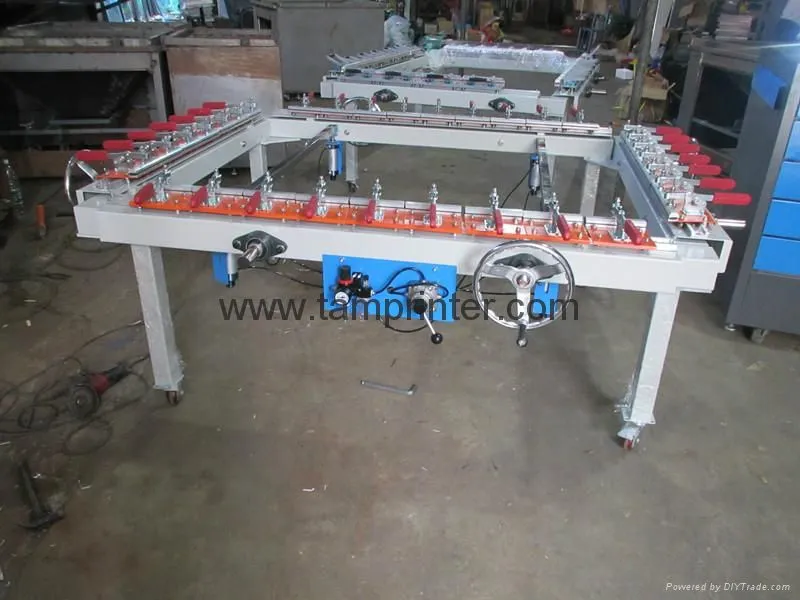

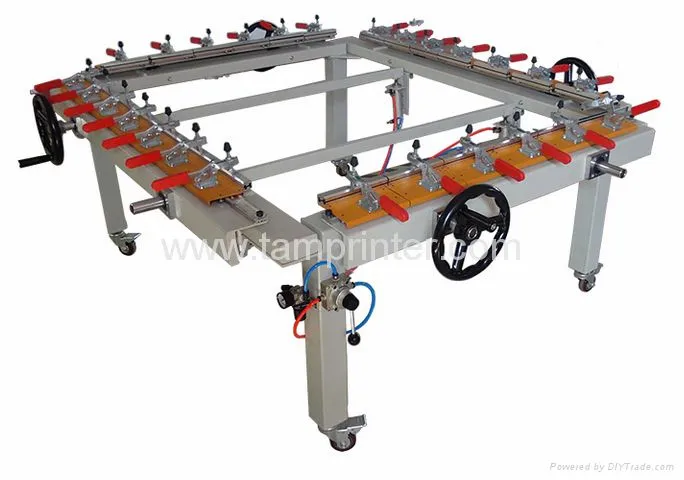

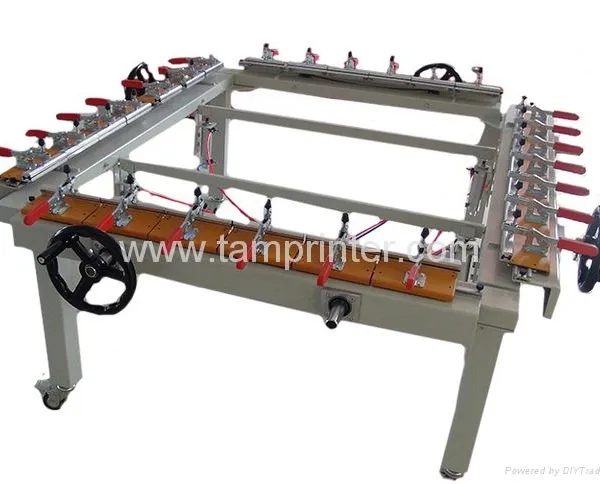

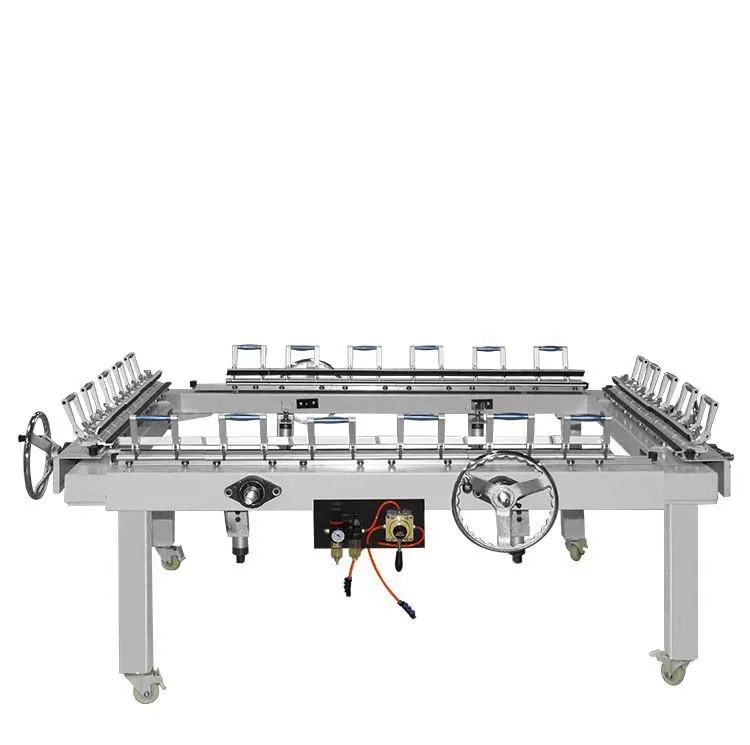

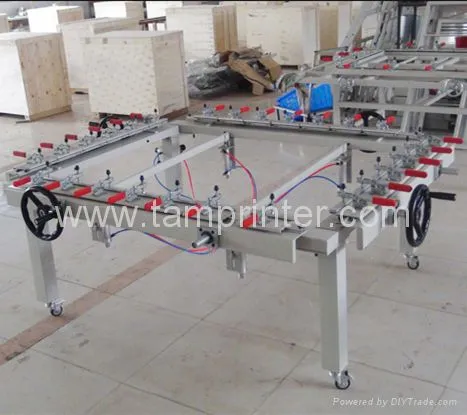

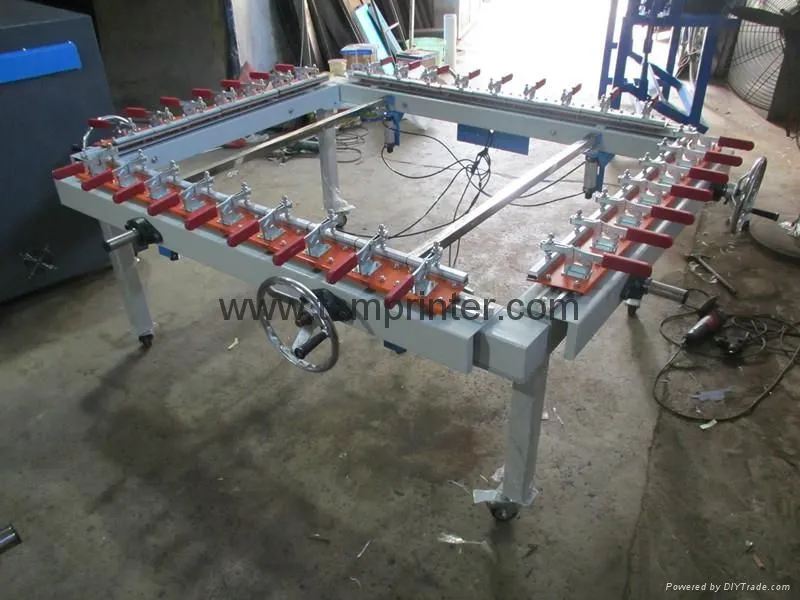

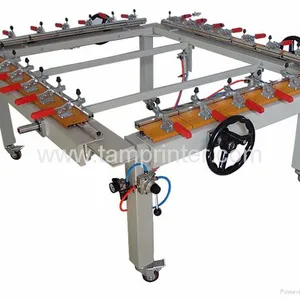

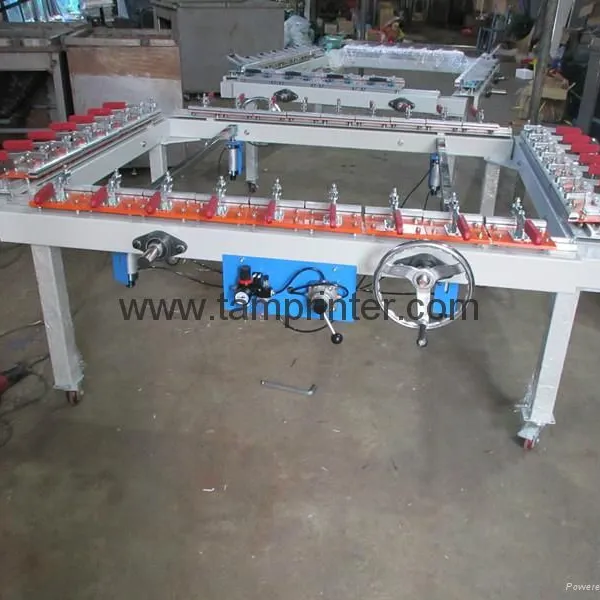

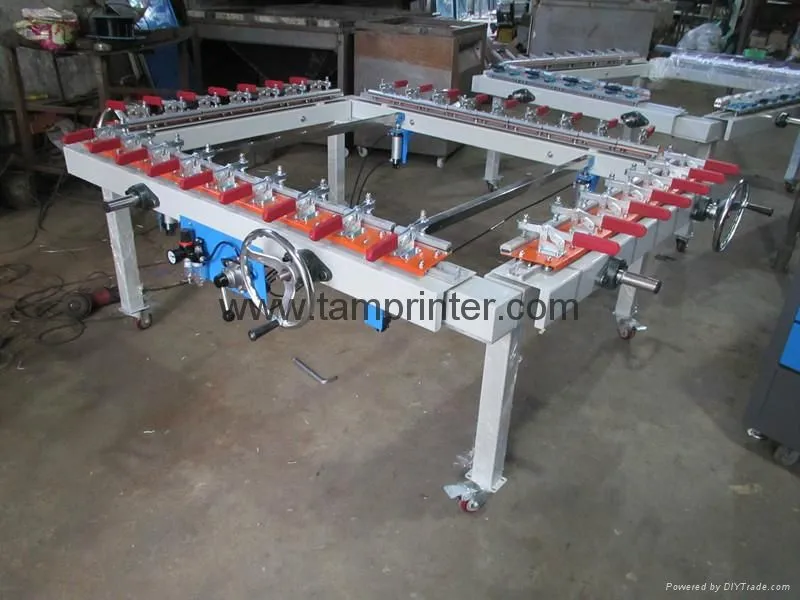

TSM-1215A High Newton Mechanical Stretching Machine video:
https://youtu.be/HdOGxTMM2MU
Machine size：1700mm*2000mm*850mm
Weight：200kg
max frame size:1200mm*1500mm （4*5 feets）
min frame size(mm):1000mm*500mm
max mesh tension:30N
Big chuck size:210mm
small chuck size:160mm
HS CODE：8479899990
The main components: 4 beams, 4-cylinder, 4-hand wheel + a wooden box accessories 1CBM
Need 2 ~ 3p compressor support
Fit for Screen printer TMP70100 and TMP-90120
Drawn netting machines for screen printing plate suitable for the chromaticity printing plate, high-precision single-sided circuit plate. Suitable for the electronics industry high-Newton steel screen plate production.
Specifications
1. High quality and aluminum screen printing frames
2. Brand assurance
3. Stable performance
Simple, convenient and fast.
Function characteristics:
this machine adopt Taiwan imports slide type chuck, with precision flexible movement, convenient operation;
the chain drive synchronous parallel net structure, so that the screen tension uniform and high, very suitable for electronic circuit board, thin film switch, nameplate, ceramic flower paper, gift boxes, paper packaging industry net work

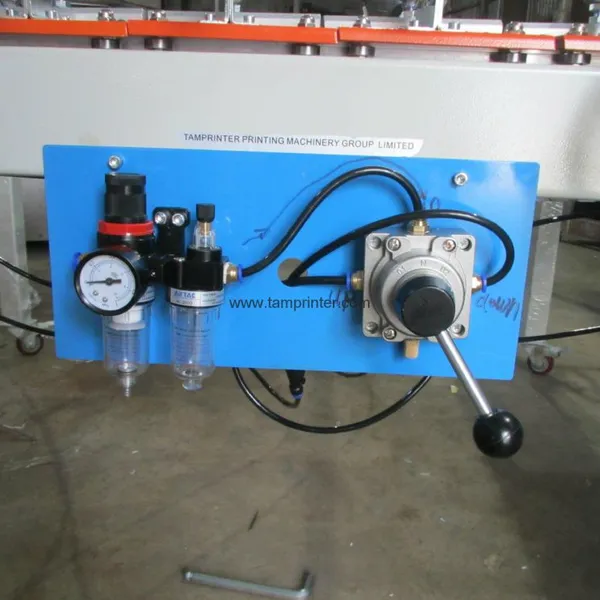

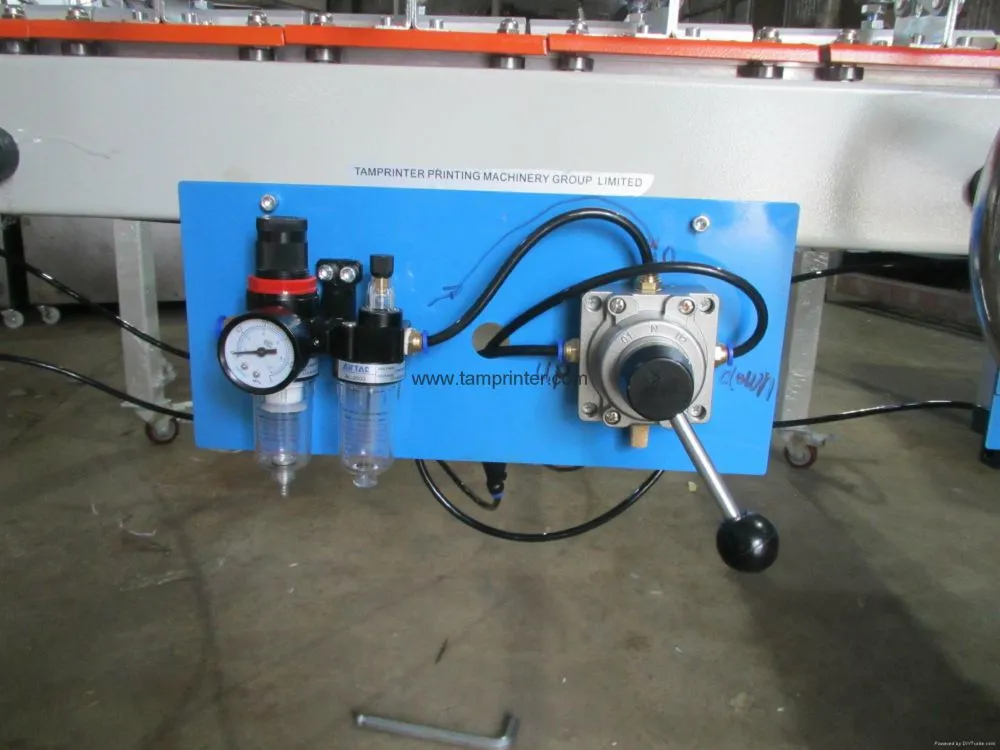

screen frame lifting transmission adopts imported cylinder driving, lifting sensitive small noise, lifting transmission source with direct air and artificial pneumatic, random and equipped with a pedal type vacuum air pump, in the absence of air condition compressor available artificial way to complete the net and convenient;
main beam can be adjusted flexibly according to the net frame size, and equipped with a pull small screen supporting device
TSM-1230A Glass Industry Mechanical Stretching Machine
max frame size:1200mm*3000mm （4*10 feets）
price：4000USD
Payment Terms︰ TT/Western Union
Product Image
