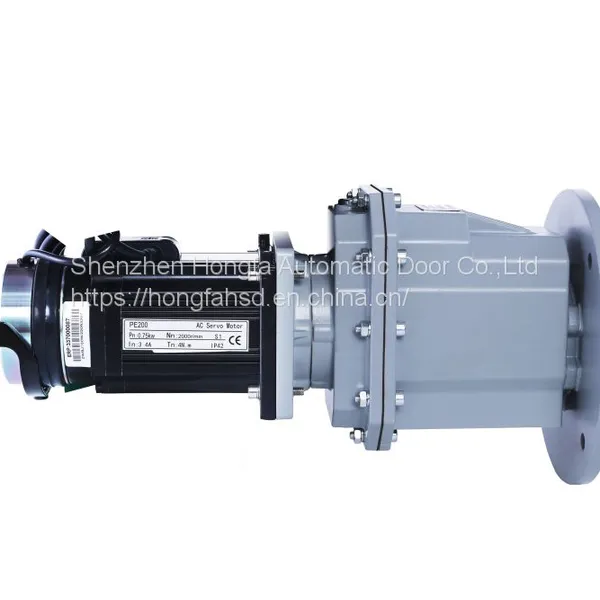

Help CenterIndustrial High Speed Rolling Door Motor
Related Products
-
750w 220V Single Phase High Speed Rolling Shutter DoorUS$ 858 - 1580MOQ: 1 Set -
PVC High Speed Spiral Door Used in LogisticsUS$ 868 - 1680MOQ: 1 Set
-
PVC High Speed Rolling Shutter Door Used in FoodUS$ 800 - 1680MOQ: 1 Set
-
Industrial Electrical Plastic High Speed Roller Shutter PVC DoorUS$ 828 - 1480MOQ: 1 Set
-
Industrial Stainless Steel Roller Shutter High Speed DoorUS$ 828 - 1480MOQ: 1 Set

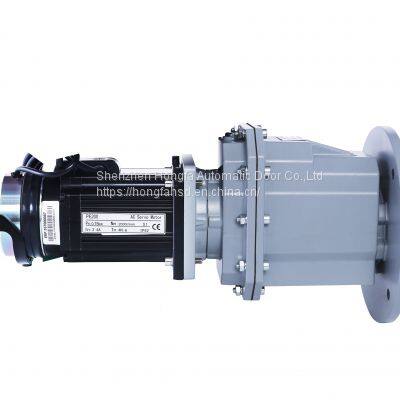

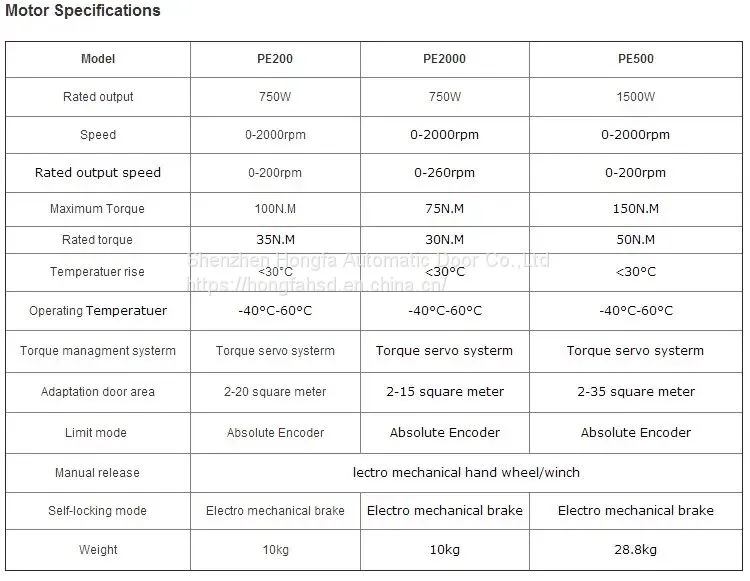

High Speed Door 50HZ-60HZ Variable-Frequency Servo Motor detail information is as follows:
1. Precision: the systerm use full closed-loop servo control and double encoder design ,this is to ensure long operating life and to prevent overshooting during operating
2.Stability: the systerm utilizes integrated design concept ,in order to simplify internal wiring and to prevent malfunction cause by wiring and terminal connections
3.High speed: motor max speed is 2500rpm ; door max operating speed is 2m/s
4. Smooth: the torque servo systerm can adjust torque to the load automatically ,and its use S speed curve mode step less speed regulating to ensure a smooth operation.
5. Custom-made: each systerm's operating control order and mode can be custom made to suit each door ,to ensure max operating condition . The systerm has a unique order and more memory mode and one key recover mode.
6. Safety: the systerm has a build in emergeny stop signal and control order ,the motor can be ativated within 30 millsecond after receive the order ,to ensure maximum safety.
7. High usage:the systerm is benign to suit continuous high usage,and it can applied to high frequency high speed passage way .
8. Energy efficiency:the rare earth permanent magnet synchronous motor utinizes rare earth PMSM'S output and overload are twice higher han the asynchronous motor ,also compare to the asynchronous motor, the rare earth PMSM is more energy efficient ,lighter, has a slower heating rate ,and bigger torque.
From above tech-information, you will know more about our High Speed Door 50HZ-60HZ Variable-frequency Servo Motor.
