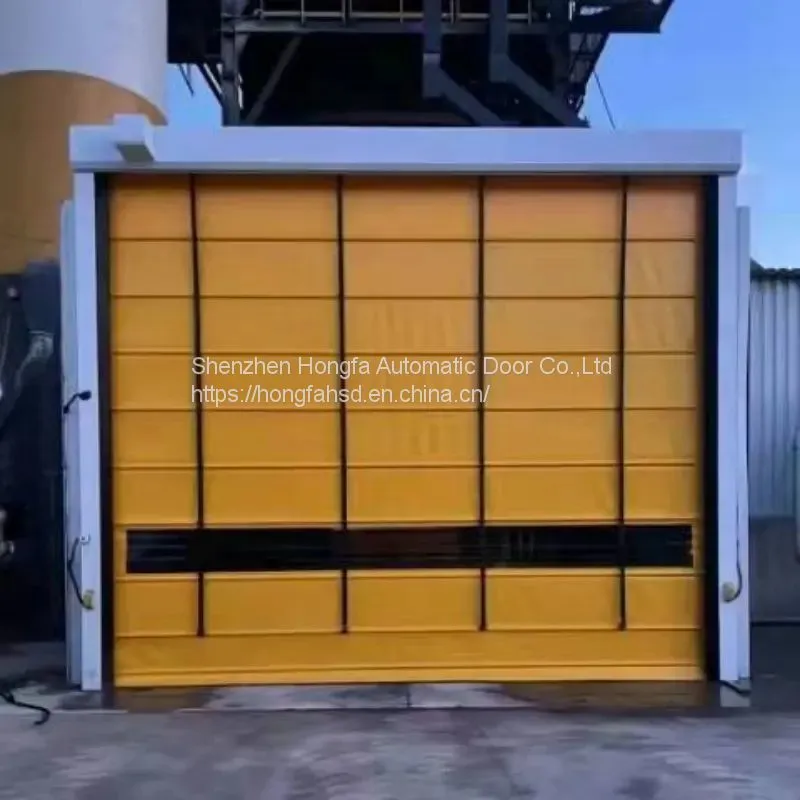

Help CenterLarge High Speed Stacking Door
Related Products
-
Industrial High Speed Door Fast Stacking Shutter DoorUS$ 1568 - 2558MOQ: 1 Set -
Plastic Industry Automatic Rapid Stacking Folding DoorsUS$ 1558 - 2558MOQ: 1 Set
-
Industrial High Speed Stacking DoorUS$ 998 - 2558MOQ: 1 Set
-
PVC Rapid Rolling Shutter Industry Stacking DoorUS$ 998 - 2558MOQ: 1 Set
-
Cold Rooms and Freezers High-Speed Roll Up DoorsUS$ 1528 - 2558MOQ: 1 Set

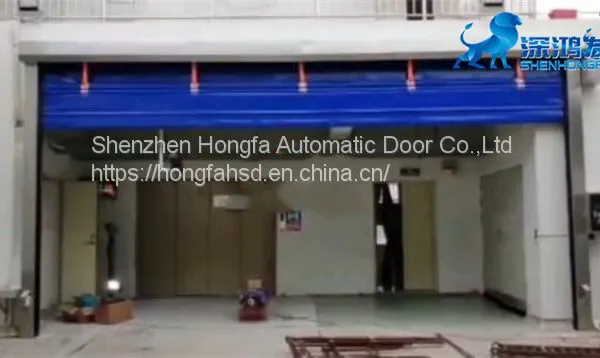

The difference between high speed stacking doors and high speed rolling doors
The high speed rolling door opens quickly, and can open a door 6 meters high in three seconds. The curtain fabric is made of soft curtain PVC knife scraping coated fabric. The tensile strength of the soft curtain (N/5cm) is 3500 in the radial direction of 4000; the tensile strength (N/5cm) is 350 in the radial direction of 400. The curtain has high strength, weather resistance, durability and pull resistance. The practical site of the High Speed Stacking Door is wider than the one used by the high speed stacking door. The stacking door can achieve the widest door opening of 20 meters. This is something that the high speed rolling door cannot do. The opening method is also different. Rolled up, the stacking door is stacked on top of one another. The materials used on the door panels are also different. The two kinds of fast doors are similar, but they can play their roles in different places
Material Selection:
1. Frame: 2MM thicknesses cold-roll Stainless steel.
2. Motor: Germany SEW brake motor (outer), power 0.75KW, power supply 220V.
3. Control system: Imported Japan Mitsubishi converter and PLC to control of electric box (150%1HZ)
4. Opening & closing speed: 0.6-1.5m/s (adjustable).
5. Safety Device: Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.

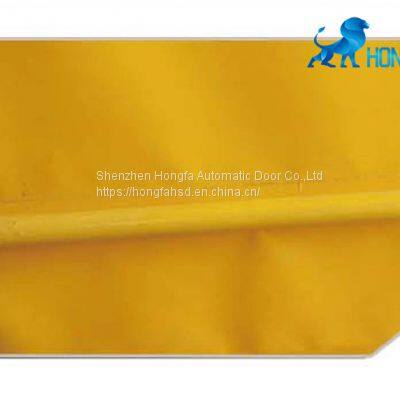

6. Curtain: France high-density polyester fiber and the surface coating processing, thickness 0.8MM, variety colors can be
chose: Red, yellow, blue, green, orange, gray, white, transparent, etc. Tensile strength: 4000/3500N/5cm, tear strength
600/600N. Fire-proofing level: German standard DIN75200 Usage temperature: -30 C +70 C.
7. Wind resistant: The Aluminium alloy Reinforce Girder to increase wind resistant effect.
8. Curtain replacement function: Aluminium alloy Reinforce Girder is loaded between 2 pieces Curtain, can be replaced
easily if any curtain broken, save your cost.

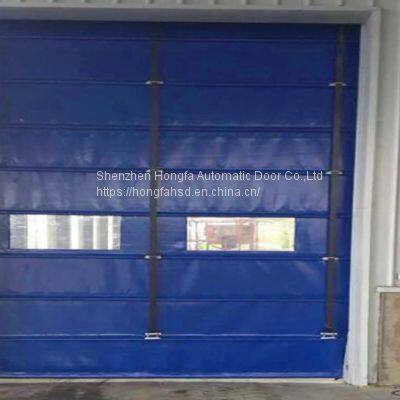

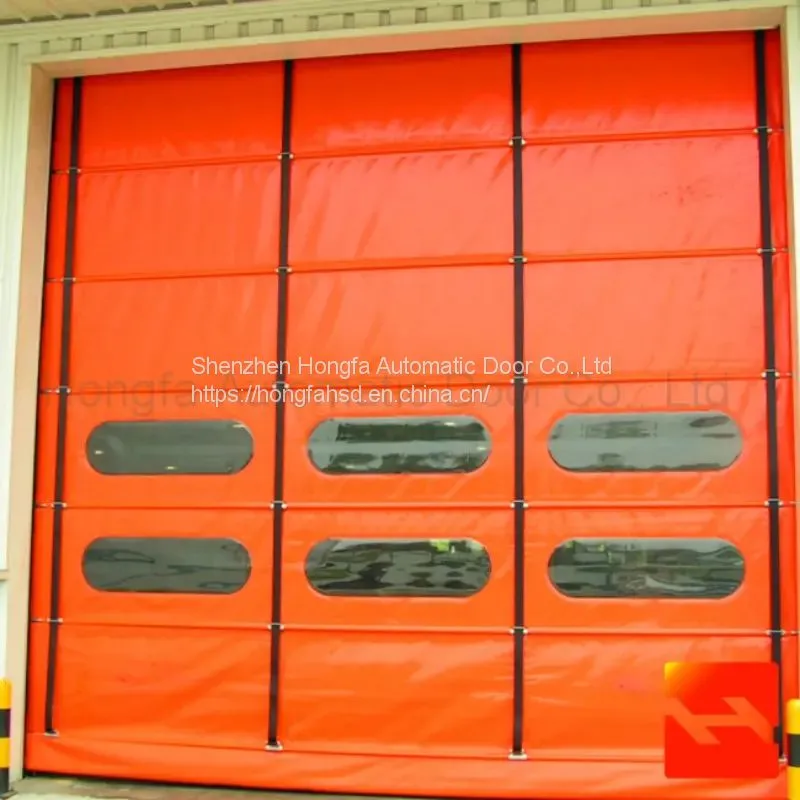

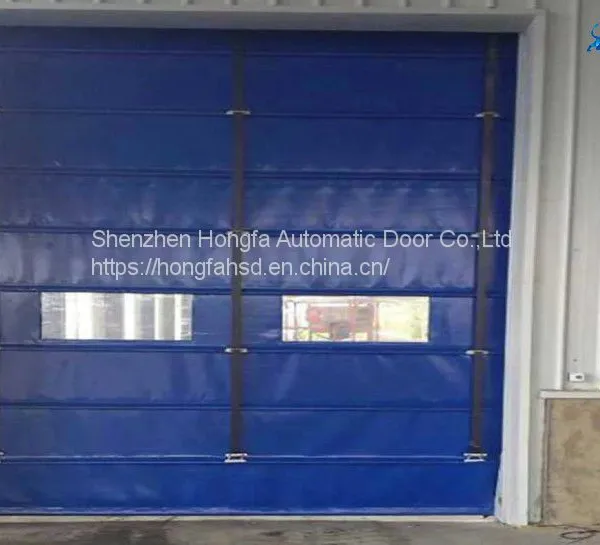

9. Transparent window: 1.2MM thickness transparent PVC window, size and location is up to your request, more safer.
10. Seal: Seal brush are Installed inside the guides, and the special bottom design, to fit any uneven ground.
11. Cotrolling way: Push button + radar sensor, very convenient.
12. Limiting Switch: Mechanical limiting switch, easily and exactly.
13. Emergency STOP: With emergency stop button on control panel, can stop easily by
Hand once disconnect or accident
14 Fault recovery function: All Hongfa's production is with fault recovery function, system will self-recovery after power cut off.
15. Delivery time: About 7 business days with contract and deposit confirmed.
16. Pyament item: 50% before production, and the other 50% before shipment.
17. Warranty Details: We provide 12 months warranty for all doors and accessories (except man-made disasters, Irresistible
natural disasters, ect^).
18. Above quotation contains door and all of its accessories.
19. This quotation period of validity is 2 months.
Hongfa automatic door is of high quality, hongfa people have the strong responsibility on our company and clients, not only selling product and service, but also ourselves. We create the better life style.We are looking forward to building a strong business partnership with you and your company.
