| Name: | Metric Continuous-Threaded Studs | Material: | Stainless Steel |
|---|---|---|---|
| Standard: | ASME/ANSI B18.31.1M | Finish: | Plain |
| Table: | Table1 | Thread: | Coarse Teeth |
| High Light: | Metric Continuous Threaded Studs, Stainless Steel Threaded Stud Bolt, A193 B8M Threaded Studs | ||
B18.31.1M Metric continuous-Threaded studs / Staninless Steel ASTM A193 B8M Stud Bolt
Studs come in a variety of sizes and materials. These studs are used in all aspects of construction and mechanical engineering. They are made of materials such as stainless steel, aluminum, nylon and carbon steel. Various types of studs are used for specific products, each requiring specific materials.
There are two types of double-headed bolts in common use (also known as all-thread studs), with two types of threads: coarse threads with M and nominal diameter, and fine threads with M and nominal diameter x pitch.
Drawing:
Size:
| d | M5 | M6 | M8 | Ml1o | M12 | M14 | M16 | M20 | M22 | M24 |
| p | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 3 |
| c max | 1.6 | 2 | 2.5 | 3 | 3.5 | 4 | 4 | 5 | 5 | 6 |
| M27 | M30 | M36 | M42 | M48 | M56 | M64 | M72 | M80 | M90 | M100 |
| 3 | 3.5 | s | 4.5 | 5 | 5.5 | 6 | 6 | 6 | 6 | 6 |
| 6 | 7 | 8 | g | 10 | 11 | 12 | 12 | 12 | 12 | 12 |

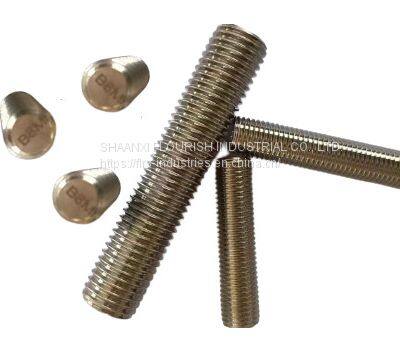

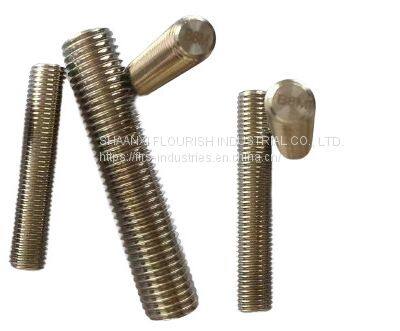

Photos:
Material:
A193.B8M is an American Standard stainless steel for high temperature bolts, Executive Standard: ASTM A193/A193M-2017
A193.B8M stainless steel is particularly resistant to corrosion, atmospheric corrosion and high temperature strength due to the addition of Mo, and can be used under severe conditions; excellent work hardening (non-magnetic); excellent high temperature strength, mainly used in seawater equipment, chemical, dye, paper, oxalic acid, fertilizer and other production equipment; photography, food industry, coastal area facilities, ropes, CD rods, bolts, nuts
