| Product Name: | Stud Bolt | Material: | SS304 |
|---|---|---|---|
| Standard: | DIN976-1 | Finish: | Plain |
| Thread: | Full Thread | Size: | M2-M72 |
| High Light: | Full Thread Double End Stud Bolt, SS304 Double End Threaded Stud Bolts, Double Rod End Bolts DIN976 | ||

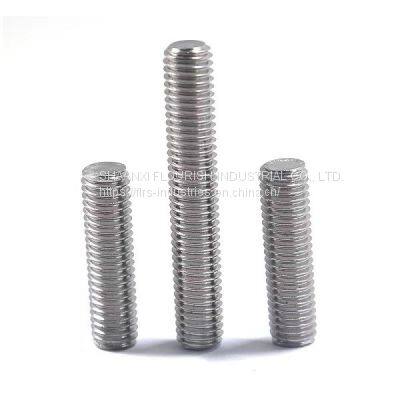

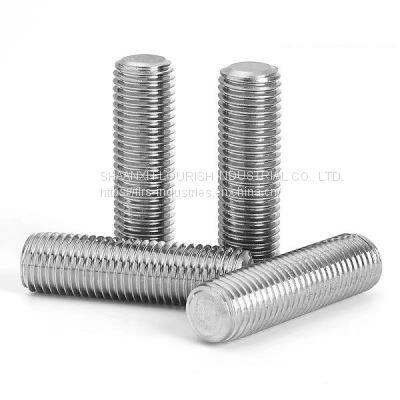

Stainless Steel DIN976 Full Thread Rod / SS304 Double End Threaded Stud Bolts
Product Description and Feature:
Stud bolt, also known as double-ended screw or double-ended stud. It is used to connect the fixed link function of the machine. The stud bolt has threads at both ends, and the screw in the middle is thick or thin. Generally used in mining machinery, bridges, automobiles, motorcycles, boiler steel structures, pendant towers, long-span steel structures and large buildings.
100% solid stainless steel, uncoated: The set screw is made of 18-8 stainless steel (304), one of the most corrosion-resistant metal form, longer life than other hardware on the market today.
Drawing:
d | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | |
| P | Fine | . | . | . | 1 | 1.25 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||||
| Coarse | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | |
d | M24 | (M27) | M30 | (M33) | M38 | (M39) | M42 | (M45) | M48 | (M52) | M56 | (M60) | M64 | (M68) | M72 | |
| P | Fine | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 6 |
| Coarse | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6 | 6 | ||
Application:
It's a very broad application,multi-floor,high-rise steel structure,steel structures,buildings,industrial buildings,
high-way,railway,steel steam,tower,power station,and other structure workshop frames
FAQ
Q: What are your main products?
A: Standard and custom hardware, such as screws, bolts, nuts and other spare parts.
Q: We can customize the size, packaging, or other specifications it? From how to Order?
A: Of course, customization is possible. MOQ depends on the size and cargo.
Q: Can you provide samples? The sample delivery time is how long?
A: Of course, if there is stock, we will arrange delivery about 3-5 days, if not standard, it takes about 15 to 20 days.
