Home > Products > USB HD Webcam > 4K SONY High Frame Rate USB Webcam Camera Module with Manual Zoom Lens

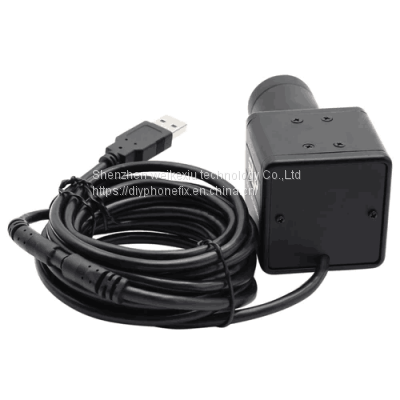

4K SONY High Frame Rate USB Webcam Camera Module with Manual Zoom Lens
- 1000000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 3 days
- USB Webcam CCTV Security Mini Camera High Speed Indurstrial Camera
- Vacuum LCD Screen Separator Machine for LCD Screen Repair
- Original TBK-578 Mini Desktop LCD Lamination Freezer Separator
- Mobile Phone Edge Curved Glass Screen LCD Refurbish Machine
- Mobile Phone LCD Screen Bubble Remover Automatic Machine
- TBK-808 Automatic Air Bubble Remover Laminating Machine Vacuum Laminating Machine
Product Details
Brand Name: | HD006 | Place of Origin: | China | Model Number: | Sony |
Product Description
4K SONY USB camera module with 2.8-12mm/5-50mm varifocal lens, IMX317 USB Webcam High frame rate 3840x2160 Mjpeg 30fps UVC Plug and Play
1.Packing list:
1) 1pc 4K camera module with 2.8-12mm/5-50mm varifocal lens
2) 1pc 3m usb cable
2.Key Specifications:
Model:ELP-USB4KHDR01-MFV
Sensor:SONY IMX317 (1/2.5”)
Max Resolution:3840(H) *2160 (V)
Sensitivity:1000mV/Lux-sec
Image area:6100^mx4524^m
Picture format:MJPEG /YUY2 (YUYV)
Resolution & FPS:
3840x2160@ 30fps MJPEG/ 2592x1944@ 30fps MJPEG
2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG
1920x1080@ 30fps MJPEG/ 1280x1024@30fps MJPEG
1280x960@30fps MJPEG/1280x720@ 30fps MJPEG
1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG
640x480@ 30fps MJPEG/ 320x240@ 30fps MJPEG
3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2
2048x1536@ 3fps YUY2 /1600x1200@ 3fps YUY2
1920x1080@ 3fps YUY2/ 1280x1024@3fps YUY2
1280x960@5fps YUY2/1280x720@ 5fps YUY2
1024 x 768@ 5fps YUY2/ 800 x 600@ 20fps YUY2
640x480@ 30fps YUY2 / 320x240@ 30fps YUY2
Center Definition:1000LW/PH (Center)
S/N (Signal Noise Ratio):26dB
Sensitivity:0.65V/lux-sec@550nm
Low illumination:0.2lux
Shutter:Electronic rolling shutter / Frame exposure
Interface:USB2.0 High Speed
AEC:Support
AEB:Support
AGC:Support
Adjustable Parameters:
Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance,Backlight Contrast, Exposure
Lens:
2.8-12mm/5-50mm lens optional
Relative Illumination (Sensor): 70%
IR Filter: 650±10nm
Power Supply & Connector:USB BUS POWER 4P-2.0mm socket
Power:DC5V
Current:200mA
Size:38mm x 38mm
Storage Temperature:-20°C to 70°C
Working Temperature:0°C to 60°C
USB Cable:1M(2M/3M/5M Optional)
Operating System:
Win XP/Vista/Win7/Win8 / Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
