USB Webcam CCTV Security Mini Camera High Speed Indurstrial Camera

USB Webcam CCTV Security Mini Camera High Speed Indurstrial Camera thumbnail-1
USB Webcam CCTV Security Mini Camera High Speed Indurstrial Camera thumbnail-2
USB Webcam CCTV Security Mini Camera High Speed Indurstrial Camera photo-1
USB Webcam CCTV Security Mini Camera High Speed Indurstrial Camera photo-2
US$ 55.55 - 65.55 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HD005
Place of Origin:
China
Model Number:
Sony
Contact Supplier Request Quote Chat Now
Shenzhen Weikexiu Technology Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HD005
Place of Origin China
Model Number Sony

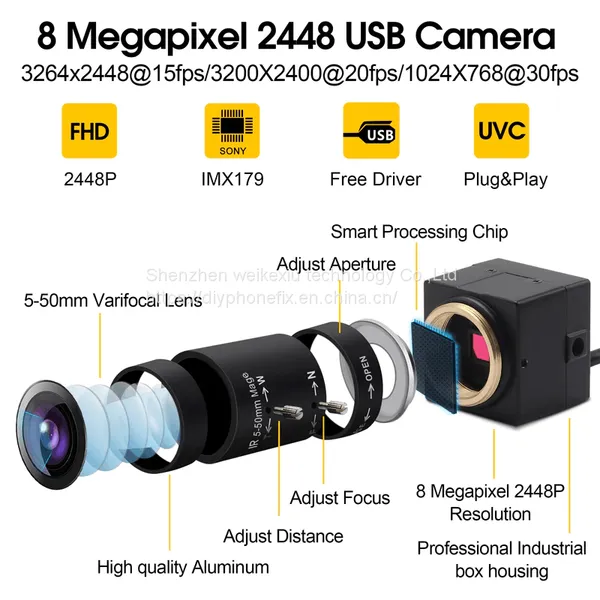

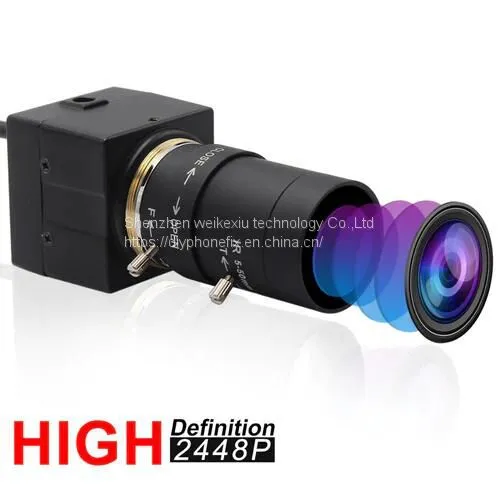

SONY IMX179 8MP USB Webcam CCTV Security Mini Camera, Varifocal Lens High Speed Indurstrial Machine Vision Camera for Android Linux Windows Mac


Package include:

1) 1PC 8mp usb camera  with 2.8-12mm/ 5-50mm varifocal lens optional

2) 1PC 3m usb cable  ( 1m/2m/5m cable optinal)



1.Features:

1)  8mp High resolution , suitable for document capture

2) Advanced  Sony (1/3.2'' ) image sensor .

3) High quality  2.8-12mm/ 5-50 mm varifocal lens

4) Support OS:  Win XP\Win7\Win8\Android\Linux , support raspberry pi

5)  Compression : MJPEG&YUY2


2.Specification:
Module Size :         38mm * 38mm 32mm * 32mm
Temperature (Operation) :   -20degree  to 70 degree
Temperature (Stable Image):  0 degree  to 60°degree
Camera Board Assembly technique : SMT (ROSH)
Focus : Manual
Object distance:  5CM-100M
Resolution :  3264(H) X 2448(V) 8Megapixel
interface :USB 2.0 High Speed
protocol : USB Video Class(UVC)
Power : USB bus power
Operating system request:  Win XP\Win7\Win8\Android\Linux\Mac OS
Certifications : FCC and CE
Sensor Type:  Sony (1/3.2'' )
Active Array Size : 3264X2448
Minimal illumination : 0.5Lux
Maximum Image Transfer Rate :
3264X2448 MJPG 15fps YUY2 2fps

2592X1944 MJPG 15fps YUY2 3fps
2048X1536 MJPG 20fps YUY2 3fps
1600X1200 MJPG 20fps YUY2 10fps
1280X960 MJPG 20fps YUY2 10fps
1024X768 MJPG 30fps YUY2 10fps
800X600 MJPG 30fps YUY2 30fps
640X480 MJPG 30fps YUY2 30fps
S/N Ratio : 44dB
Dynamic Range : 83.5dB
Shutter : Rolling shutter/ frame exposure
Lens Type  :5-50mm varifocal lens
Lens Construction : 5G+IR

F/No : 1.8
BFL(Optical): 6.5mm
FOV:  depends on different lens
IR Filter : 650±10nm
AGC/AEC/AWB/ABF : Auto
Output Formats : YUYV/MJPEG
IR CUT SUPPORT
Adjustable parameters Brightness Contrast Hue Saturation Sharpness Gamma White
Balance Exposure Focus
Package LQFN-40pin
USB Cable 1M(2M/3M/5M Optional)


Product Tags: Indurstrial Camera , USB Webcam , Camera
