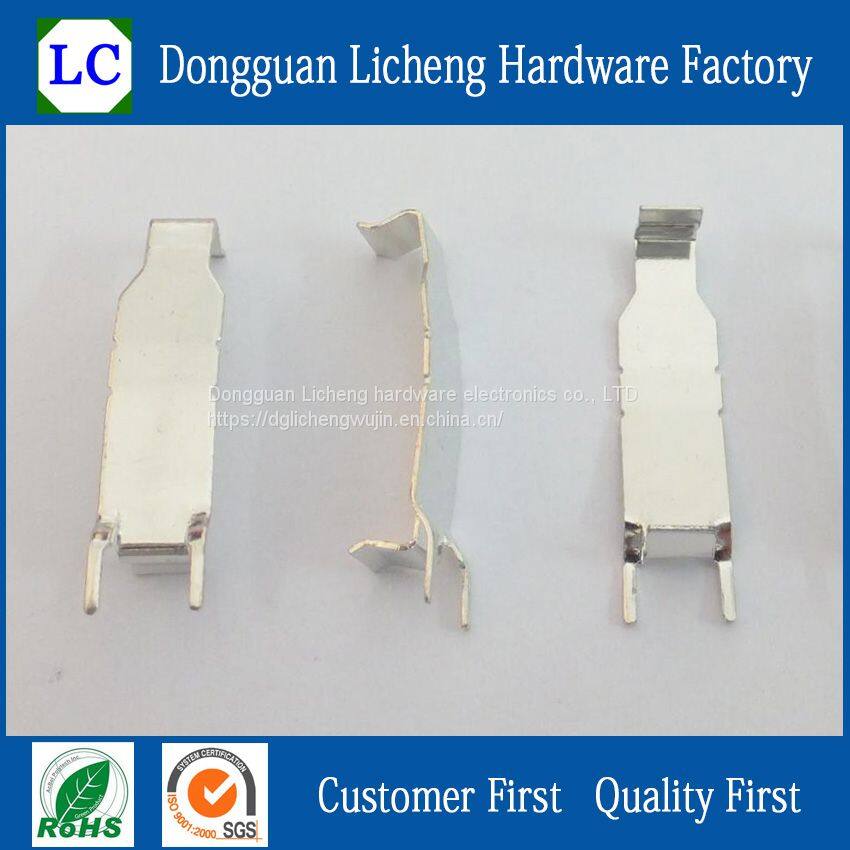

Product Name: RM14 high-frequency transformer clip, RM14 core iron clip, RM14 transformer core support clamps.
Material: sk7 surface tinned

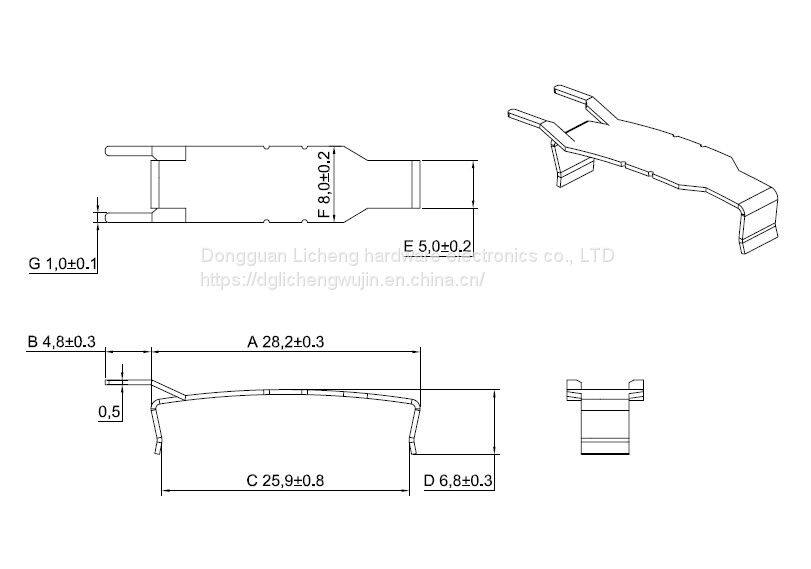

Specification and size of steel clip: 28.2*8.0*6.8 * 0.5 thick
Width of assembly clamp: 25.9mm
Features: RM14 clip is made of sk7 high carbon steel and hardened by tempering heat treatment, so that the sk7 material has good resilience and corrosion resistance, which can fully meet the assembly elastic requirements of clamping magnetism. The magnetic core transformer equipped with RM14 male and female clip has stable inductance characteristics, The performance and quality of the finished products are far better than those of the same kind of tape wrapped products. The RM14 high-frequency transformer with steel clip is mainly for export market and high-end product performance requirements.
Production process: material cutting - stamping forming - heat treatment hardening - electroplating - Inspection - packaging
Transformer clip common categories:
RM series (RM4, 5,6,7,8 RM10, 12, RM14)
ER series (ER9.5, 11.5, 13.6, 11.5)
EF series (EF20, 12.6, 16,19,25,30)
EPC series (EPC13, EPC17 EPC19, EPC25, EPC30)

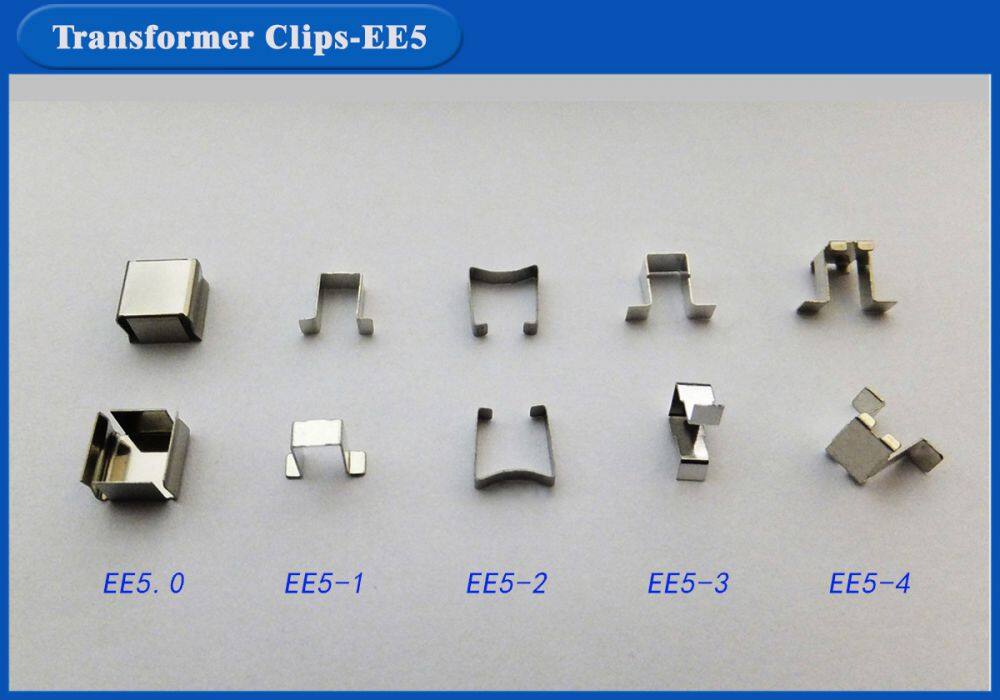

EE5 EE series (EE5.0, EE5-1, 2, EE5-4)

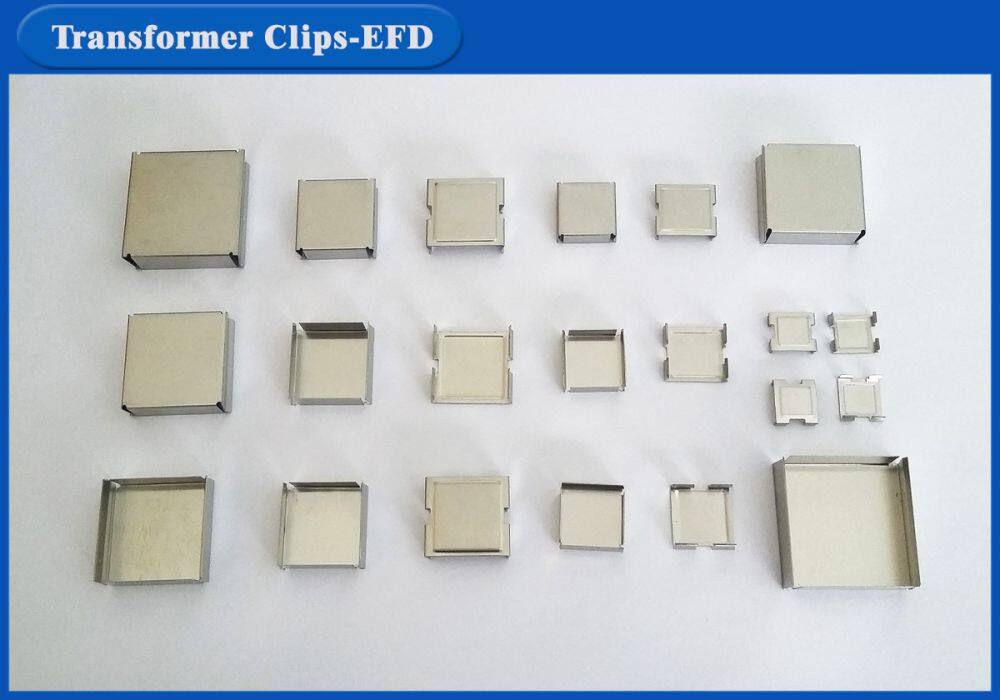

EFD series (EFD10,EFD12,EFD15 EFD15-1, EFD20, ETD20-1, EFD25, 30)
ETD series (ETD29, 34,39,44 ETD49, 54,59)
FK - ETD ( FK - ETD34 FK - ETD39, FK - ETD44 ,FK - ETD49 ,FK - ETD54)
EP series (EP7 male female, EP7-1, EP13, EP17)
PQ series (PQ2020, PQ3220,PQ4040 PQ5050, PQ34)
Dongguan Licheng hardware electronics co., LTD., founded in 2010, our factory is located on approximately the dongjiang river, with Chinese electronic town -- shijie town, dongguan.
Our factory is specialized in production of metal stamping parts, high and low frequency transformer CLIP, spring CLIP (such as RM, ETD, EFD, EF, ER, EP, PQ, etc) and all kinds of electrical and electronic hardware parts, Brass terminal, lamp clip；copper needle, KAPTON film, etc. Its products are widely used in modern communication equipments, digital technology and household electrical appliances, etc.
To cater to today's era of science and technology, our factory has introduced advanced production equipment, testing equipment, has experienced r &d and technical personnel, and constantly improve the internal management level, scale, standardization, efficiency, innovation of management mode, to ensure efficient production, quality。
