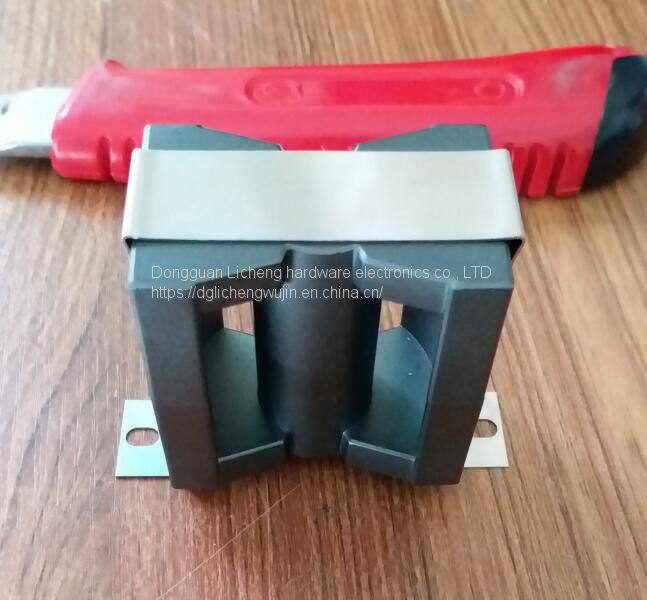

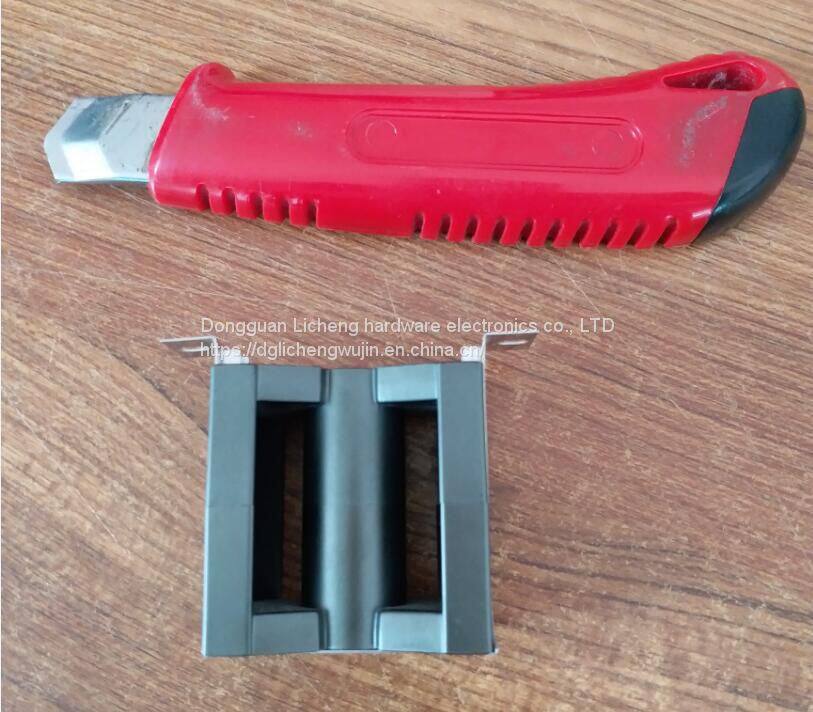

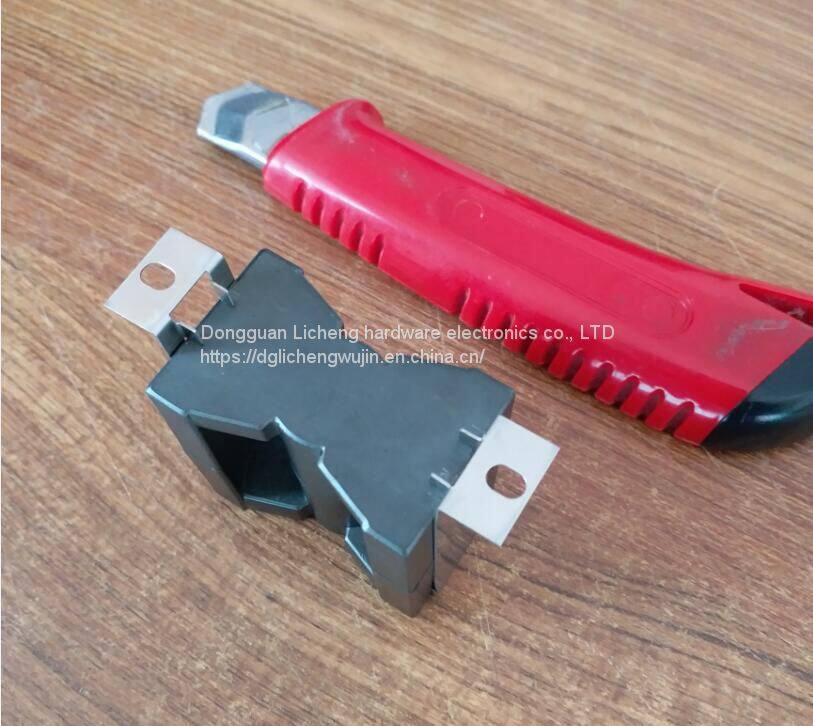

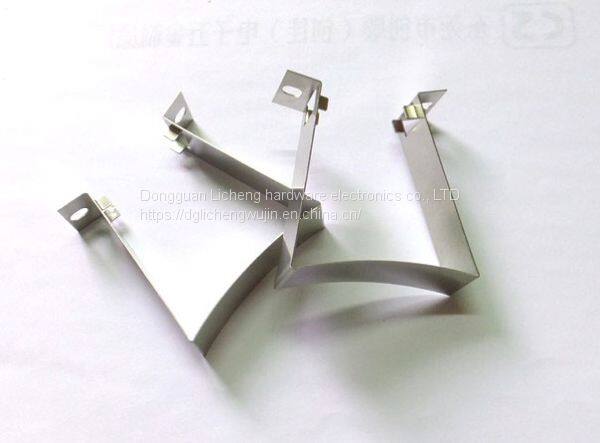

Pq5050 transformer Clamps,SUS301 material,customized according to customer dimensions.

100PS/BAG

PQ5050 steel clamp, PQ5050 core CLIP, PQ5050 iron clamp, stainless steel has good elasticity, good quality, fast delivery.

Specification: PQ5050 steel clamp;
Material: SUS301 stainless steel,
Material thickness: 0.5 mm;

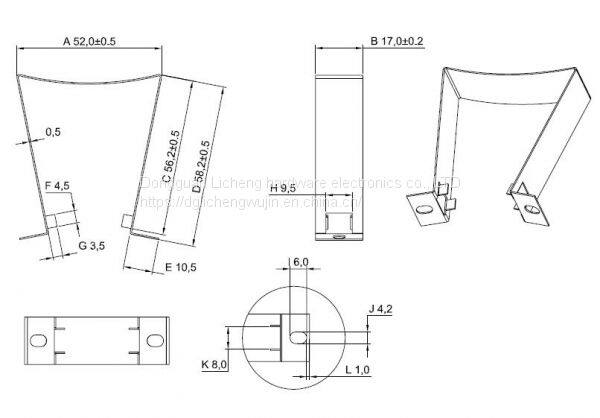

Size: 52.5 * 58.2 * 17 mm;
Features: PQ5050 transformer steel clamp, the use of stainless steel stamping production, stainless steel material with good resilience, features strong antioxidant capacity, good rust resistance, PQ5050 steel clamp clamping core fixed support, installation PQ5050 steel clip clip can ensure the stability of the inductance of transformer performance, mainly for export products and high-end transformer products.

Transformer clip common categories:
RM series (RM4, 5,6,7,8 RM10, 12, 14)
ER series (ER9.5, 11.5, 13.6, 11.5)
EF series (EF20, 12.6, 16,19,25,30)
EPC series (EPC13, EPC17 EPC19, EPC25, EPC30)
EE5 EE series (EE5.0, EE5-1, 2, EE5-4)
UU series (UU9.8 UU10.5 with ears, 15.7, 16, 25)
EFD series (EFD15 EFD15-1, EFD20, ETD20-1, EFD25, 30)
EFD double buckle (EFD15 shuangkou, EFD20 shuangkou, EFD25 shuangkou, EFD30 shuangkou)
ETD series (ETD29, 34,39,44 ETD49, 54,59)
FK - ETD (FK - ETD34,FK - ETD44, FK - ETD49,FK - ETD54 ,FK - ETD59)
EP series (EP7 male female, EP7-1, EP13, EP17)
PQ series (PQ2020, PQ4040 ,PQ5050, PQ34)

Dongguan Licheng hardware electronics co., LTD., founded in 2010, our factory is located on approximately the dongjiang river, with Chinese electronic town --  shijie town, dongguan.

Our factory is specialized in production of metal stamping parts, high and low frequency transformer steel CLIP, spring CLIP (such as RM, ETD, EFD, EF, ER, EP, PQ, etc) and all kinds of electrical and electronic hardware parts, copper needle, KAPTON film, etc. Its products are widely used in modern communication equipments, digital technology and household electrical appliances, etc.

To cater to today's era of science and technology, our factory has introduced advanced production equipment, testing equipment, has experienced r &d and technical personnel, and constantly improve the internal management level, scale, standardization, efficiency, innovation of management mode, to ensure efficient production, quality。
