Home > Products > water filter > Industrial Hydraulic System High Flow Filter Cartridge For Water Treatment
Industrial Hydraulic System High Flow Filter Cartridge For Water Treatment
- 1000 Piece / Pieces per Month
- Tianjin Shanghai Guangdong
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 10 days
Product Details
Brand Name: | LEFILTER | Place of Origin: | China | Model Number: | HFU620UY200H4W |
Product Description

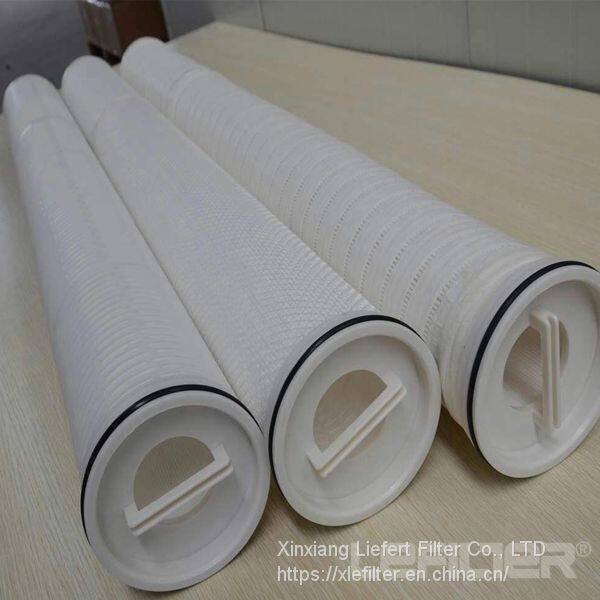

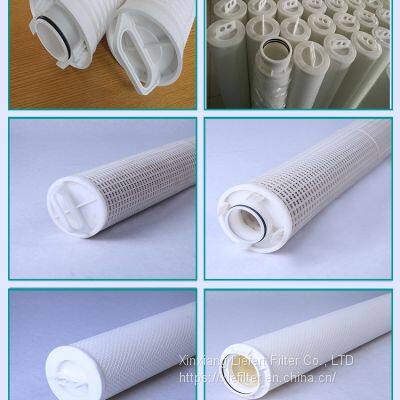

Industrial Hydraulic System High Flow Filter Cartridge For Water Treatment
Product Description
Replacement Pall high-flow cartridges are made of deep fine polypropylene or glass fiber membrane as filter media, with a large diameter of 6 inches 152mm, no center rod, unidirectional opening, and specially designed to flow the liquid from the inside to the outside, ensuring that all contaminant particles are trapped inside the cartridge. The ultra-high flow rate design allows for a significant reduction in the use of cartridges and filters for the same flow rate applicaton, resulting in significant savings in equipment investment costs and labor costs.
Specification of Industrial Hydraulic System High Flow Filter Cartridge For Water Treatment
Filter Media | Polypropylene(PP), Glass Fiber |
Length | 20"(508mm), 40"(1016mm), 60"(1524mm |
Outside Diameter | 6 inch (152mm) |
Filtration Ratin | 1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm |
Support/Drainage | Polypropylene (PP) Or without |
End Cap Material | Glass fiber reinforced Polypropylene (PP) |
Outside | Rigid Hard Cage, Belt,Stainless Steel(special) |
Seal Material | EPDM, Buna-N, Viton |
Maximum Operating Temperature | Pleated glass fiber:121°C Pleated PP: 82°C Melt Blown PP: 65°C |
Product Features
1、The combination of surface filtration and deep filtration can significantly reduce the number of cartridges and significantly reduce the size of the supporting filter shell compared with ordinary cartridges.
2、The filter layer is made of high-efficiency and low-resistance material, which can achieve more than 99% of ultra-high filtration efficiency and prolong the service life of the filter cartridge.
3、The design of convenient handle significantly reduces the time of cartridge replacement and makes cartridge replacement simple and portable.
4、The overall polypropylene design and hot melt welding treatment effectively prevent the end cap from falling off and secondary pollution.
5、The design of sealed interface reduces the risk of bypass flow and ensures the sealing and reliability of filtration.
6、The folded design increases the filtering area and makes the pressure drop significantly lower than that of ordinary cartridge.
7. The design of large diameter increases the dirt holding capacity, prolongs the service life and reduces the production cost
Applications
RO pre-filtration
Seawater desalination pretreatment;
Power plant condensate filtration;
Biopharmaceutical industry API,
Solvent,
Water filtration, etc.
Filtration media :Water suspended matter, particulate matter, water dirt, bacteria and algae, rust, etc.
Product Advantages
Large throughput cartridge; large dirt holding capacity; easy installation
Compact structure, easy to move, convenient maintenance, smooth operation
Sealed interface design.
Adopt rubber sealing ring.
Safe and non-toxic, eliminating leakage.
The high-flow cartridge's external inlet and internal outlet construction allows for easy cartridge replacement while keeping contaminants trapped on the outside of the cartridge.
Multiple cartridges can be packed in the filter housing, allowing a wide range of flow rates to be used.
Company Overview
Company OverviewXinxiang Lifeierte Filter Corp.,Ltd (Stock code:837936)is specialized in manufacture of Filters ,Filter Equipments,and Environment system,ect,Located in Xinxiang City-the center of Filtration in China.Lefilter has superior R & D team, professional technical team,experienced overseas sales team and perfect after-sales service system.We Lefilter people will try our best to satisfy customers' requirements. Our main products include hydraulic filters, compressor filters, air filters & dust collectors and water filters.,which widely used in Power generation & nuclear power,Steel mill ,Metallurgical industry,Petrochemical, Oil&Gas, Refineries,Textile,Auto engine & engineering,Paper mills, Food and Beverage,Water treatment,Cement plant, Shipbuilding, Powder Coating,Mining,welding&cutting and etc. "Quality is our culture "we still insist, as our business objective. We will, as always, offer new and old customers with the best quality service. Welcome you and your professional team visit to our factory !!!
FAQ
Q: Are you manufacturer or trading company?
A: Yes,We are the professional manufacturer with “LEFILTER”brand,and work on filter exporting since 2008,which means you get a professional service and reduce communication costs.
Q: How do you control the quality?
A: LEFILTER still insist "Quality is our Culture", always pay attention to quality control from the beginning to the end. Also accept the test by third party,which means reduce your customer return rate .
Q. Can I get some samples?
A: Yes, We are honored to offer sample freely if stock here, freight collect ,and the freight cost will be refund after confirmation bulk order for you,which means help you test your market by lower risk .
Q:What's the service life of the filter cartridge ?
A: The service life of cartridge is different under different working conditions ,and our professional engineers will recommend the better solution base on your plant's requirement .
Q: What is your terms of delivery?
A: Accept EXW, FOB, CIF, DAP,DDP,etc.which means ,you can choose the one which is the most convenient or cost effective by your side.
