RXS2719 Dual Lens USB Camera Module 1080p Usb Camera Module
Negotiable
MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2MP AI Dual Lens Camera Module China Camera Module Camera Module SuppliersNegotiableMOQ: 1000 Pieces -
New Arrival LED 4K Supported Wireless Multimedia Portable Mini ProjectorNegotiableMOQ: 1 Piece
-
2.3MP AR0234 Color Global Shutter USB Camera ModuleUS$ 29 - 32MOQ: 1 Piece
-
AR0234 Cmos Sensor High Speed Global Shutter RGB Camera Module With IR CutUS$ 20 - 26MOQ: 1 Piece
-
120fps OV9281 720P Global Shutter USB Camera ModuleUS$ 13 - 18MOQ: 1 Piece
Place of Origin
China
Description:

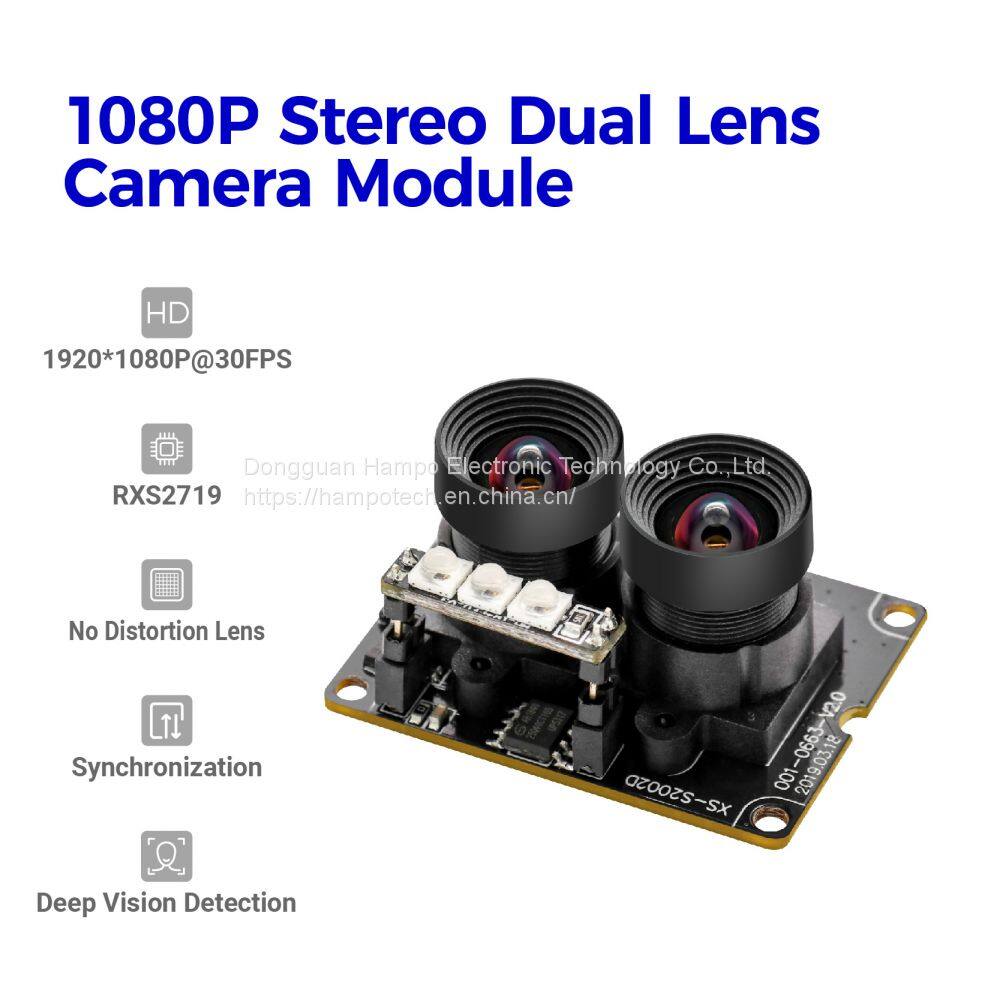

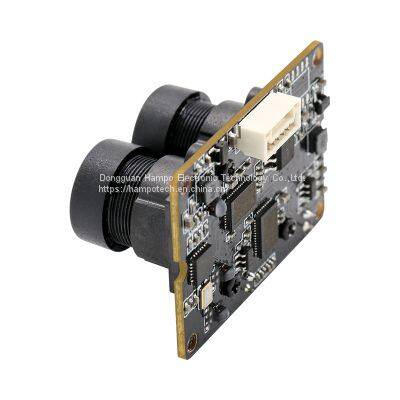

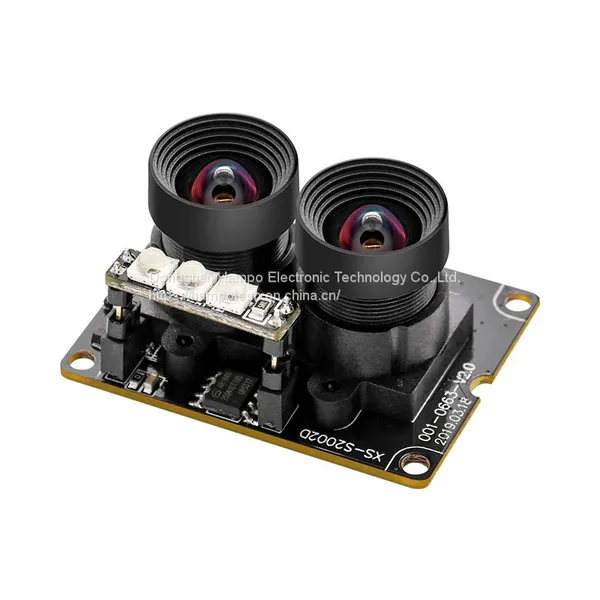

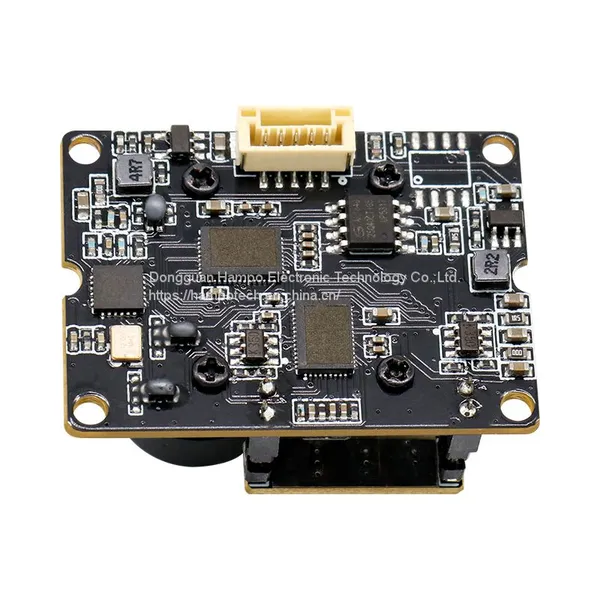

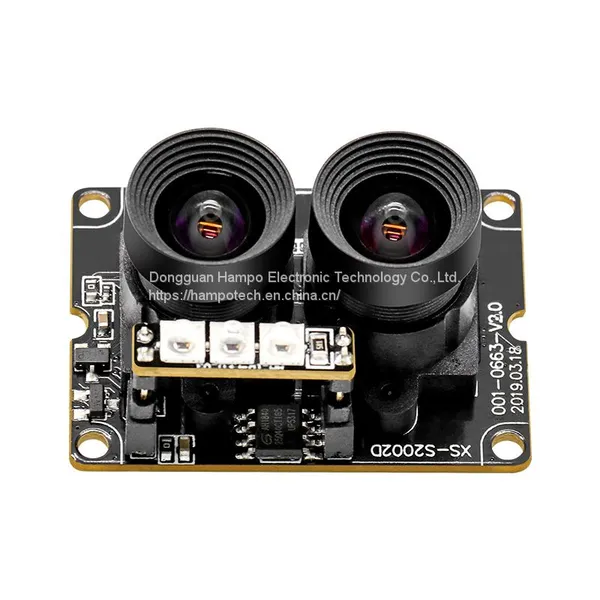

Hampo 003-0663 is a a synchronized dual lens USB camera module, with two pieces 1/2,7" CMOS RXS2719 image sensor, the max resolution is 1920*1080P @30fps for each camera.
The outstanding feature for this module is the two camera's video frame is synchronous, just like human's eyes. Dual-Lens Camera Module, equipped with high-performance AI intelligent vision processor, has powerful AI computing performance, supports various AI frameworks and human detection with high recognition accuracy,widely used for binocular stereo vision secondary development which directly simulates the manner of human eyes observing one scene from two different viewpoints. Like Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze, 3D measurement, People Counting & Tracking etc application. Customer could develop their own software and device,integrated with this dual lens camera to capture or view dual image picture or video.The dual lens camera module compatible with Android, Linux and Windows system with UVC and recognized as 2 pcs cameras.
Key Features:
Synchronized dual lens camera module: 2MP camera module utilizing the disparity between the two lenses through algorithms, allow MACHINE to see the world as we do. Passive stereo vision designed for environment versatility and featuring long-range capabilities and high-resolution depth perception.
Full HD 1080P Resolution: The camera module adopt 2PCS 1/2.7" RXS2719 sensor.The max frame rate 1920*1080@ 30fps for each.
Best Universal Compatibility: Dual lens camera module support USB 2.0 OTG,plug&play.USB camera is versatile for Skype, OBS, Zoom, Go To Meeting, Facebook LIVE, and YouTube Live streaming services etc. Widely works with Win XP/Vista/Windows 7/8,Windows 10 Linux.
Wide Application: The dual lens camera module is widely used for deep vision detection scenarios, such as face recognition, access control system,robot vision,Virtual reality(VR),biometric Retina analyze,3D measurement,Intelligent transportation system,People Counting & Tracking etc.
Camera |
RGB Camera |
IR Camera |
Max Resolution |
1920*1080P |
1920*1080P |
Sensor |
1/2.7" RXS2719 |
1/2.7" RXS2719 |
Frame Rate |
MJPG 1920X1080@30FPS; |
MJPG 1920X1080@30FPS; |
Pixel Size |
3.0μm*3.0μm |
3.0μm*3.0μm |
Output Format |
YUY2/MJPG |
YUY2/MJPG |
Filter |
650nm |
850nm |
Dynamic Range |
76dB |
76dB |
Lens | ||
Focus |
Fixed focus |
Fixed focus |
FOV |
D=65° H=52° |
D=65° H=52° |
Lens Mount |
M12 * P0.5mm |
M12 * P0.5mm |
Power | ||
Working Current |
MAX 200mA |
MAX 200mA |
Voltage |
DC 5V |
DC 5V |
Physical | ||
Interface |
USB2.0 |
USB2.0 |
Storage Temperature |
-20ºC to +70ºC |
-20ºC to +70ºC |
Operating Temp |
0°C~+60°C |
0°C~+60°C |
PCB Size |
80*16*20(mm) |
80*16*20(mm) |
Cable Length |
3.3ft (1M) |
3.3ft (1M) |
TTL |
14.2MM |
14.2MM |
Functionality and Compatibility | ||
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
System Compatibility |
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver |
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver |
