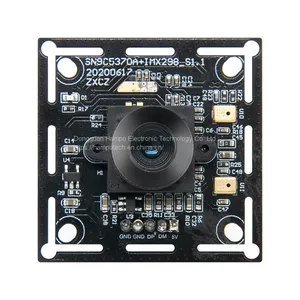

16MP High Resolution USB Camera Module for Optical Character Recognition (OCR) thumbnail-1
16MP High Resolution USB Camera Module for Optical Character Recognition (OCR) thumbnail-2
16MP High Resolution USB Camera Module for Optical Character Recognition (OCR) thumbnail-3
16MP High Resolution USB Camera Module for Optical Character Recognition (OCR) thumbnail-4
16MP High Resolution USB Camera Module for Optical Character Recognition (OCR) thumbnail-5
16MP High Resolution USB Camera Module for Optical Character Recognition (OCR) photo-1

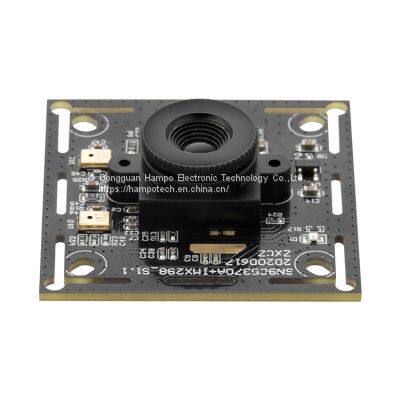

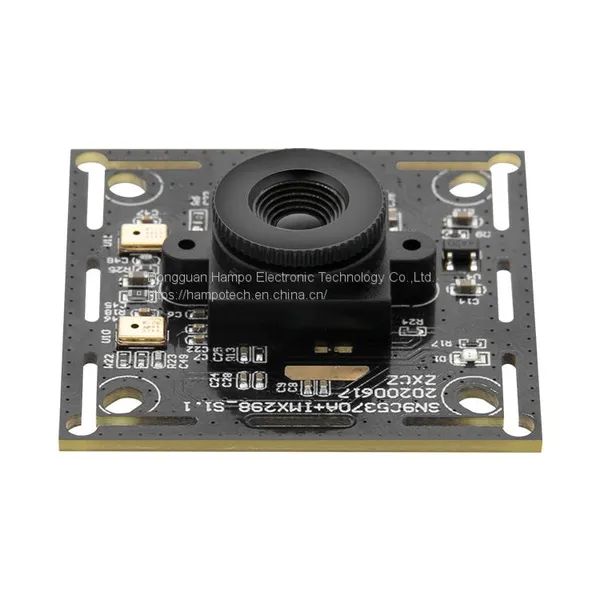

16MP High Resolution USB Camera Module for Optical Character Recognition (OCR) photo-2

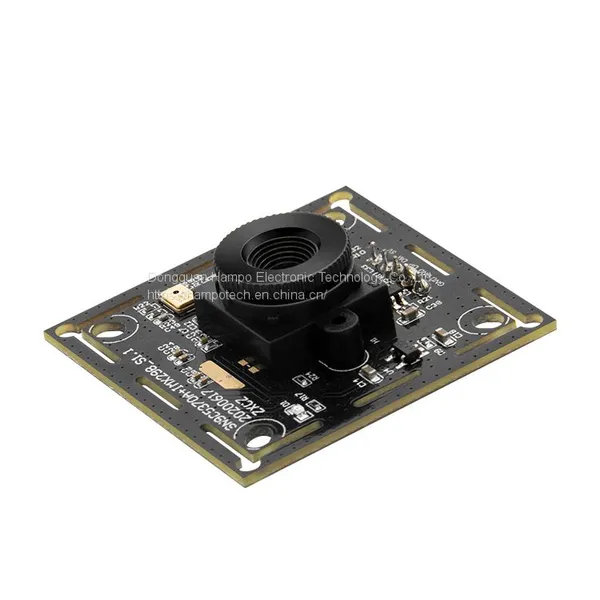

16MP High Resolution USB Camera Module for Optical Character Recognition (OCR) photo-3

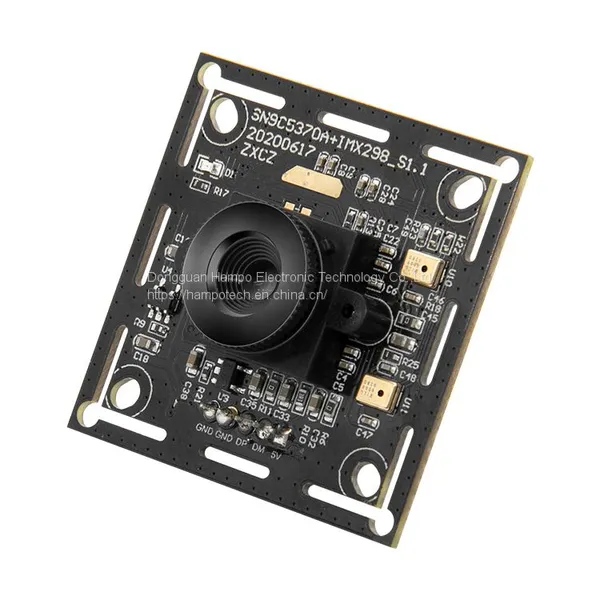

16MP High Resolution USB Camera Module for Optical Character Recognition (OCR) photo-4

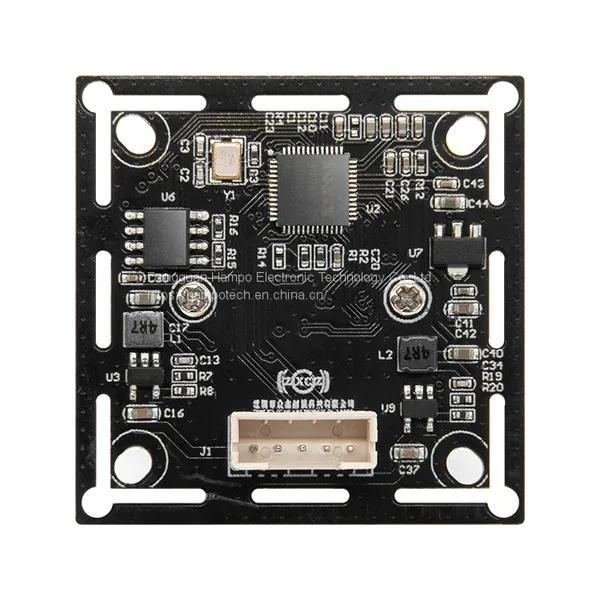

16MP High Resolution USB Camera Module for Optical Character Recognition (OCR) photo-5
US$ 1 - 26 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Hampo
Place of Origin:
China
Model Number:
1170
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hampo
Place of Origin China
Model Number 1170
16MP Fixed Focus High Resolution USB Camera Module for Document Scanner & Optical Character Recognition (OCR)
Product Description

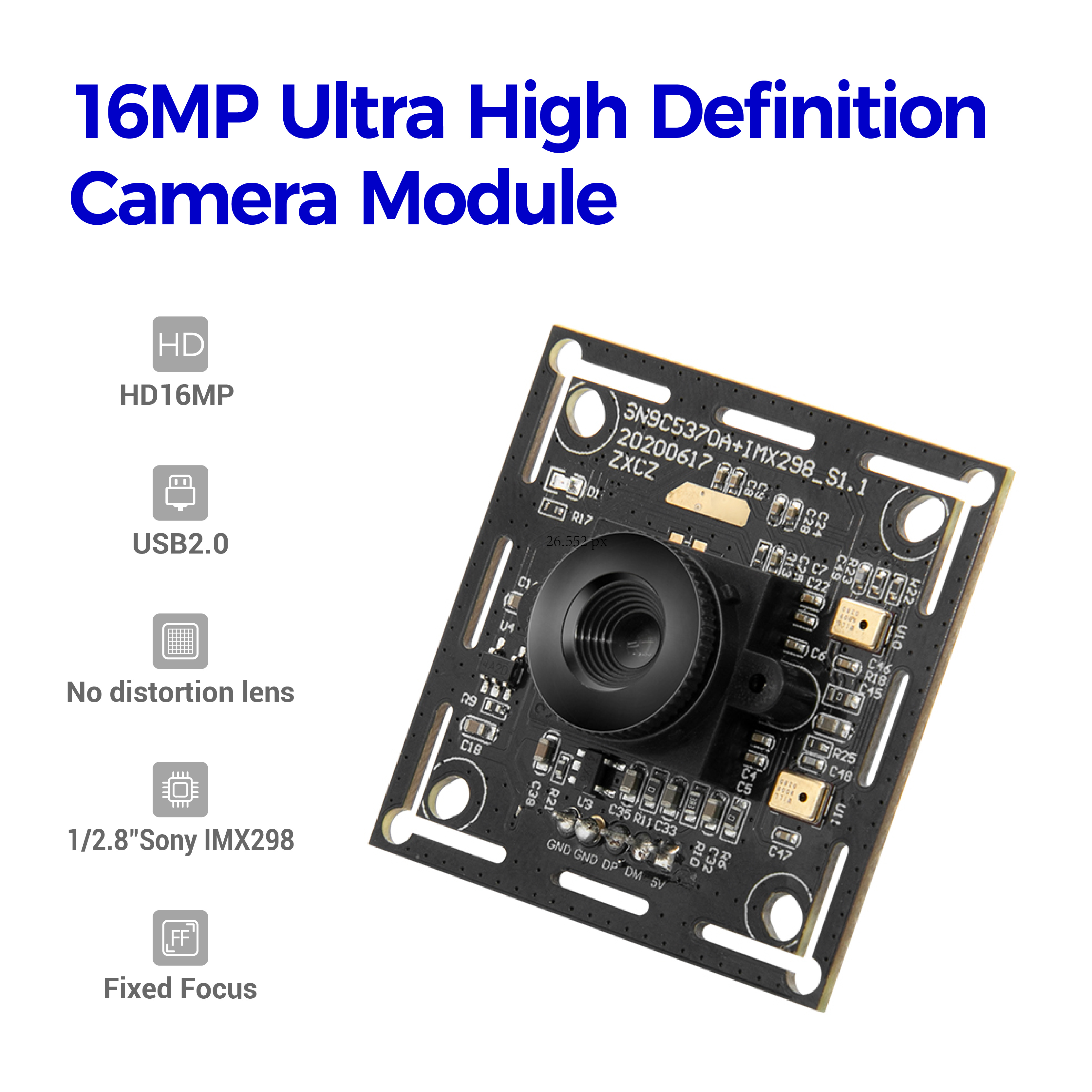

Hampo 003-1170 is a 16MP ultra high resolution,adopting high quality Sony IMX298 CMOS sensor, support 4656*3496P and MJPG YUV video streaming USB2.0 camera module. Mini fixed focus lens USB camera ,true and no distortion color image. Widely used in document scanner, beauty instrument, teaching system, car and ship control, face matching, OCR components, all-in-one machine, advertising machines, automatic vending machine,etc.
Key Features
More than HD: This camera adopts 16MP IMX298 sensor for sharp image and accurate color reproduction.
Capture Video with Audio: The frame rates, MJPG 10fps@4656*3496, 30fps@1080P; YUY2 30fps@640x 480.

High Quality of Image/Video: The camera with high definition 4656*3496P and lower color reproduction deviation produce sharp image and accurate information.



Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.



Applications: This tiny 38mmx38mm, compatible with 32mm x 32mm camera board can be installed in most hidden and narrow position for a home surveillance system, monitoring 3D Printer,document scanner, OCR reader, beauty instrument, teaching system,object recognition and tracking or other machine vision application.

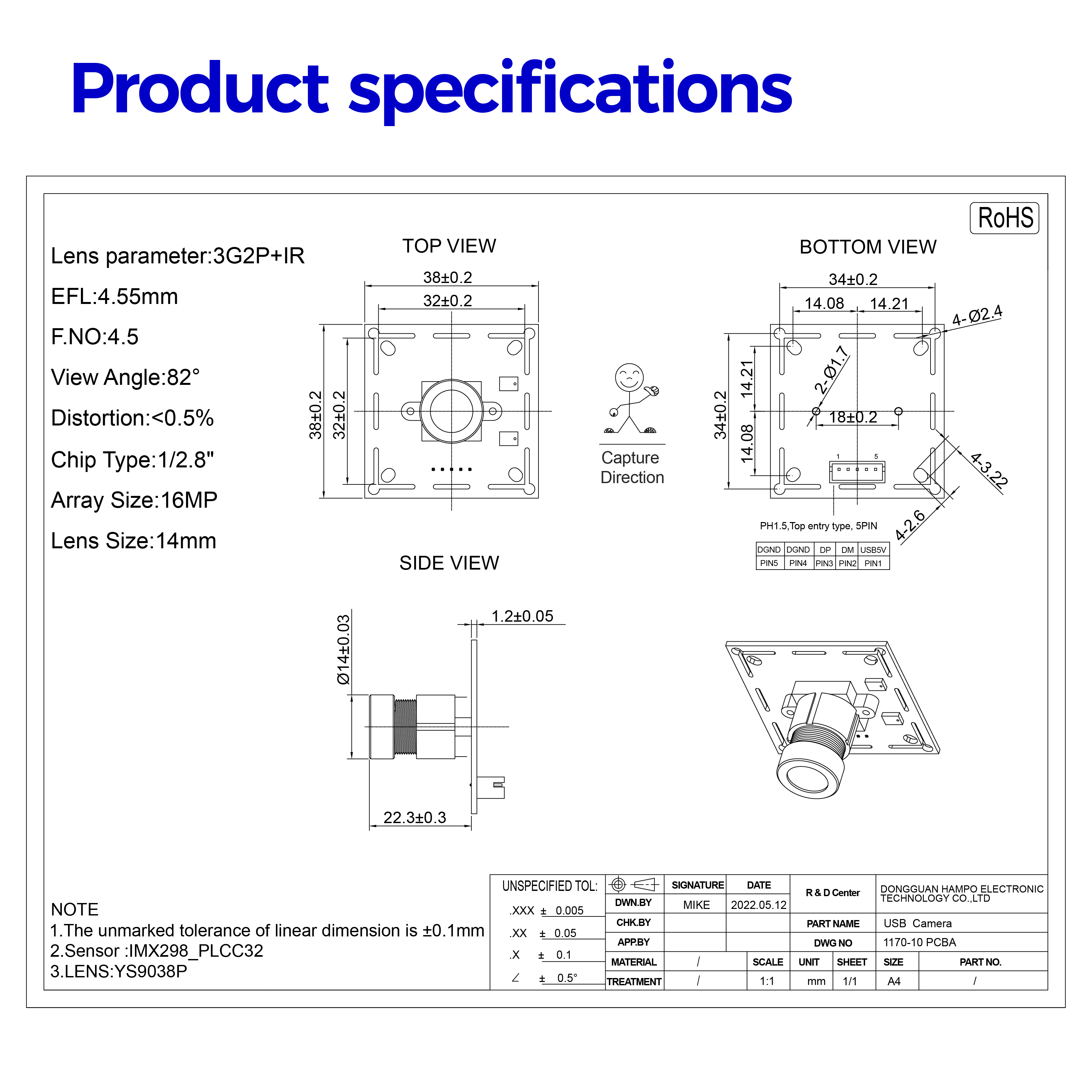

Specification
Camera
Model No.
003-1170
Max Resolution
4656*3496P
Sensor
1/2.8" IMX298
Frame Rate
MJPG 10fps@4720*3600, 30fps@1080P; YUY2 30fps@640x 480.
Pixel Size
1.2μm*1.2μm
Output Format
YUY2/MJPG
Lens
Focus
Fixed focus
FOV
D=82°
Lens Mount
M12 * P0.5mm
Focusing Range
3.3ft (1M) to infinity
Physical
Interface
USB2.0
Storage Temperature
-30ºC to +80ºC
PCB Size
38mm*38mm,32mm*32mm
Cable Length
3.3ft (1M)
TTL
22.3MM
EFL
4.55MM
Functionality and Compatibility
Adjustable parameter
Exposure/ White balance
System Compatibility
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver

/16mp-usb-camera-module-for-document-scanner-product/
