Oil Seal Iron Case End Cutting&Bevel Angle Machine

Oil Seal Iron Case End Cutting&Bevel Angle Machine thumbnail-1
Oil Seal Iron Case End Cutting&Bevel Angle Machine thumbnail-2
Oil Seal Iron Case End Cutting&Bevel Angle Machine thumbnail-3
Oil Seal Iron Case End Cutting&Bevel Angle Machine thumbnail-4
Oil Seal Iron Case End Cutting&Bevel Angle Machine thumbnail-5
Oil Seal Iron Case End Cutting&Bevel Angle Machine photo-1

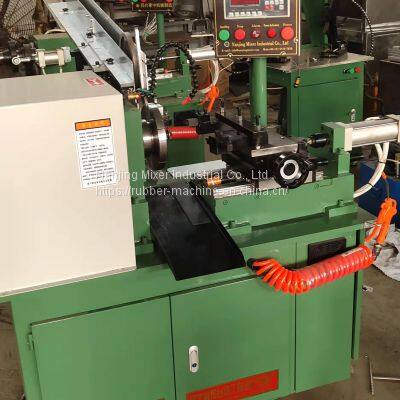

Oil Seal Iron Case End Cutting&Bevel Angle Machine photo-2

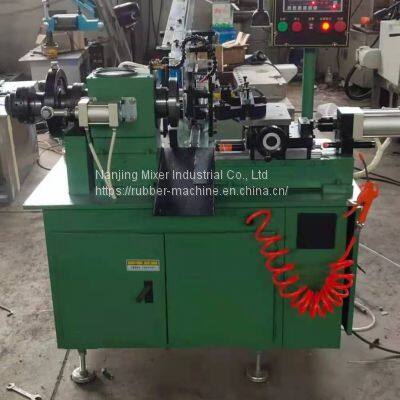

Oil Seal Iron Case End Cutting&Bevel Angle Machine photo-3
Oil Seal Iron Case End Cutting&Bevel Angle Machine photo-4

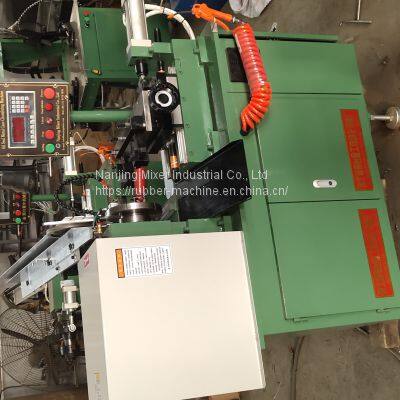

Oil Seal Iron Case End Cutting&Bevel Angle Machine photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
MIXER
Place of Origin:
China
Model Number:
D120-220
Contact Supplier Request Quote Chat Now
Nanjing Mixer Industrial Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MIXER
Place of Origin China
Model Number D120-220
Type Horizontal
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Weight 560
Dimension(L*W*H) L1.6xW1.1xH1.5 m
Condition New
Power(W) 4000
Automatic Grade Automatic
CNC or Not Normal
Max. Swing Diameter 0660

Oil seal Iron case end cutting&Bevel Angle machine:



It is suitable for end cutting& angle beveling on iron cases such as oil seal metal cases,and other round metal sleeves,metal cups,etc.



●Automatic Feeding of  Iron Cases on a Die for end cutting or angle beveling. High Efficiency & precise processing.



●Loading the Metal Cases manually in line in the feeding guide→ Metal Cases are delivered forward by the Conveyor → Robot Grip & Feeds Metal Case on the Collet and Clamping → Rotation→End cutting or Angle Bevleing→Finished Metal Cases are ejected out.



Technical specification:

Model:D120-220

Spindle spec:  0660

Motor power:  4KW-1450 RPM

Inverter: EM730-5.5KW

Spindle speed:  0-1200 RPM

Power system: pneumatic

Control system: single board computer microcomputer control

Processing range: diameter 120-220mm, height 5-30mm

Scope of application: flat machining&chamfering of round workpieces

Processing speed: 600~900 PCS/Hr

Power supply:  AC380V/50HZ

Dimension: L1.6xW1.1xH1.5 m

Weight:560KG




Product Tags: Oil Seal Iron Cases Beveling Angle Machine , Oil Seal Iron Case Beveling Machine , Oil Seal Iron case Chamfering Machine , Oil seal iron case facing machine , Oil seal Iron case end cutting , oil seal iron case beveling machine
