Home > Products > Rubber machines > Hydraulic Dispersion Kneader

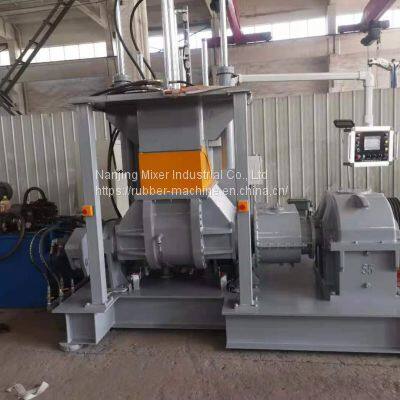

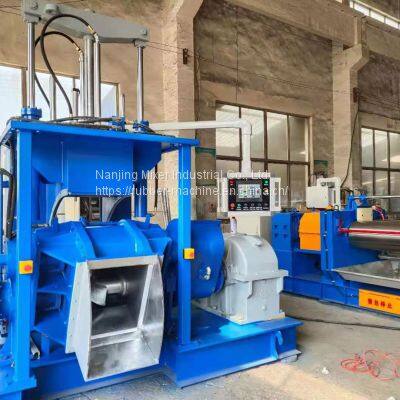

Hydraulic Dispersion Kneader
- 100 Set / Sets per Month
- Shanghai
- T/T L/C Cash
- 60 days
-
Two Roll Rubber Mixing Machine
-
Rubber Precision Preforming Machine (Rubber Preformer)
-
Rubber Vacuum Compression Moulding Machine (Rubber Vacuum Vulcanizing Press)
-
Rubber Injection Moulding Machine
-
Horizontal Silicone Injection Molding Machine
-
Rubber Strip Cutting Machine (PLC control+Human-machine interface)
Product Details
| Brand Name: | Mixer | Place of Origin: | China | Model Number: | X(S)N-75L |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1. This hydraulic type Dispersion Kneader machine has less noise than pneumatic dispersion kneader.
2. The pressure of the hydraulic dispersion kneader is more balanced and stable working compared with the pneumatic dispersion kneader, which can effectively improve the dispersion of various small materials and enhance the quality of the rubber or plastic compound.
3. Hydraulic ram pressure type rubber dispersion kneader is more powerful and well-distributed,works more efficiently, greatly improve productivity.
Technical specification:
Model | X(S)N-20-H | X(S)N-35-H | X(S)N-55-H | X(S)N-75-H | X(S)N-110-H | X(S)N-150-H | |
Effective Mixing capacity | L | 20 | 35 | 55 | 75 | 110 | 150 |
Main power | KW | 37 | 55 | 90 | 132 | 220 | 250 |
Brake | KW | 3 | 3 | 4 | 4 | 5.5 | 5.5 |
Tilting | ℃ | 140 | 140 | 140 | 140 | 140 | 140 |
Hydraulic pump power | KW | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
Hydraulic pressure | Mpa | 3~4 | 3~4 | 3~4 | 3~4 | 3~4 | 3~4 |
Cooling | Mpa | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
Heating | Mpa | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
Electric | KW | 9 | 12 | 15 | 18 | 24 | 28 |
Machine | KG | 5800 | 7500 | 8800 | 11800 | 16500 | 22000 |
Overall | CM | 260x160 | 320x185 | 350x220 | 380x230 | 440x290 | 470x300 |
