Factory Equipment For Sale Good Quality 3d Optical Coordinate Instant Vision Measuring Machine
CNY 92000 - 95000
MOQ: 1 Set
Key Specifications
Get Latest Price
Model Number:
HD-50VH
Brand Name:
HanDing
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
30 days
Related Products
-
Hot Sale HD-200FV Fully-automatic Vision Measuring Machine CNC Vision Measuring MachineCNY 195000 - 198000MOQ: 1 Set -
Good Quality Large Size Vision Measurement Machine Rapid Vision Measurement SystemCNY 92000 - 95000MOQ: 1 Set
-
Automatic 2.5D Vision Vmm Image Video Measuring System Machine ManufacturersCNY 92000 - 95000MOQ: 1 Set
-
Hot Sale Measuring Machine Manual VMM Used Vision Measurement MachineCNY 92000 - 95000MOQ: 1 Set
-
China 3D Probe Vision System, Manual Optical Measurement MachineCNY 92000 - 95000MOQ: 1 Set
Model Number
HD-50VH
Brand Name
HanDing
Place of Origin
China

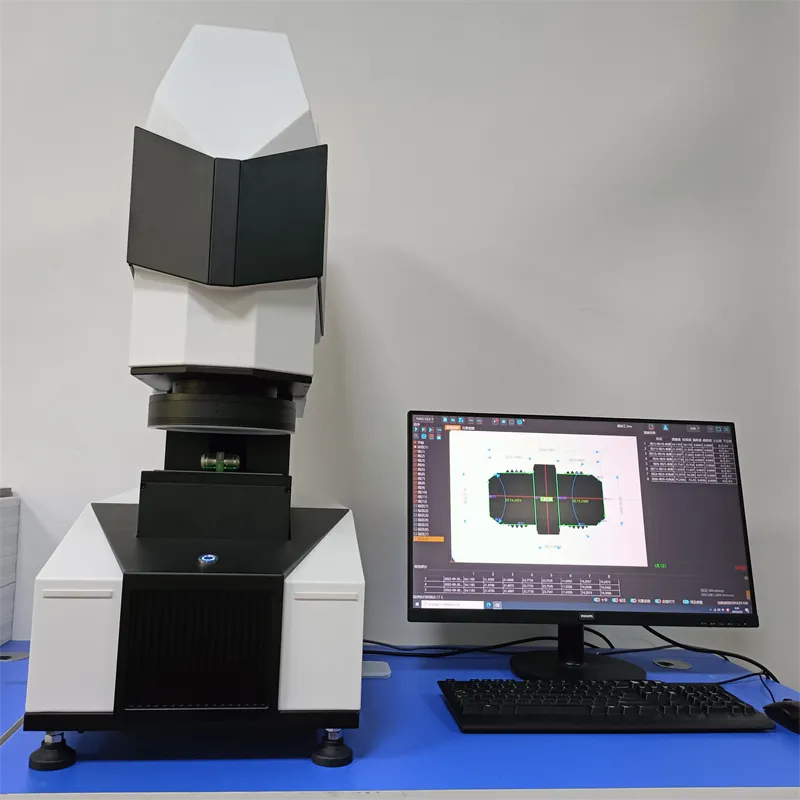

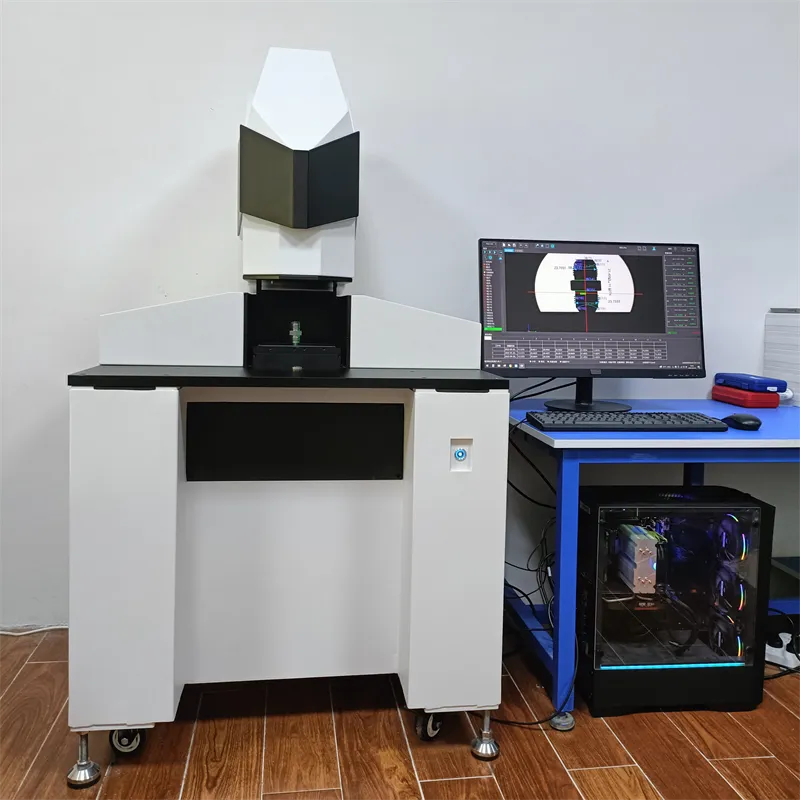

Instrument introduction
The stant vision measuring machine has the characteristics of rapid measurement and high precision, it perfectly combines far-heart imaging with intelligent image processing software,and will be the tedious measurement task, become extremely simple.
You simply place the workpiece in the effective measurement area, which instantly completes all two-dimensional size measurements.
Application industry
Instant vision measuring machine is widely used in machinery, electronics, mold, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical devices, clocks, knives and other small size of products and parts of the batch rapid measurement.
| Product Name | Horizontal and vertical integrated instant vision measuring machine | |
| Model | HD-50VH | |
| Image Sensor | 20 million pixel CMOS*2 | |
| light receiving lens | Bi-telecentric lens | |
| Vertical lighting system | White LED ring spotlight with surface | |
| Horizontal lighting system | Telecentric Parallel Epi-Light | |
| Object view | vertical | 4*3mm |
| horizontal | 42*28mm | |
| Repeatability | ±2um | |
| measurement accuracy | ±3um | |
| Software | FMES V2.0 | |
| Turntable | diameter | φ30mm |
| load | ＜3kg | |
| range of rotation | 0.2-2 revolutions per second | |
| Vertical lens lift range | 50mm，automatic | |
| Power supply | AC 220V/50Hz | |
| Working environment | Temperature:10~35℃，humidity:30~80% | |
| Equipment power | 300W | |
| Monitor | Philips 27" | |
| Computer host | intel i7+16G+1TB | |

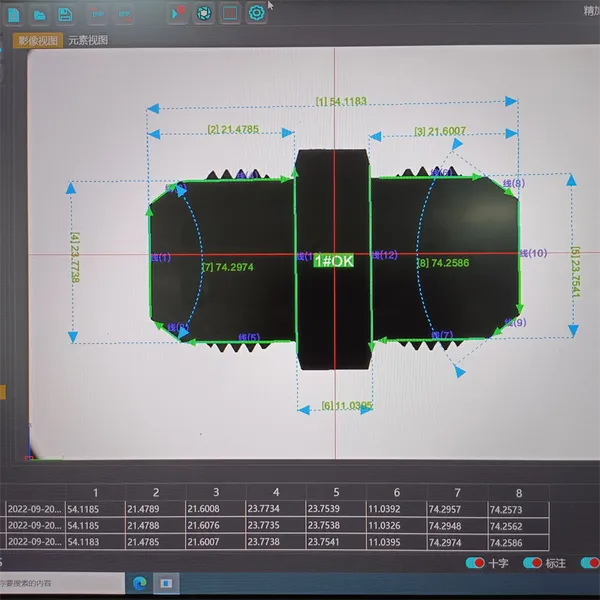

| Measurement functions of the software | Points, Lines, Circles, Arcs, Angles, Distances, Parallel Distances, Circles with Multiple Points, Lines with Multiple Points, Arcs with Multiple Segments, R Angles, Box Circles, Identify Points, Point Clouds, Single or Multiple Quick Measurement.Intersect, Parallel, Bisect, Perpendicular, Tangent, Highest Point, Lowest Point, Caliper, Center Point, Center Line, Vertex Line,Straightness, roundness, symmetry, perpendicularity, position, parallelism,Position tolerance, geometric tolerance, dimensional tolerance. | |
| Software marking function | Alignment, vertical level, angle, radius, diameter, area, perimeter dimension, thread pitch diameter, batch dimension, automatic judgment NG/OK | |
| Reporting function | SPC Analysis Report, (CPK.CA.PPK.CP.PP) Value, Process Capability Analysis, X Control Chart, R Control Chart | |
| Report output format | Word、 Excel 、TXT、PDF | |
