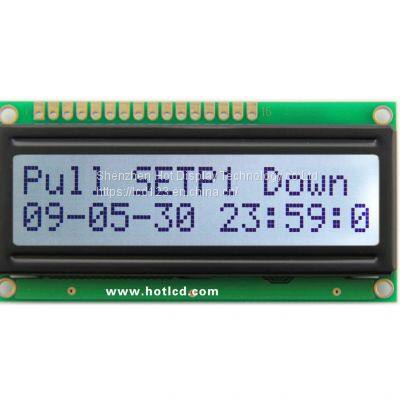

16x2 Character Medium/Green Backlight/HTM1602B
Quick detail
Product Type - Standard COB Character LCM
Display content - 16x2 characters
Dimensions (mm) - 122.0x44.0x14.6
Viewshed window size (mm) - 99.0x24.0
Display size (mm) - 94.8x20.0
Dot Spacing mm - 0.98x1.16
Product Application - Industrial Control
Viewing Angle - 6H
Backlight Type or Brightness - Green
Connection method PIN number - 16PIN
Interface - MCU/8bit
Working temperature - (-20~70℃)
Supply Voltage - 5.0v
Terminal Function
| Pin No. | Pin Name | Function |
| 1 | VSS2 | (0V)Power Supply, |
| 2 | VDD2 | (5.0V)Positive Power Supply |
| 3 | V01 | LCD Contrast Reference Supply |
|
4 |
RS2 |
Select Register 0:Instruction register busy flag address Counter(for read) 1:Data register (for write and read) |
|
5 |
R/W2 |
Select read or write 0: Write 1: Read |
| 6 | E1 | Starts data read/write |
| 7 | D B0 |
Data Bus Lines 1 |
| 8 | D B1 | |
| 9 | D B2 | |
| 10 | DB 3 | |
| 11 | DB 4 | |
| 12 | DB 5 | |
| 13 | DB 6 | |
| 14 | D B7 | |
| 15 | BLA+ | (5.0V)Backlight Positive |
| 16 | BLK | (VSS)Backlight Negative |
Thanks & best regards.
Mei
Shenzhen Hot Display Technology co;Ltd |
Add:JHZ S&T Business Park Jinlong Road 2, Baolong industrial City ,Longgang District Shenzhen |
Tel: 86-755-29810081 |
Fax:86-755-8966 7086 |
QQ: 189323908 |
Cell : 86-13631621652 wechat :13631621652 |
