Home > Products > MPCF Plastic centrifugal fans > MPCF-200-F4T Plastic Chemical Corrosion Resistant Lab Exhaust Fans

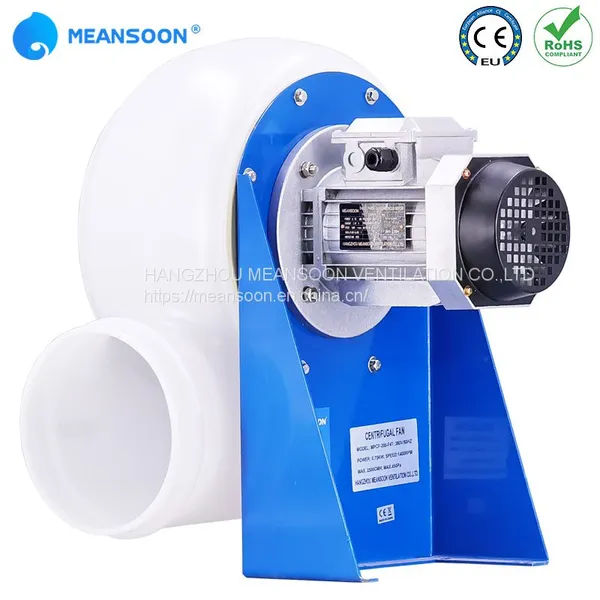

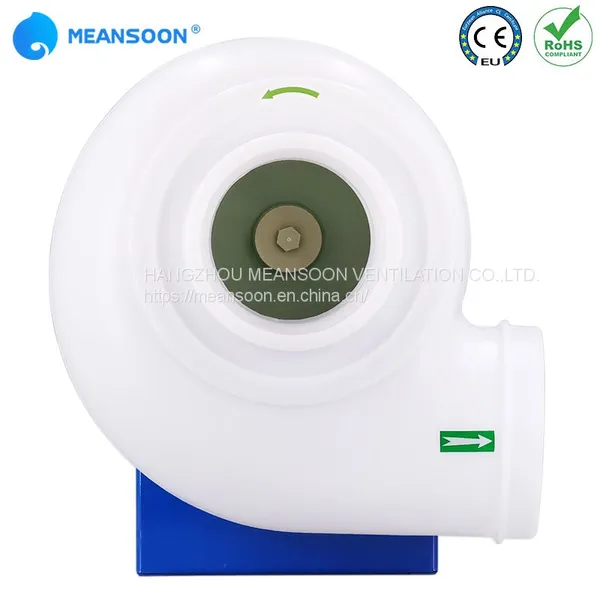

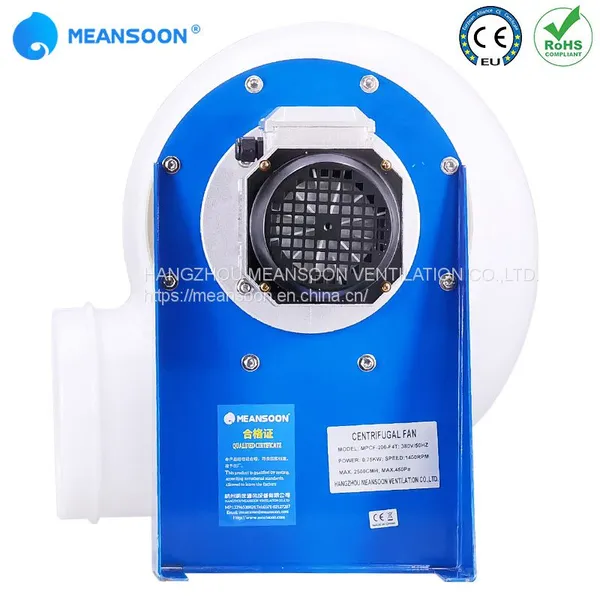

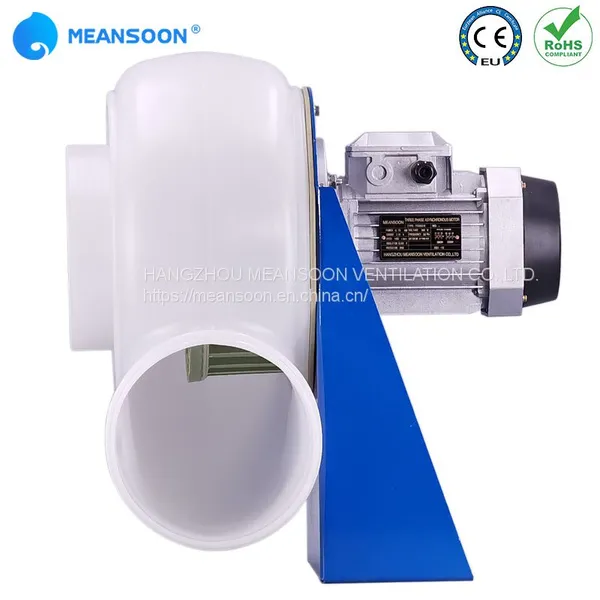

MPCF-200-F4T Plastic Chemical Corrosion Resistant Lab Exhaust Fans
- Ningbo
- T/T
- 10 days
You May Like
-
MPCF-160-B2T-EX Polypropylene Explosion Proof Plastic Centrifugal Fan
-
MPCF-200-B2T-VF Plastic Corrosion Resistant Variable Frequency Centrifugal Exhaust Fan
-
CREF-2S75 Plastic PP Chemical Resistant Centrifugal Fan for Deodorization System
-
CREF-2T75 Plastic PP Chemical Resistant Anticorrosive Exhaust Fan
-
MACF-200-F4S Corrosion Resistant Laboratory Fume Hood Exhaust Fan
-
MACF-200-F4T Anti-corrosive Plastic Laboratory Fume Hood Centrifugal Fan
Product Details
| Brand Name | MEANSOON | Place of Origin | China | |
| Model Number | MPCF-200-F4T | Certification | CE | |
| After-sales Service Provided | No overseas service provided | Voltage | 380V | |
| Power | 750W | Speed | 2800RPM | |
| Air Volume | 2500CMH | Blade Material | Plastic | |
| Mounting | Duct Fan | Electric Current Type | AC |
Product Description
Product Name: Plastic chemical corrosion resistant lab exhaust fans
Model: MPCF-200-F4T

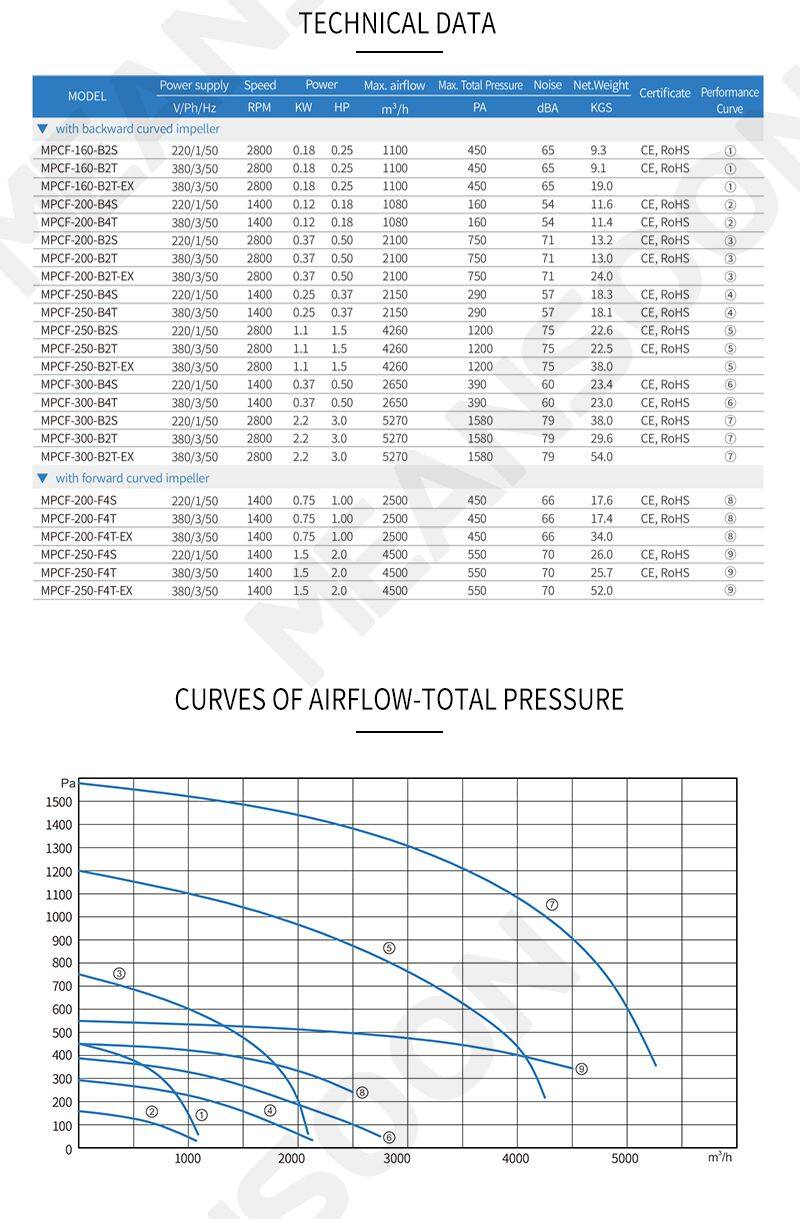

Specification
| 1 | Materials | PP impeller + PE spiral case+100% Copper motor |
| 2 | Color | white spiral case + blue motor+ blue bracket |

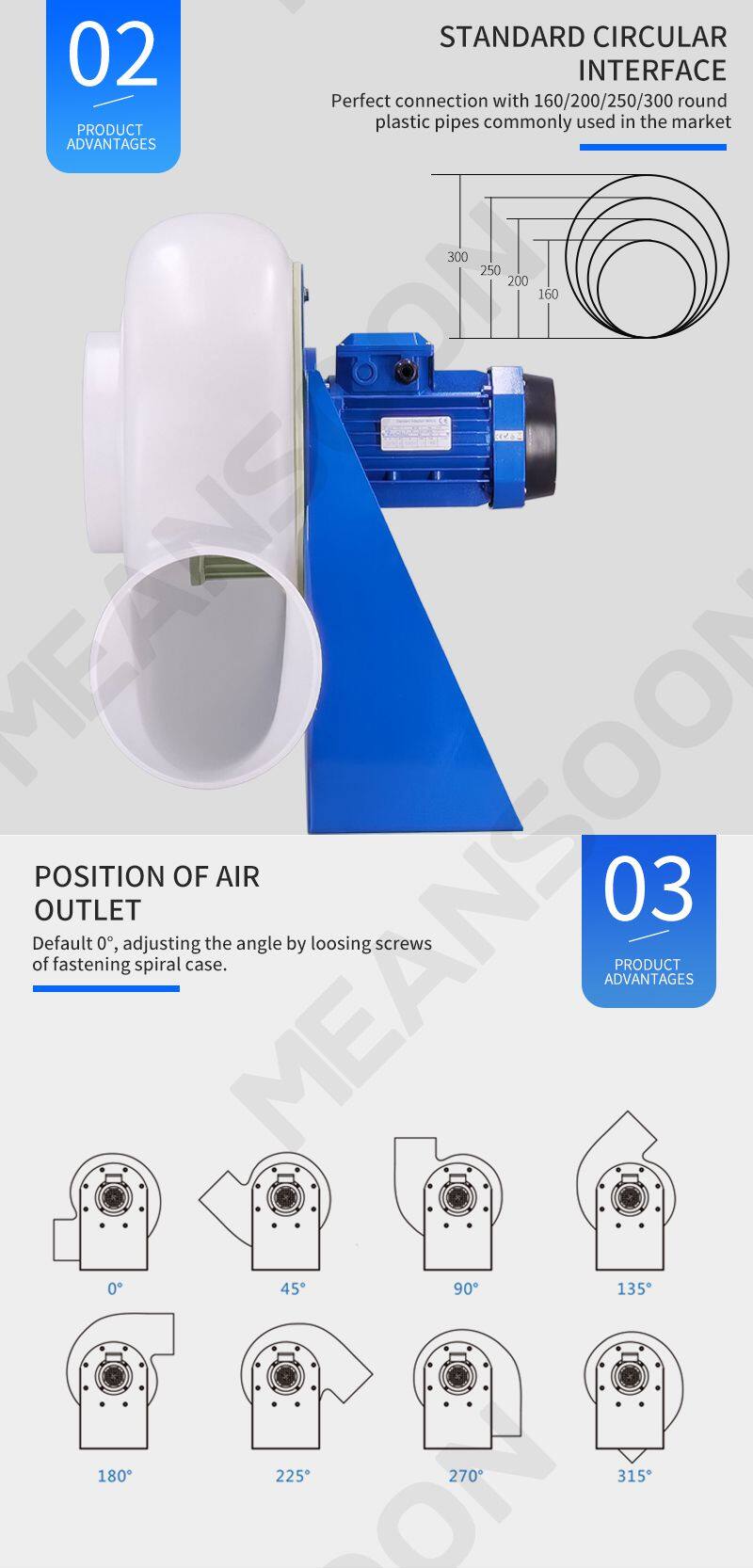

| 3 | Diameter of intlet | Φ196 |
| 4 | Diameter of outlet | Φ196 |
| 5 | Power | 750W |
| 6 | Power supply | 380~460V/50~60Hz available |
| 7 | Max Airflow | 2500 CMH ( Cubic Meters per Hour ) |
| 8 | Max Pressure | 450 Pa |
| 9 | Net weight | 22.0 KGS |
| 10 | Gross Weight | 24.0KGS |
| 11 | Packing details | 1 carton for 1 peice, Carton Size: 48*48*55CM |
| 12 | MOQ | 1 Piece |
| 13 | LOGO | Please send me your design, we can print it on fan |
| 14 | OEM accepted | Yes |
| 15 | Sample time | normal 5 days/ special 15 days |
| 16 | Certification Availalbe | CE, ROHS |
| 17 | Production capacity | 1000 per month |
| 18 | Payment items | 100% payment before manufacture <5000USD 30% as deposit, 70% before shipment > 5000USD |
Plastic chemical corrosion resistant lab exhaust fans
GENERAL DESCRIPTION
The MPCF-F series of Plastic chemical corrosion resistant lab exhaust fans is designed for conveying smokes, corrosive vapours and humid smokes with temperature of max 50°C.

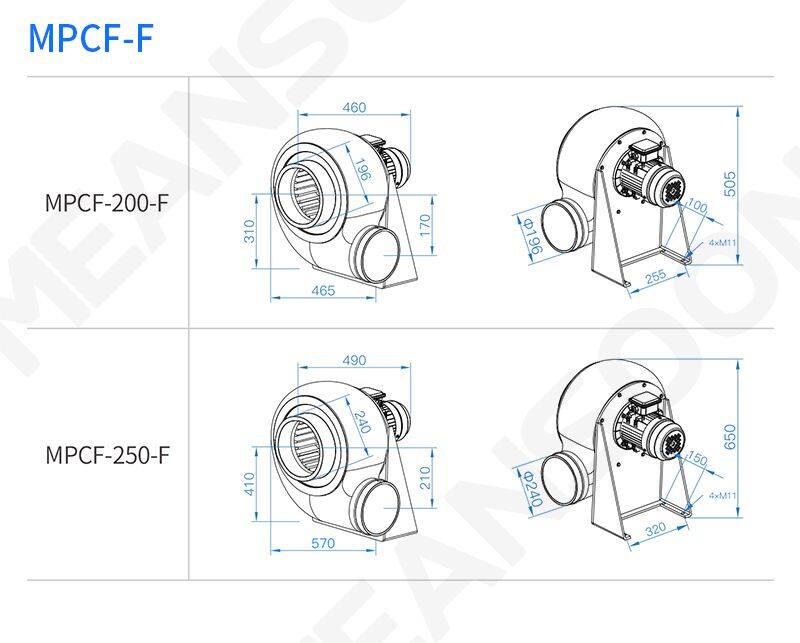

2 models (Φ200, Φ250) with centrifugal forward curved blades and technical and mechanical characteristics that grant a long lasting operation, lower noise and higher efficiency. When its lifetime is over, it is easy to handle, being made of recyclable plastic material.

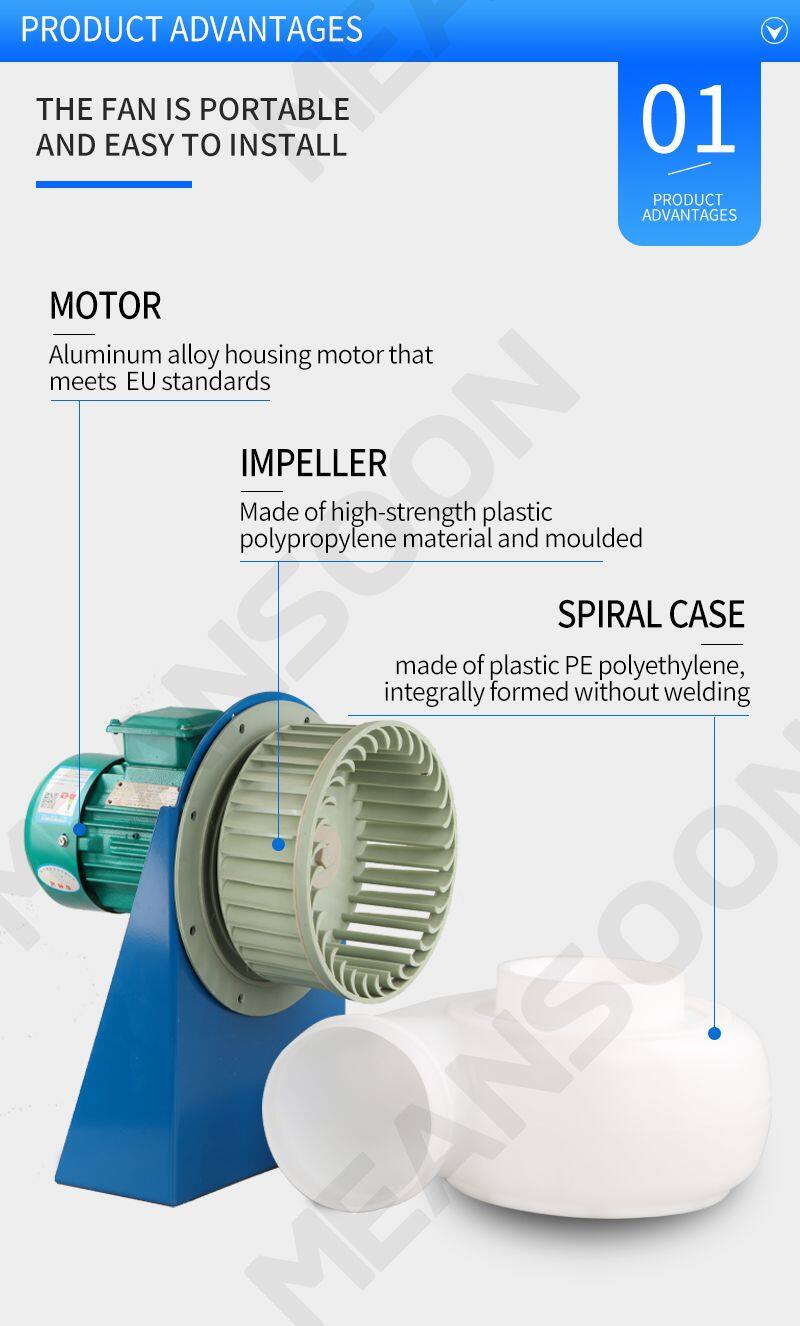

CONSTRUCTION
• Volute, made of Polyethylene (PE).
• Single inlet centrifgual impeller, made of Polypropylene (PP),
with backward curved blades and aluminium hub (protected from the fluid).
• Motor support in epoxy painted steel sheet.

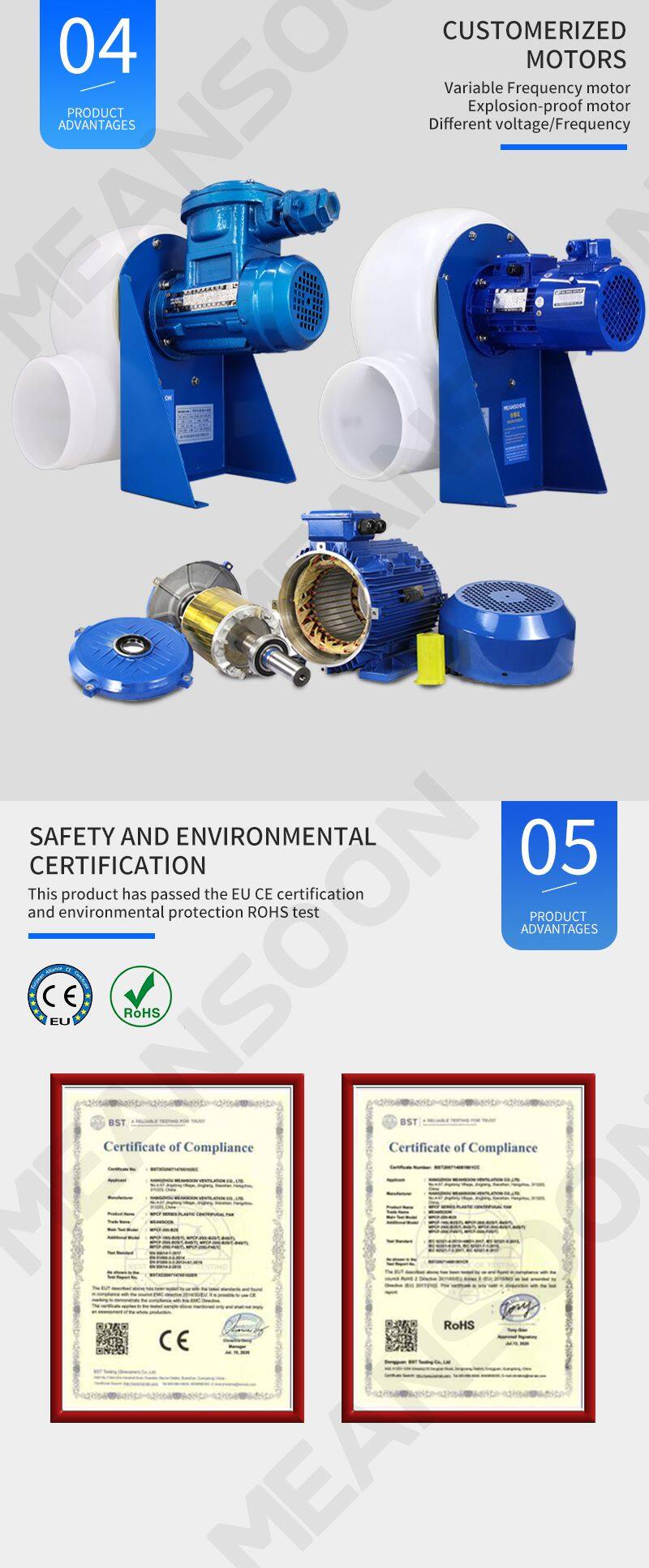

• Asynchronous three-phase or single-phase, Explosion proof and Variable frequency motors are customized too.
motors according to international standards with CE and RoHS certificates, IP 54, class B, B5 shape. Suitable to continuous working to constant load.
