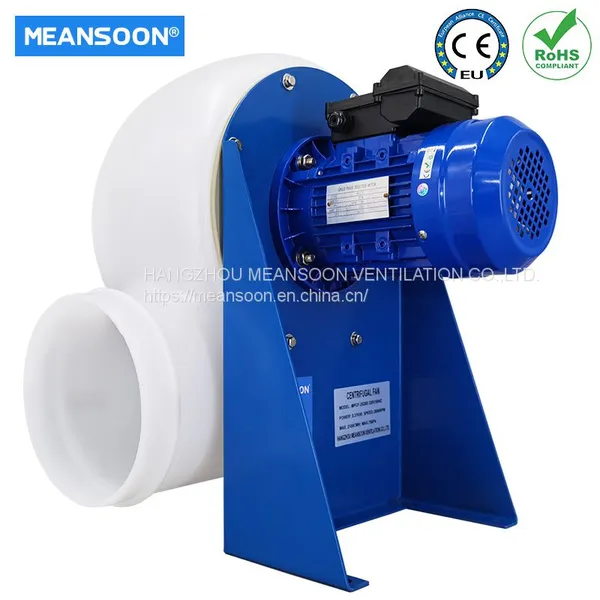

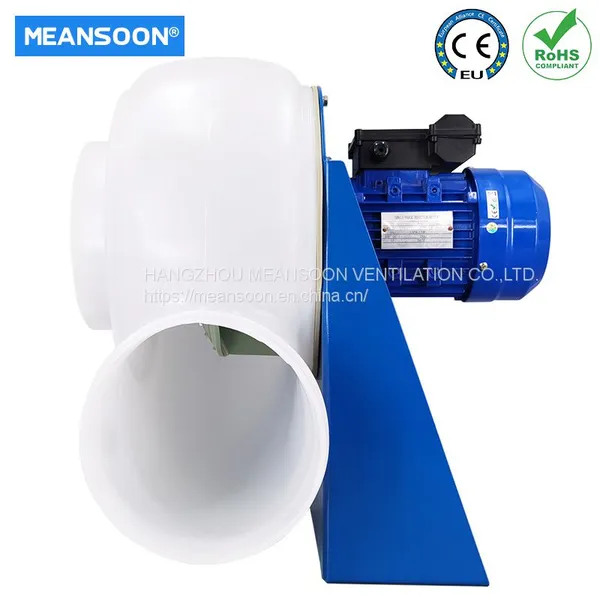

Product Name: Chemical resistant plastic laboratory fume hood exhaust fan
Model: MPCF-200-B2S

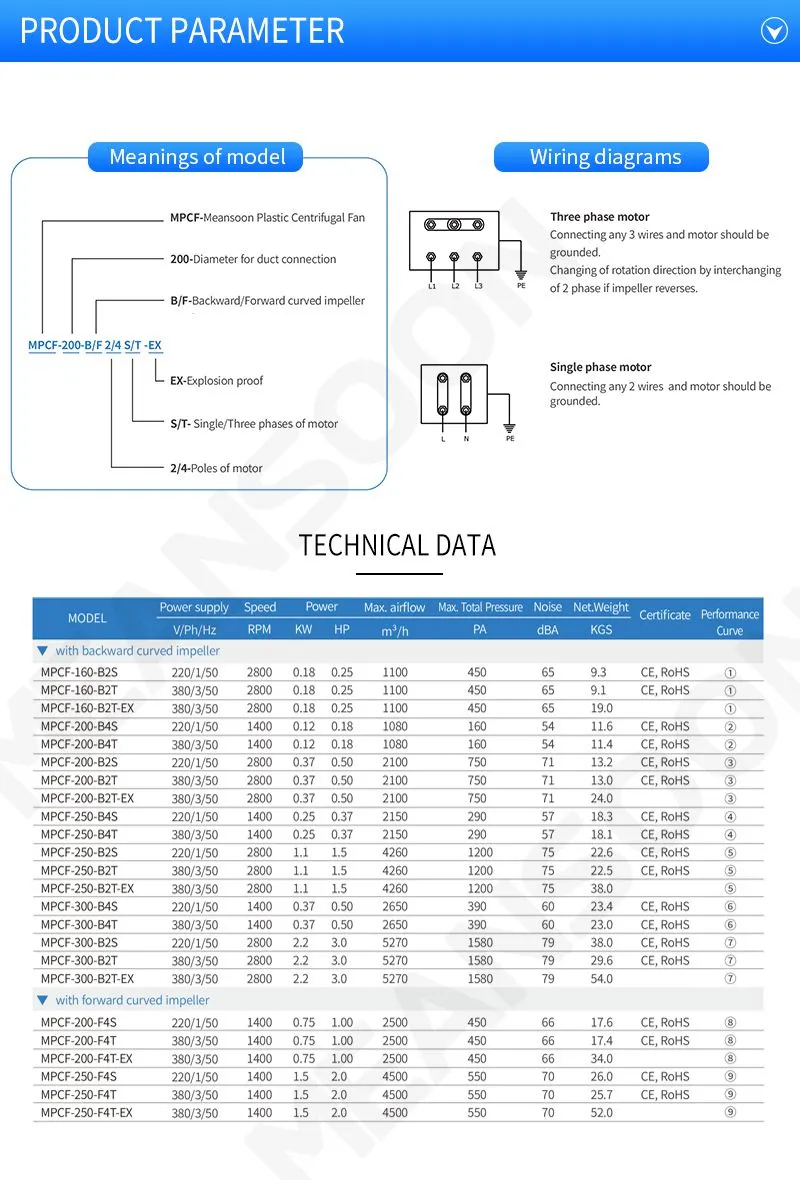

Specification
| 1 | Materials | PP impeller + PE spiral case+100% Copper motor |
| 2 | Color | white spiral case + blue motor+ blue bracket |
| 3 | Diameter of intlet | Φ196 |
| 4 | Diameter of outlet | Φ196 |
| 5 | Power | 370W |
| 6 | Power supply | 220~230V/50~60Hz available |

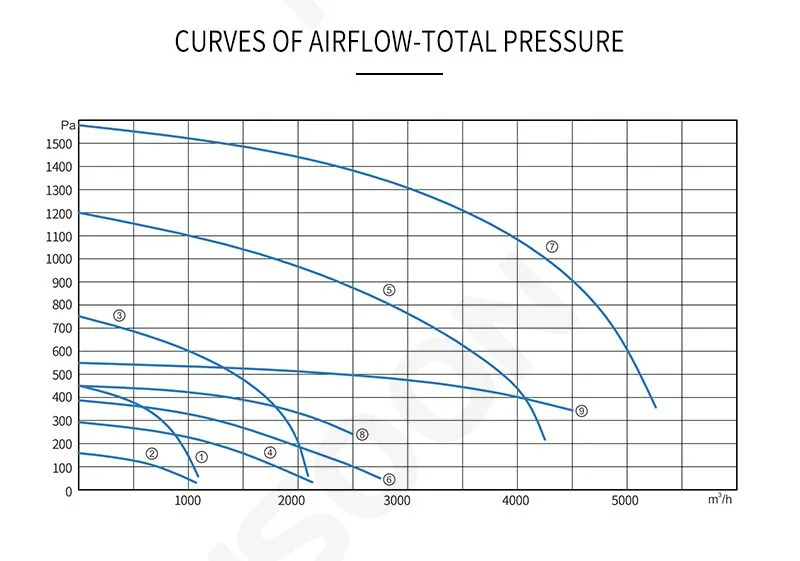

| 7 | Max Airflow | 2100 CMH ( Cubic Meters per Hour ) |
| 8 | Max Pressure | 750 Pa |
| 9 | Net weight | 19.0 KGS |
| 10 | Gross Weight | 22.0KGS |
| 11 | Packing details | 1 carton for 1 peice, Carton Size: 48*48*55CM |
| 12 | MOQ | 1 Piece |
| 13 | LOGO | Please send me your design, we can print it on fan |
| 14 | OEM accepted | Yes |
| 15 | Sample time | normal 5 days/ special 15 days |
| 16 | Certification Availalbe | CCC, CE, ROHS, ISO9001 |
| 17 | Production capacity | 1000 per month |
| 18 | Payment items | 100% payment before manufacture 30% as deposit, 70% before shipment > 5000USD |
Chemical resistant plastic laboratory fume hood exhaust fan
GENERAL DESCRIPTION
Chemical resistant plastic laboratory fume hood exhaust fan is particularly designed for conveying corrosive vapours and smokes, also with high humidity level and with maximum emperature of 60ºC.

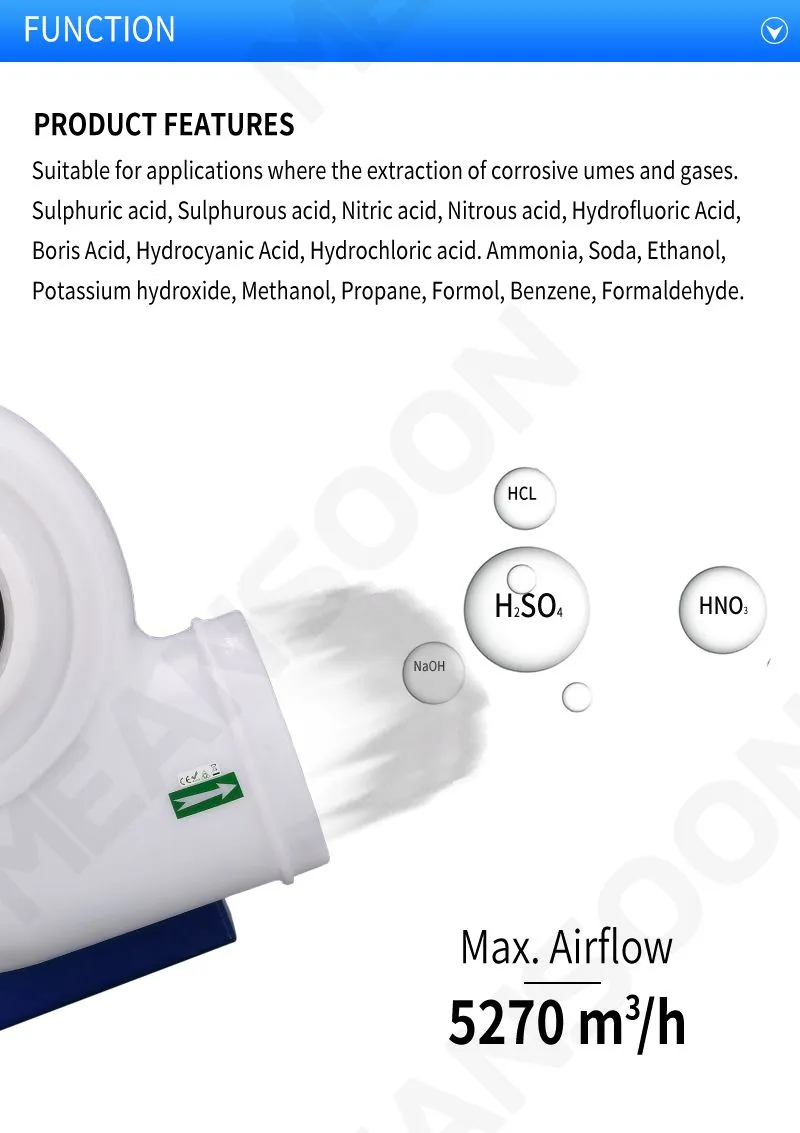

Suitable for applications where the extraction of corrosive fumes and gases:
Sulphuric acid, Sulphurous acid, Nitric acid, Nitrous acid, Hydrofluoric Acid, Boris Acid, Hydrocyanic Acid, Hydrochloric acid. Ammonia, Soda, Ethanol, Potassium hydroxide, Methanol, Propane, Formol, Benzene, Formaldehyde.
APPLICATION
The MPCF series of Corrosion Resistant Plastic lab fume cupboard exhaust fan for Fume Hood with backward curved impeller provide good characteristics of low noise and high efficiency, which often are applied in laboratory, fume hood, fume cupboard, chemical storehouse, electroplating factory, medicine factory, muould factory, Electronic workshop and metallurgy for exhaust ventilation.

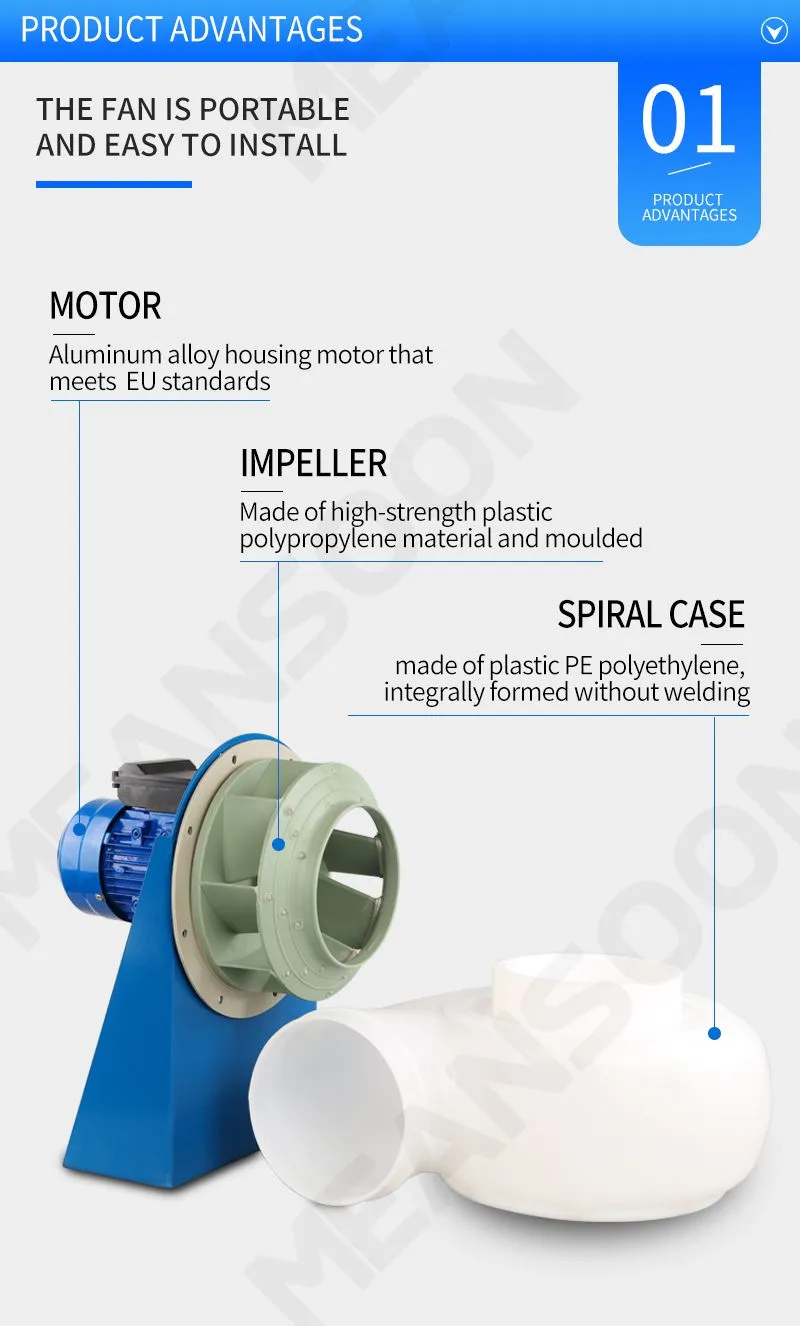

SPIRAL CASES

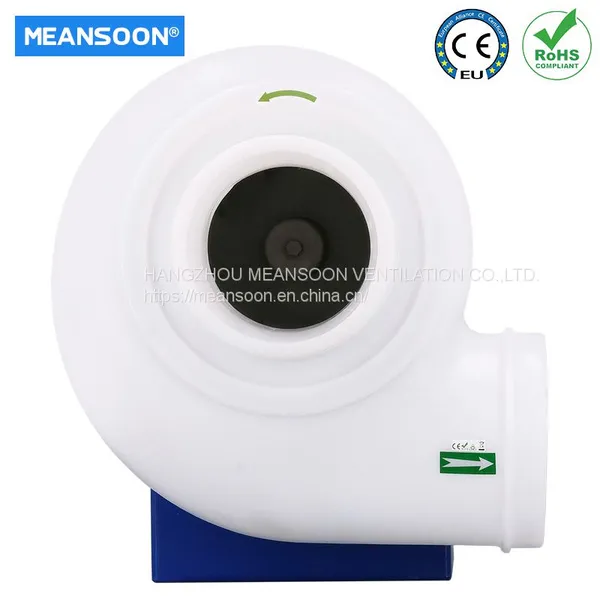

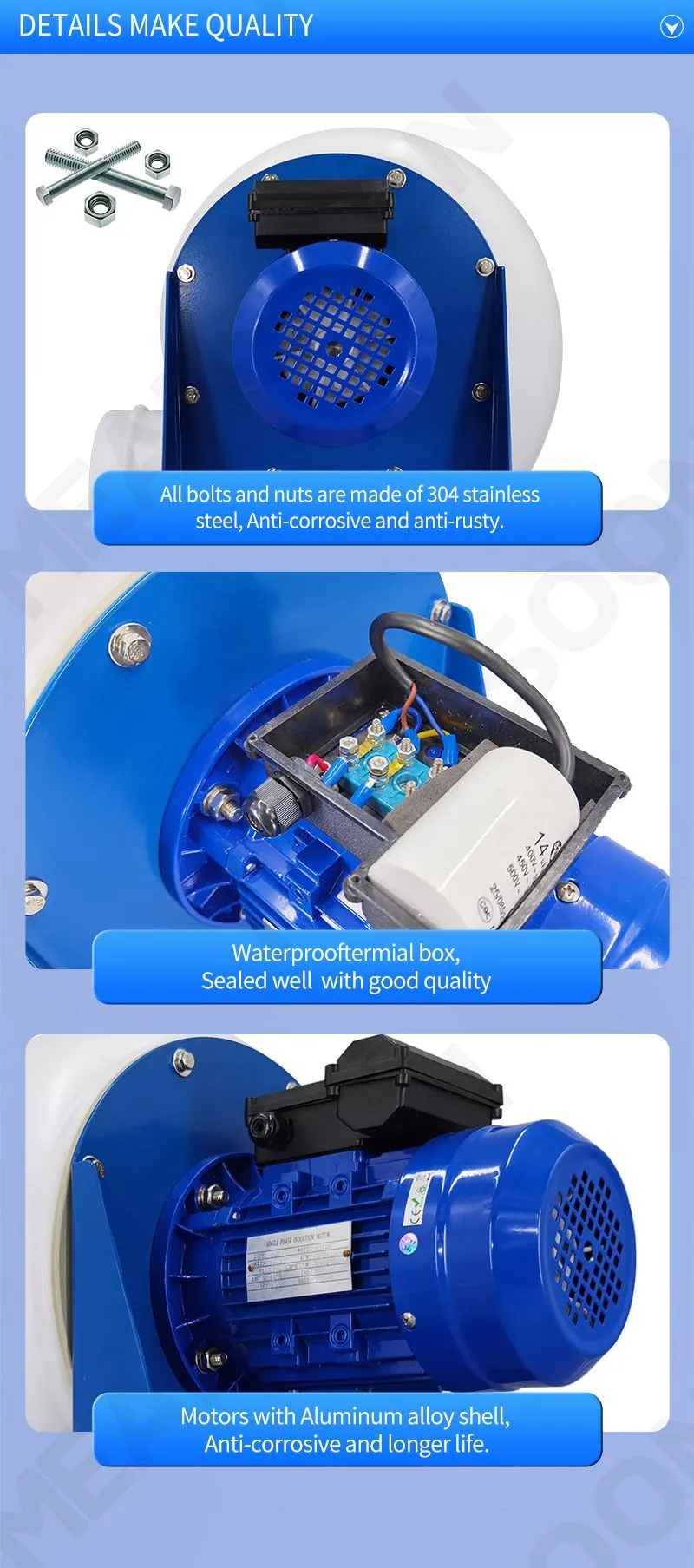

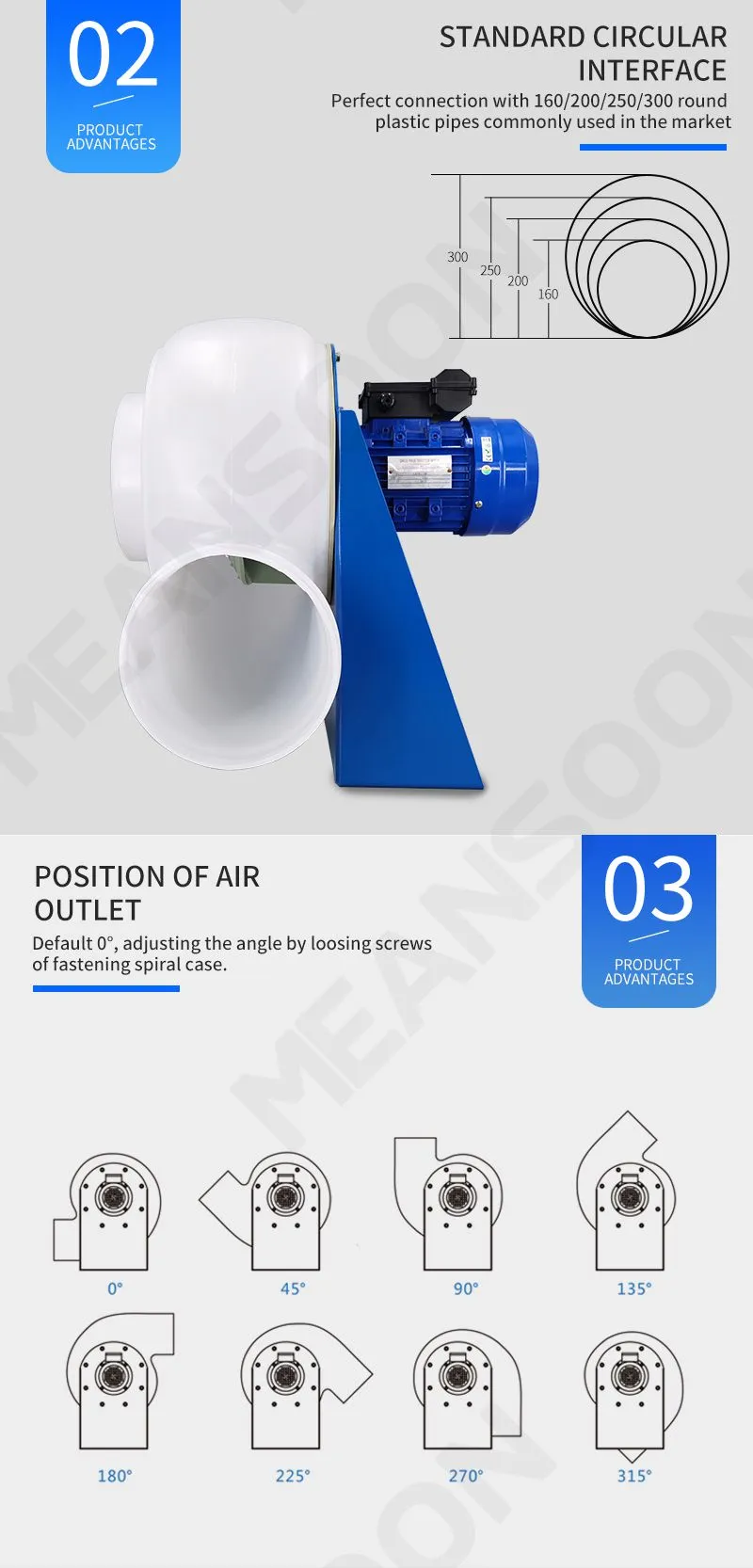

The spiral case is made of polyethylene(PE) plastic. Reversible and rotable to any the 8 standard discharge positions by 45°increments. All fan is with mounting bolts and nuts in 304 stainless steel.

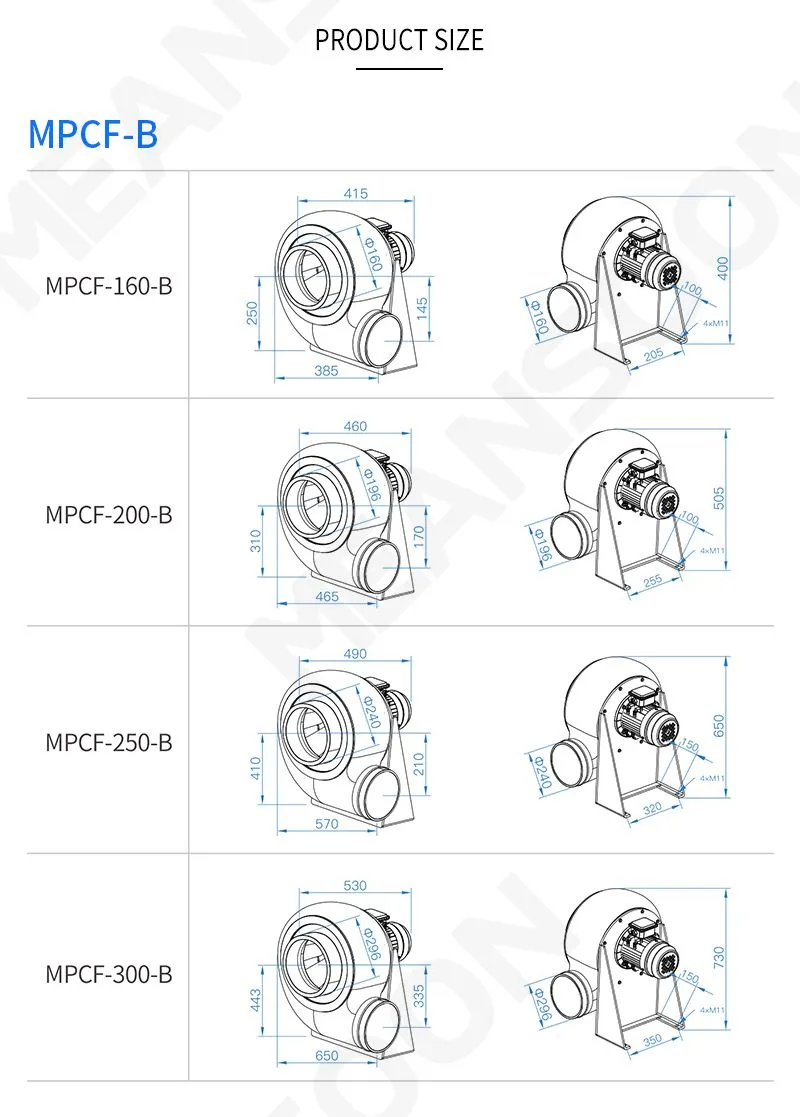

Inlet/outlet are round with standard size: 160, 200, 250, 300, which are good for plastic duct connection.
IMPELLERS
The impellers with backwrod curved blades are high efficiency made of polypropylene(PP) plastic are balanced dynamically
On balancing standard G2, 5 according to DIN ISO 1940.

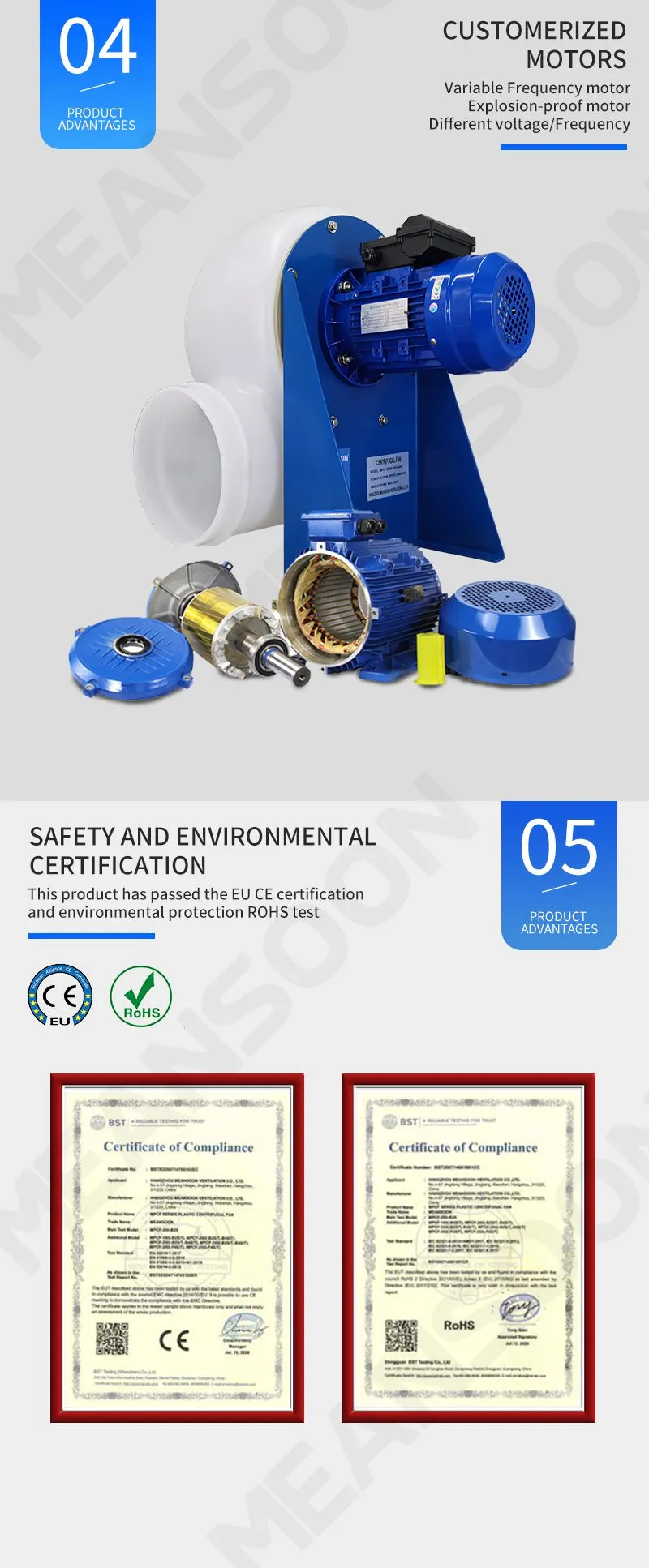

MOTORS
Direct driving, asynchronous, single or three phase, IP55, class F, B5 shape in 2-pole and
4-pole execution. Single speed: Three phase 380 V-50/60Hz, single phase 220V-50/60Hz. Explosion proof versions in accordance with ATEX Directive for three phase models is available...Motor is outside the airstream. All motors speed adjustable by variable frequency inverter drive.

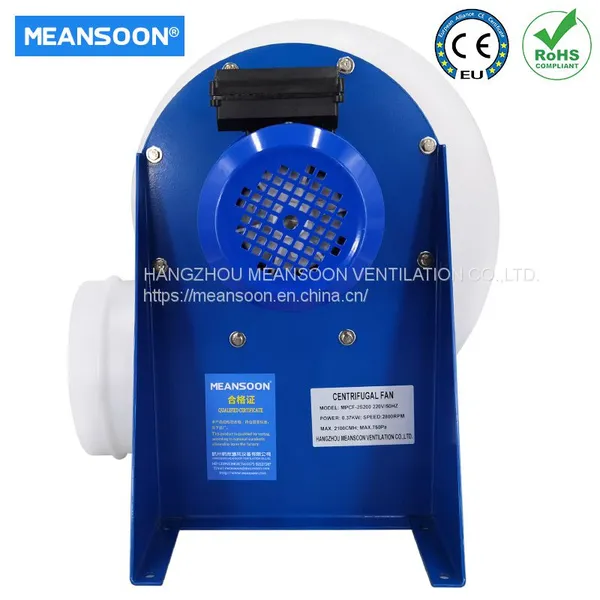

MOTOR SUPPORT
Metal stand constructed of epoxy coated in blue.
