Product Description
ASCB1 series intelligent miniature circuit breakers (hereinafter referred to as intelligent miniature circuit breakers) are used in low-voltage terminal power distribution networks in industrial, commercial, civil buildings and infrastructures in indoor buildings and similar places. The intelligent miniature circuit breaker is used in conjunction with the intelligent gateway to conduct real-time monitoring of the key electrical parameters of the power line, such as voltage, current,power, temperature, leakage, energy consumption, etc. , fault location and other functions. This series of products can choose single pole, 2 pole, 3 pole and 4 pole .
Product Parameter
Items | Value | |
Grade of shell | 63A | |
Rated voltage | 230V | |
Rated Current | 16A | |
Instantaneous unbuckle type | C | |
Rated short-circuit breaking capacity | 6000A | |
Protection | Over-current protection | Default 100% rated current alert， 110% Rated current trip with adjustable threshold |
Short-circuit protection | 5-10 Rated current for 0.04 seconds for circuit break protection | |
Overload protection | Default 100% rated power alert，110% Rated power trip with adjustable threshold | |
Over-voltage protection | Default 110% rated voltage alert，120% rated voltage trip with adjustable threshold | |
Under-voltage protection | Default 90% rated voltage alert，80% rated voltage trip with adjustable threshold | |
Over-temperature protection | Default 80℃ alert，100℃ trip, the threshold is adjustable | |
Mechanical life | 20000 | |
Electrical life | 6000 | |
Levels of protection | IP20 | |
Connection capacity | 1-35mm² | |
Elevation requirements | 2000m | |
Working temperature | -10℃～55℃ | |
storage temperature | -20℃-70℃ | |
Installation | Standard 35mm guide rail installation | |
Communication interface | RS485 | |
Protocol | Modbus-RTU | |
ASCB1 Series Intelligent MCB Function | ||||

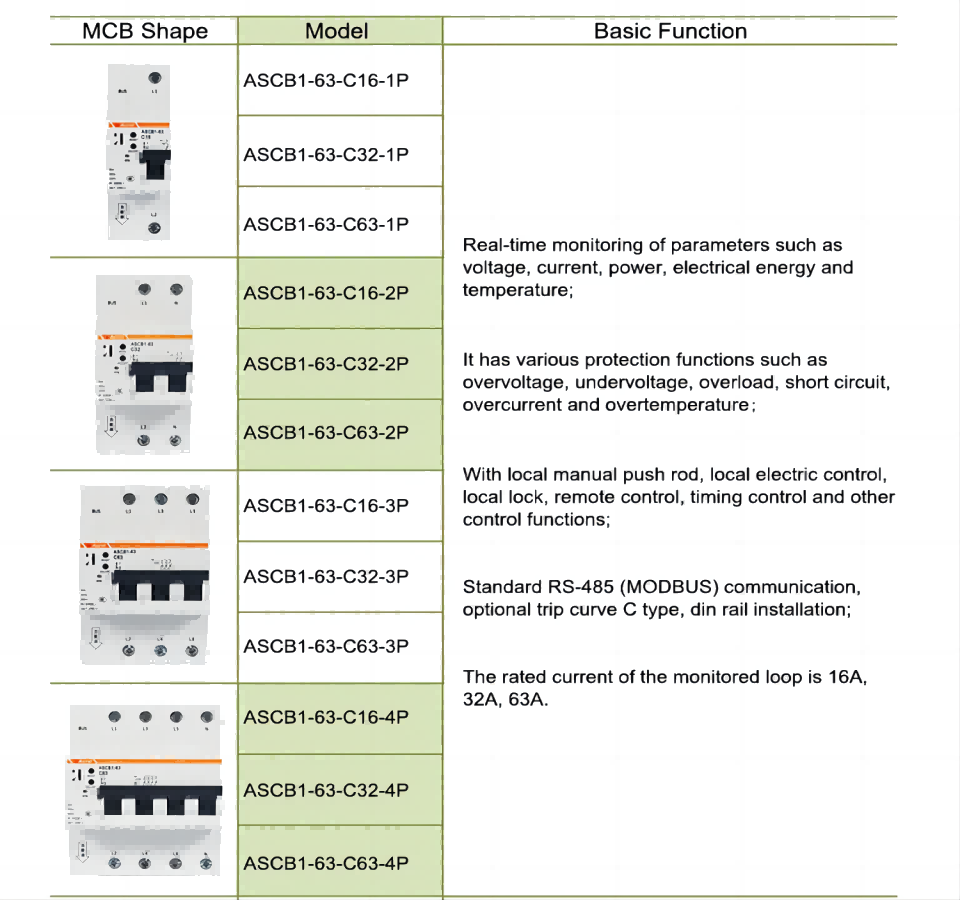

ASCB1-63 | · Can monitor voltage, current, power, power and temperature in real time · with overpressure, underpressure, overload, short circuit, overcurrent, and overtemperature and other protection functions · With local manual lever, local electric control, local lock, remote control, timing control and other control function · Guide rail type installation, optional pole number 1P / 2P / 3P / 4P · Standard RS-485 (MODBUS) communication; optional buckle curve type C / D | |||

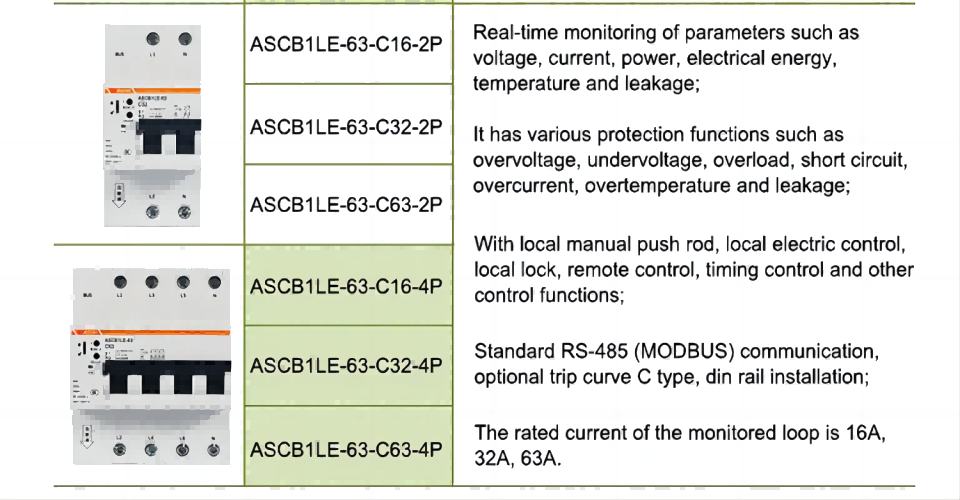

ASCB1LE-63 | · Real-time monitoring of voltage, current, power, electric energy, temperature and leakage and other parameters · With overvoltage, undervoltage, overload, short circuit, overcurrent, ultra-moderate leakage and other protection functions · With local manual lever, local electric control, local lock, remote control, timing control and other control functions ·Guide rail type installation, optional pole number 2P / 4P; standard RS-485 (MODBUS) communication; optional buckle curve type C /D type. | |||

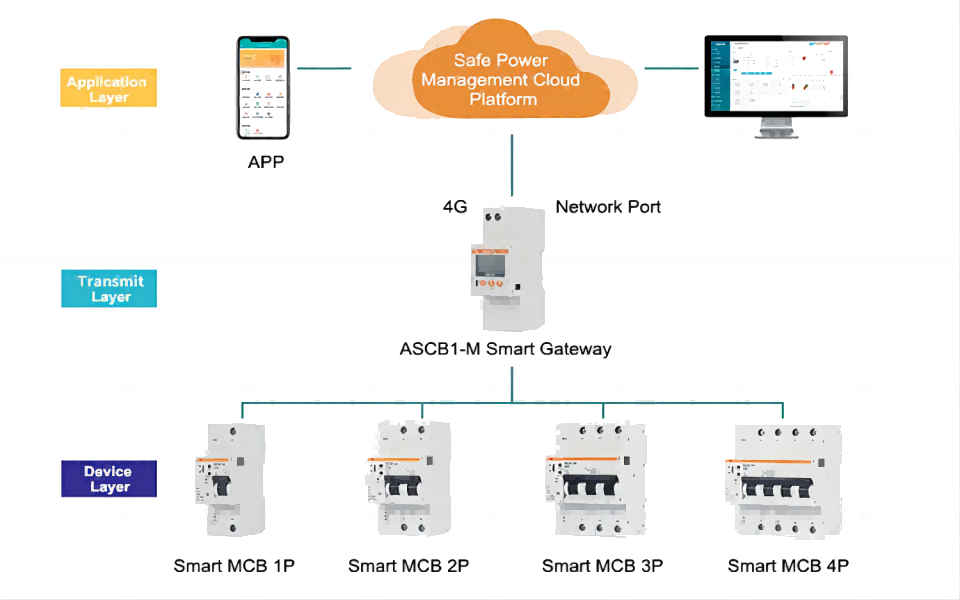

ASCB1 Smart Gateway Function | ||||
ASCB1-M-CE | · Can connect to up to 16 intelligent micro circuit breakers · See, the real-time data of voltage, current, power, power, temperature and leakage of each intelligent micro circuit breaker · You can view the fault, alarm and separation status of each intelligent micro circuit breaker · It can set and control the parameters for each intelligent micro circuit breaker · Din rail type installation, LCD LCD display · Support event logging; support RS485 communication · Support for Ethernet communication. | |||
ASCB1-M-4G | · It can connect to up to 16 smart micro circuit breakers · Can see the real-time data of voltage, current, power, power, temperature and leakage of each intelligent micro circuit breaker · Can view the fault, alarm and separation status of each intelligent micro circuit breaker · It can set and control the parameters for each intelligent micro circuit breaker · Din rail type installation; LCD LCD display · Support event logging; support RS485 communication · Support for 4G network communication | |||
Technical Parameters
Product Model | ASCB1-M-4G | ASCB1-M-CE | ||
Power Supply | AC 220V | |||
Consumption | ≤30W | |||
Communication | 4G | Ethernet | ||
Display | LCD dot-matrix | |||
Incident Record | Up to 20 alarm, fault and action records each | |||
Protocol | Modbus、MQTT and so on | |||
Elevation Requirements | 2000m | |||
Ambient Temperature | -10℃-55℃，24h the average temperature is not higher than 40℃ | |||
Environmental Requirements | No explosion hazard, no conductive dust, no sufficient corrosion of metal and damaged insulation, no significant vibration | |||
Relative Humidity | At + 40℃, the relative humidity of the air is 50% and can have high relative humidity at lower temperatures | |||
Storage Temperature | -20℃-70℃ | |||
Levels of Protection | IP20 | |||
Way to Installation | Standard 35mm guide rail installation | |||
