4 Ton Gas Steam Boiler Steam Boiler Manufacturer
- qingdao
- T/T
- 15 days
You May Like
-
FOB Quotation of Steam Boiler Exported to Malaysia by Sea
-
Steam Boiler in Use in Malaysia Industrial Steam Boiler
-
Steam Boiler in Use in Malaysia Industrial Steam Boiler6t Boiler
-
Steam Boiler in Use in Malaysia Industrial Steam Boiler10t Boiler
-
Export Electric Hot Water Boiler Fob
-
Manufacturer of Electric Hot Water Boiler in Bangkok FOB
Product Details
| Brand Name | Fenglan Boiler | Place of Origin | China | |
| Model Number | WNS4-1.25-YQ | Certification | Ex factory quality certificate | |
| Type | Natural Circulation | After-sales Service Provided | Overseas third-party support available | |
| Weight | 12T | Dimension(L*W*H) | 4600mm×2300×2600mm | |
| Condition | New | Style | Horizontal | |
| Fuel | Gas-fired | Usage | Industrial | |
| Output | Steam | Structure | Fire Tube | |
| Pressure | Low Pressure |
Product Description

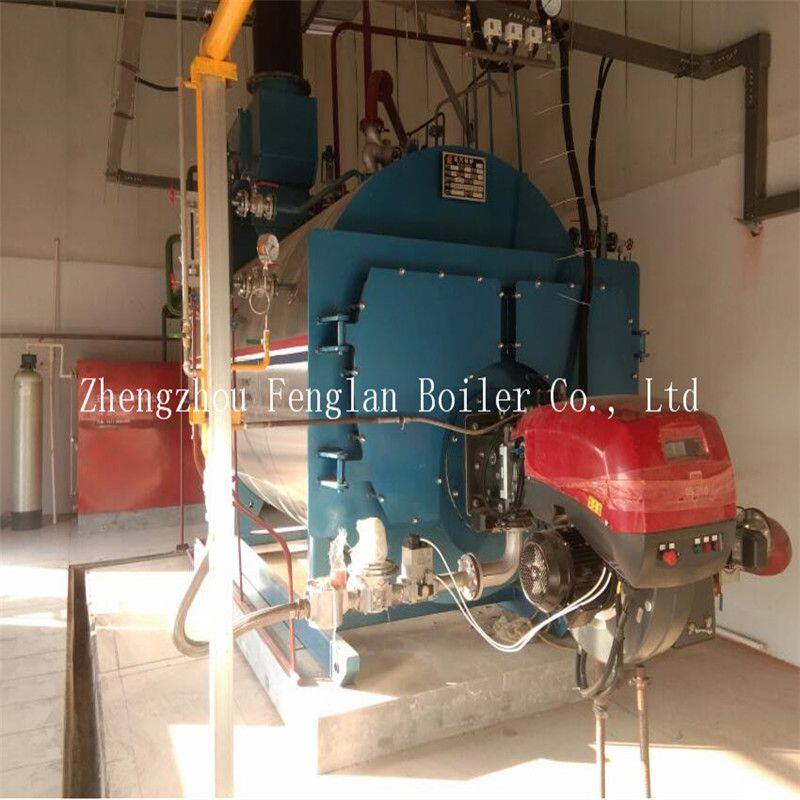

Performance description of 4-ton horizontal gas-fired steam boiler:
1. Boiler model: WNS4-1.25-YQ
2. Rated evaporation capacity: 4000kg/h
3. Rated steam pressure: 1.25Mpa
4. Steam temperature: 194 ℃
5. Hydraulic test pressure: 1.65Mpa
6. Feed water temperature: 20 ℃
7. Exhaust gas temperature: 86.07 ℃
8. Design thermal efficiency: 94.9%
9. Applicable fuels: natural gas, liquefied gas, biogas, gas, diesel, alcohol based fuel, etc
10. Fuel consumption: 297.3Nm ³/ H (calculation of low calorific value of natural gas)
11. Heating area of boiler: 92.3 ㎡ energy-saving device 70 ㎡
12. Low calorific value of natural gas: 35438kJ/Nm3
13. Superheated air coefficient: 1.1
14. Safe and stable operating condition range of boiler: 80% - 100%
15. Transport size of large boiler: 4800 × two thousand and three hundred × 2800mm
16. Boiler weight: 11T
17. Diameter of boiler main steam: DN100
18. Diameter of boiler safety valve: DN50
19. Stack diameter: Φ five hundred
20. Boiler water inlet: DN40
21. Boiler blowdown diameter: DN40
22. Boiler water volume: 8m ³
23. Boiler feed pump: 4KW
24. Tap water pressure: 0.3-0.5Mpa
25. Power supply of softened water: 220V 50HZ
