bga rework station price Latest WDS-650 Automatic Machine Power supply control PCB bga rework station with optical alignment

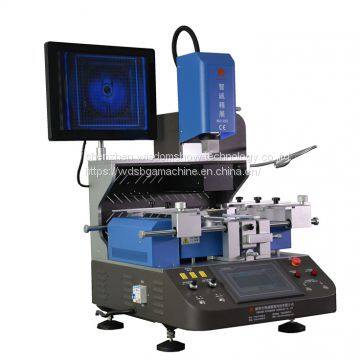

Latest WDS 650 Automatic Motherboard Repair Machine BGA Reballing Station

skype: Bea BGA     whatsapp: +8615019413375

Product Description

Independent 3 heating zones temperature control system

1.The upper and lower hot air heating,which can heat up at the same time from the top of he component to the bottom of the PCB;bottom IR heating,temperature precision control within ±1℃.8 segment temperature control independently.

2.Hot air district heating for BGA and PCB at the same time,and large area IR heater preheating up for the bottom of PCB to avoid completely PCB deformation during reworking,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.

3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.

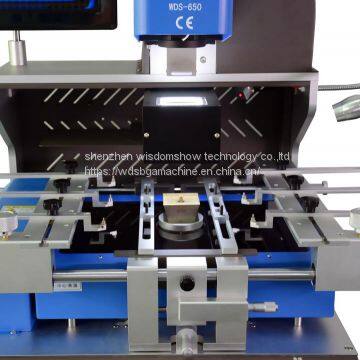

Precision optical alignment system

Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.

Multi-functional and humanized operation system

1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.

2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.

Superior safety protection function

With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.

Technology parameter

Company Information

Shenzhen Wisdomshow Technology Co., Ltd is a professional manufacturer of BGA rework station

with more than 10 years' experience.Motorola,Lenovo,Nvidia,Panasonic,Haier,Samsung,Philips

are our partners,repair laptop,desktop computer, ps3,xbox, motherboard repair success

rate is up to 99%.

Also,good quality BGA reballing accessories like BGA reballing station.BGA solder

ball,BGA stencils and laptop repair accessories are provided.

Why Choose WDS BGA Chip Repair Machine

1.Professional factory manufacturing bga rework station with over 10 years' experience,best production capability,best quality control,best service.

2.All models approved CE,Offer most competitive price.

3.100% QC inspection before shipment to ensure the machine delivered to customers’ end are perfect.

4.Speedy and high quality customer service and whole-life after-sale service.

5.Deliver goods to customer all over the world with speed and precision.

6.Have own factory dealing with machine production and sheet metal.

Service From Wisdomshow

1.Your inquiry will be replied in 24 hours ;

2.Offer free spare parts and service within one year of warranty,but all the other relative cost should be on the buyer's account;

3.Technology Support :Provide Demo operation video for training ;If you have time,welcome to our company,will arrange engineers to show you the operation;

4.Good and professional after-sales service;

5.Give great discount to AGENCY to ensure agents profit.

Packaging & Shipping

1. Individual standard export wooden box for 110v 220v bga automatic rework station wds620;

2. Delivery in 2 workdays after payment received;

3. Shipped by sea, by air, or by express such as DHL, UPS, TNT, EMS, FedEx etc;

4. Loading port: Shenzhen or Hongkong
