wds580 Hot air bga rework station automatic motherboard repair

wds580 Hot air BGA Rework Station motherboard repair

skype: Bea BGA     whatsapp: +8615019413375

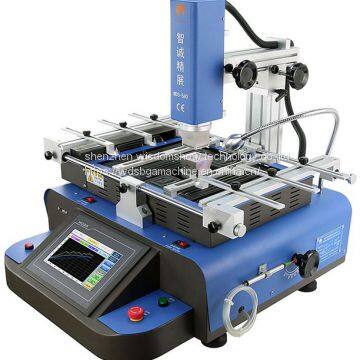

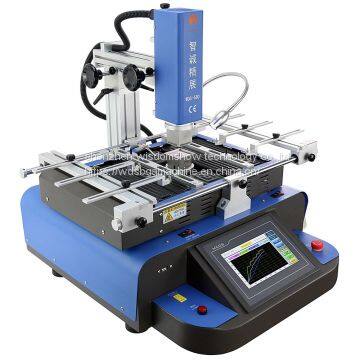

WDS-580 bga Repair Machine Product Description

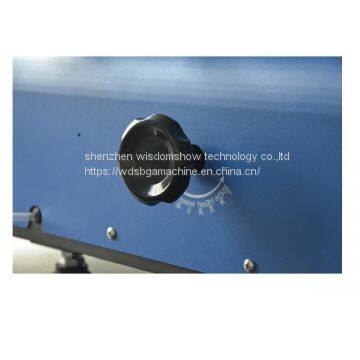

1. Adopted with Linear slider, so all the three axles (X, Y, and Z) can do fine tuning and quick orientation with perfect positioning accuracy and speedily maneuverability.

2. Equipped with touch panel interface and PLC controlling to ensure it work stably and reliably. And it can storage multiple temperature profiling data of users. With password protection and modification function while power on. The temperature profiles will be displayed on the touch screen.

3. Three temperature zones to heat up independently, hot air heat up between up and down zones, IR heat in the bottom, temperature precise control is in±3℃.The upper temperature zone can be moved freely according to needs, the second zone can be adjusted up and down. The top and bottom heaters can be set several segments control at the same time. IR heating zone can be adjusted output power in the light of operation requirements.

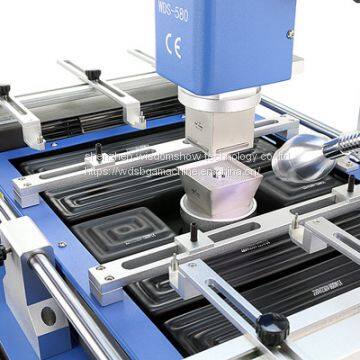

4. The hot air nozzle can be rotated in 360 degree, the IR heater in the bottom can heat up the PCB board uniformly.

5. High accuracy K-type thermocouple closed-loop controlling. It can test temperature accurately through external temperature measurement interface, PCB board positioned by closed V-shape slot. The flexible and convenient universal jigs can prevent any damage or PCB deformation as well as it is suitable for all size of BGA package.

6. Large power fan to cool down the PCB quickly. The built-in vacuum pump and external vacuum nozzle is able to take BGA chips out easily.

7. Having alarm prompt function after welding is done, specially added early warning function for convenient operation.

8. It has Passed CE certificate.  It is equipped with emergency stop switch and protection equipment to power off automatically when abnormal accident happened. Under this situation that temperature is out of control, circuit can automatically cut off the power with double over temperature protection function.

Technology parameter

Company Information

Shenzhen Wisdomshow Technology Co., Ltd is a professional manufacturer of BGA rework station

with more than 10 years' experience.Motorola,Lenovo,Nvidia,Panasonic,Haier,Samsung,Philips

are our partners,repair laptop,desktop computer, ps3,xbox, motherboard repair success

rate is up to 99%.

Also,good quality BGA reballing accessories like BGA reballing station.BGA solder

ball,BGA stencils and laptop repair accessories are provided.

Why Choose WDS BGA Chip Repair Machine

1.Professional factory manufacturing bga rework station with over 10 years' experience,best production capability,best quality control,best service.

2.All models approved CE,Offer most competitive price.

3.100% QC inspection before shipment to ensure the machine delivered to customers’ end are perfect.

4.Speedy and high quality customer service and whole-life after-sale service.

5.Deliver goods to customer all over the world with speed and precision.

6.Have own factory dealing with machine production and sheet metal.

Service From Wisdomshow

1.Your inquiry will be replied in 24 hours ;

2.Offer free spare parts and service within one year of warranty,but all the other relative cost should be on the buyer's account;

3.Technology Support :Provide Demo operation video for training ;If you have time,welcome to our company,will arrange engineers to show you the operation;

4.Good and professional after-sales service;

5.Give great discount to AGENCY to ensure agents profit.

Packaging & Shipping

1. Individual standard export wooden box for 110v 220v bga automatic rework station wds620;

2. Delivery in 2 workdays after payment received;

3. Shipped by sea, by air, or by express such as DHL, UPS, TNT, EMS, FedEx etc;

4. Loading port: Shenzhen or Hongkong
