MICRO MOTION 3500P1A05B1AEZZZ TRANSMITTER |CONTROLLER

Guizhou Yuanmiao Automation Equipment Co,Ltd
MICRO MOTION 3500P1A05B1AEZZZ TRANSMITTER |CONTROLLER thumbnail-1
MICRO MOTION 3500P1A05B1AEZZZ TRANSMITTER |CONTROLLER thumbnail-2
MICRO MOTION 3500P1A05B1AEZZZ TRANSMITTER |CONTROLLER thumbnail-3
MICRO MOTION 3500P1A05B1AEZZZ TRANSMITTER |CONTROLLER photo-1

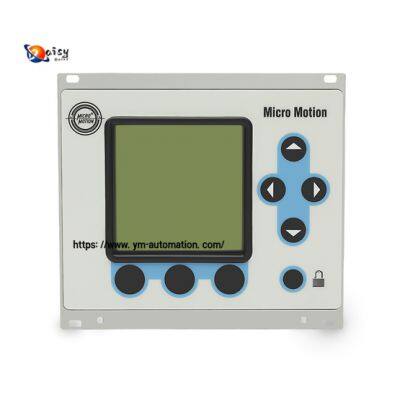

MICRO MOTION 3500P1A05B1AEZZZ TRANSMITTER |CONTROLLER photo-2

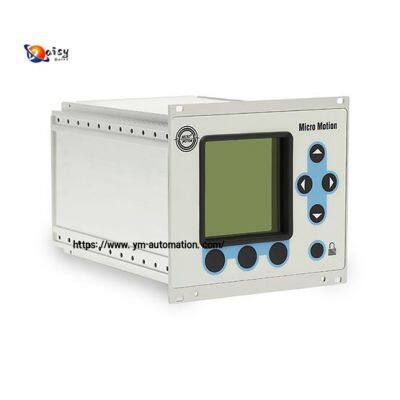

MICRO MOTION 3500P1A05B1AEZZZ TRANSMITTER |CONTROLLER photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Usage:
Low Frequency Coupling
Tuning:
Other
Filter:
Other
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Usage Low Frequency Coupling
Tuning Other
Filter Other


MICRO MOTION 3500P1A05B1AEZZZ" refers to a transmitter of Coriolis mass flow meters by Micro Motion, a brand under Emerson. This series is used for high-precision measurement of flow, density, and temperature for liquids and gases, widely applied in industries such as chemical, petroleum, food, and pharmaceutical sectors.
Core Parameters and Functions
  1. Measurement Capability

    • Mass flow accuracy: ±0.1% (liquids) or ±0.35% (gases)

    • Density accuracy: ±0.0005 g/cm³

    • Temperature accuracy: ±0.5°C (depending on the sensor model)

  2. Communication Protocols

    • Supports multiple industrial protocols including HART, Modbus RTU, Profibus PA/DP, and Foundation Fieldbus

    • Optional 4-20mA analog output (with HART overlay) or digital output

  3. Process Connections

    • Sensor interface: Compatible with various  (DN15-DN200) sensors from Micro Motion

    • Protection class: IP66/68 (NEMA 4X) for harsh environments

  4. Power Requirements

    • Power supply range: 18-30VDC (standard) or 85-265VAC (optional)

    • Power consumption: <20W

  5. Explosion-Proof Certifications

    • Optional explosion-proof ratings: ATEX, IECEx, CSA, FM, etc., suitable for hazardous areas

  6. Display and Configuration

    • Local LCD display (optional): Enables real-time display of multi-parameters like flow, density, and temperature

    • Remote configuration via MCT™ 100/200 software or HART handheld devices

Model Analysis

  • 3500P: Represents the 3500 series transmitter platform (supporting advanced diagnostics and multi-variable output)

  • 1: Input type (typically 1 indicates digital input)

  • A05: Communication protocol configuration (e.g., A05 may denote HART protocol)

  • B1: Output configuration (e.g., B1 may signify 4-20mA + HART output)

  • AE: Housing material and protection class (e.g., AE may refer to an aluminum explosion-proof enclosure)

  • ZZZ: Factory-customized code (may include special functions or calibration information



Typical Application Scenarios

  • Precise metering and batching of chemical raw materials

  • Trade measurement in oil and gas industries

  • Ingredient control in food and beverage sectors

  • High-precision fluid conveying in pharmaceutical industrie


Product Tags: MICRO MOTION , 3500P1A05B1AEZZZ , TRANSMITTER |CONTROLLER
