PROSOFT PLX31-EIP-MBS Ethernet

PROSOFT PLX31-EIP-MBS Ethernet thumbnail-3

PROSOFT PLX31-EIP-MBS Ethernet thumbnail-4

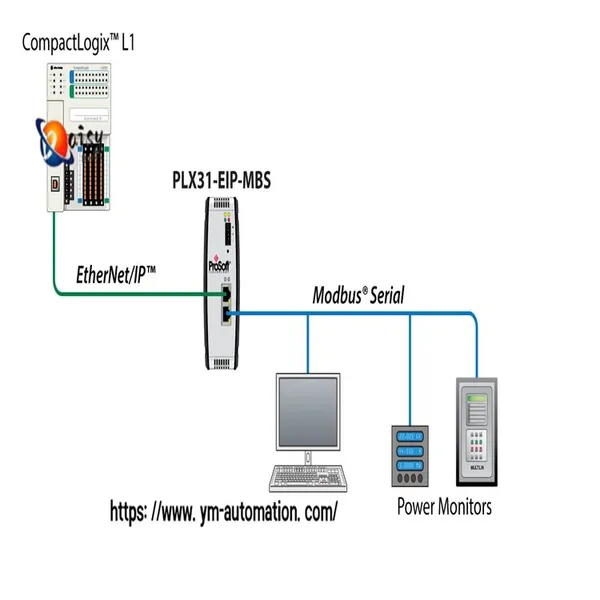

PROSOFT PLX31-EIP-MBS is a type of Ethernet/IP to Modbus serial communication gateway produced by Prosoft Technology. Its specific parameters are as follows:

Power Supply Parameters: The rated power supply is 24VDC, with an allowable range of 10 to 36VDC, and it is equipped with positive, negative, and ground terminals. The rated current is 300mA at 24VDC, and the maximum current is 610mA within the range of 10 to 36VDC.
Communication Interfaces: It has 1 10/100Mbps Ethernet port and 1 RS-232/422/485 serial communication port. The maximum Modbus serial data rate is 115200 baud, supporting Ethernet/IP (slave) and Modbus serial (master/slave) protocols.
Physical Characteristics: The dimensions are approximately 13.67cm × 5.05cm × 11.13cm, with a weight of about 0.24kg. It adopts DIN rail mounting, has a protection class of IP20, and complies with NEMA/UL open standards.
Operating Environment: The operating temperature ranges from -25℃ to 70℃ (-13°F to 158°F), the storage temperature ranges from -40℃ to 80℃ (-40°F to 176°F), and the relative humidity is 5% to 95% (non-condensing).
Other Parameters: It is equipped with LED indicators such as configuration (CFG), error (ERR), and power (PWR). It supports data priority setting, allows for safe module configuration through module switches, and has an SD card slot (optional SD card) for storing configuration files.

Send Inquiry to This Supplier
