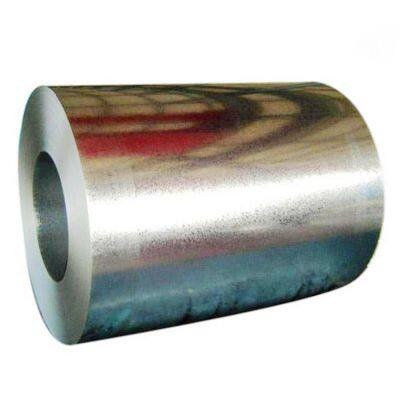

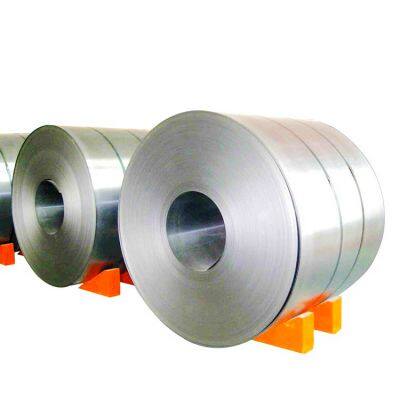

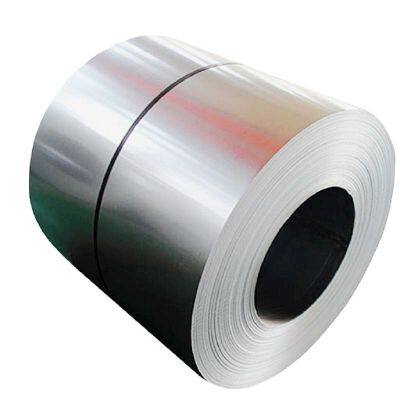

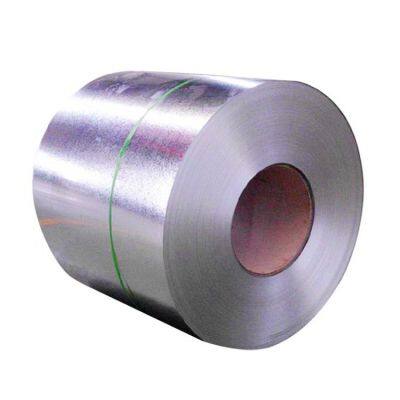

En Standard Chromated Hot DIP Galvanized Steel Coil with Regular Spangle

Galvanized coil is defined as cold rolled carbon steel sheet coated with zinc on both sides.
Zinc coating is considered to be one of the most effective and economical method of protecting base steel from a corrosive environment and severe weather change.
Zinc is more durable than pure steel according to chemical activity. Zinc is stable in dry air. If humid air, Zinc Carbonate will be formed as protection outside. Besides, zinc layer also sacrifices itself as a damage protection for the base steel sheet.
Detailed parameters are shown as following chart:

The core procedure of galvanizing process is putting the carbon steel sheet into the molten zinc pot, about 450 Celsius degree, then a zinc layer film adhere to the base carbon steel sheet. It's produced by the continuous hot dipping galvanizing process. So it's technically called hot dipped galvanized steel coil or sheet;

Simplifeid producing process outline:
Decoiling - Cleaning - Annealing - Zinc pot -Air knife - Cooling Tower -  Straightening and Passivation - Post-treatment - Recoiling

Detailed Steps Of The Galvanized Steel Sheet Processing

Step 1:
Pre-treatment: When the cold rolled coil arrives at the workshop,firstly going  through the uncoiler machine, through the degreasing section and the reduction furnace, the steel coil surface is cleaned and the components are adjusted to the proper ratio for the next galvanizing procedure.
Step 2:
Core section: The uncoiled steel sheet goes into the molten zinc pot. After the zinc pot, dense zinc layer adhere to the surface of the steel sheet. Then it is cooled and shaped by the cooling tower.
Step 3:
Post-processing: The steel sheet comes into the post-processing stage. Going through procedures including finishing, straightening and passivation, finally recoiling. At this point, the well known silver shining galvanized steel coil is done.

Spangle:
Galvanization or galvanizing is the process of applying a protective zine coating to the the base steel sheet,to prevent mechanical damage and corrosion.The size of zinc crystalline grain on galvanized coating surface is a visible and constant feature,which is known as "spangle". Different spangle types differs not only on appearance, but also on mechanical property, which is also classified for different application, as shown in the below chart:

1. Reliability: Zinc coating is considered to be one of the most effective and economical method of protecting base steel from a corroding environment and severe weather situation.

2. Environmental protection: Galvanizing process is faster than other methods, saving energy, and less pollution;

3. High Strength: zinc coating is equally and fully covered on base carbon steel sheet,forming an extra metallurgical structure as protection of the base steel.

4. Durability: 30 years in town, 105 years in suburban district.

Shipping solution: we build firm cooperation with experienced international shipping company as well as outstanding freight forwarder managers, offering full solution for shipment, including choose the right container or bulk, safe and firm reinforce method, shortest shipping period, and the suitable custom clearance documents material;
Or you can choose your designed freight forwarder;

Standard export packing:
water proof paper is inner packing, galvanized steel or coated steel sheet is outer packing , side guard plate , then wrapped by seven steel belt .

Fully strong export package suitable for ocean transportation, packed in waterproof paper/plastic foil, steel envelopes,strapped with metal bands, min 4 bands horizontal, 3 bands longitudinal.Add carton or steel sleeve in necessary.
1.4 widthwise bands and 4 longitudinal bands outside steel coil;
2.corrugated galvanized steel strip on inner and outer edges;
3.galvanized steel sheet and Kraft paper as the side wall protection.
4.galvanized steel sheet and Kraft paper wrapped around circumference and bore as protection.

Shandong Ruiqian Iron and Steel Co., Ltd. is located in Xingfu county, Boxing International Steel Trading Center. Our scale and reputation are both high ranking in China market with 20 years' trading experience. With the continuous development, our company's business scope is expanding to all over the world. Ruiqian Steel is committed to providing customers with high quality and cost effective galvanized steel products. With the belief of keeping promise and emphasizing quality, we have won the trust and loyalty of our customers.

Thickness test: measuring accurate thickness of the plate by vernier caliper
Width test: measuring coil width by band tape
Zinc coating test: measuring zinc thickness by special apparatus, applying ultrasonic wave technology.
Impact test: measuring steel plate extending ratio
Bending test: measuring plate bending property

1.Q:How long is your delivery time?
A: 7 days after receiving the deposit or L/C at sight.

2.Q: Do you provide samples ? is it free or extra charged?
A:Sample is free, delivery freight would be on you.

3.Q:What's your payment terms?
A:LC,T/T,DDP,DDU,OA,and other payment terms can be discussed;

4.Q:How can you get a quick quotation?
A:Several parameters are necessary,such as:thickness,width,length,quantity,RAL colour,zinc coating,colour coating,delivery time,destination port; If you don't have these parameters, please tell us your application situation, your working plan with this product, then we can offer you best solution;
