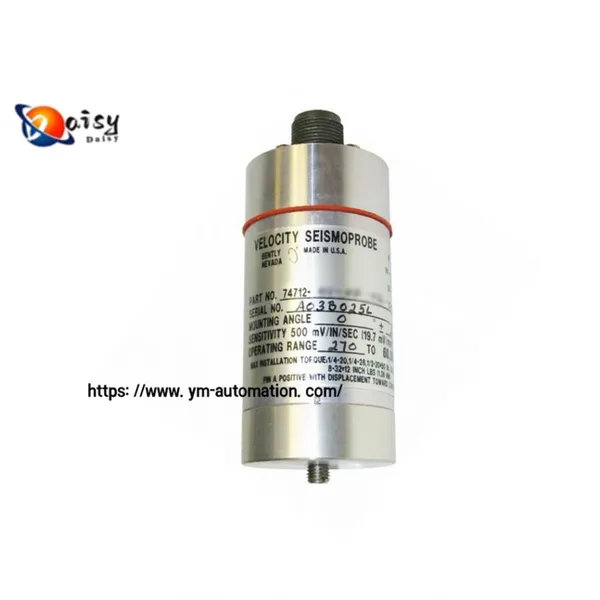

BENTLY 74712-06-05-03-00 Speed Sensor photo-2
BENTLY 74712-06-05-03-00 Speed Sensor photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Structure:
Other
Electrolyte:
Other
Manufacturing Material:
Other
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Other
Electrolyte Other
Manufacturing Material Other
Tuning Other
Filter Other
Packaging Type Other
Capacitance Other
BENTLY 74712-06-05-03-00 is a speed sensor. The following is the detailed data sheet:
  1. Basic Information:

    1. Type: High-temperature two-wire sensor.

    2. Application: Used to measure the absolute vibration speed of bearing housings, enclosures or other key structures, providing critical data for monitoring the health status of bearings, enclosures and rotating equipment.

  2. Sensitivity: 20mV/mm/s (500mV/in/s) at 100Hz (6000cpm), with an accuracy of ±5%.
  3. Frequency Response: From the minimum operating frequency to 1kHz (60,000cpm), the typical value is +0 to ±3dB.
  4. Transverse Sensitivity: ±10%.
  5. Shock Resistance: Can withstand a mechanical shock of 50g peak acceleration along the non-sensitive horizontal axis.
  6. Temperature Range: Operating temperature is -29℃ to +204℃ (-20°F to +400°F).
  7. Installation-related:

    1. Mounting Angle: As indicated by "-06" in the model, the mounting angle is 0±100, and the minimum operating frequency is 10Hz (600cpm).

    2. Mounting Base: As indicated by "-05" in the model, the mounting base is without a base, with a 1/2 inch 20UNF-3A stud bolt.

    3. Connector: As indicated by "-03" in the model, the connector is top-mounted on the terminal block.

  8. External Dimensions: The typical height is 102mm (4in), and the typical diameter is 41mm (1.6in).
  9. Weight: Approximately 0.48kg.
